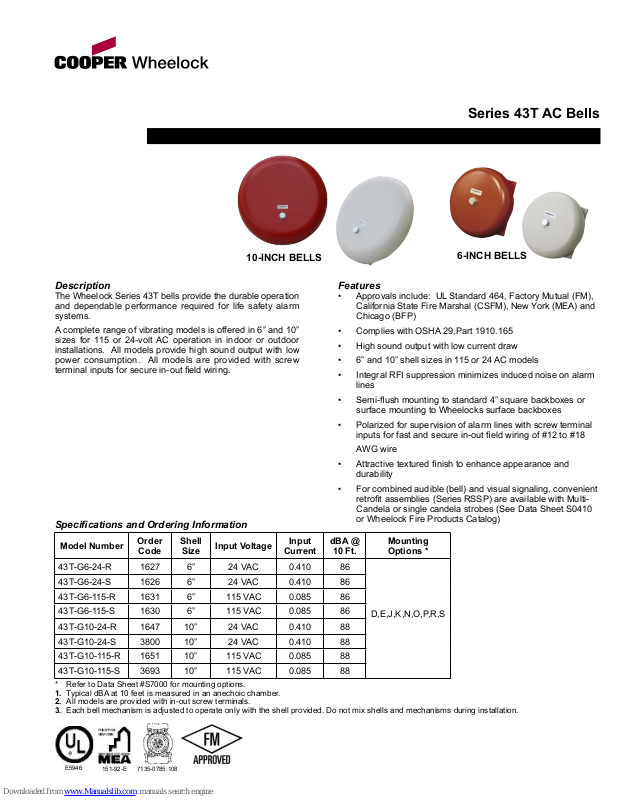

Series 43T AC Bells

10-INCH BELLS

Description

The Wheelock Series 43T bells provide the durable operation
and dependable performance required for life safety alarm
systems.

A complete range of vibrating models is offered in 6” and 10”
sizes for 115 or 24-volt AC operation in indoor or outdoor
installations. All models provide high sound output with low
power consumption. All models are provided with screw
terminal inputs for secure in-out field wiring.

Features

• Approvals include: UL Standard 464, Factory Mutual (FM),
California State Fire Marshal (CSFM), New York (MEA) and
Chicago (BFP)

• Complies with OSHA 29,Part 1910.165

• High sound output with low current draw

• 6” and 10” shell sizes in 115 or 24 AC models

• Integral RFI suppression minimizes induced noise on alarm

6-INCH BELLS

lines

• Semi-flush mounting to standard 4” square backboxes or
surface mounting to Wheelocks surface backboxes

• Polarized for supervision of alarm lines with screw terminal
inputs for fast and secure in-out field wiring of #12 to #18

AWG wire

• Attractive textured finish to enhance appearance and
durability

• For combined audible (bell) and visual signaling, convenient
retrofit assemblies (Series RSSP) are available with Multi-
Candela or single candela strobes (See Data Sheet S0410

Specifications and Ordering Information

Model Number

Order

Code

Shell

Size

Input Voltage

Input

Current

or Wheelock Fire Products Catalog)

dBA @

10 Ft.

Mounting
Options *

43T-G6-24-R 1627 6” 24 VAC 0.410 86

43T-G6-24-S 1626 6” 24 VAC 0.410 86

43T-G6-115-R 1631 6” 115 VAC 0.085 86

43T-G6-115-S 1630 6” 115 VAC 0.085 86

D,E,J,K,N,O,P,R,S

43T-G10-24-R 1647 10” 24 VAC 0.410 88

43T-G10-24-S 3800 10” 24 VAC 0.410 88

43T-G10-115-R 1651 10” 115 VAC 0.085 88

43T-G10-115-S 3693 10” 115 VAC 0.085 88

* Refer to Data Sheet #S7000 for mounting options.

1. Typical dBA at 10 feet is measured in an anechoic chamber.

2. All models are provided with in-out screw terminals.

3. Each bell mechanism is adjusted to operate only with the shell provided. Do not mix shells and mechanisms during installation.

E5946

151-92-E

7135-0785:108

Architects and Engineers Specifications

TO NEXT

APPLIANCE

OR EOLR

FROM
PRECEDING
APPLIANCE OR
FACP

+

-

GND

The alarm signals shall be Wheelock Series 43T Bells or approved equal. They shall be UL Listed for Fire Protective
Service with models for vibrating operation and optional steel shells from 6” to 10” diameter. Sound output at 10 feet
shall range up to 88 dBA. The bells shall semi-flush mount to standard 4” square backboxes or surface mount to
Wheelock indoor BB backbox or outdoor WBB backbox. All bell models shall be polarized for line supervision and
shall have screw terminals for in-out field wiring. The finish on all models shall be textured enamel.

Wiring

(All Bell Models)

Wheelock products must be used within their published specifications and must be PROPERLY specified, applied, installed, operated, maintained and
operationally tested in accordance with their installation instructions at the time of installation and at least twice a year or more often and in accordance
with local, state and federal codes, regulations and laws. Specification, application, installation, operation, maintenance and testing must be performed
by qualified personnel for proper operation in accordance with all of the latest National Fire Protection Association (NFPA), Underwriters’ Laboratories
(UL), National Electrical Code (NEC), Occupational Safety and Health Administration (OSHA), local, state, county, province, district, federal and other
applicable building and fire standards, guidelines, regulations, laws and codes including, but not limited to, all appendices and amendments and the
requirements of the local authority having jurisdiction (AHJ).

WARNING: PLEASE READ THESE SPECIFICATIONS AND ASSOCIATED INSTALLATION INSTRUCTIONS CAREFULLY BEFORE US­ING, SPECIFYING OR APPLYING THIS PRODUCT. FAILURE TO COMPLY WITH ANY OF THESE INSTRUCTIONS, CAUTIONS OR WARN­INGS COULD RESULT IN IMPROPER APPLICATION, INSTALLATION AND/OR OPERATION OF THESE PRODUCTS IN AN EMERGENCY
SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE, AND SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.

NOTE: Due to continuous development of our products, specifications and offerings are subject to change without notice in accor­dance with Wheelock Inc. standard terms and conditions.

273 Branchport Avenue
Long Branch, NJ 07740
Phone: [phone]
Fax: [phone]
www.cooperwheelock.com

WE ENCOURAGE AND SUPPORT NICET CERTIFICATION

3 YEAR WARRANTY

Made in USA

S0600 43T 06/06
