M2000/M800
USER'S GUIDE
HARDWIRED
CONTROL PANELS
Contents
Introduction .................................................................................... 1
About the Alarm System .......................................................................... 1
User Codes and Proximity Tags .......................................................................... 2
Telecommands ..................................................................................................... 2
Keypads ................................................................................................................ 2
Keypad Features .................................................................................................. 3
Zones .................................................................................................................... 4
Wards ................................................................................................................... 4
Operating your Alarm System ...................................................... 5
Setting Your Alarm System ...................................................................... 5
Setting Additional Wards ...................................................................................... 8
Setting Ward Groups ............................................................................................ 9
Unsetting Your Alarm System ................................................................ 10
Silencing an Alarm ................................................................................. 13
Resetting the System ............................................................................. 14
Obtaining a Remote Reset Code ....................................................................... 15
Other Operations ................................................................................... 16
Special User Codes ............................................................................................ 16
Panic Alarm at Keypad ....................................................................................... 16
Using a Telecommand ................................................................. 17
Setting ................................................................................................................ 18
Unsetting ............................................................................................................ 18
Troubleshooting ........................................................................... 19
Setting the System with Zones Active .................................................... 19
Overview ............................................................................................................. 19
Single Error Tone ............................................................................................... 19
“Dee Dah Dee Dah...” ......................................................................................... 20
Alert Messages ...................................................................................... 21
Other Messages ..................................................................................... 23
1
Introduction
This guide describes how to set and unset
your intruder alarm system. It also describes
how to silence the sounders in the event of
an alarm, and reset the system ready for
use again.
For more complex tasks, or if you need to
know how to program the system
1
, please
read the Manager’s Manual.
To ensure problem-free operation, discuss
the system with your alarm company or
system manager before operating it.
About the Alarm System
The system comprises several components,
such as keypads and sensors, linked to a
control unit. The control unit is hidden out of
sight, and may be connected to an external
sounder and strobe light to give an audible
or visible alarm.
The control unit may also be connected to a
remote Alarm Receiving Centre (ARC). The
ARC is responsible for calling the police as
a result of an alarm, and acts as a filter to
prevent false alarms reaching the police.
If your system is connected, you must fully
understand how to operate the alarm
system to avoid false alarms. Too many
false alarms may result in the police
refusing to respond to your alarm system.
1
The footnotes at the bottom of some pages are there to help the Installer or the system manager.
2
User Codes and
Proximity Tags
To operate the system you must have a
numeric “user code” or a plastic “proximity
tag”.
A user code is a unique 4 or 6
1
digit number
assigned to you by the system manager.
You must key in the code at the keypad
every time you wish to operate the system.
Alternatively, you may have a proximity tag:
a small slip of plastic containing a radio
transmitter. To use the tag hold it up to the
keypad, no more 100mm away.
Once you have keyed in your user code or
presented your tag, the keypad display will
guide you in what to do next.
Telecommands

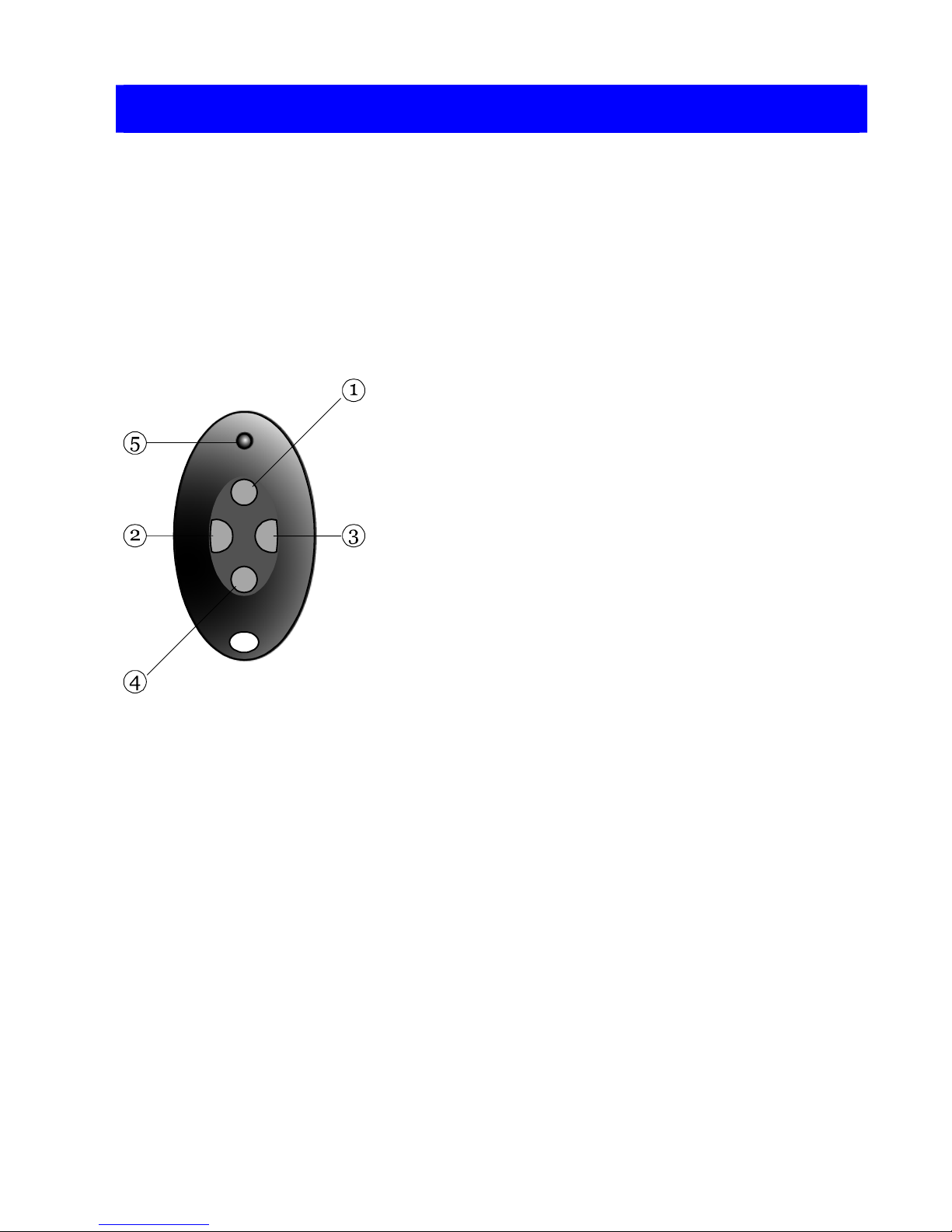

A telecommand is a remote control device
that you can use to set and unset wards (or
the whole system) without using a keypad.
See page 17 for more details.
Keypads
Your alarm system will have at least one,
and possibly more, keypads located around
the premises.
From the keypad you can set and unset the
alarm system, and also program and test it.
The keypad may also include a proximity
tag reader, which allows you to use a tag in
place of an access code.
1
Engineer option 47
3
Keypad Features
1. Display: Normally shows the
date, time and a banner message
(chosen by your alarm company
1
).
When you operate the system, the
display shows: text to guide you,
alert messages, and other system
information. The instructions in this
guide often refer to the display.
2. Green power indicator:
Glows steadily when power is
present.
3. Function indicator: By
default, this indicates that there is
more than one alert message to
reset (page 14). The indicator can
be programmed by an engineer
2
to
show other conditions.
4. Keys:
0 to 9
Key in user codes or
choose wards to set
| ¬
Scroll to the next/previous
option.
[
Accept options shown
on the display.
r
Change the setting of the
displayed option.
]
Exit the displayed
option without
setting/unsetting the
system.
Menu (operates only after
entering user code). See
the Manager's Manual.
5. Flap A protective flap. Close
to protect the keys
when not in use.
1
Engineer option 75
2
Engineer option 34; by changing keypad output to follow an event other than "Pending"
4
Zones
The alarm system has a number of “zones”.
Each zone has a sensor, such as a
movement detector or door contact, that is
monitored by the alarm system control unit.
The control unit gives each zone a unique
four digit number. The installer can give
zones names to remind you of their location.
Your alarm company has configured each
zone to respond in a certain way when it is
activated, depending whether the system is
set or unset. For example, a zone with a
movement detector may cause a full alarm
when triggered while the alarm system is
set.
Wards
Workshop
Ward 5
Sales Office
Ward 1
Accounts Office
Ward 2
Workshop
Ward 3
Warehouse
Ward 4
The alarm company groups zones into
wards, each of which can be set and unset
independently.
The alarm system manager gives users
access to one or more wards as needed.
You can set and unset only those wards to
which you have access.
The alarm company can also group wards
into groups. Your user code or proximity tag
may be allowed to set and unset groups of
wards.
5
Operating your Alarm System
Setting Your Alarm System
To set the system or a ward carry out the
following steps:
1. Identify yourself at the keypad
2. Choose the ward(s) you want to set.
3. Leave the premises and complete setting.
)
First, check that everyone has left all
relevant areas, and close all doors and
windows securely. You cannot set the
system while a zone is active (see page
19).
BANNER TEXT
17:30 Sun 01 JAN
1. Identify Yourself:
At the keypad, key in your user code or
present your proximity tag.
)
If you change your mind, you can press
] to exit without setting the system.
Set Selection
Ward > **......
2. Choose Wards:
The bottom line of the display uses a "*"
character to show the wards you can
set
1
. In this example, you can set wards
1 and 2, but not wards 3-8
1
Your user code settings (User option 8-1) determine the wards you can set
6
To Choose All Wards (Full Set
1
):
If you want to set all your wards, press
[ and leave the premises (see the
next page).
To Choose One Ward
If you want to set only one ward, press
the numeric key of the ward to set. For
example, press 2 to set ward 2.
Set Ward >2?
The top line of the display shows the
ward you have selected. If you want to
select a different ward, use the | or ¬
key.
The bottom line shows the ward name,
if the installer has added it
2
.
Press [ to set the selected ward.
Leave the premises (see the next
page).
ENT to Set With
Zones Omitted
ENT to Set With
Zones Shunted
You will see a message if zones have
been omitted (User option 1) or shunted
(User option 2). Press [ and leave the
premises (see the next page).
1
Sets all wards assigned in User option 8-1, providing they are also in Engineer option 25-9 (ENT Key Sets)
2
Using User option 7-2
7
Exit Now
Arming System
3. Leave the Premises and Complete
Setting
Leave by the designated exit route. The
internal sounder gives a tone to warn
you that the system is setting. (Note that
the installer may have disabled the
tone
1
.)
Close the final door and press the exit
terminator button (if fitted).
17:31 Sun 01 JAN
When the internal sounder stops, the
system is set.
)
If the exit tone changes to an alarm
tone, refer to page 13.
)
Zones may have been omitted from
setting
2
.
1
Engineer option 22, Silent Set
2
User option 1 or 2-1
