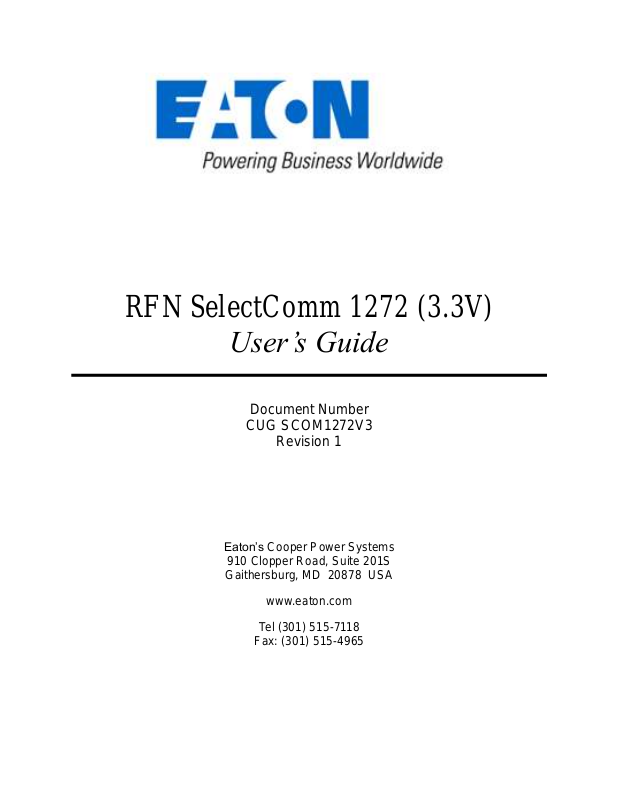

Cooper Power Systems SCOM1272V3 Users manual

RFN SelectComm 1272 (3.3V)

User’s Guide

Document Number

CUG SCOM1272V3

Revision 1

Eaton’s Cooper Power Systems

910 Clopper Road, Suite 201S

Gaithersburg, MD 20878 USA

www.eaton.com

Tel [phone]

Fax: [phone]

Contents

1 About the RFN SelectComm 1272 (3.3V) ............................................................................................. 3

2 Regulatory Notices................................................................................................................................. 4

2.1 Regulatory Notices - English ............................................................................................................. 4

2.2 Regulatory Notices - French .............................................................................................................. 6

3 RFN SelectComm 1272 (3.3V) Specifications ...................................................................................... 9

CUG SCOM1272V3, Revision 1 2 RFN SelectComm 1272 (3.3V) User’s Guide

1 About the RFN SelectComm 1272 (3.3V)

The RFN SelectComm 1272 (3.3V) is a radio frequency communications device designed
for use in Eaton radio communications products. The RFN SelectComm 1272 (3.3V)
provides a 915 MHz radio interface to an RF mesh network.

The RFN SelectComm 1272 (3.3V) operates from a regulated power source of 3.3VDC,
received from the host device. The radio modules operate in license-free bands at 915
MHz (902.75 to 927.25 MHz). The RFN SelectComm 1272 (3.3V) is fully compatible with
mesh network hardware, protocols and operations. Five radio transmission data rates are
available: 9.6 kb/s, 19.2 kb/s, 38.4 kb/s, 76.8 kb/s and 153.6 kb/s. The transmission
power of the 915 MHz radio is adjustable from 30 dBm to -20 dBm.

CUG SCOM1272V3, Revision 1 3 RFN SelectComm 1272 (3.3V) User’s Guide
