Page 1
www.cooper-pegler.com
CP3 & CP15
2000 Series
Instruction book
584901
Multi Language
Page 2
Illustrationstechnical information and data in this book are to the best of our belief correct at
the time of printing. As it is Hozelock-Exel policy permanently to improve our
products,
we reserve the right to make changes in design, features, accessories,
and maintenance instructions at any time and without notice.
is without any obligation in relation to implements purchased
before or
after such changes.
cannot under take any responsibility for possible omissions or inaccuracies
in this publication, although everything possible has been done to make it complete
and correct.
As this instruction book covers more models and features or equipment, which are available in
certain countries only, please pay attention to paragraphs dealing with precisely your model.
Published and printed by Hozelock-Exel.
We congratulate you for choosing a Cooper Pegler
plant protection product. The reliability and
y
of this product depend upon your care. The
step
is to carefully read and pay attention to this instruction book. It contains essential information for the
use and long life of this quality product.
Hozelock-Exel
Hozelock-Exel
Page 3
GB Instructions
E Instrucciones
F Notice d'utilisation
D Bedienungsanleitung
DK Betjeningsvejledning
Page 4
2
Assembly Montaje Montage Montage Montering
Operation Functionamento Fonctionnement Wirken Funktion
Nozzle choice Seleccion de Choix des Düsenwahl Dysevalg
boquillas buses
Safety Seguridad Sécurité Sicherheit Sikkerhed
Adding Admision de Incorporation Beifügung von Kemikali echemicals quimicos productos produits Chemikalien påfyl dning
Nozzles Boquillas Buses Düsen Dyser
Calibration Calibracion Etalonnage Kalibrierung Kalibre ring
Records Tabla de trabajo Enregistrements Arbeits- Skem a
schema
Cleaning Limpieza Nettoyage Reinigung Rengøring
Fault nding Localización Incidents de Fehlerort Fejlf inding
de defectos fontionnement bestimmung
Specications Especicaciones Spécications Technis che Specikationer
noitakifizepSsacincet
CE Declaración CE Conformité CE EG-Konformi- EU-erklæri ng
declaration tätserklärung
1
2
3
4
5
6
7
8
9
10
11
12
GB E F D DK
Page 5
3
Assembly Montaje Montage Montage Montering
OK
1.1
1.1
OK
1.1
1.1
1.1
1.1
1.1
1.2
1.3
1.4
1.5
1
T024-0110 T024-0111 T024-0067 T0 24-0025 T02 4-0038 T024-0113 T024-0066 T024-0112
Page 6
4
Assembly Montaje Montage Montage Montering
1.2
1.2
OK
1.2
OK
1.2
OK
1.2
1.2
1
T024-0028 T024-0029 T024-0114 T024-0031 T024- 0032a T024-0071a T024-0076 T024-0072
1.2
Page 7
5
Assembly Montaje Montage Montage Montering
1.3
1.4
1.4
1.4
1.3
1.3
1.3
1.3
1.4
1.3
1
T024-0035 T024-0077 T024-0039 T024-0107 T02 4-0036 T024-0037 T024-0049 T024-0050

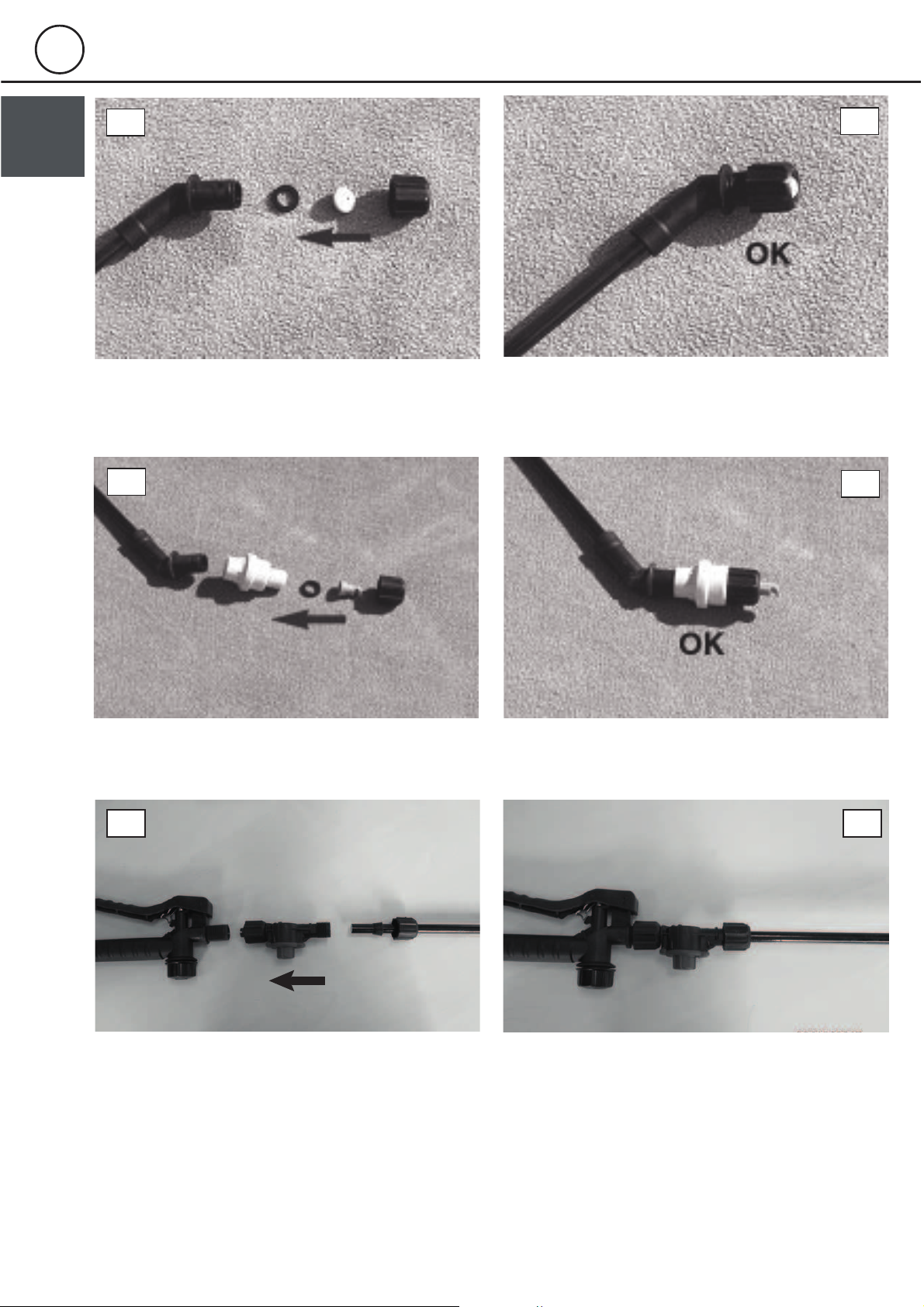

Page 8
6
Assembly Montaje Montage Montage Montering
1
1
1.5
1.5
1.5
1.5
Or O Ou Oder Eller
OK
Pressure regulator Regulador de presión Régulateur de pression Druckregulierer Trykregulator
1.4 1.4
Page 9
7

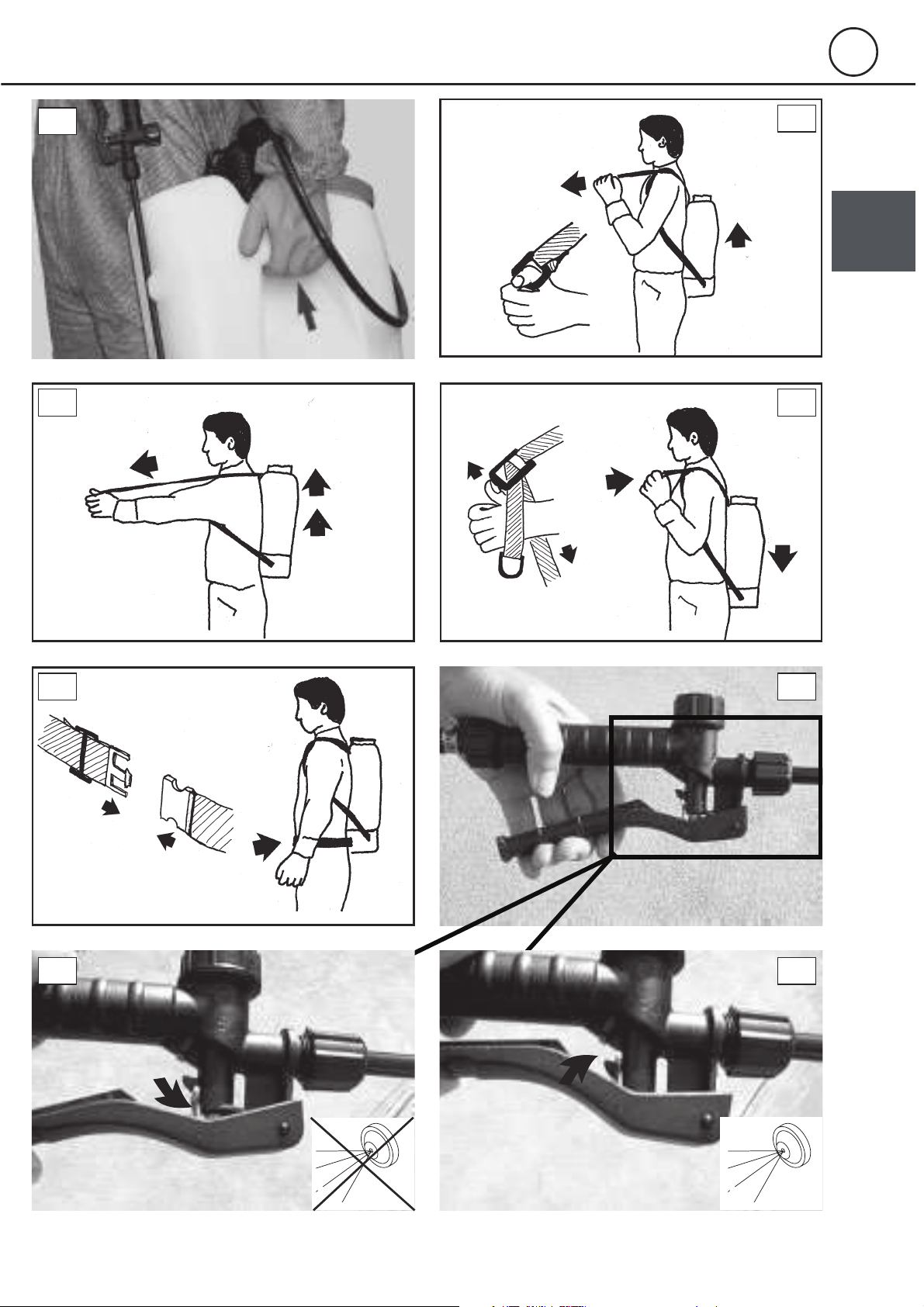

Operation Functionamento Fonctionnement Wirken Funktion
2
2
2.1
2.2
2.3 2.4
2.5
2.5 2.5
2.5
Page 10
8
3 bar
45 psi
(approx.)
OK
NO!
Nozzle choice Seleccion de Choix des buses Düsenwahl Dysevalg
boquillas
1 bar
15 psi
3
Pressure regulator -
Regulador de presión -
Régulateur de pression -
Druckregulierer - Trykregulator

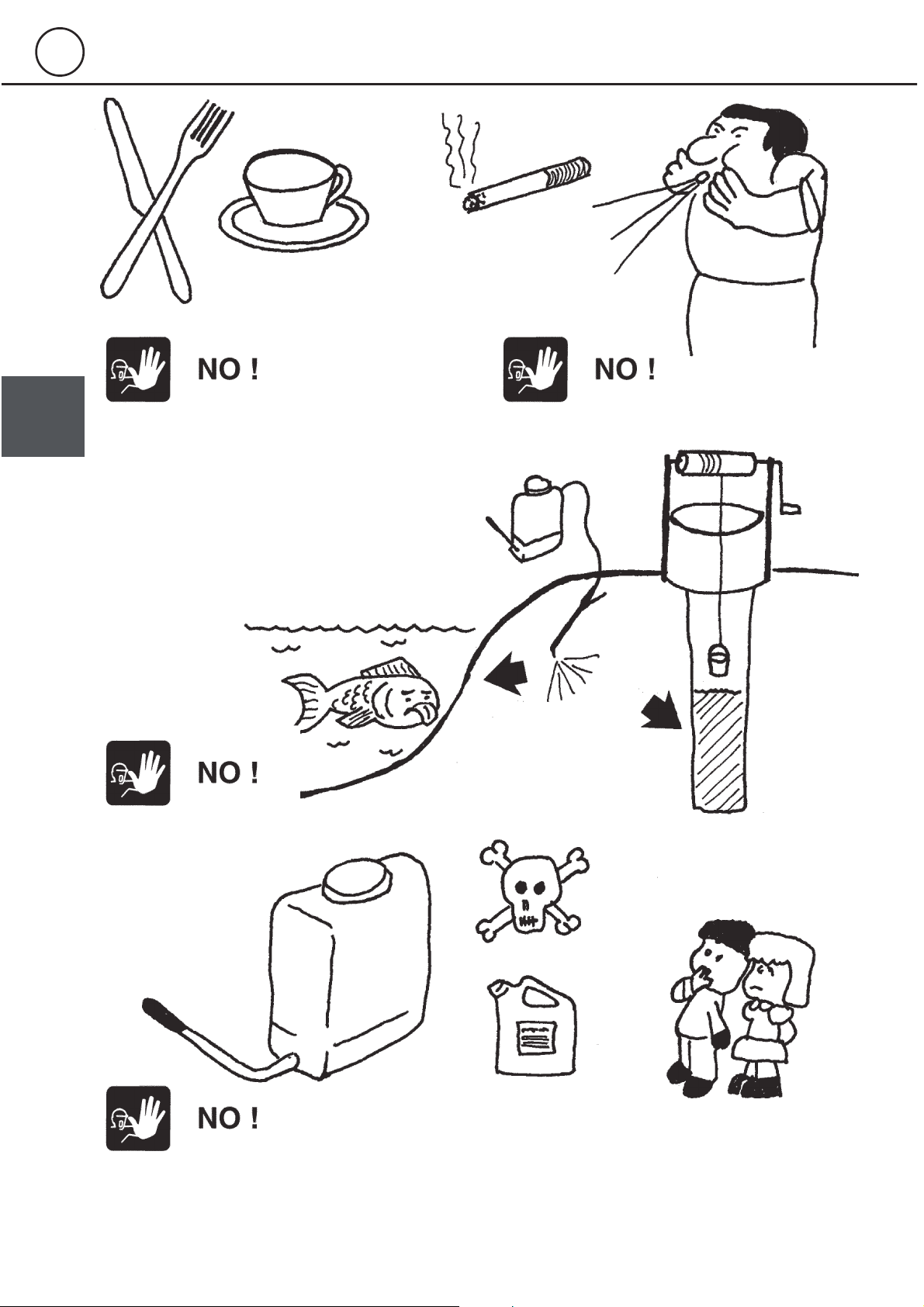

Page 11
9

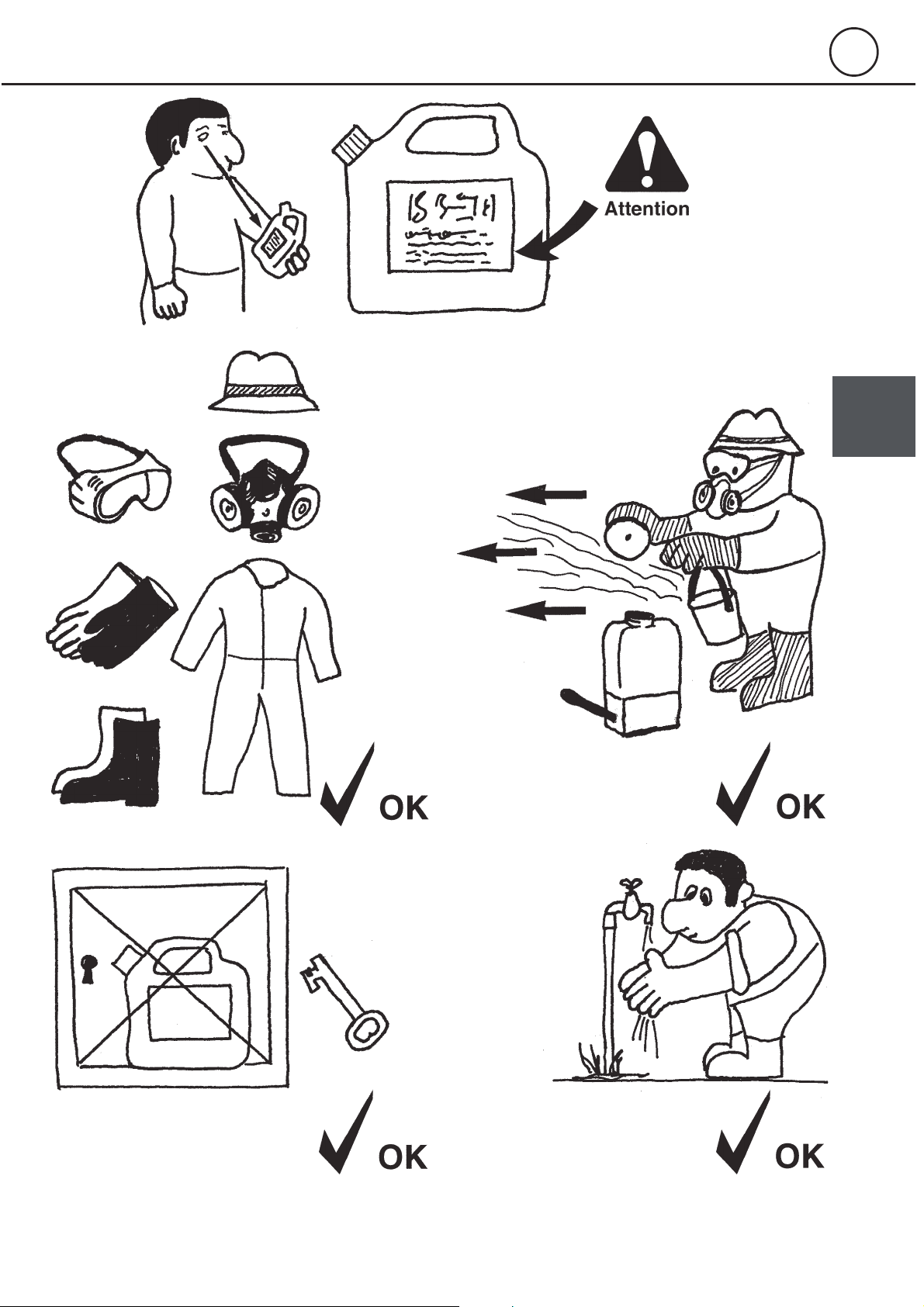

Safety Seguridad Sécurité Sicherheit Sikkerhed
4
Page 12
10
Safety Seguridad Sécurité Sicherheit Sikkerhed
4
Page 13
11

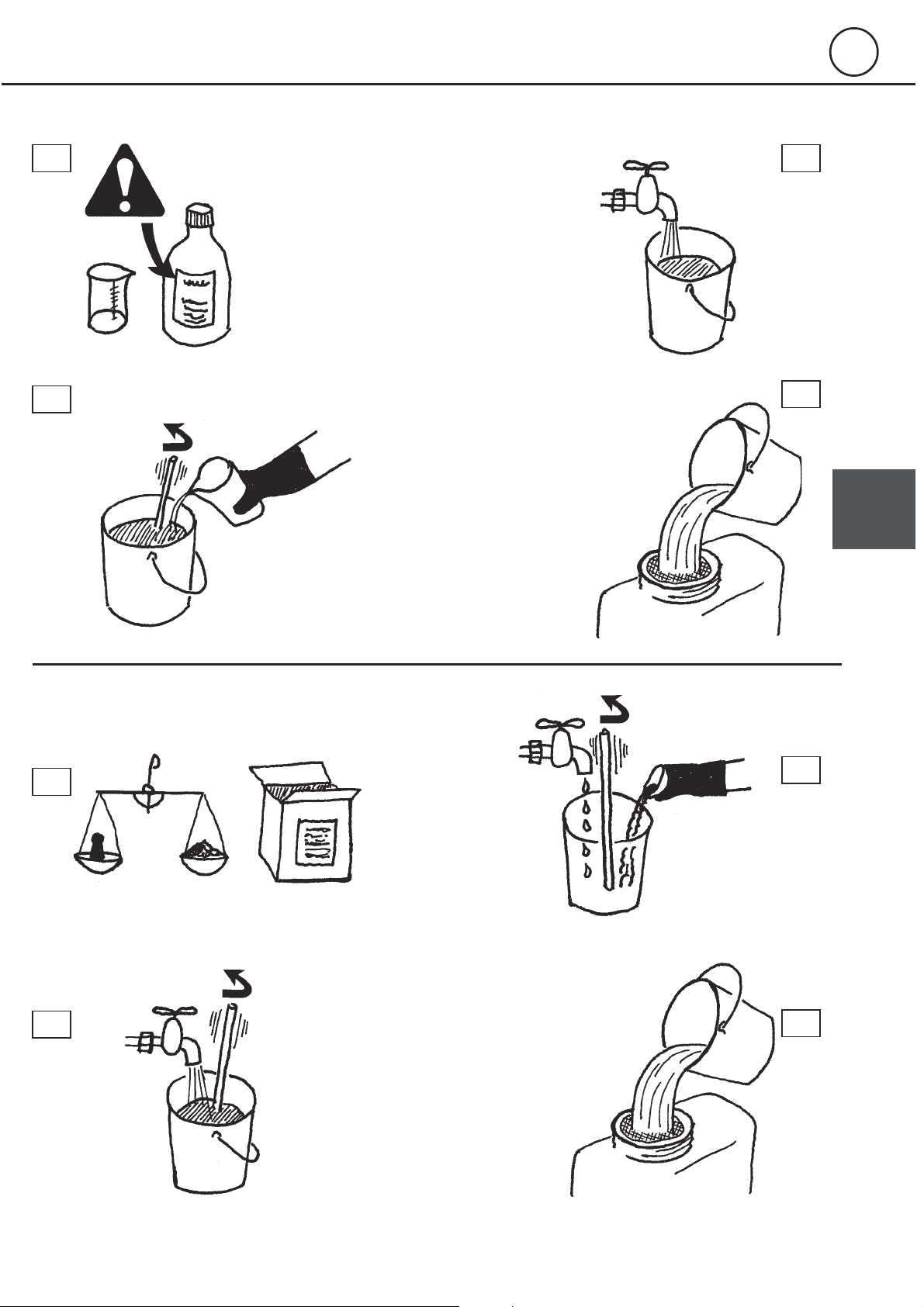

Adding Admision de Incorporation Beifügung von Kemikaliechemicals quimicos productos produits Chemikalien påfyldning
5.1
? litres
For approved pesticides only!
Do NOT use
Oil based chemicals
Cyrillic acid e.g. Creosote
Phenol based liquids
? gram
5.4
5.1 5.2
5.2
5.3
5.3
5.4

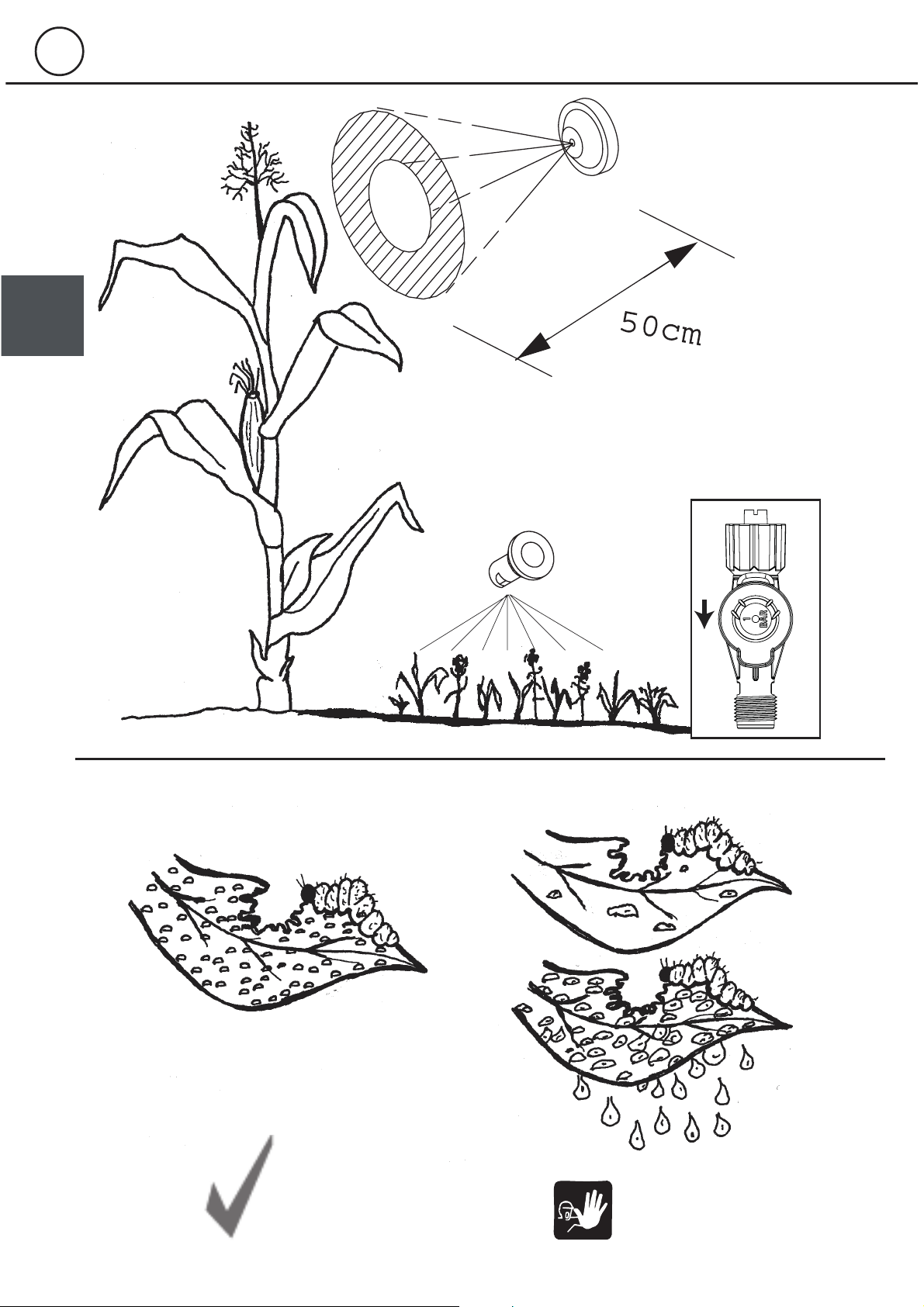

5
Page 14
12

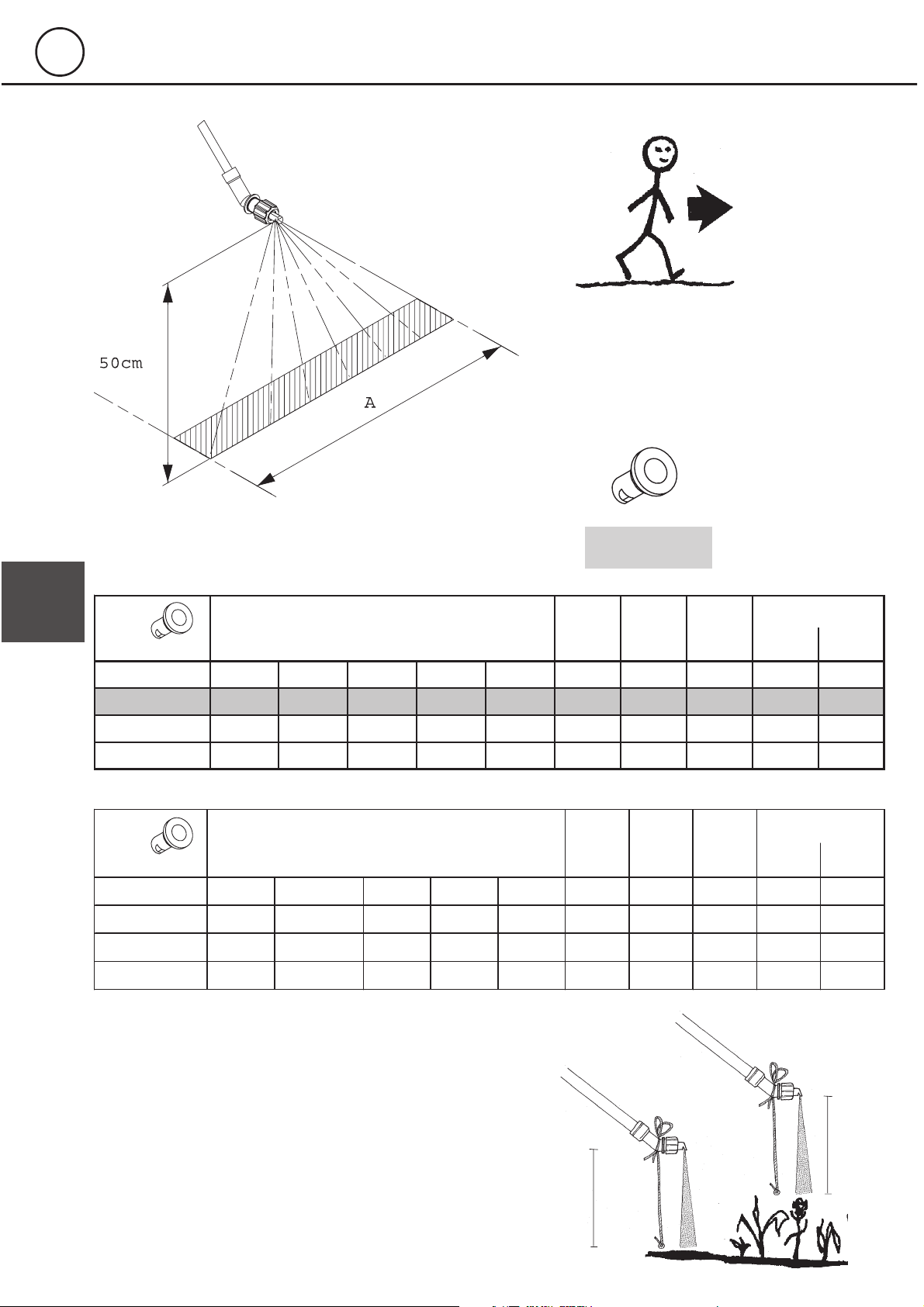

Nozzles Boquillas Buses Düsen Dyser
1 m/s
3.6 km/h
1 bar
15 psi
* standard
GB Practice using string
E Practica usando cuerda
F Traitez en utilisant une celle
D Praxis bei verwendung von Schnur
DK Praksis med snor
50 cm
50 cm
Flow "A" Rate
Time for 15 litr e
Ref. No.
l/min cm l/ha min se c
372020 Yellow Amarillio Jaune Gelt Gul 0.6 50 200 25 0
372021* Green Verde Vert Grün Grøn 1.2 100 200 12 30
372022 Blue Azul Bleu Blau Blå 1.8 150 200 8 20
372023 Red Rojo Rouge Rot Rød 2.4 200 200 6 15
Deector LV: Colour
Flow "A" Rate Time for 15 litre
Ref. No.
l/min cm l/ha min sec
371847 Orange Annaranjado Orange Orange Orange 0.24 110 35 62 30
371848 Green Verde Vert Grün Grøn 0.40 144 50 37 30
712197 Yellow Amarillio Jaune Gelt Gul 0.47 170 45 31 54
371850 Blue Azul Bleu Blau Blå 0.68 160 70 22 30
Deector VLV: Colour
6
Page 15
13
1 m/s
3.6 km/h
3 bar
45 psi
* standard
Flow "A" Rate
ime for 15 litr e
Ref. No.
l/min cm l/ha m in sec
371694* Yellow Amarillio Jaune Gelt Gul 0.8 95 140 18 45
371682 Red Rojo Rouge Rot Rød 1.4 120 195 10 42
371695 Brow n Marron Marron Braun Brun 1.8 130 230 8 22
371696 Gray Gris Gris Grau Grå 2.4 140 290 6 15

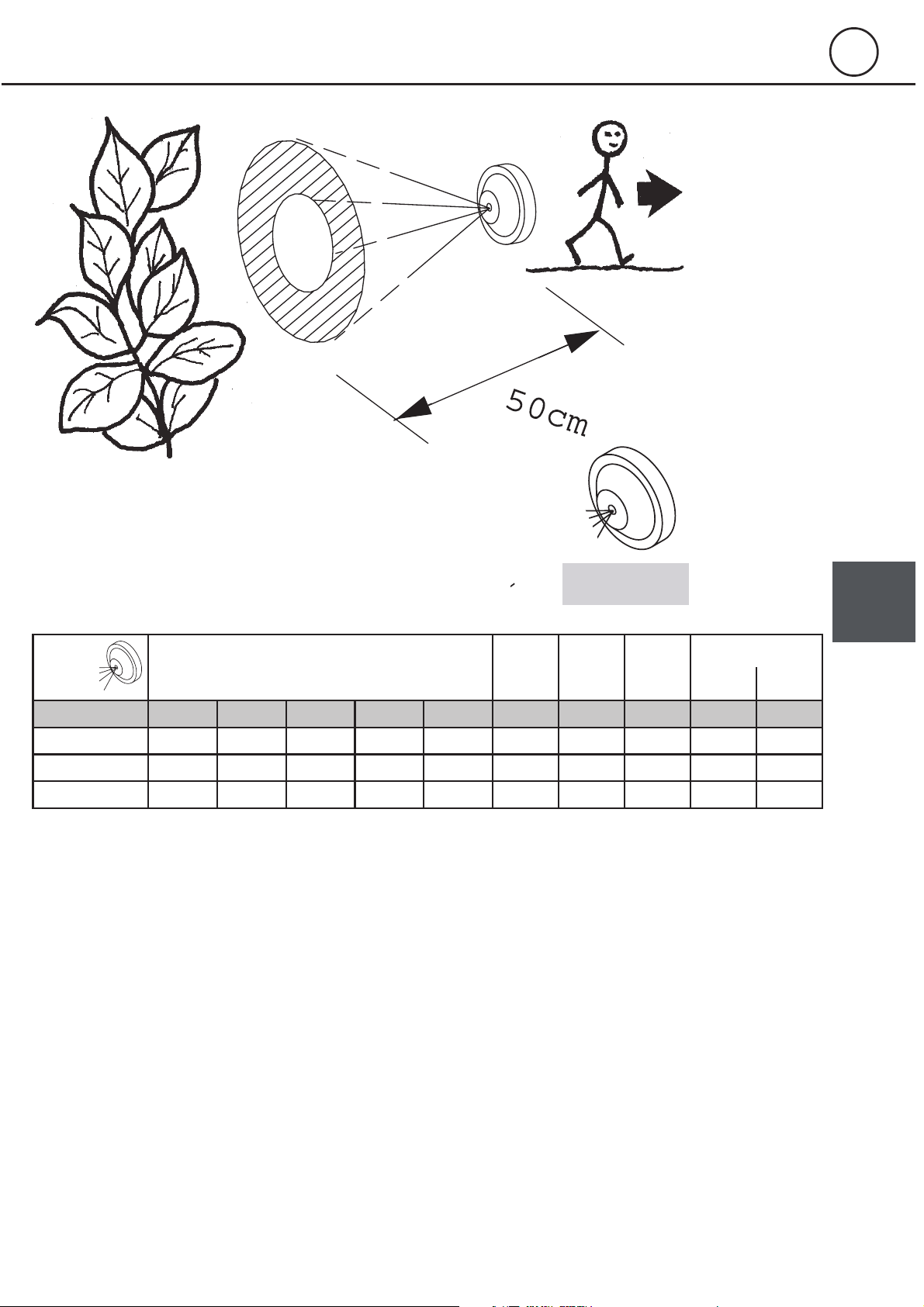

Hollow cone nozzle: Colour
Nozzles Boquillas Buses Düsen Dyser
6
Page 16
14

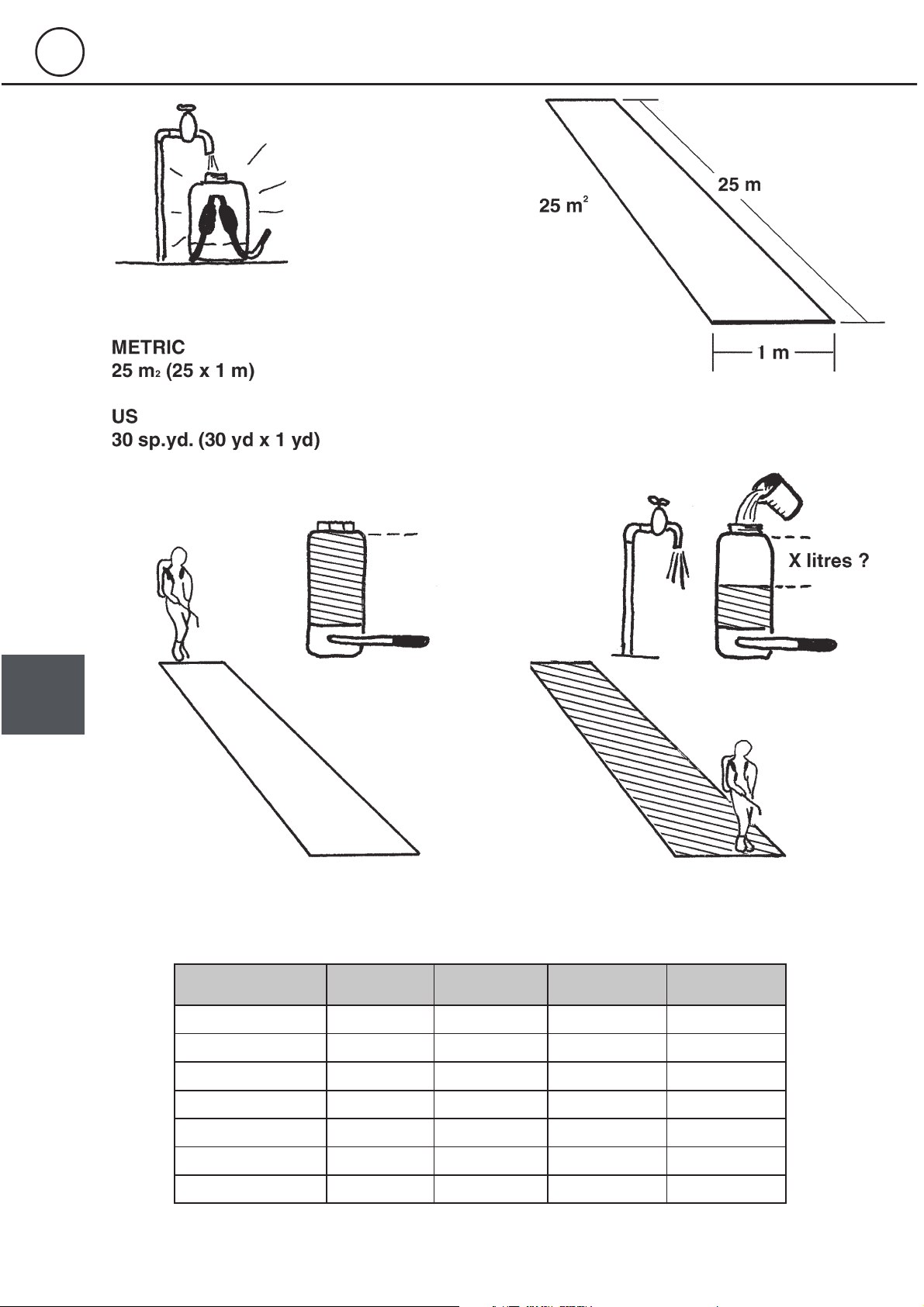

Calibration Calibracion Etalonnage Kalibrierung Kalibrering
"x" litre/25 m
2
l/ha US gal/ac
m
2
/15 litre m2/20 litre
0.25 100 11 1.500 2000
0.38 150 16 1.000 1333
0.50 200 22 750 1000
0.63 250 27 600 800
0.75 300 33 500 667
0.88 350 37 428 571
1.00 400 43 375 500
7

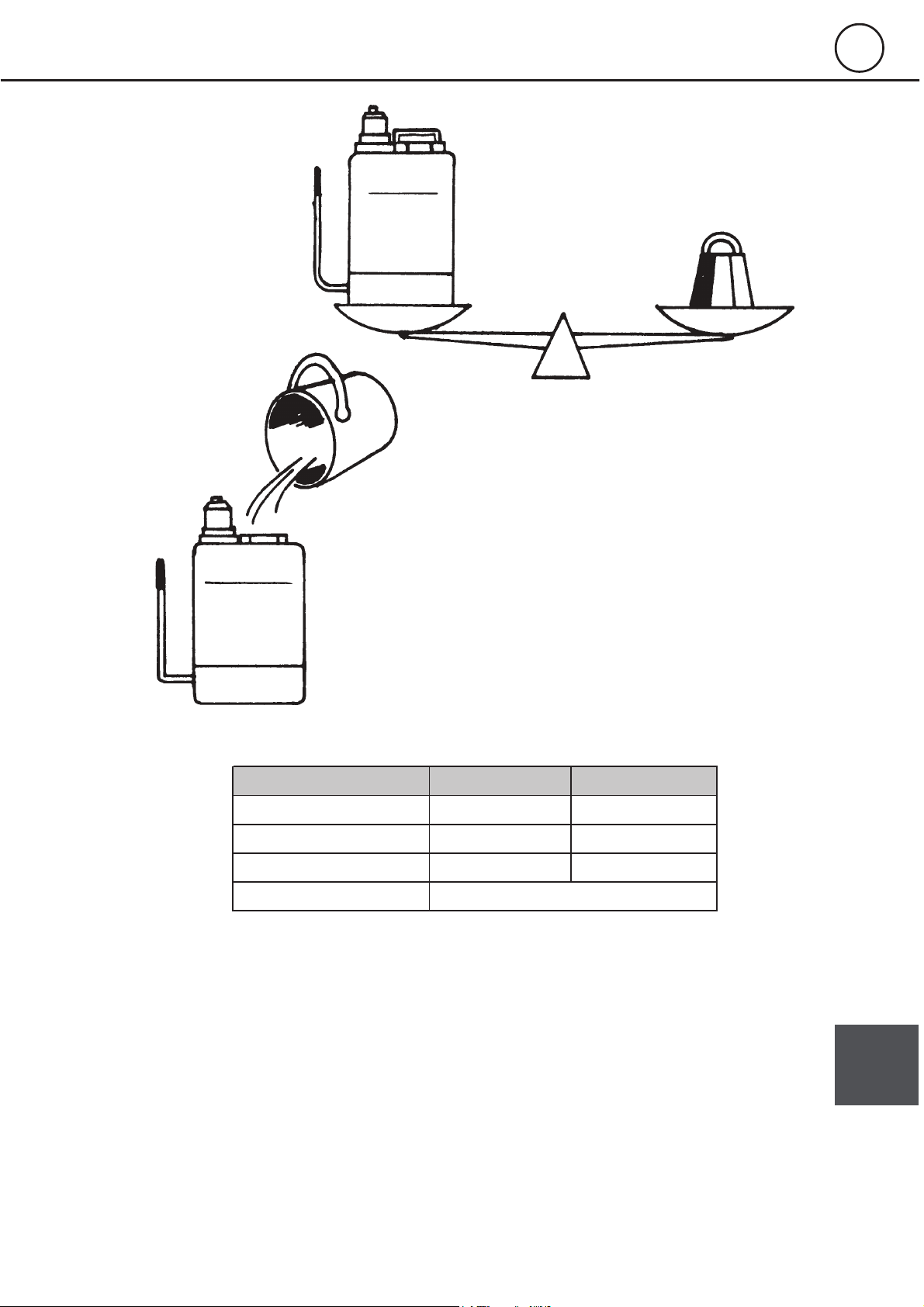

Page 17
15

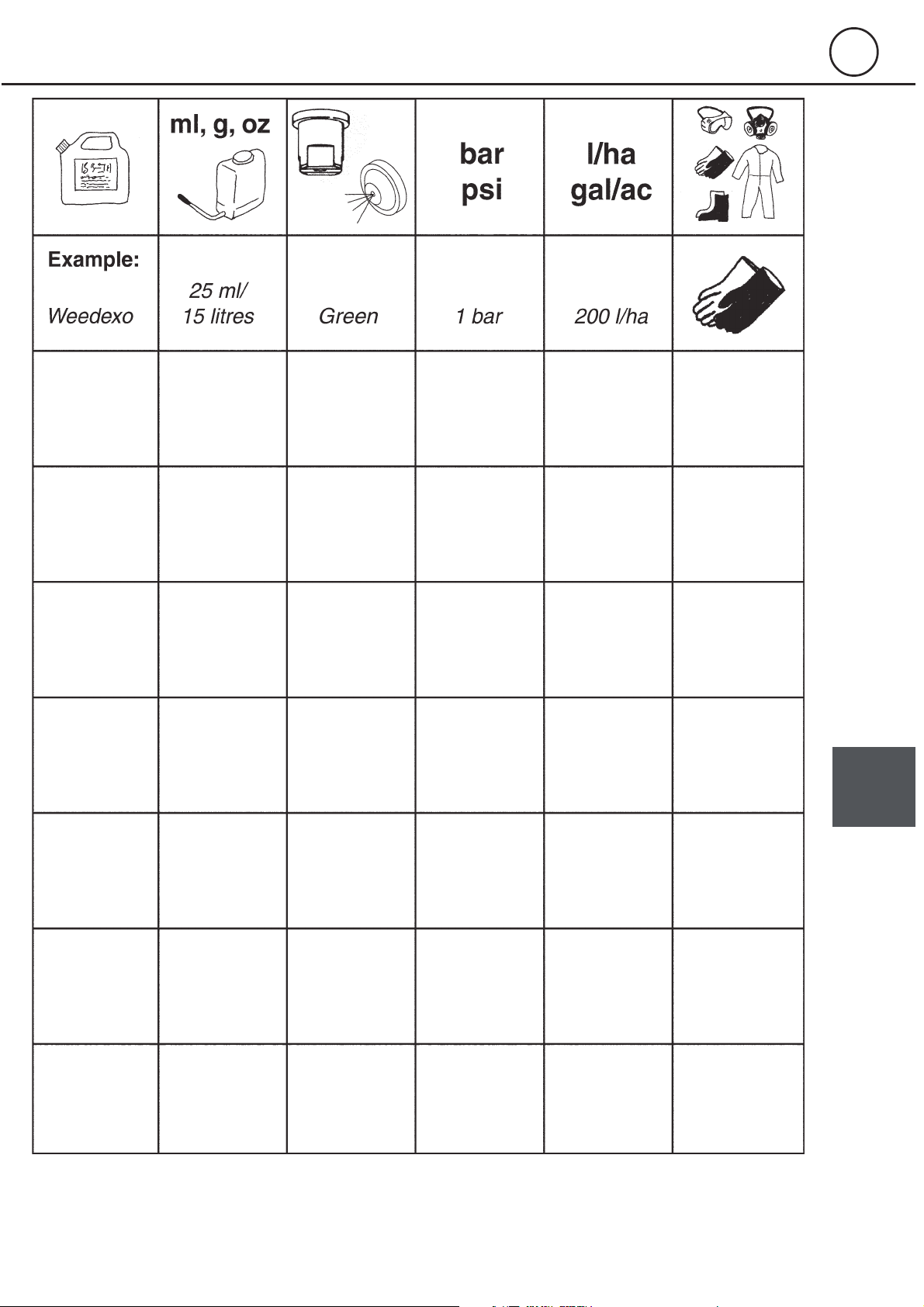

Records Tabla de trabajo Enregistrements Arbeits- Skema
schema
8

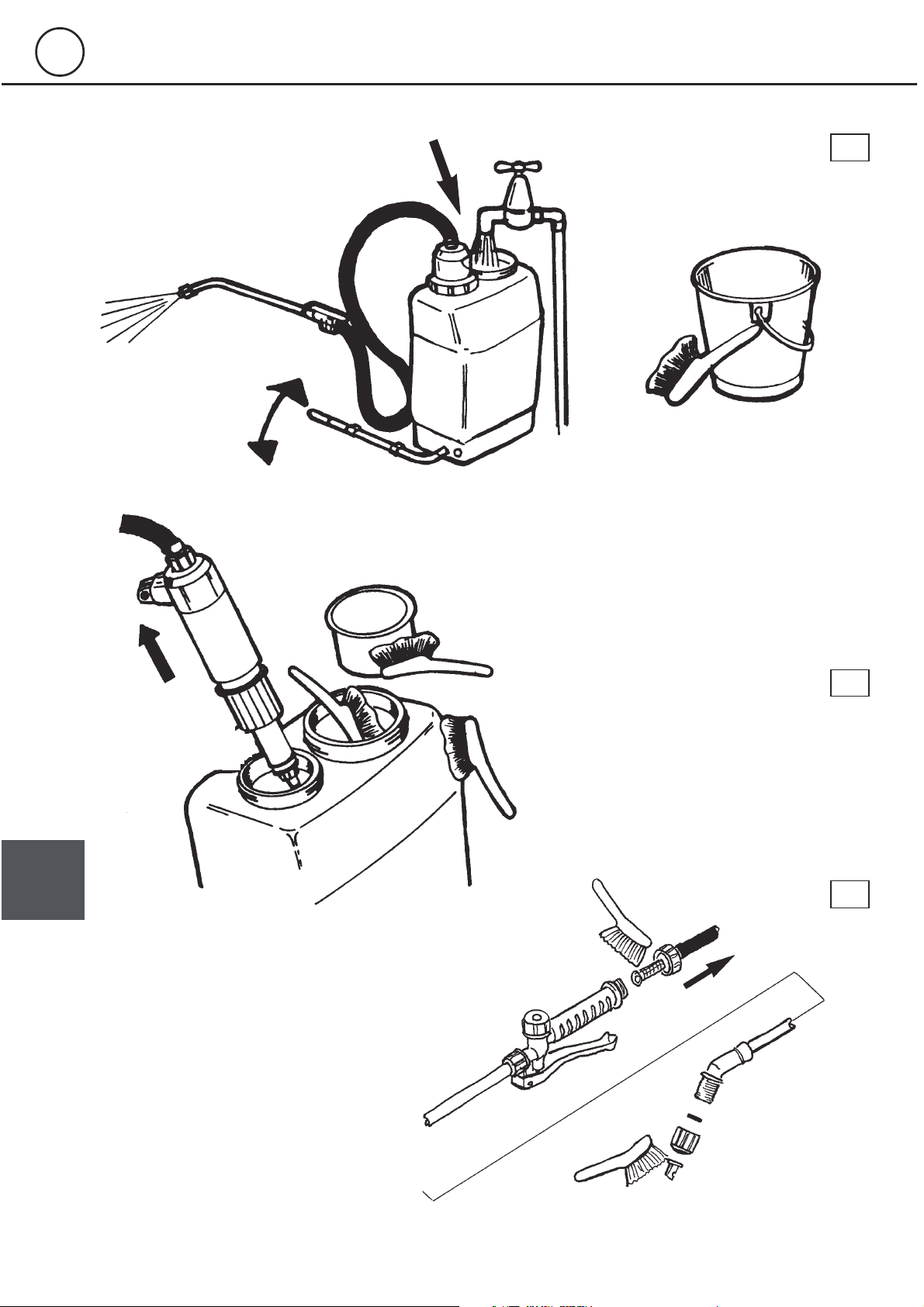

Page 18
16

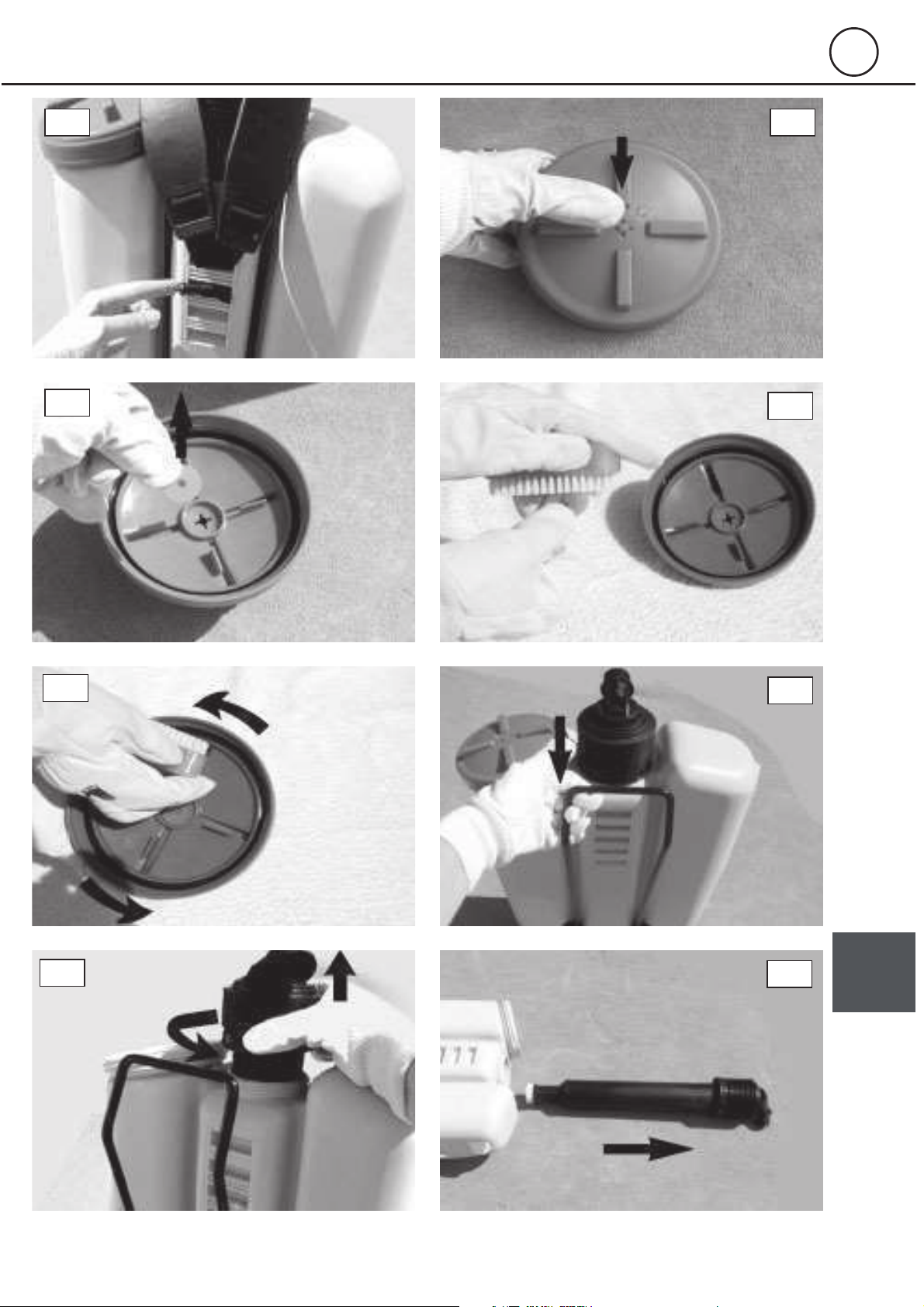

Cleaning Limpieza Nettoyage Reinigung Rengøring
9.2
9.3
9.1
Min. 5 litre
9
Page 19
17
Fault finding Localización Incidents de Fehlerort Fejlfinding
de defectos fonctionnement bestimmung
10.1 10.1
10.1
10.1
10.1
10.2
10.2
10.2
10

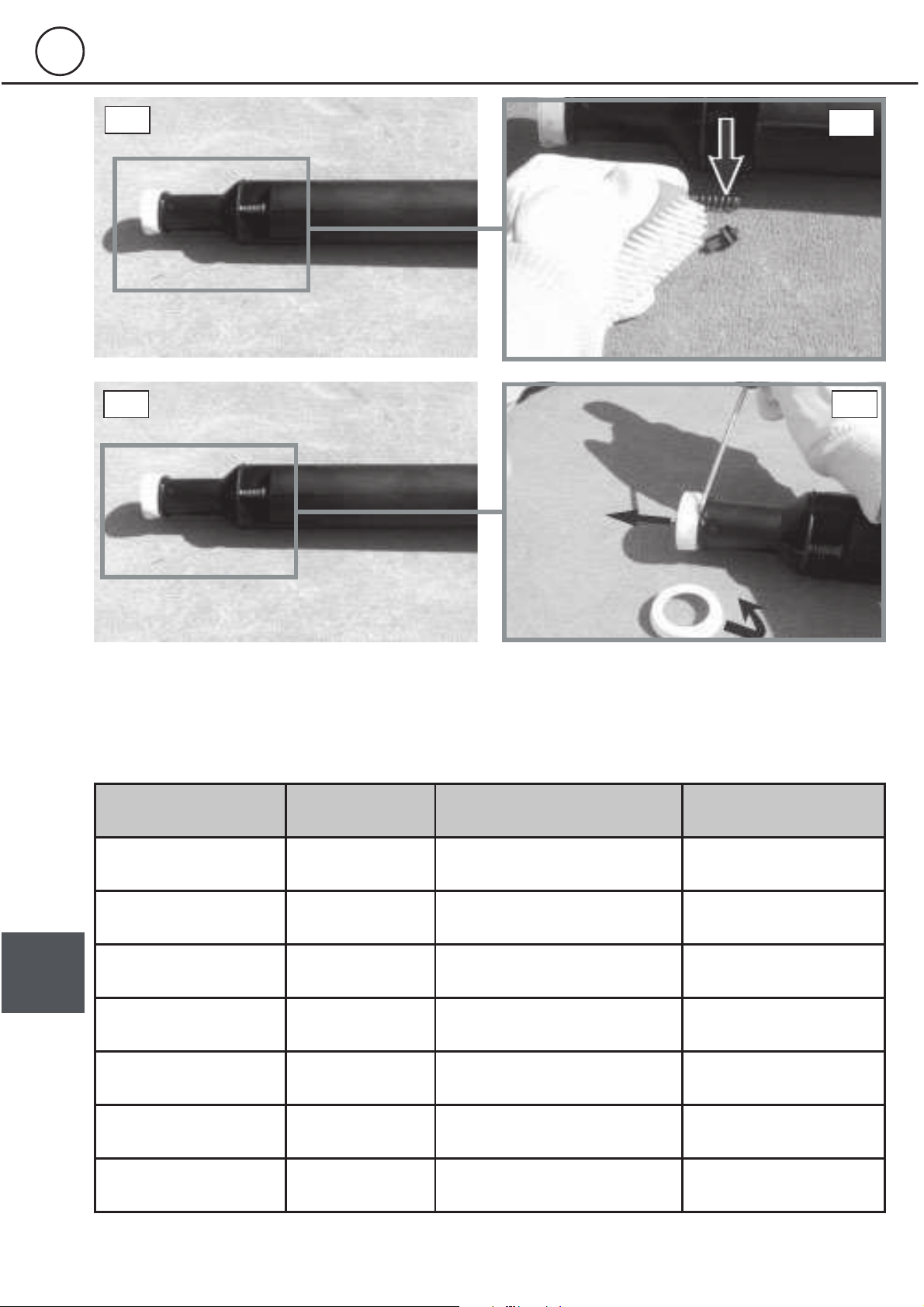

Page 20
18
Fault finding Localización Incidents de Fehlerort Fejlfinding
de defectos fonctionnement bestimmung
Service date By Next service due Notes
10.2
10.2
10.2 10.2
10
T024-0094a T024-0101a T024-0094a T024-0095a
Page 21
19
CP 15 - 2000 CP 3 - 2000
Tank litre s 15 litres 20 litres
Tank US gal. 3.96 US gal. 5.28 US gal.
Weight, em pty 5.2 kg (11 lb) 5.5 kg. (12 lb)
Max. w orking pres sure 3 bar / 45 psi
Specifications Especificaciones Spécification
11

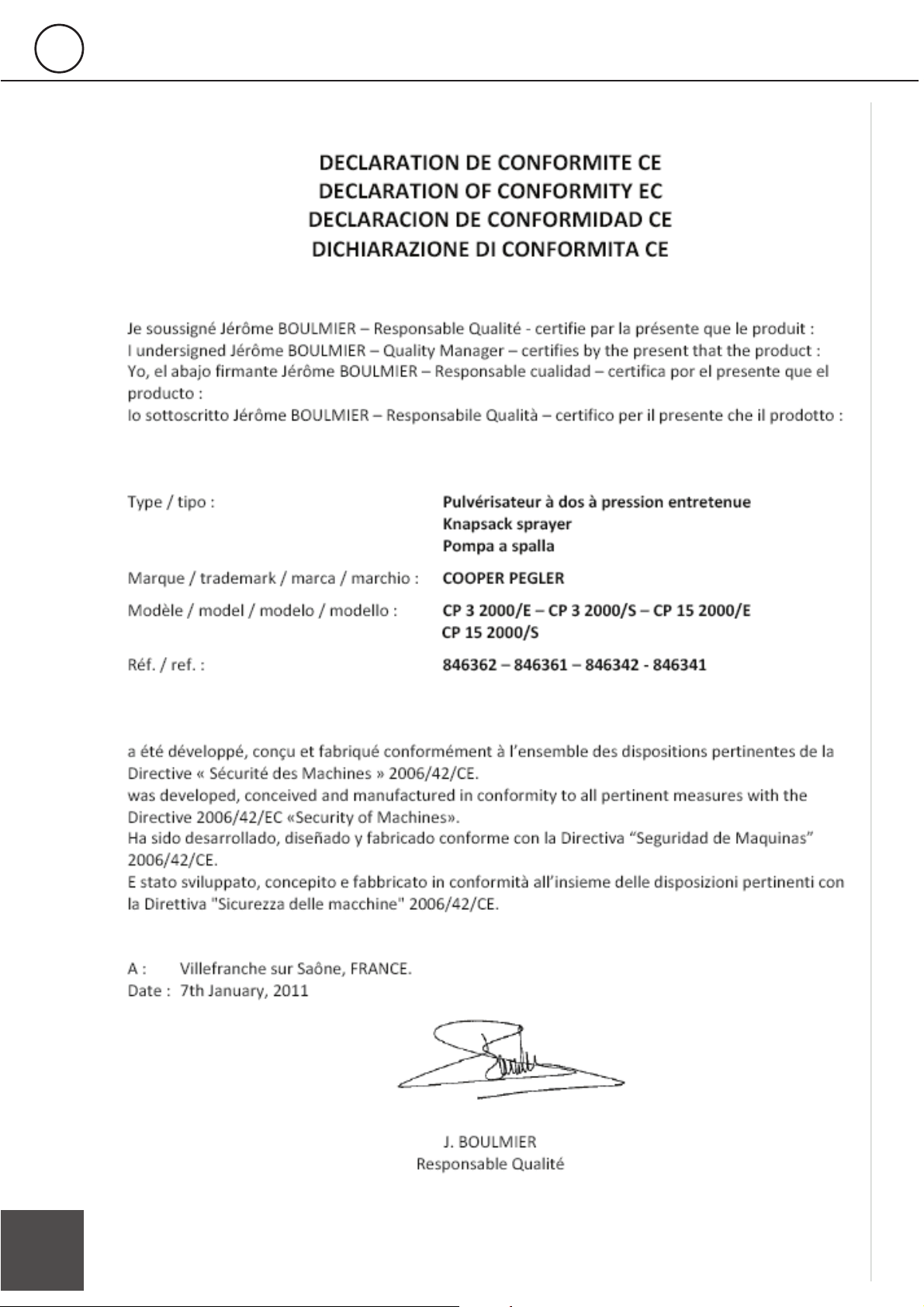

Page 22
20
1
CE declaration Declaración CE Conformité CE
12
