WaveLinx Wired
TSE55-B
5.5” LCD Color Touchscreen
Typical Applications
Oce • Education • Healthcare • Hospitality • Retail
Interactive Menu
• Order Information page 2
• Additional Resources page 3
• Wiring Diagrams page 3
• Connected Systems page 5
• Product Warranty
Top Product Features
• PoE touchscreen can be installed virtually anywhere
• Customizable graphics
• Password protection capabilities
• Area, Scene, Zone level control with buttons and/or sliders
• Save scene capabilities with password protection
• Color picker for white tuning or DMX color changing
Dimensional and Mounting Details
5.7"
[146mm]
3.4"
[86mm]
Product Features
Manual
Dimmer
5.5” touchscreen is installed
in a standard single gang
box opening, either portrait
or landscape.
Receptacle
Control
Tuning
Control
64” / 165cm
57” / 145cm
Scale
additional
product diagrams
PS503134EN page 1
March 2020
WaveLinx Wired
Order Information
Catalog Number
Catalog Number Description
TSE55-B 5.5” LED color touchscreen, Black
Required Accessories
Catalog Number
Catalog Number Description
TSI-1-NA Touchscreen interface accessory
Product Specications
Key Features
• 5.5 inch (140mm) diagonal backlit capacitive
LCD touchscreen
• 1280 X 720 pixel resolution
• Color Depth: 16.7M colours, 450 nits brightness
• Ambient Light sensor
• Fits standard single gang backbox (35mm depth)
• All graphics and buttons can be customized
• Password feature to allow different access levels
• Designed and manufactured to
ISO9001:2015 standards
• Portrait or landscape mounting and layout
Functionality
• Scene Selection
• Scene programming
• Channel level indicated with bar graphs
and percentage
• Scene and channel naming
• Default screen programming
• Photocell / motion sensor interaction
• Ability to import drawings, customer logos
and images as background graphics
• Ability to insert soft buttons for activating
scenes and / or channels
Mechanical
Display: High performance HD, IPS 5.5” LCD, 1280 X 720 resolution
Color Depth:
• 16.7M colors, 450 nits brightness
Client Range:
• Temperature: +2ºC to +40ºC
• Humidity: +5 to 95% non condensing
TSE55-B Touchscreen
Electrical
Supply:
• PoE 802.3af complaint or via 24-57Vdc power connector on the rear
Power Connection:
• RJ45
Programming:
• Cooper’s Touchscreen Designer software via Ethernet connection
Diagnostics:
• network
Memory:
• 1GB DDR3
• 8GB eMMc
Standards/Ratings
• cULus Listed - Energy Management Equipment (UL916)
• FCC Part 15/ECES-003
• Manufactured in an ISO 9001 certied factory
• Meets ASHRAE Standard 90.1 requirements
• Meets CEC Title 24 requirements
Product Safety:
• IEC 60950-1
• UL 60950-1
• EN 60950-1
• CAN/CSA-C22.2 No. 60950-1
Environmental Regulations:
• RoHS Directive 2011/65/EU
• WEEE Directive 2012/19/EU
Warranty
Five year warranty standard
PS503134EN page 2
March 2020
WaveLinx Wired
System architecture
Simple WaveLinx Wired system
WaveLinx Wired
Area Controller
TSE55-B Touchscreen
WaveLinx Wired Local Bus (polarity, topology free)
SCMD4
SCMD4
Complete WaveLinx Wired system
DMX Fixture
DMX Fixture
SCD96
DMX Out
iLumin
CLS - INEO
Touchscreen
Wallstation
Occupancy
Sensor
Dual Tech
occupancy
sensor
Powerpack
0-10V LED
controller
LED Luminaire
with 0-10V driver
LED Luminaire
with DALI driver
WaveLinx Wired
Area Controller
ILS-0020
8 local busses
Curtain
Control
SI-2-D
installed within a panel
AV & Partitoning
WaveLinx Wired Local Bus
wallstation
controller
0-10V LED luminaire
Blind
Control
RI-2
Relay Out
Occupancy/
Daylight Sensor
occupancy/
daylight Sensor
Circuit Breaker Panel
Wallstation
LED luminaire with DALI driver
powerpack0-10V LED
Reverse phase track lighting
ILM-2110
Medium Area Controller
24 Relays, 12 0-10V, 4 local busses
WaveLinx Wired Network (daisy chain wire using Cooper LCCP, LCCNP, or Belden 1502, 1502P)
dual technology
occupancy sensor
LDCM
(0-10V to Reverse
Phase Module)
24 Relays
and 12
0-10V zones
relay pack for
LED or plug load
Circuit Breaker Panel
WaveLinx Wired
Configuration
Software
Building LAN or VLAN
ILL-3301
Large Area Controller
36 Relays, 36 0-10V, EG2 installed
WaveLinx Wired Local Bus
WaveLinx Wired Local Bus
36 Relays
and
0-10V zones
BMS Pro
S1
A1
B1
S0
A0
B0
A6
A5A4A3
A2
A7
B3
B2
Circuit Breaker Panel
TC1
Network timeclock
-PWR
+PWR
FRAME GND
ETHERNET
RS 485
GNDRS 485-
RS 485+
S3
S2
FG
PWR-PWR+
SGA-B+
Building WLAN
Occupancy/
Daylight Sensor
BACnet
Building
Management
System
iLumin
APP
ILS-0020
Small Area Controller
0 Relays, 0-10V, 8 local busses
8 local busses
Wallstation
Relay pack for
LED or plug load
Wallstation
PS503134EN page 3
March 2020
WaveLinx Wired

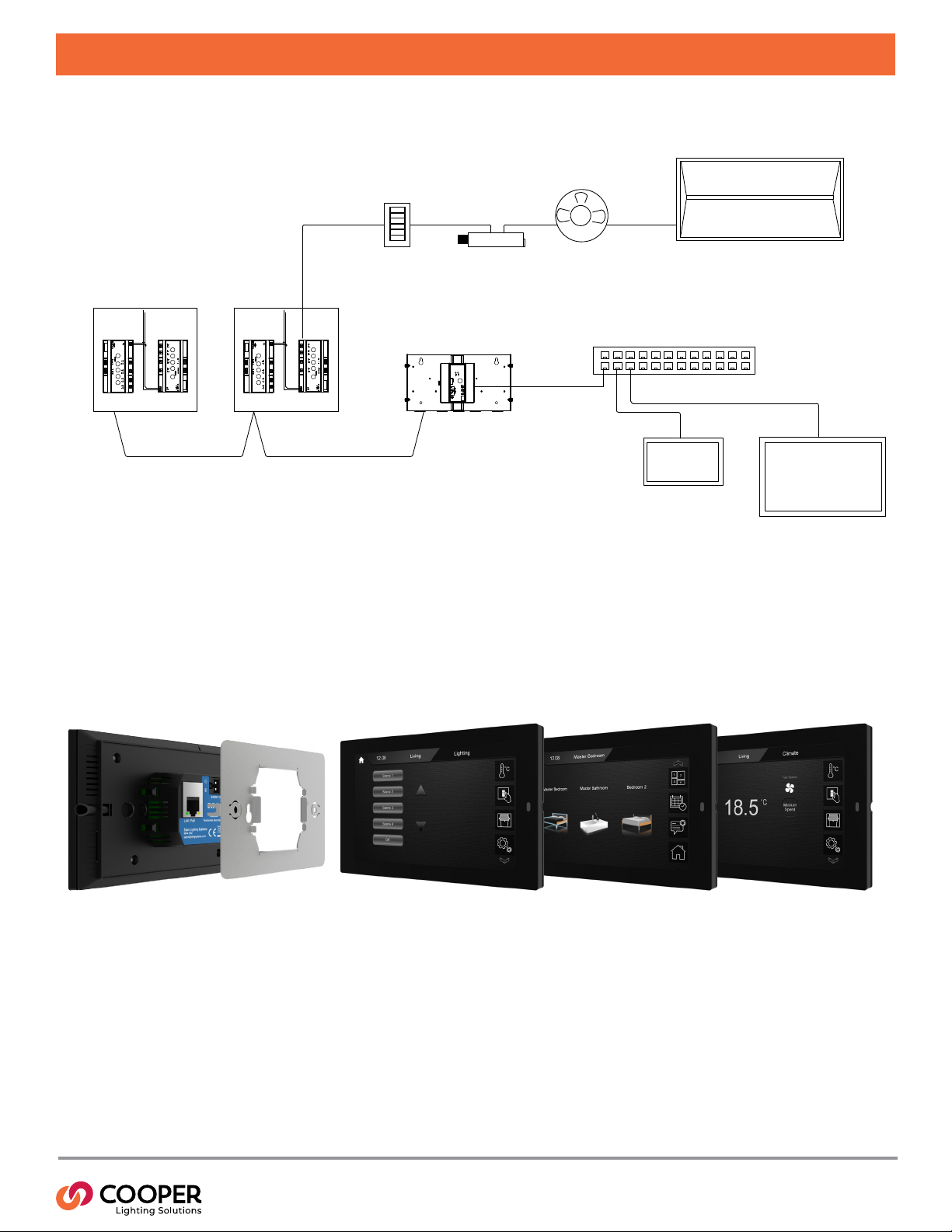

Typical schematic
TSE55-B Touchscreen
WaveLinx Wired
Area Controller
ILS-0020
Mounting
WaveLinx Wired
WaveLinx Wired
Area Controller
ILS-0020
Neutral
LINE
Neutral
LINE
Accessory
Wallstation
WaveLinx Wired Accessory
TSI-1-NA
WaveLinx Wired
0-10V LED
Controller
TSI-1-NA
Communicates to up to 25
touchscreens. The TSI-1-NA
and touchscreens must be on
the same physical network and
IP address range.
WaveLinx Wired
Multisensor
Category Cable
PoE Switch
LWP-SW-PoE-8-8
(or by others)
WaveLinx Wired
5.5" Touchscreen
TSE55-B
LED addressable
luminaire
Category Cable
EoPEoP
WaveLinx Wired
8" Touchscreen
TSE80-B
*Images are examples for reference only.
PS503134EN page 4
March 2020
WaveLinx Wired
TSE55-B Touchscreen
Sample System Topology:
This diagram shows the main components of the WaveLinx Wireless and Wired Connected Lighting system.
The WaveLinx wireless system communicates using wireless mesh technology based on the IEEE 802.15.4 standard. A PoE LAN
connection for each Wireless Area Controller (WAC) is required for power and data access to the building lighting network.
The WaveLinx wired system controls the devices using relay, 0-10V, DMX and the WaveLinx wired digital local bus. The WaveLinx
wired system connects to the building LAN using the EG2 module. Each WaveLinx wired area controller communicate on the
WaveLinx wired network. The WaveLinx wired network supports over 60,000 devices.
The Trellix Core, WaveLinx Area Controllers (WAC) and WaveLinx Ethernet Gateways (EG2) communicate with each other over the
Ethernet network.
Please refer to the WaveLinx Wireless Network and IT Guidance Technical Guide and WaveLinx Wired Network and IT Guidance
Technical Guide for more information.
IoT
and
API
Touchscreen
Partner Apps
WaveLinx Wired
Local Bus
Smart Lighting Apps3rd Party Integration
Trellix Admin Trellix LightingTrellix Exchange
WaveLinx Wired
Network
WaveLinx
Wired
System
Trellix Core
wired
OR
wireless
WaveLinx
Wireless
System
Firewall
Up to 300
Wireless Area
Controllers
(Trellix Core
Enterprise & Virtual)
WaveLinx Network
Wireless Area
Controller
View
and IT Guidance
Technical Guide
Touchscreen
Smartphone
with
WaveLinx
app
Area or Room
20A
Relay
WaveLinx Wired local bus devices
(up to 64 devices per local bus)
Room Based
Occupancy Sensor
Control Systems
• Trellix
• WaveLinx Wireless
• WaveLinx Wired
• VividTune
Scene
Wallstation
Addressable
Fixture
Relay Controlled
Fixture
Area or Room
(15 + 1 construction area)
347V and 20A
Dimming Relay
Wireless Controlled Lighting ready devices
(up to 150 per WAC)
Room Based
Occupancy Sensor
Controlled
Receptacle
Scene
Wallstation
WaveLinx-Integrated
Ambient
WaveLinx-Integrated
Outdoor
Cooper Lighting Solutions
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.cooperlighting.com
© 2020 Cooper Lighting Solutions
All Rights Reserved.
Specifications and dimensions
subject to change without notice.
PS503134EN page 5
March 2020
