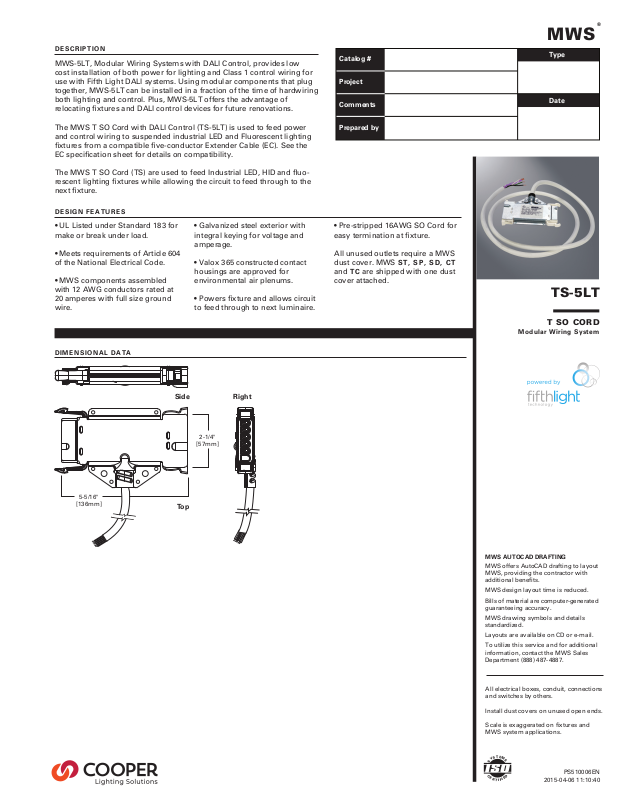

Cooper Lighting Solutions TS-5LT Specifications
DESCRIPTION
MWS AUTOCAD DRAFTING
MWS-5LT, Modular Wiring Systems with DALI Control, provides low
cost installation of both power for lighting and Class 1 control wiring for
use with Fifth Light DALI systems. Using modular components that plug
together, MWS-5LT can be installed in a fraction of the time of hardwiring
both lighting and control. Plus, MWS-5LT offers the advantage of
relocating xtures and DALI control devices for future renovations.
Catalog #
Project
Comments
®
MWS
Type
Date
The MWS T SO Cord with DALI Control (TS-5LT) is used to feed power
and control wiring to suspended industrial LED and Fluorescent lighting
xtures from a compatible ve-conductor Extender Cable (EC). See the
EC specication sheet for details on compatibility.
The MWS T SO Cord (TS) are used to feed Industrial LED, HID and uorescent lighting xtures while allowing the circuit to feed through to the
next xture.
DESIGN FEATURES
• UL Listed under Standard 183 for
make or break under load.
• Galvanized steel exterior with
integral keying for voltage and
amperage.
• Meets requirements of Article 604
of the National Electrical Code.
• Valox 365 constructed contact
housings are approved for
• MWS components assembled
environmental air plenums.
with 12 AWG conductors rated at
20 amperes with full size ground
wire.
DIMENSIONAL DATA
• Powers xture and allows circuit
to feed through to next luminaire.
Side
Right
Prepared by
• Pre-stripped 16AWG SO Cord for
easy termination at xture.
All unused outlets require a MWS
dust cover. MWS ST, SP, SD, CT
and TC are shipped with one dust
cover attached.
TS-5LT
T SO CORD
Modular Wiring System
5-5/16"
[136mm]
To p
2-1/4"
[57mm]
MWS offers AutoCAD drafting to layout
MWS, providing the contractor with
additional benefits.
MWS design layout time is reduced.
Bills of material are computer-generated
guaranteeing accuracy.
MWS drawing symbols and details
standardized.
Layouts are available on CD or e-mail.
To utilize this service and for additional
information, contact the MWS Sales
Department (888) 487-4887.
All electrical boxes, conduit, connections
and switches by others.
Install dust covers on unused open ends.
Scale is exaggerated on xtures and
MWS system applications.
E
T
M
S
S
Y
S
C
D
E
E
R
I
T
F
I
PS510006EN
2015-04-06 11:10:40
Specifications and
dimensions subject to
change without notice.
Cooper Lighting Solutions
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.cooperlighting.com
SYSTEM VIEW (not to scale)
MWS TS-5LT
SAMPLE NUMBER: 12TS12/4 G065LT
MWS AUTOCAD DRAFTING
T SO Cord
Extender CableExtender Cable
T SO Cord (TS)
Feeds power and control to fixture and allows circuits and control to be
carried through to other fixtures. Provided with a 5-wire 16 gauge SO
cord.
Typical MWS Wiring System Application shown utilizing T SO Cord (TS).
Consult MWS Installation, Application and Specification Manual for
additional comprehensive System information.
ORDERING INFORMATION
TS
Voltage
12=120V
27=277V
Specifications & dimensions subject to change without notice. Consult your Cooper Lighting Solutions Representative for
availability and ordering information.
Component
TS=T SO Cord
Conductors and Size
12/4G=#12, 4 Conductors Plus Ground
Cable Length (Feet)
06=6'
11=11'
T SO Cord
Options
5LT
Extender CableExtender Cable
MWS offers AutoCAD drafting to layout
MWS, providing the contractor with
additional benefits.
MWS design layout time is reduced.
Bills of material are computer-generated
guaranteeing accuracy.
MWS drawing symbols and details
standardized.
Layouts are available on CD or e-mail.
To utilize this service and for additional
information, contact the MWS Sales
Department (888) 487-4887.
SHIPPING DATA
Cord Unit Standard
Length Wt. Qty./Carton
6’ 1.7 lbs. N/A
11’ 2.7 lbs. N/A
PS510006EN
2015-04-06 11:10:40
