Cooper Lighting Solutions SS LED User Manual

Project Catalog # Type

16-7/8" [429mm]

]

5-3/16"

16-7/8" [429mm]

Prepared by Notes Date

SS LED

SSLED

with Round Deco Shield

Accessory

LED Round High Bay

Typical Applications

Industrial • Commercial • Retail • Manufacturing • Warehouse • Gymnasium

• Multi-purpose • High Bay / Low Bay Applications

Product Certication

Interactive Menu

• Order Information page 2

• Photometric Data page 3

• Control Solutions page 5

Product Features

• Connected Systems page 5

• Product Warranty

Top Product Features

• Compact, lightweight design for ease of installation

• Available in 7 lumen packages up to 36,000 lumens

• High-Performance ecacy up to 152 lm/W

• Occupancy and daylight sensor for added savings

• Lumen Maintenance – L88 at 60,000 hours

• Industry leading optics in narrow, medium, and wide distribution

• 0-10V Dimming driver standard

Dimensional and Mounting Details

15-15/16"
[404mm]

16-3/8"

[416mm

[132mm]

additional
product diagrams

PS507033EN page 1

February 24, 2021 9:10 AM

Order Information

SAMPLE ORDER NUMBER: SSLED-LD5-24-M-UNV-L840-CD2-U

SSLED

Series LED Type LED Lumen Output Ambient Rating

(13)

Series

SSLED=LED High Bay LD5=LED 5.0 9=9,000 Lumens

LED Type LED Lumen Output Ambient Rating Distribution Voltage CCT Emergency Options

12=12,000 Lumens
15=15,000 Lumens
18=18,000 Lumens
24=24,000 Lumens
30=30,000 Lumens
36=36,000 Lumens

Notes

(13) DesignLights Consortium®

Qualied and classied for both DLC
Standard and DLC Premium, refer to
www.designlights.org for details.

Driver Type Number of Drivers Color

Driver Type Number of Drivers Color

CD=0-10V Dimming
Driver

5LTD=Fifth Light DALI

1=1 Driver (9, 12, 15, 18)
2=2 Driver (18HT, 24,

(5)

24HT, 30, 36)

[Blank]=White
GRY=Gray
BLK=Black

Notes

(5) Refer to ambient ratings
chart for specic ambient

limits per lumen package and
options.

Distribution Voltage CCT Emergency Options

[Blank]=Standard
Ambient
HT=High Ambient
(18, 24 only)

N=Narrow
M=Medium
W=Wide

Mounting Type Wiring Options Packaging

Mounting Type

[Blank]=3/4" Threaded Hub
SHK=Fixture Hook
TCB=Top Connector Box
TCB/SHK=Top Connector Box with Die-cast

Aluminum Fixture Hook

TCB/FL-1=Top Connector Box with Fixture Loop
MP=Modular Plug (1 Circuit)
MP/SHK=Modular Plug with Fixture Hook (supplied)
MP/FL-1=Modular Plug with Fixture Loop (supplied)

(8)

(1), (9)

(3), (9)

(10)

Notes

(1) TCB and MP cannot be ordered at the same time. (3)
No EL with TCB. (8) SHK or FL-1 must be ordered factory

installed for PC option. (9) Rigid mount not for use in

gymnasiums. (10) MP option to be paired with MPC and
MC power cord accessory.

UNV=Universal
Voltage 120-277
UNC=Universal
Voltage 347/480

(4)

L835=3500K
L840=4000K
L850=5000K

EL20WREM=Emergency Installed, Remote, 20 Watts

Notes Notes

(4) No EL with UNC
drivers.

(2) Battery pack must be remote mounted 1 ft. off-center from xture to

building structure or an electrical enclosure. (3) No EL with TCB. (4) No EL with

UNC drivers. (5) Refer to ambient ratings chart for specic ambient limits per

lumen package and options.

Wiring

C3 (1)=1 Circuit, 3' Cord with no Plug
C3 (2)=2 Circuits, 3' Cord with no Plug
C6 (1)=1 Circuit, 6' Cord with no Plug
C6 (2)=2 Circuit, 6' Cord with no Plug
PC3/120=1 (NEMA L5-15P) 3' Cord with NEMA Plug
PC3/277=1 (NEMA L7-15P) 3' Cord with NEMA Plug
PC3/347=1 (NEMA L24-20P) 3' Cord with NEMA

(8)

Plug

PC3/480=1 (NEMA L8-20P) 3' Cord with NEMA Plug
PC6/120=1 (NEMA L5-15P) 6' Cord with NEMA Plug
PC6/277=1 (NEMA L7-15P) 6' Cord with NEMA Plug
PC6/347=1 (NEMA L24-20P) 6' Cord with NEMA

(8)

Plug
PC6/480=1 (NEMA L8-20P) 6' Cord with NEMA Plug

(8)

(8)

(8)

(8)

(8)

(8)

Notes Notes

(8) SHK or FL-1 must be ordered factory installed for PC

option.

Options Packaging

SVPD3=Integrated
Occupancy and Daylight

Sensor, 1200 sq. ft.

(7), (12)

Coverage
LWR=Enlighted Wireless
Sensor system
ZW-SWPD3=Integrated

Wavelinx Wireless Sensor,
1200 sq. ft. Coverage
ZW=Wavelinx Wireless

Ready (does not include
sensor)

(7) SVPD3 available in UNV only.

(12) Reectors not compatible

with sensor options. (14) Not
compatible with EM options.

(14)

(14)

(2), (3), (4), (5)

U=Unit Pack

Accessories

Accessories (order separately)

(12)

(5), (12), (15)

(5), (12), (15)

(6)

(5), (12), (15)

(5), (12), (15)

(11)

(5), (12), (15)

Notes

(11)

(5), (12), (15)

LOOP-10 =Ten Foot Loop Hanger, #2 Cable
LOOP-30=Thirty Foot Loop Hanger, #2 Cable
SSLED-SA23-U=Aluminum Shroud
SSLED-WG17-U=Wireguard
WG22 =Wireguard for use with SA23, CLR22, and FRR22
SSLED-CLR22-U =Clear Reector
SSLED-FRR22-U=Frosted Reector
SSLED-CLDL22=Clear Drop Lens
SSLED-CLCDL22=Clear Conical Drop Lens
SSLED-FRDL22=Frosted Drop Lens
SSLED-FRCDL22=Frosted Conical Drop Lens
SHK=Fixture Hooks
FL-1=Fixture Loop
MPC3=3’ Modular Power Cord & Plug (Specify Voltage)
MPC6=6’ Modular Power Cord & Plug (Specify Voltage)
MC3=3’ Modular Power Cord
MC6=6’ Modular Power Cord
SSLED-DECO-U=Round Deco Kit
SSLED-UPL-U=Uplight Kit
ISHH-01=Programming Remote for Integrated Sensor
ISHH-02=Personal Control Remote for Integrated Sensor
SWPD3=WaveLinx Sensor (for eld installation into WaveLinx enabled xture)

(5) Refer to ambient ratings chart for specic ambient limits per lumen package and options. (6) Deco

shield can be used up to 24,000 lumens (40ºC temp.) (11) The accessory Loop Hanger shall be utilized only

as a secondary safety and not the primary means of mounting. (12) Reectors not compatible with sensor
options. (15) All lenses must be combined with and attach to a reector. Lenses do not attach directly to the
xture. (16) Uplight kit not compatible with SA23 Shroud, WG17 or WG22 wireguards.

(16)

PS507033EN page 2

February 24, 2021 9:10 AM

Product Specications

0˚ 30˚

˚

˚

˚

˚

20˚

˚

˚

10˚

0˚ 30˚

˚

˚

˚

˚

20˚

˚

˚

10˚

0˚ 30˚

˚

˚

˚

˚

20˚

˚

˚

10˚

Construction

• Rugged and durable die-cast aluminum lower
housing protects LED components for optimal

performance

• Heavy gauge CRS upper driver housing provides

durability and thermal control

• Suspension mounting with various mounting
options

Electrical

• Long-Life LED system coupled with electrical driver
for optimal performance

• LED’s available in 3500K, 4000K and 5000K with a

CRI ≥ 80

• Electronic drivers are available for 120-277V, 347V
and 480V applications

• 0-10V dimming control (standard)

• Optional Digital Addressable Lighting Interface

(DALI) drivers for use with Fifth Light controls

• Operating temperature of -40°C to 55°C (with 0-10V
driver). Refer to chart

Optics

• Proprietary discrete, low-brightness LED module
assembly

• Precision designed, high-impact polycarbonate
optics deliver even illumination

• Offered in Narrow, medium and wide distributions

• Performance options include a low-prole optical
shroud

Controls

• Integral occupancy sensor option provides 1200 sq.
ft. of coverage in a maximum mounting height of 30’

• Enlighted wireless sensor system option

• Integrated Wavelinx Wireless Sensor option provides

1200 sq. ft. coverage

• WaveLinx wireless enabled (does not include
sensor)

SSLED

Finish

• Standard white polyester powder coat nish painted
after fabrication provides increased durability and

rust inhibition

Compliance

• cULus listed for damp locations

• IP65 rated optics

• RoHS compliant

• LED modules comply with IESNA LM-79 and LM-80
standards

• DesignLights Consortium® Qualied and classied

for both DLC Standard and DLC Premium (refer to
www.designlights.org for details)

Warranty

• Five year warranty standard.

Photometric Data

90

2554

5107

7661

10215

1782

3563

5345

7127

80

70

60

50

40

90

80

70

60

50

40

SSLED-LD5-18-M-UNV-L840-CD1-U

Electric Driver
Linear LED 4000K
Spacing criterion: (II) 1.3 x mounting height,

(⊥) 1.3 x mounting height
Lumens: 18,341
Input Watts: 133.8W
Ecacy: 137.1 lm/W
Test Report: SSLED-LD5-18-M-UNV-L840-CD1-U.IES

SSLED-LD5-18-W-UNV-L840-CD1-U

Electric Driver
Linear LED 4000K
Spacing criterion: (II) 1.3 x mounting height,

(⊥) 1.3 x mounting height
Lumens: 18,341
Input Watts: 133.8W
Ecacy: 137.1 lm/W
Test Report: SSLED-LD5-18-W-UNV-L840-CD1-U.IES

4593

9186

13779

18373

View IES les

SSLED-LD-18-N-UNV-L840-CD1-U

90

Electronic Driver

80

Linear LED 3500K

70

Spacing criterion: (II) 0.83 x mounting height,
(⊥) 0.83 x mounting height

60

Lumens: 18,026

50

Input Watts: 133.8W
Ecacy: 134.7 lm/W

40

Test Report: SSLED-LD5-18-N-UNV-L840-CD1-U.IES

PS507033EN page 3

February 24, 2021 9:10 AM

SSLED

Energy and Performance Data

Performance

Catalog Number Description

Delivered

Lumens Watts

Narrow

SSLED-LD5-9-N-UNV-L850-CD1-U Steeler LED 9,000 Lumen, Narrow Dist, 5000K, 0-10V 9,576 64 149

SSLED-LD5-12-N-UNV-L850-CD1-U Steeler LED 12,000 Lumen, Narrow Dist, 5000K, 0-10V 12,769 85 150

SSLED-LD5-15-N-UNV-L850-CD1-U Steeler LED 15,000 Lumen, Narrow Dist, 5000K, 0-10V 15,829 111 143

SSLED-LD5-18-N-UNV-L850-CD1-U Steeler LED 18,000 Lumen, Narrow Dist, 5000K, 0-10V 18,596 134 139

SSLED-LD5-24-N-UNV-L850-CD2-U Steeler LED 24,000 Lumen, Narrow Dist, 5000K, 0-10V 24,918 191 131

SSLED-LD5-30-N-UNV-L850-CD2-U Steeler LED 30,000 Lumen, Narrow Dist, 5000K, 0-10V 31,531 266 118

SSLED-LD5-36-N-UNV-L850-CD2-U Steeler LED 36,000 Lumen, Narrow Dist, 5000K, 0-10V 36,789 334 110

Medium

SSLED-LD5-9-M-UNV-L850-CD1-U Steeler LED 9,000 Lumen, Medium Dist, 5000K, 0-10V 9,743 64 152

SSLED-LD5-12-M-UNV-L850-CD1-U Steeler LED 12,000 Lumen, Medium Dist, 5000K, 0-10V 12,993 85 152

SSLED-LD5-15-M-UNV-L850-CD1-U Steeler LED 15,000 Lumen, Medium Dist, 5000K, 0-10V 16,106 111 145

SSLED-LD5-18-M-UNV-L850-CD1-U Steeler LED 18,000 Lumen, Medium Dist, 5000K, 0-10V 18,921 134 141

SSLED-LD5-24-M-UNV-L850-CD2-U Steeler LED 24,000 Lumen, Medium Dist, 5000K, 0-10V 25,353 191 133

SSLED-LD5-30-M-UNV-L850-CD2-U Steeler LED 30,000 Lumen, Medium Dist, 5000K, 0-10V 32,082 266 120

SSLED-LD5-36-M-UNV-L850-CD2-U Steeler LED 36,000 Lumen, Medium Dist, 5000K, 0-10V 37,432 334 112

Wide

SSLED-LD5-9-W-UNV-L850-CD1-U Steeler LED 9,000 Lumen, Wide Dist, 5000K, 0-10V 9,640 64 150

SSLED-LD5-12-W-UNV-L850-CD1-U Steeler LED 12,000 Lumen, Wide Dist, 5000K, 0-10V 12,855 85 151

SSLED-LD5-15-W-UNV-L850-CD1-U Steeler LED 15,000 Lumen, Wide Dist, 5000K, 0-10V 15,935 111 144

SSLED-LD5-18-W-UNV-L850-CD1-U Steeler LED 18,000 Lumen, Wide Dist, 5000K, 0-10V 18,721 134 140

SSLED-LD5-24-W-UNV-L850-CD2-U Steeler LED 24,000 Lumen, Wide Dist, 5000K, 0-10V 25,085 191 132

SSLED-LD5-30-W-UNV-L850-CD2-U Steeler LED 30,000 Lumen, Wide Dist, 5000K, 0-10V 31,742 266 119

SSLED-LD5-36-W-UNV-L850-CD2-U Steeler LED 36,000 Lumen, Wide Dist, 5000K, 0-10V 37,035 334 111

Ecacy

(lm/W)

Lumen Maintenance

Lumens

24,000 lumen 25ºC > 88% > 167,000

30,000 lumen 25ºC > 73% > 68,500

36,000 lumen 25ºC > 68% > 55,000

Ambient

Temperature

TM-21 Lumen

Maintenance

(60,000 hours)

Theoretical

L70

(hours)

Modular Power Supply Option

1 2

1. Modular Power Supply
Receptacle supplied mounted
into fixture Access Plate.

Cooper Lighting Solutions’ Modular Power Supply option
is available for use with the SSLED. The modular power
supply allows external fixture access for safe and easy
servicing. Access to the individual fixture’s power supply
allows servicing without turning off all the fixtures disrupting
occupants. Cooper Lighting Solutions’ Modular Power
Supply is a time saver in installation – simply plug & power.

2. Modular Power Cord & Plugs in
120, 277, 347, & 480V
configurations for easy plug &
power into existing supply.

Lumen Packages and Ambient Temperature

Driver Reector

Lumen Package Ambient

SSLED-LD5-9 55C 55C 40C 55C 55C 40C

SSLED-LD5-12 55C 55C 40C 55C 55C 40C

SSLED-LD5-15 55C 55C 40C 55C 55C 40C

SSLED-LD5-18 40C 40C 40C 40C 40C 40C

SSLED-LD5-18HT 55C 55C N/A 55C 55C N/A

SSLED-LD5-24 40C 40C 40C 40C 40C 40C

SSLED-LD5-24HT 50C 50C N/A 50C 50C N/A

SSLED-LD5-30 40C 40C 40C 40C 40C 40C

SSLED-LD5-36 40C 40C 40C 40C 35C 40C

Energy Data

Input Watts:

9 (9,000 lumens)=64W

12 (12,000 lumens)=85W

15 (15,000 lumens)=111W

18 (18,000 lumens)=134W

24 (24,000 lumens)=190W

30 (30,000 lumens)=266W

36 (36,000 lumens)=334W

Shipping Data

Catalog No. Wt.

SSLED-LD5-9 19 lbs.

SSLED-LD5-12 19 lbs.

SSLED-LD5-15 19 lbs.

SSLED-LD5-18 19 lbs.

SSLED-LD5-24 19 lbs.

SSLED-LD5-30 19 lbs.

SSLED-LD5-36 19 lbs.

EMCD 5LTD Open Lensed

PS507033EN page 4

February 24, 2021 9:10 AM

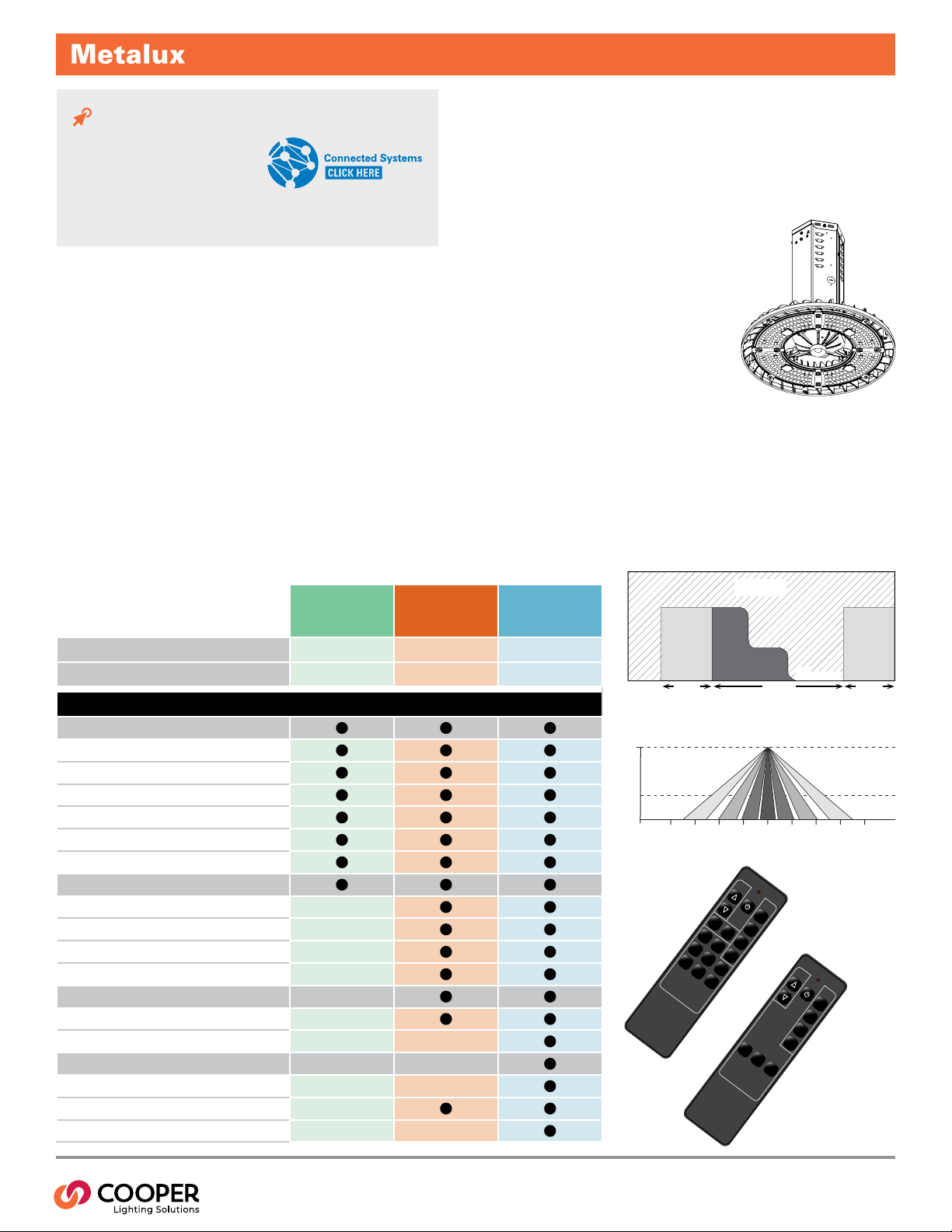

SSLED

Control Systems

• WaveLinx

• DLVP

• Enlighted

• iLumin Plus

The Steeler LED with Integrated Sensor technology provides automatic energy
savings without sacricing performance. Traditionally these types of energy savings
required coordination between the luminaire and a lighting control system. The
Steeler LED delivers superior lighting with integrated occupancy and daylighting
controls.

Capture the benets of traditional lighting controls, without complicated coverage
planning or special wiring. Ideal fornew construction or retrot the Steeler LED
delivers automatic ON to an energy saving light level, while turned OFF when the
space is unoccupied.

Occupied light levels and unoccupied light levels

can be adjusted using the integrated sensor
programming remote (Catalog Number: ISHH-01).
The integrated sensor personal remote (Catalog
Number: ISHH-02) provides code compliant
manual raise, lower, ON, OFF control.

The Steeler LED with Integrated Sensor is easy

to install with no special wiring and ensures

energy savings out-of-the-box with default control
settings.

How it works:

• As the user enters the space controlled by the

integral sensor, the lighting turns ON to full light

output. This can be changed using the optional
remote.

• Lighting will remain at that the occupied level until the space is

unoccupied. This will start the occupancy timeout period (default 20 minutes).

• If the space remains unoccupied for half of the timeout period, the lighting

will automatically reduce tothe Energy Saver light level. This adjustable light level
is typically half of the occupied level.

• At the end of the timeout period the lighting will go to the unoccupied light

level. This adjustable light level uses the OFF default setting.

Systems comparison chart

Integrated Sensor

Cooper Lighting Solutions provides many lighting system solutions designed to satisfy code requirements

Stand-alone or Network Stand-alone Both Network

Need-based feature progression

Basic compliance only

Individual xture control

Retrot+Building Integration

Total wireless connectivity

UI options (touchscreen, apps, etc.)

Enterprise level building integration

Facility management & tools

Floor plan & reporting tools

Analytics/higher problem solving

and meet the unique needs of any project.

Distributed

Low-Voltage

WaveLinx Enlighted

Power System

Space type Interior Interior/Outdoor Any

Occupancy sensing

Daylight harvesting

Zone control

Scheduling

0-10V dimming

A/V integration

BMS integration

Value-added services

Asset tracking

API integration

100

(DO)
Daylight Level

Light Level

0

Energy Savings

Opportunities

Timeout Value

Target light level default: 500 lux at 8 ft.

SVPD3 Coverage Pattern

Side View

0

6.1m

[20 ft.]

9.1m

[30 ft.]

12.2m
[40 ft.]

Optional Remote
Controls

3. S

P

r

o

g

r

a

m

m

i

IS

n

g

H

R

e

H

m

o

-0
1

1. R

5 0, 75, M

2. To save press S

elect O

t

e

6.1m

9.1m

[30 ft.]

MIN

75

MAX

To

S

e

t

a

O

ise, Low

u

t

p

u

t

er or P

ax.

ress M

cc or U

E

T

n O

cc

3m

[20 ft.]

[10 ft.]

R

a

i

L

s

o

w

e

r

LO

HI

SET

15

ES

20

50

Occ

Un

Occ

in.

Occ

To

S

Pre

elect

ss the SCEN

The lig h

stored li ght l

ting wi ll adju

evels..

Per

s

onal

IS

Remote

H

H

-0
2

(ES)
Energy Saver
Light Level

(DU)
Unoccupied Level

0

6.1m

3m

[20 ft.]

[10 ft.]

e

/

Tim

e

O

u

t

5

10

ISHH-01 Remote

Raise

Lower

/

MAX

75

50

MIN

ES

Un

Occ

S

c

e
nes

E

button.

st to

ISHH-02 Remote

(DO)
Daylight Level

OccupiedUnoccupiedOccupiedUnoccupied

12.2m

9.1m
[40 ft.]

[30 ft.]

S

C

E

N

E

PS507033EN page 5

February 24, 2021 9:10 AM

Accessories

SSLED-W/ SHROUD ACCESSORY KIT

17-3/4" [438mm]

SSLED-W/ROUND DECO SHIELD

SSLED W/ REFLECTOR ACCESSORY KIT

[694mm]

SSLED

(KIT: SSLED-SA23-U)

22-3/8" [569mm]

SSLED-W/ UPLIGHT ACCESSORY KIT
(KIT: SSLED-UPL-U)

16-15/16"
[429mm]

21-3/4"

[554mm]

17-11/32"
[441mm]

(KIT: SSLED-DECO-U)

22-1/4"

[565mm]

SSLED-W/WIRE GUARD
(KIT: SSLED-WG17-U)

16-7/8" [429mm]

16-3/4"

[426mm]

15-7/8"

[403mm]

17-7/32"

[437mm]

(CLEAR KIT: SSLED-CLR22-U)
(FROSTED KIT: SSLED-FRR22-U)

22-13/32" [569mm]

26-7/8"

[682mm]

27-5/16"

Cooper Lighting Solutions

1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.cooperlighting.com

© 2021 Cooper Lighting Solutions
All Rights Reserved.

Specifications and dimensions
subject to change without notice.

PS507033EN page 6

February 24, 2021 9:10 AM
