WaveLinx Wired
SCMD4
WaveLinx Wired Local Bus Control Module
Typical Applications
Oce • Education • Healthcare • Hospitality • Retail •
Industrial • Manufacturing • Outdoor
Interactive Menu
• Ordering Information page 2
• Additional Resources page 3
• Wiring Diagrams page 4
• Connected Systems page 5
• Product Warranty
Top Product Features
• Can individually control up to 256 addressable devices on four
WaveLinx Wired local bus
• Up to 64 individual devices per WaveLinx Wired local bus
• Alarm and Emergency dry contact inputs
• RS485 & DMX512 inputs
Dimensions
113.8mm / 4.48in
Product Certication
Product Features
WaveLinx Wired
Local Bus
Manual
Dimmer
Occupancy
Sensor
WaveLinx Wired
5-Wire Bus
Daylighting
Control
Receptacle
Control
Tuning
Control
Demand
Response
Remote Signal
Outdoor
Control
100mm /
3.94in
Two key hole slots as
an alternative to DINRail xing
56mm /
2.20in
additional
product diagrams
PS503145EN page 1
March 2020
Page 2
WaveLinx Wired
Order Information
Catalog Number
Catalog Number Description
SCMD4
Product Specications
Key Features
• Provides four WaveLinx Wired local busses to address and control 256 devices
(sensors, xtures, relays, wallstations)
• Mounts to standard Top Hat (TS 35) DINrail
• 2 dry contact inputs
• DMX control
• RS485 control
• Connects to the WaveLinx Wired digital network
• 4 internal dedicated WaveLinx Wired local bus power supplies
• Each bus has a dedicated test/overide button allowing the installer to test or
overide the instalation prior to commisioning
• Conguration stored in Non Volatile EEPROM
• Congurable start up mode
Mechanical
Weight: 0.35kg/0.77lbs
Operating temperature: +2ºC to +50ºC
Note: All enclosures must be adequately ventilated
Max storage temperature: +60ºC
Humidity: +5 to 95% non-condensing
Environmental protection: IP20
Electrical
120-277VAC -/+ 10% 50/60 Hz, 0.2AMAX
Supply:
Switch inputs: 2, congurable as break or make, max wire size 12/14AWG
WaveLinx Wired Network inputs/output: Screw terminals
WaveLinx Wired Local Bus: Max wire size 16AWG
WaveLinx Wired Local Bus Power: Nominal 16V, max current 225mA supplies to
each bus
DMX signal: Addressable in software, DMX512
Maximum load: 0.2A @ 50ºC
Terminals max wire size: 12/14AWG
Standards/Ratings
• cULus Listed - Energy Management Equipment (UL916)
• Manufactured in an ISO 9001 certied factory
• Meets ASHRAE Standard 90.1 requirements
• Meets IECC 2015 requirements
• Meets CEC Title 24 requirements
Environmental Regulations:
• RoHS Directive 2011/65/EU
Warranty
Five year warranty standard
WaveLinx Wired Local Bus Control Module
SCMD4
PS503145EN page 2
March 2020
Page 3
WaveLinx Wired

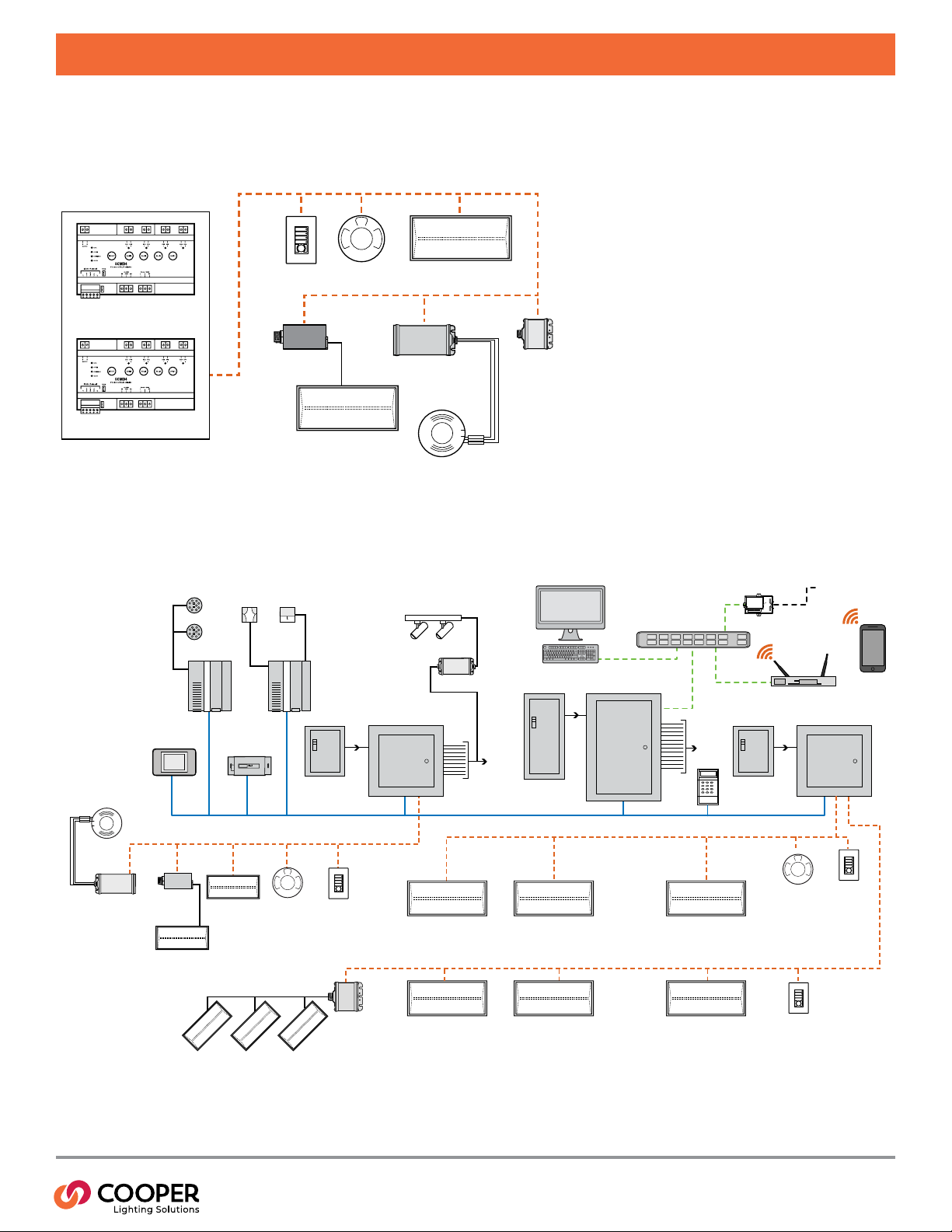

System architecture
Simple WaveLinx Wired system
WaveLinx Wired
Area Controller
SCMD4
WaveLinx Wired Local Bus (polarity, topology free)
SCMD4
SCMD4
Complete WaveLinx Wired system
DMX Fixture
DMX Fixture
SCD96
DMX Out
iLumin
Touchscreen
Occupancy Sensor
Dual Tech
occupancy
sensor
WaveLinx Wired
Area Controller
ILS-0020
8 local busses
Curtain
Control
SI-2
AV & Partitoning
WaveLinx Wired Local Bus
wallstation
controller
0-10V LED luminaire
Blind
Control
RI-2
Relay Out
occupancy/
daylight Sensor
Circuit Breaker Panel
LED luminaire with DALI driver
powerpack0-10V LED
Reverse phase track lighting
ILM-2110
Medium Area Controller
24 Relays, 12 0-10V, 4 local busses
WaveLinx Wired Network (daisy chain wire using Cooper LCCP, LCCNP, or Belden 1502, 1502P)
dual technology
occupancy sensor
LDCM
(0-10V to Reverse
Phase Module)
24 Relays
and 12
0-10V zones
relay pack for
LED or plug load
Circuit Breaker Panel
WaveLinx Wired
Configuration
Software
Building LAN or VLAN
ILL-3301
Large Area Controller
36 Relays, 36 0-10V, EG2 installed
WaveLinx Wired Local Bus
36 Relays
and
0-10V zones
BMS Pro
S1
A1
B1
S0
A0
B0
S2
A6
A5A4A3
A2
A7
B3
B2
Circuit Breaker Panel
TC1
Network timeclock
-PWR
+PWR
FRAME GND
ETHERNET
FG
PWR-PWR+
SGA-B+
RS 485
GNDRS 485-
RS 485+
S3
Building WLAN
BACnet
Building
Management
System
iLumin
APP
ILS-0020
Small Area Controller
0 Relays, 0-10V, 8 local busses
8 local busses
Powerpack
0-10V LED
controller
LED Luminaire
with 0-10V driver
LED Luminaire
with DALI driver
Occupancy/
Daylight Sensor
Wallstation
Relay pack for
LED or plug load
WaveLinx Wired Local Bus
Occupancy/
Daylight Sensor
Wallstation
Wallstation
PS503145EN page 3
March 2020
Page 4
WaveLinx Wired
SCMD4
Overview
The SCMD4 provides four WaveLinx Wired local busses enabling diming and switching of up to 256 individually addressable devices including luminaires and other WaveLinx
Wired devices. WaveLinx Wired multi-sensors, wallstations and DAC’s can be added to each bus creating a complete solution. Each bus supports up to 64 addresses.
The SCMD4 also features direct input capabilities from a DMX system or from the WaveLinx Wired digital network.
The SCMD4 includes dry contact inputs that can be used for emergency override or re alarm inputs.
Sample System Topology:
This diagram shows the main components of the WaveLinx Wireless and Wired Connected Lighting system.
The WaveLinx wireless system communicates using wireless mesh technology based on the IEEE 802.15.4 standard. A PoE LAN
connection for each Wireless Area Controller (WAC) is required for power and data access to the building lighting network.
The WaveLinx wired system controls the devices using relay, 0-10V, DMX and the WaveLinx wired digital local bus. The WaveLinx
wired system connects to the building LAN using the EG2 module. Each WaveLinx wired area controller communicate on the
WaveLinx wired network. The WaveLinx wired network supports over 60,000 devices.
The Trellix Core, WaveLinx Area Controllers (WAC) and WaveLinx Ethernet Gateways (EG2) communicate with each other over the
Ethernet network.
Please refer to the WaveLinx Wireless Network and IT Guidance Technical Guide and WaveLinx Wired Network and IT Guidance
Technical Guide for more information.
IoT
and
API
Touchscreen
Partner Apps
WaveLinx Wired
Local Bus
Smart Lighting Apps3rd Party Integration
Trellix Admin Trellix LightingTrellix Exchange
WaveLinx Wired
Network
WaveLinx
Wired
System
Trellix Core
wired
OR
wireless
WaveLinx
Wireless
System
Firewall
Up to 500
Wireless Area
Controllers
(Trellix Core
Enterprise & Virtual)
WaveLinx Network
and IT Guidance
Technical Guide
Wireless Area
Controller
View
Touchscreen
Smartphone
WaveLinx
with
app
Area or Room
20A
Relay
WaveLinx Wired local bus devices
(up to 64 devices per local bus)
Room Based
Occupancy Sensor
Scene
Wallstation
Addressable
Fixture
Relay Controlled
Fixture
