HALO HOME
RL56-HVA | VOICE
5/6-Inch Alexa Voice Integrated
LED Retrot Module
Typical Applications
Residential
Interactive Menu
Product Certication
• Order Information page 2
• Product Specications page 3
• Energy & Performance Data page3
• Product Warranty
Product Features
r
a
w
adjustable
2
7
0
0
m
white
K
c
o
o
l
K
0
0
0
5
-CA models only
Top Product Features
• Amazon Alexa Voice integration
• Adjustable white tuning: 2700K - 5000K, 90 CRI
• Connect to the HALO Home Bluetooth Mesh network, no hub required
• Suitable for new construction, remodel and retrot
• Certied for use with HALO 5” & 6” housings. Certied for use with other 5” & 6” housings
Dimensions
3.25"
[82.6mm]
7.75"
[196.9mm]
PS518065EN page 1
April 29, 2020 1:11 PM
Kit Order Information
SAMPLE ORDER NUMBER: RL56HVAHWB1
HALO VOICE
Module
Module Kit Type
RL56 = HALO Voice RL56
LED module
Kit Type
HVAHWB1 = 5/6” Halo Voice
+ Bridge
HVAHIWAC = 5/6” Halo
Voice + Accessory +
Bridge Kit
Order Information
SAMPLE ORDER NUMBER: RL56069B4AWHVA
Module
Module CRI/CCT Protocol Finish Type T24 Compliant
RL5606 = HALO Voice RL56
LED module
Halo Standard Housings 5-inch
H5ICAT= 5" Insulated Ceiling, Air-Tite New Construction Housing
H5RICAT= 5" Insulated Ceiling, Air-Tite Remodel Housing
H5ICATNB= 5" Insulated Ceiling, Air-Tite New Construction Housing, No Socket Bracket
H5T= 5" Non-IC, New Construction Housing
H5RT= 5" Non-IC, Remodel Housing
H25ICAT = 5" Shallow, Insulated Ceiling, Air-Tite New Construction
H25ICATNB = 5" Shallow, Insulated Ceiling, Air-Tite New Construction, No Socket Bracket
E5TAT= 5" Non-IC, New Construction Housing
E5RTAT= 5" Non-IC, Remodel Housing
H5TNB= 5" Non-IC, New Construction Housing, No Socket Bracket
E5TATNB= 5" Non-IC, New Construction Housing, No Socket Bracket
E5ICAT= 5" Insulated Ceiling, Air-Tite New Construction Housing
E5RICAT= 5" Insulated Ceiling, Air-Tite Remodel Housing
E5ICATNB= 5" Insulated Ceiling, Air-Tite New Construction Housing, No Socket Bracket
Halo Standard Housings 6-inch
H7ICAT= 6" Insulated Ceiling, Air-Tite New Construction Housing
H7RICAT= 6" Insulated Ceiling, Air-Tite Remodel Housing
H7ICT= 6" Insulated Ceiling, New Construction Housing
H7RICT= 6" Insulated Ceiling, Remodel Housing
RL56 Series LED Retrot is UL Classied for retrot in the follow 5/6” recessed housings:
The RL56 Voice Series LED light module - trim combination is UL Certied for use with any 5”/6” diameter recessed housing constructed of steel or aluminum with an internal volume that exceeds 107.9 in3 in addition to those
noted above.
CRI/CCT Protocol Finish Type T24 Compliant
9 = 90 CRI minimum,
white tuning, select
CCT 2700K – 5000K,
in the mobile app
B4A = Bluetooth
Mesh wireless control,
4.0, and Amazon Alexa Voice
Services module
W = matte white bae HVA = Halo Voice Alexa -CA = T24 Compliant
Housing Compatibility
Compatible Halo Incandescent E26 Screwbase Housings
H7ICATNB= 6" Insulated Ceiling, Air-Tite New Construction Housing, No Socket Bracket
H7ICTNB= 6" Insulated Ceiling, New Construction Housing, No Socket Bracket
H7T= 6" Non-IC, New Construction Housing
H7RT= 6" Non-IC, Remodel Housing
H7TNB= 6" Non-IC, New Construction Housing, No Socket Bracket
H7TCP= 6" Non-IC, Chicago Plenum, New Construction/Remodel Housing
H7UICAT= 6" Insulated Ceiling, Universal, Air-Tite, New Construction Housing
H27ICAT= 6" Shallow, Insulated Ceiling, Air-Tite New Construction
H27RICAT= 6" Shallow, Insulated Ceiling, Air-Tite Remodel Housing
H27T= 6" Shallow, Non-IC, New Construction Housing
H27RT= 6" Shallow, Non-IC, Remodel Housing
E27ICAT= 6" Shallow, Insulated Ceiling, Air-Tite New Construction
E27RICAT= 6" Shallow, Insulated Ceiling, Air-Tite Remodel Housing
E27TAT= 6" Shallow, Non-IC, New Construction Housing
E27RTAT= 6" Shallow, Non-IC, Remodel Housing
E7ICAT= 6" Insulated Ceiling, Air-Tite New Construction Housing
E7RICAT= 6" Insulated Ceiling, Air-Tite Remodel Housing
E7ICATNB= 6" Insulated Ceiling, Air-Tite New Construction Housing, No Socket Bracket
E7TAT= 6" Non-IC, New Construction Housing
E7RTAT= 6" Non-IC, Remodel Housing
E7TATNB= 6" Non-IC, New Construction Housing, No Socket Bracket
PS518065EN page 2
April 29, 2020 1:11 PM
Product Specications
Wireless System
• For use with the Halo Voice and Halo Home
mobile apps.
• Wi-Fi module connects product to wireless
network through the Halo Voice app. Sign-In to
Amazon Account within the Halo Voice app for
Alexa functionality.
• Bluetooth low energy (BLE) mesh allows on/off,
white tuning and lumen output to be controlled
wirelessly with companion wall switches, smart
phones and tablets using Halo Home mobile
application.
• Group, schedule, scenes and automate lighting
actions through Halo Home mobile app.
• Bridge required to control the light with voice.
HALO Home products work better together.
Smartphone will need to be within range to
control a HALO Home device. Expand and
strengthen the Bluetooth network range
by adding more HALO Home devices. Visit
halohomesupport.eaton.com to learn more.
Wireless Pairing
• See HALO Home Quick Start Guide for
wireless setup, guidance and troubleshooting:
halohomesupport.eaton.com/downlight
Module - Trim
• Module construction includes LED Array, heat
sink, reector, lens, bae and trim ring.
• Regressed bae
• Heat sink designed to conduct heat away from
the LED Array, keeping the junction temperatures
below specied maximums, even when installed
in insulated ceiling environments.
LED Array
• Mid power LED array provides a uniform source
with high eciency and no pixilation.
• 90 CRI minimum, R9 greater than 50
• Color accuracy within 3 SDCM at the CCT
endpoints and 4 SDCM in between endpoints,
provide color accuracy and uniformity.
• Color Temperature (CCT) has an adjustable
range from 2700K to 5000K within the mobile
app (factory default 3000K)
• 50,000 hour life
Optical Assembly
• Regressed lens
• Impact-resistant polycarbonate
• Convex form and lamp-like appearance
• Diffuse for even illumination
Driver
• Integral 120V 50/60 Hz constant current driver
provides noise free operation
• Inline electrical quick connect and E26 adapter
(provided in non California version) provides
mains connections
• Consult instruction sheets and quick start guide
for more information
Dimming
• In the Halo Home mobile app, or through Alexa
commands for continuous,icker-free dimming
from 100% to 5%.
• It is not recommended with any in wall dimmers.
Retention
• Integral torsion springs for quick and secure
installation
HALO VOICE
Compliance
• UL Certied for US and Canada for use with Halo
housings and other’s housings
• EMI/RFI emissions per FCC 47CFR Part 15
consumer limits
• Contains no mercury or lead and RoHS
compliant
• Photometric testing in accordance with IES LM79-08
• Lumen maintenance projections in accordance
with IES LM-80-08 and TM-21-11
• Can be used for State of California Title 24 high
ecacy luminaire compliance. Complies with
Title 24 JA8-2016-E.
• FCC ID - 2AKCY-RL56BLEHVA
• IC Code - 4706A-RL56BLEHVA
Warranty
• Five year limited warranty, consult website for
details. www.cooperlighting.com

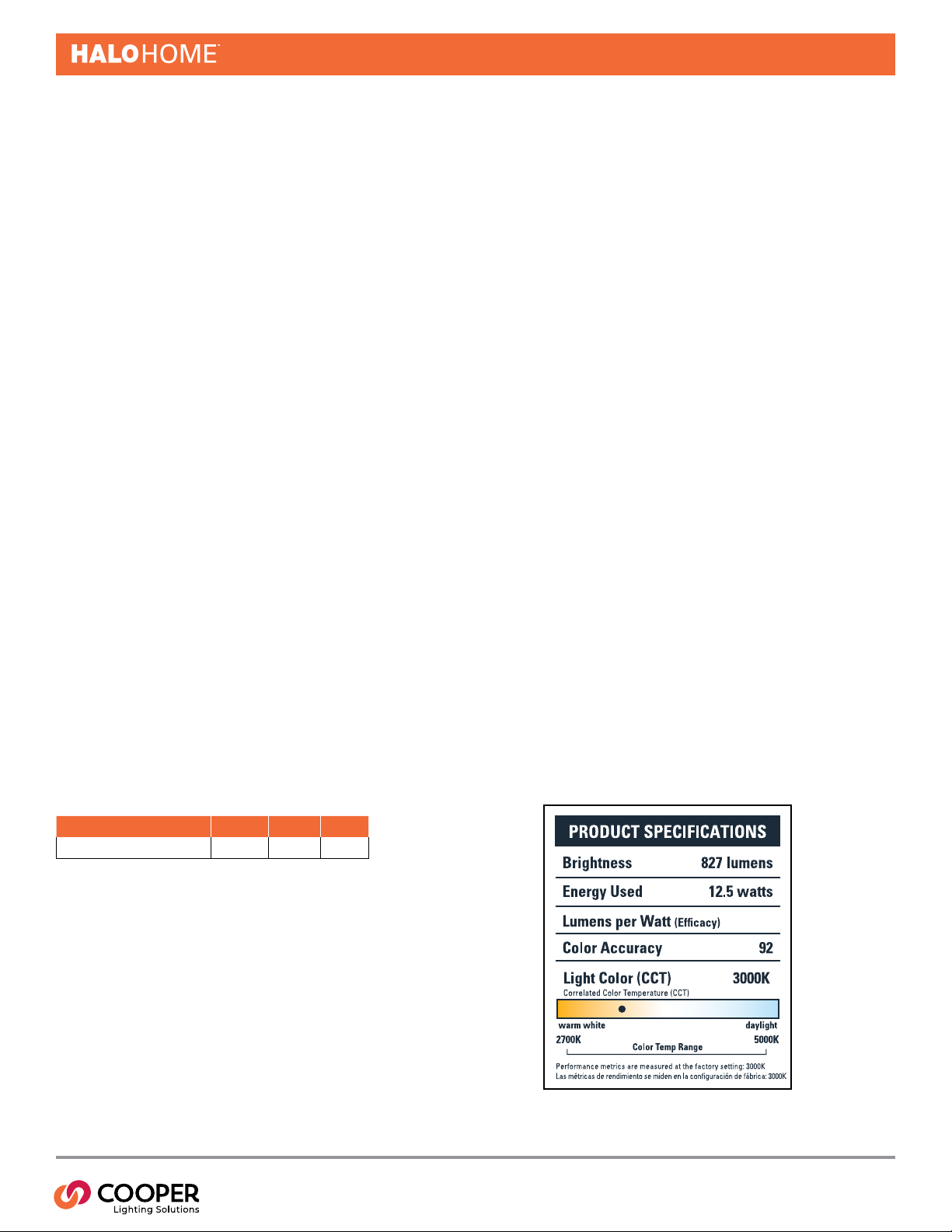

Energy and Performance Data Lighting Facts
Standard Ecacy Versions
Catalog Number Lumens Watts lm/W
RL56069B4AWHVA 827 12.5 66.2
