PR4R | PR4M

High Lumen

4-inch LED self-flanged, lensed retrofit
downlight and wall wash

Typical Applications

Low Lumen

Office • Healthcare • Hospitality • Institutional

Interactive Menu

• Order Information page 2

• Product Specifications page 3

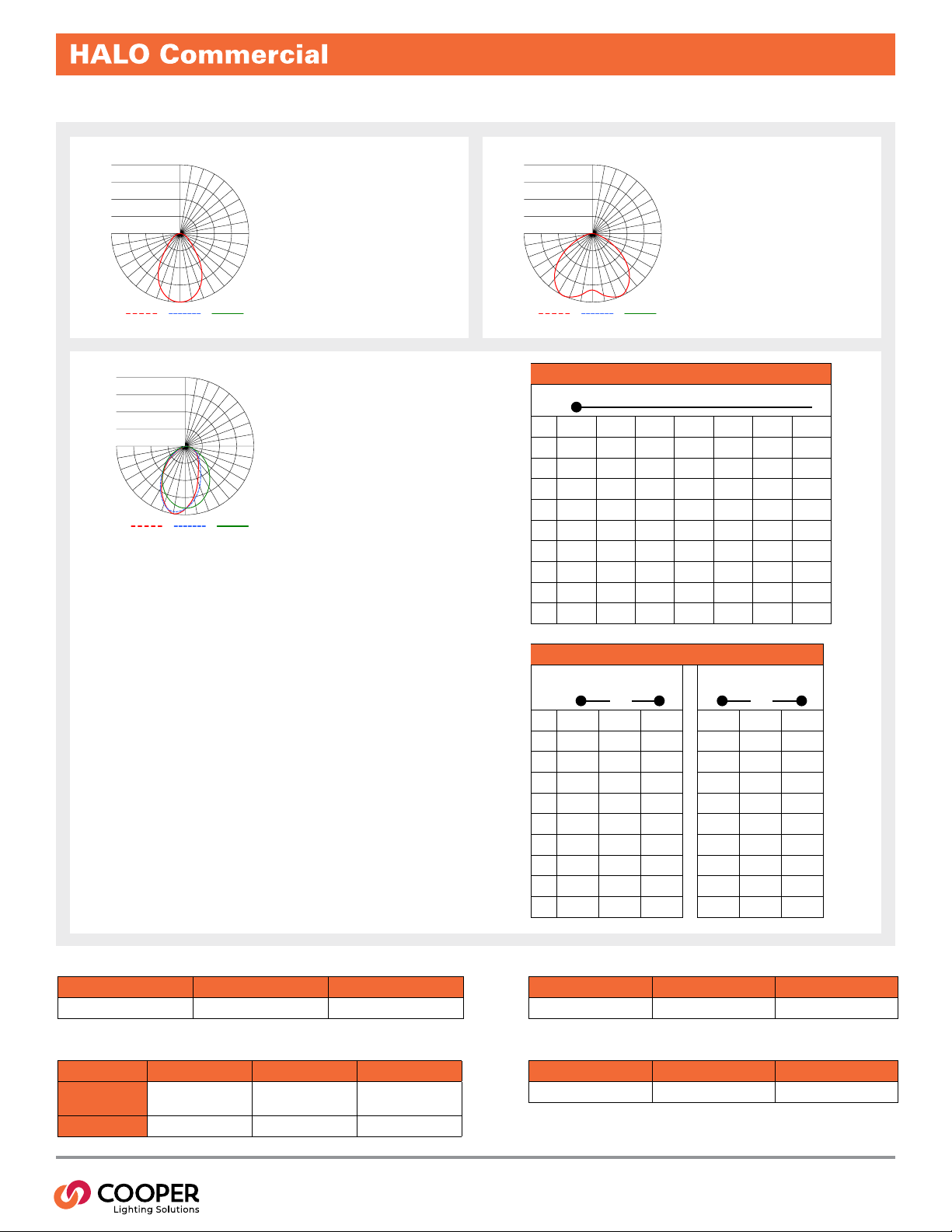

• Photometric Data page 4

• Energy & Performance Data page 6

• Connected Systems page 7

• Product Warranty

Top Product Features

• Selectable lumens 1000/1500/2000 and 2000/3000/4000

• SeleCCTable color temperature 3000K/3500K/4000K

• Available in 80 CRI or 90 CRI

• Retrofit 5” & 6” commercial housings with 4” lens LED

• Medium / Wide beam distribution reversible “flip” lens

• Wall wash accessory kit

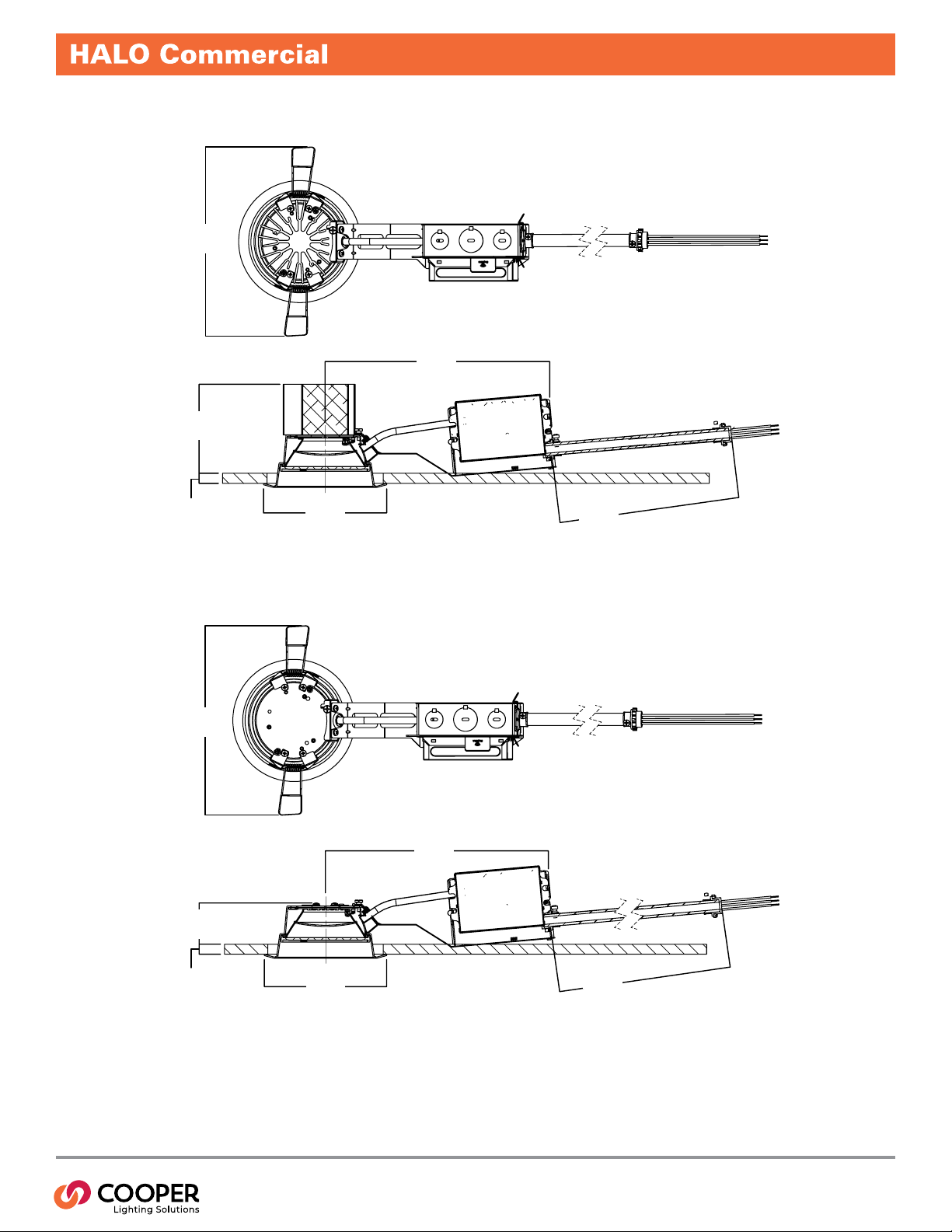

Dimensional and Mounting Details

HIGH LUMEN

9.44”

[240mm]

Product Certification

Product Features

Scale

8’ [2.4m]

9’ [2.7m]

10’ [3.0m]

14’ [4.3m]

16’ [4.9m]

4.4”

[112mm]

.5”

[12.7mm]

Ø 6.1”

[155mm]

11.1”

[282mm]

14.78”

[375mm]

1000 lm

1500 lm

2000 lm

Nominal values for 15 - 20 footcandles at nadir.

3000 lm

additional
product diagrams

PS517011EN page 1

April 6, 2021 4:50 PM

4000 lm

PR4R | PR4M

Order Information

Icon Key: ∆ Configurable Product

SAMPLE ORDER NUMBER: PR4RFS24D010REM7 – PR4M24MD8FSMW

A complete luminaire consists of a mounting frame and LED module ordered separately, with optional accessories as noted

Mounting Frame

Lumens Input / Control Options Accessories

Standard Driver 120-277VAC, 0-10V analog dimming

Mounting Frame Lumens Input / Control Options Accessories

PR4R = 4" lens aperture, retrofit
frame arm with integrated
junction box and driver
PR4RCP = 4" lens aperture,
retrofit frame arm with
integrated junction box and
driver, CCEA Chicago Plenum

(4)

rated

(4) Retrofits 5.1” min. to 5.75” max.
aperture (up to 7” max. aperture with
OT450P accessory ring)

(4)

Notes Notes Notes Notes Notes

Field Selectable
FS12 = field selectable 1000, 1500 and 2000

lumens (nominal), use with PR4M12* LED
modules only
FS24 = field selectable 2000, 3000 and 4000
lumens (nominal), use with PR4M24* LED
modules only

Discrete (fixed) Factory Set
10 = 1000 lumens (nominal), use with

PR4M12* LED modules only
15 = 1500 lumens (nominal), use with
PR4M12* LED modules onlys
30 = 3000 lumens (nominal), use with
PR4M24* LED modules only

(5) FS12 factory preset 2000 lumens in PR4M12 LED
module. FS24 factory preset 4000 lumens in PR4M24
LED module.

(6) Driver has fixed lumen output. Lumen selector
switch on LED modules do not change lumens in
fixed output housings.

(5)

(5)

(6)

D010 = 120-277VAC 50/60Hz, 0-10V analog ,

1%-100% dimming

REM7 = integral 7 watt emergency
battery pack with remote test /
indicator light, use with D010 only
REM14 = integral 14 watt
emergency battery pack with
remote test / indicator light, use
with D010 only
BOD7ST = 7.5 watt Bodine self-test
diagnostic emergency module with
remote test / indicator light, use
with D010 only
WTA = Factory installed WaveLinx
Sensor Kit (use with D010 only)
WTK = Factory installed WaveLinx
Lite Sensor Kit

(1) Not available for Chicago Plenum
(3) WTA = WaveLinx tile mount sensor kit
for daylight dimming, PIR motion sensing,
and optional RLTS - Real Time Location
Services, use with D010 only (Refer to
WaveLinx system specifications)
(9) WTK = WaveLinx Lite tile mount sensor
kit for daylight dimming, PIR motion sens­ing, use with D010 only (Refer to WaveLinx
Lite system specifications)

(1)

(1)

(1)(3)

(1) (9)

H347 = 347 to 120V step down transformer,
75VA

(1)

H347200 = 347 to 120V step down transformer,
200VA
WTA = Field installed WaveLinx Sensor Kit (use
with D010 only)
WTK = Field installed WaveLinx Lite Sensor

(1) (9)

Kit

(1) Not available for Chicago Plenum
(3) WTA = WaveLinx tile mount sensor kit for daylight
dimming, PIR motion sensing, and optional RLTS - Real
Time Location Services, use with D010 only (Refer to
WaveLinx system specifications)
(9) WTK = WaveLinx Lite tile mount sensor kit for daylight
dimming, PIR motion sensing, use with D010 only (Refer
to WaveLinx Lite system specifications)

(1)(3)

Mounting Frame

Lumens Input / Control Options Accessories

DLV Driver Distributed Low Voltage Power System

Mounting Frame Lumens

PR4R = 4" lens aperture, retrofit
frame arm with integrated
junction box and low voltage
DLVP system driver

(8) Retrofits 5.1” min. to 5.75” max.
aperture (up to 7” max. aperture with
OT450P accessory ring)

(8)

Notes Notes Notes Notes Notes

LED Module

10 = 1000 lumens (nominal), use with
PR4M12* LED modules only
15 = 1500 lumens (nominal), use with
PR4M12* LED modules only
20 = 2000 lumens (nominal), use with
PR4M12* LED modules or with PR4M24*
LED modules
30 = 3000 lumens (nominal), use with
PR4M24* LED modules only
40 = 4000 lumens (nominal), use with
PR4M24* LED modules only

(7) DLV driver has fixed lumen output. Lumen selector
switch on LED modules do not change lumens in
fixed output housings.

Lumen Range Distribution CRI / CCT Finish Accessories

LED Module Lumen Range Distribution CRI / CCT Finish Accessories

PR4M = 4" lens aperture, LED
trim/module with self-flanged
shallow reflector.
For use with PR4 series housing
frames, retrofit frames, and
surface cylinders

12 = field selectable 1000, 1500 and
2000 lumens (nominal). Factory pre­set for 2000 lumens.
Use with PR4RFS12*, PR4R10*,
PR4R15*, PR4R20* mounting frames
only.
24 = field selectable 2000, 3000 and
4000 lumens (nominal).
Factory pre-set for 4000 lumens.
Use with PR4RFS24*, PR4R20*,
PR4R30*, PR4R40* mounting frames
only.

Notes Notes Notes Notes Notes Notes

(7)

DLV = distributed low voltage dimming driver
(1%-100%)
For use with DLVP system. Refer to DLVP low­voltage power module and DLVP specifications
for details.

(1) Not available for Chicago Plenum (1) Not available for Chicago Plenum

MD = medium / wide beam reversible
“flip” lens. Factory set for medium.
Tool-less twist-to-lock flip changes
from medium to wide distribution.

Medium distribution (70°, 1.01 SC)

Wide distribution (107°, 1.61 SC)

Input / Control Options Accessories

REMV7 = 7 watt emergency battery
pack with remote test / indicator
light, use with DLV only

(1)

Field Selectable
8FS = 80 CRI (minimum) with field

selectable 3000K, 3500K and 4000K
CCT (nominal). Factory pre-set
for 3500K.
9FS = 90 CRI (minimum) with field
selectable 3000K, 3500K and 4000K
CCT (nominal). Factory pre-set
for 3500K.

Discrete (fixed) Factory Set
827 = 80 CRI (minimum) 2700K
927 = 90 CRI (minimum) 2700K
850 = 80 CRI (minimum) 5000K
950 = 90 CRI (minimum) 5000K

REMV14 = 14 watt emergency

battery pack with remote test
/ indicator light, use with DLV

(1)(2)

only

(2) ULus for U.S. only

(1)(2))

MW = matte white ring/
self-flanged reflector
MMS = matte metallic silver
ring/self-flanged reflector
BZ = bronze ring/self-flanged
reflector

PR4WW = 4” wall wash optic,
field installed
PR4MDWD = 4” reversible
medium / wide distribution ­replacement lens
OT450P = Oversize metal retrofit
ring with 5.5” ID opening, 8” OD
flange, matte white finish

PS517011EN page 2

April 6, 2021 4:50 PM

Product Specifications

Frame

• Die-formed galvanized steel retrot frame arm with

integrated junction box

• One-piece construction attaches to LED module for

installation in an existing commercial downlight
from below the nished ceiling

• UL listed with Cooper commercial frames, and
classied with others frames

Mounting

• Retrot frame arm attaches to the LED module with
knurled thumb screws

Retrofit

• Retrot frame arm and LED module may be used to
retrot open frame 5.1” to 5.75” nominal aperture,
and up to 7.0” with oversize trim ring OT450P.

• OT450P oversize trim ring, 5.5” I.D. and 8.0” O.D.,
matte white nish

LED Module

• Integrated self-anged reector with multiple nish
options

• Patented SeleCCTable™ color temperature

technology and selectable lumen output for
selection in the eld

• Integrated dip switches for color and lumen
selection

• Field Selectable CCT 3000K / 3500K / 4000K

• Discrete (Fixed) CCT options in 2700K and 5000K

• Low and high selectable lumen ranges:

• Low Lumen: 1000lm / 1500lm / 2000lm

(nominal)

• High Lumen: 2000lm / 3000lm / 4000lm

(nominal)

• Discrete (xed) lumen models in 1000lm, 1500lm,

3000lm (nominal); use to meet lighting power
density codes

• Available in 80 CRI or 90 CRI (nominal) with color
accuracy within 3 SDCM

• LED array uses a plurality of mid-power surface
mount LEDs delivering high ux and excellent
eciency

• Passive cooling achieves L70 at 50,000 hours

• Integral connector for quick link to the retrot
frame arm

LED Module - Reflector

• Integrated self-anged reector with LED array
and lens

• Finish options: matte white, matte metallic silver,
and dark bronze

LED Module – Optics

• Reversible “Flip” Lens

• “Flip” lens is reversible offering medium / wide

beam options

• Lens ships in medium beam. Twist-to-lock

feature allows conversion to wide beam in the
eld without tools.

• Micro-prismatic lens is precision molded optical
polymer

• Louvered Wall Wash

• Optional eld installed wall wash kit offers 360°

rotation, allowing the housing to be installed in
any orientation.

Driver

• Driver is preinstalled and prewired to the junction
box on the retrot frame arm

• Field replaceable constant current driver provides

low noise operation

• UNV 120-277VAC 50/60Hz input standard

• Continuous 1% - 100% dimming with 0-10V analog
control

• Optional low voltage DC driver for use with DLVP

distributed low voltage power system (see DLVP

Design Guide for details)

Emergency Option

• Available with 7 or 14 watt emergency battery pack
with remote test switch / charge indicator light

• Provides 90 minutes of standby lighting meeting
most life safety codes for egress lighting

• Available Self-Test (self-diagnostic), with remote
charge indicator and test switch

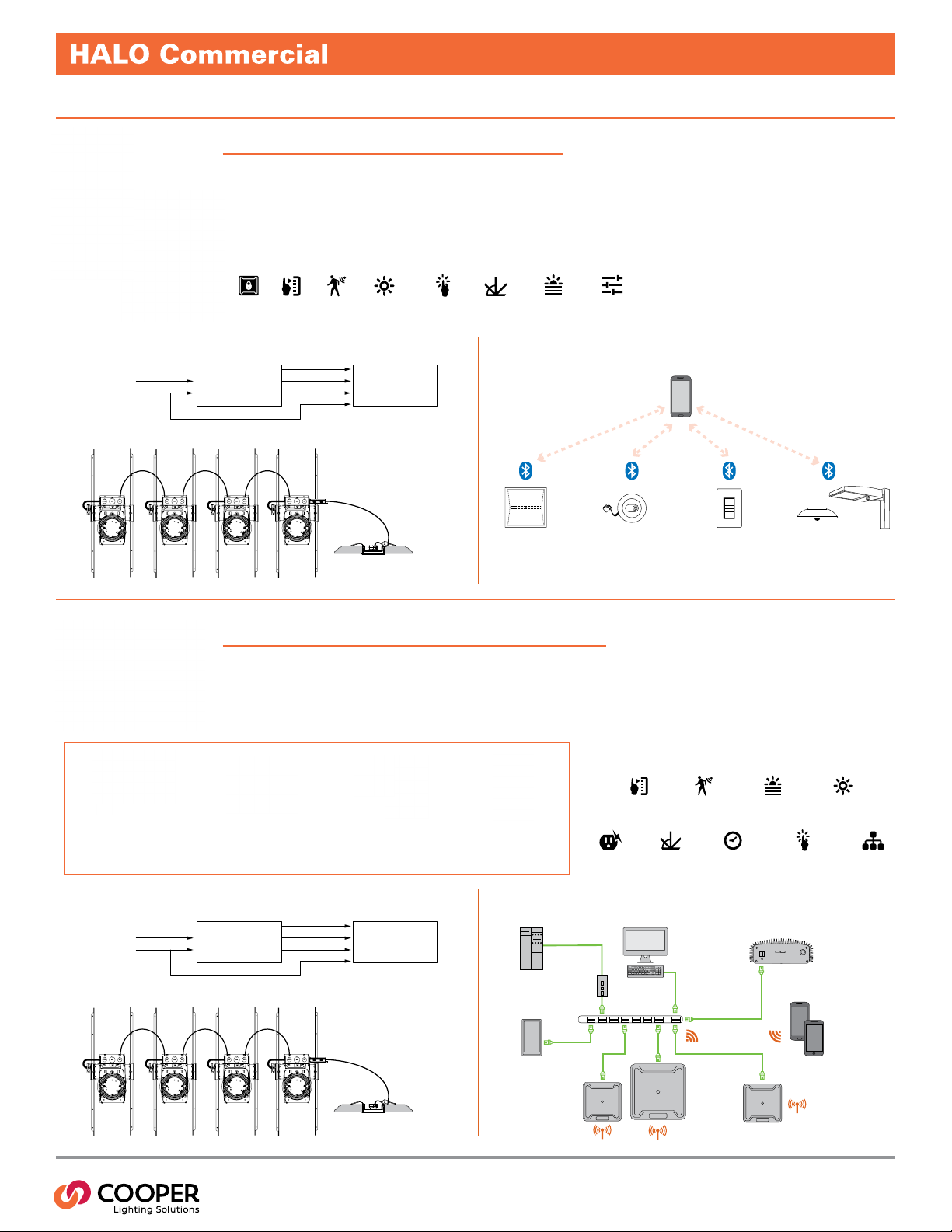

Connected Lighting System Options

Two WaveLinx connected systems to choose.
Summary information provided below, refer to
WaveLinx system specications and application
guides for details.

WaveLinx Wireless System Tilemount Sensor Kit

• WaveLinx Wireless WTA tile mount sensor kit
offers daylight dimming, PIR motion sensing, scene
and zone conguration, automatic commissioning;
and optional RLTS - Real Time Location Services
available.

WaveLinx Lite System Tilemount Sensor Kit

• WaveLinx Lite WTK tile mount sensor kit offers
daylight dimming and PIR motion sensing, scene
and grouping conguration.

WaveLinx Tilemount Kits Application

• The WTA and WTK tilemount kits include a control
module mounted on the luminaire junction box via
1/2” knock-out, and a tilemount sensor on 54-inch
whip; for ceiling installation by direct-mount spring

clips or via mounting bracket in octagon ceiling

boxes.

• The WTA and WTK tilemount kits may be ordered
as factory installed on the luminaire, or ordered
separately as a eld installed accessory kit.

PR4R | PR4M

Junction Box

• Galvanized steel junction box

3

internal volume excluding voltage barrier

• 20in

3

• 25 in

internal total volume

• Voltage divider for 0-10V dimming wires [occupies

(1) 1/2” pry-out space]

• Listed for (8) #12 AWG (four in, four out) 90˚ C
conductors and feed-thru branch wiring

• (3) 1/2” and (2) 3/4” trade size pry-outs available

• (3) 4-port push wire nuts for mains voltage, with

1-port used for xture wiring

Compliance

• cULus Listed (US and Canada), wet location listed
in protected ceilings

• IP20 - Above nished ceiling;

IP65 - Below nished ceiling

• Field selectable 1000/1500/2000lm,
2000/3000/4000lm models, and xed output
3000lm models are Non-IC rated, insulation must
be kept 3” from top and sides

• Fixed output 1000lm and 1500lm models are

Type IC thermally protected and suitable for direct

contact to air permeable insulation (also suitable

for Non-IC)

• Not for use in direct contact with spray foam
insulation, consult NEMA LSD57-2013

• Airtight per ASTM-E283-04

• Suitable for use in clothes closets when installed

in accordance of the NEC 410.16 spacing
requirements

• EMI/RFI emissions FCC CFR Title 47 Part 15
Class A at 120/277V

• Contains no mercury or lead and RoHS compliant

• Photometric testing in accordance of IES LM-79-08

• Lumen maintenance projections in accordance of

IES LM-80-08 and TM-21-11

• May be used to comply with State of California
Title 24 non-residential code, as a dimmable LED

luminaire

• ENERGY STAR
Fixtures database

Warranty

• Five year limited warranty, consult website for
details. www.cooperlighting.com/legal

®

certied, see Certied Light

PS517011EN page 3

April 6, 2021 4:50 PM
