Cooper Lighting Solutions Industrial LED Linear Retrofit Kit Specifications

Project Catalog # Type

[13mm]

Prepared by Notes Date

Metalux

Industrial LED Linear Retrot Kit

LED Linear Bay Retrot System

Typical Applications

Big Box Retail • Shopping Malls • School Gymnasium • Light Industrial •
Warehouse • Manufacturing

Interactive Menu

Product Certication

• Order Information page 2

• Photometric Data page 2

• Product Warranty

Product Features

Top Product Features

• Kit is pre-wired assembly with quick connects that decreases install time

• Retrot existing Metalux I5 and I8 linear uorescent luminaires in either 4ft, 8ft or continuous row installations

• Provides the best price-performance combination on the market when compared to new construction installs or

traditional lamp/ballast replacements

• Available in narrow or wide distribution

Dimensional and Mounting Details

NARROW LED TRAY

6-1/2" [165mm]

1-1/4"

[33mm]

WIDE LED TRAY

6-1/2" [165mm]

1/2"

additional
product diagrams

PS519394EN page 1

March 11, 2020 11:10 AM

Industrial LED Linear Retrot Kit

0˚ 30˚

20˚

10˚

0˚ 30˚

20˚

10˚

Order Information

SAMPLE ORDER NUMBER: 4ILEDKIT-LD5-9-W-UNV-L840-CD1-U

Length Series Lamp Type Lumen Output Distribution Voltage CCT Driver Type Number of Drivers Packaging

Length Series Lamp Type Lumen Output Distribution Voltage CCT Driver Type Number of Drivers Packaging

4=4 ft. Length

(2) Two 4ft kits required

for 8ft xture retrots.

Door Frames (for Field Installation)
ILED-4-FRM/FL-PK=4 ft. Frosted Acrylic Lens & Frame
ILED-4-FRM/CL-PK=4 ft. Clear Acrylic Lens & Frame
ILED-4-WG-PK=4 ft. Wireguard
ILED-4-TBW-PK=4 ft. Thin White Bae
ILED-4-ASY-PK=4 ft. Asymmetric Directional Louver

(3) 8 ft. xtures require two door frames per xture.

(2)

ILEDKIT=LED
High Bay Kit

LD5=LED 5.0 4 ft.

Accessories

Accessories (order separately)

(3)

Notes

5=5,000 Lumens
7=7,000 Lumens
9=9,000 Lumens
11=11,000 Lumens
14=14,000 Lumens
16=16,000 Lumens

(1) Max ambient 40C for 16K lumen package.

(1)

Notes

N=Narrow
W=Wide

UNV=Universal

120-277 Voltage
UNC=Universal
347/480 Voltage

L835=3500K
L840=4000K
L850=5000K

CD=0-10V

Dimming Driver
(standard)

1=1 Driver
2=2 Drivers (16,000, 14,000

lumen)

U=Unit Pack

Product Specications

Construction

• Kit assembly consists of three components: LED
module, extension bracket (I8 only), and driver(s)

• Components are painted after fabrication

• Kits are pre-assembled with quick connects

• Mounting hardware included

Finish

• Electrostatically applied, baked white enamel nish

• Multistage cleaning cycle

• Iron phosphate coating with rust inhibitor

Photometric Data

4ILEDKIT-7-LD5-N-UNV-L835

90˚

Electronic Driver

80˚

1672

3343

5015

6687

Linear LED 4000K

70˚

Spacing criterion: (II) 1.27 x mounting height,
(⊥) 0.59 x mounting height

60˚

Lumens: 6730

50˚

Input Watts: 50.4W
Ecacy: 133.5 lm/W

40˚

Test Report: 4ILEDKIT-7-LD5-N-UNV-L835.IES

Electrical

• Long-life LED system with electrical driver

• LED’s available in 3500K, 4000K, and 5000K with a

CRI > 80

• Drivers available for 120-277V, 347V, and 480V

applications

• 0-10V dimming standard

Optics

• Available in narrow or wide distribution

• Narrow beam optical module utilize 95% specular

aluminum nish.

• Thin blade white bae

• Clear or frosted white acrylic lens

612

1224

1835

2447

Compliance

• cULus listed for damp locations

• -20 C to 45 C for ambient environments

• LED modules comply with IESNA LM79-80 testing

standards

Warranty

• Five-year Warranty

4ILEDKIT-LD5-7-W-UNV-L840

90˚

Electronic Driver

80˚

Linear LED 3500K

70˚

Spacing criterion: (II) 1.29 x mounting height,
(⊥) 1.32 x mounting height

60˚

Lumens: 7060

50˚

Input Watts: 50.4W
Ecacy: 140.1 lm/W

40˚

Test Report: 4ILED-LD5-7-W-UNV-L840.IES

View IES files

PS519394EN page 2

March 11, 2020 11:10 AM

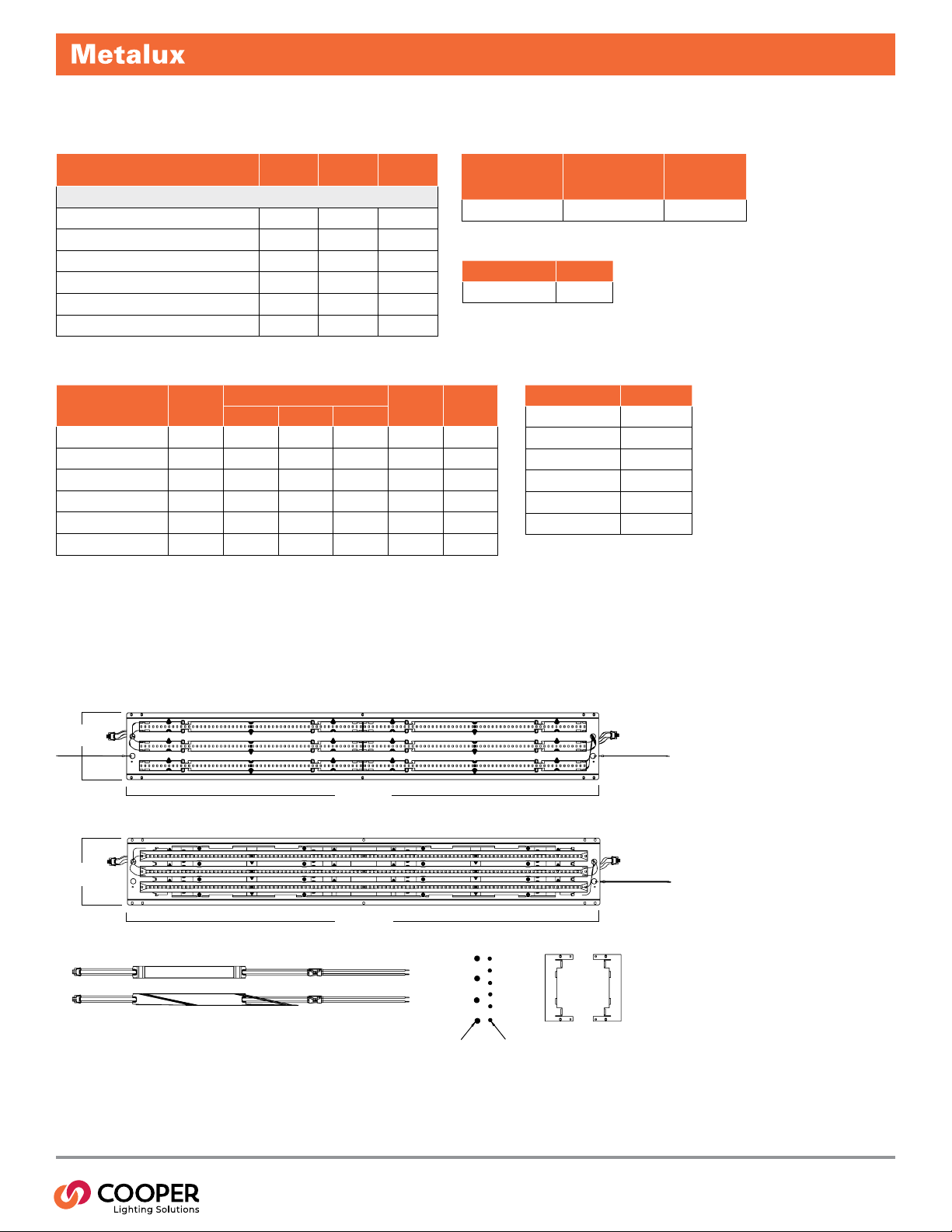

Energy and Performance Data

WIDE LED TRAY

SCREWS (GOLD)

HEAD SCREWS

Industrial LED Linear Retrot Kit

Energy and Performance Data by Catalog Number

Catalog Number

Delivered

Lumens Watts

Ecacy

(lm/W)

4 ft. Length

4ILEDKIT-LD5-5-W-UNV-L840-CD1-U 5007 31 160

4ILEDKIT-LD5-7-W-UNV-L840-CD1-U 6996 46 152

4ILEDKIT-LD5-9-W-UNV-L840-CD1-U 9051 60 151

4ILEDKIT-LD5-11-W-UNV-L840-CD1-U 10949 79 139

4ILEDKIT-LD5-14-W-UNV-L840-CD2-U 13962 98 143

4ILEDKIT-LD5-16-W-UNV-L840-CD2-U 16050 113 142

Ambient Ratings

Drivers

Lensed EMCD SD 5LTD

Lumen Package

Ambient

Rated

4ILEDKIT-LD5-5 45ºC 45ºC 45ºC 45ºC 45ºC 35ºC

4ILEDKIT-LD5-7 45ºC 45ºC 45ºC 45ºC 45ºC 35ºC

4ILEDKIT-LD5-9 45ºC 45ºC 45ºC 45ºC 45ºC 35ºC

4ILEDKIT-LD5-11 45ºC 45ºC 45ºC 45ºC 45ºC 35ºC

4ILEDKIT-LD5-14 45ºC 45ºC 45ºC 45ºC 45ºC 35ºC

4ILEDKIT-LD5-16 40ºC 40ºC 40ºC 40ºC 40ºC 35ºC

Lumen Maintenance

TM-21 Lumen

Ambient

Temperature

Maintenance

(60,000 hours)

25°C > 86% 171,000

Shipping Data

Catalog No. Wt.

4ILEDKIT 7 lbs.

Energy Data

Catalog No. Input Watts

4ILEDKIT-LD5-5 33

4ILEDKIT-LD5-7 50

4ILEDKIT-LD5-9 66

4ILEDKIT-LD5-11 84

4ILEDKIT-LD5-14 102

4ILEDKIT-LD5-16 127

Theoretical

L70

(Hours)

Dimensional and Mounting Details

6-1/2"

[165mm]

NARROW LED TRAY

6-1/2"

[165mm]

LED DRIVER

46" [1168mm]

46" [1168mm]

#8 HEX WA SHER HEAD

SPACER

#8 HEX WA SHER

Cooper Lighting Solutions

1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.cooperlighting.com

© 2020 Cooper Lighting Solutions
All Rights Reserved.

Specifications and dimensions
subject to change without notice.

PS519394EN page 3

March 11, 2020 11:10 AM
