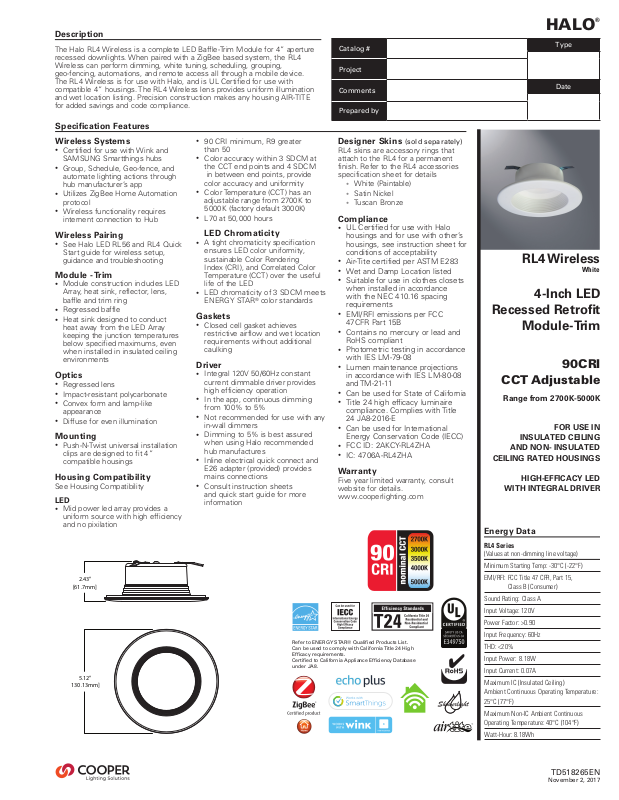

Cooper Lighting Solutions HALO RL4 Specification
Description
5.12”
[130.13mm]
The Halo RL4 Wireless is a complete LED Baffle-Trim Module for 4” aperture
recessed downlights. When paired with a ZigBee based system, the RL4
Wireless can perform dimming, white tuning, scheduling, grouping,
geo-fencing, automations, and remote access all through a mobile device.
The RL4 Wireless is for use with Halo, and is UL Certified for use with
compatible 4” housings. The RL4 Wireless lens provides uniform illumination
and wet location listing. Precision construction makes any housing AIR-TITE
for added savings and code compliance.
Specification Features
•
Wireless Systems
•
Certified for use with Wink and
SAMSUNG Smartthings hubs
•
Group, Schedule, Geo-fence, and
automate lighting actions through
hub manufacturer’s app
•
Utilizes ZigBee Home Automation
protocol
•
Wireless functionality requires
internent connection to Hub
Wireless Pairing
•
See Halo LED RL56 and RL4 Quick
Start guide for wireless setup,
guidance and troubleshooting
Module - Trim
• Module construction includes LED
Array, heat sink, reflector, lens,
baffle and trim ring
• Regressed baffle
• Heat sink designed to conduct
heat away from the LED Array
keeping the junction temperatures
below specified maximums, even
when installed in insulated ceiling
environments
Optics
•
Regressed lens
•
Impact-resistant polycarbonate
•
Convex form and lamp-like
appearance
•
Diffuse for even illumination
Mounting
•
Push-N-Twist universal installation
clips are designed to fit 4”
compatible housings
Housing Compatibility
See Housing Compatibility
LED
•
Mid power led array provides a
uniform source with high efficiency
and no pixilation
2.43”
[61.7mm]
5.12”
90 CRI minimum, R9 greater
than 50
•
Color accuracy within 3 SDCM at
the CCT end points and 4 SDCM
in between end points, provide
color accuracy and uniformity
•
Color Temperature (CCT) has an
adjustable range from 2700K to
5000K (factory default 3000K)
•
L70 at 50,000 hours
LED Chromaticity
•
A tight chromaticity specification
ensures LED color uniformity,
sustainable Color Rendering
Index (CRI), and Correlated Color
Temperature (CCT) over the useful
life of the LED
•
LED chromaticity of 3 SDCM meets
ENERGY STAR
Gaskets
•
Closed cell gasket achieves
restrictive airflow and wet location
requirements without additional
caulking
Driver
•
Integral 120V 50/60Hz constant
current dimmable driver provides
high efficiency operation
•
In the app, continuous dimming
from 100% to 5%
•
Not recommended for use with any
in-wall dimmers
•
Dimming to 5% is best assured
when using Halo recommended
hub manufactures
•
Inline electrical quick connect and
E26 adapter (provided) provides
mains connections
•
Consult instruction sheets
and quick start guide for more
information
®
color standards
Refer to ENERGY STAR® Qualified Products List.
Can be used to comply with California T itle 24 High
Efficacy requirements.
Certified to California Appliance Efficiency Database
under JA8.
Catalog #
Project
Comments
Prepared by
Designer Skins (sold separately)
RL4 skins are accessory rings that
attach to the RL4 for a permanent
finish. Refer to the RL4 accessories
specification sheet for details
• White (Paintable)
• Satin Nickel
• Tuscan Bronze
Compliance
•
UL Certified for use with Halo
housings and for use with other’s
housings, see instruction sheet for
conditions of acceptability
•
Air-Tite certified per ASTM E283
•
Wet and Damp Location listed
•
Suitable for use in clothes closets
when installed in accordance
with the NEC 410.16 spacing
requirements
•
EMI/RFI emissions per FCC
47CFR Part 15B
•
Contains no mercury or lead and
RoHS compliant
•
Photometric testing in accordance
with IES LM-79-08
•
Lumen maintenance projections
in accordance with IES LM-80-08
and TM-21-11
•
Can be used for State of California
•
Title 24 high efficacy luminaire
compliance. Complies with Title
24 JA8-2016-E
•
Can be used for International
Energy Conservation Code (IECC)
•
FCC ID: 2AKCY-RL4ZHA
•
IC: 4706A-RL4ZHA
Warranty
Five year limited warranty, consult
website for details.
www.cooperlighting.com
HALO
Type
Date
RL4 Wireless
White
4-Inch LED
Recessed Retrofit
Module-Trim
90CRI
CCT Adjustable
Range from 2700K-5000K
FOR USE IN
INSULATED CEILING
AND NON- INSULATED
CEILING RATED HOUSINGS
HIGH-EFFICACY LED
WITH INTEGRAL DRIVER
Energy Data
RL4 Series
(Values at non-dimming line voltage)
Minimum Starting Temp: -30°C (-22°F)
EMI/RFI: FCC Title 47 CFR, Part 15,
Class B (Consumer)
Sound Rating: Class A
Input Voltage: 120V
Power Factor: >0.90
Input Frequency: 60Hz
THD: <20%
Input Power: 8.18W
Input Current: 0.07A
Maximum IC (Insulated Ceiling)
Ambient Continuous Operating Temperature:
25°C (77°F)
Maximum Non-IC Ambient Continuous
Operating Temperature: 40°C (104°F)
Watt-Hour: 8.18Wh
®
TD518265EN
November 2, 2017
RL56 Wireless
Specifications and
dimensions subject to
change without notice.
Ordering Information
Sample Number: RL460WHZHA69 - 4" Retrofit LED Module, Zigbee HA, 90CRI, Matte White
Complete unit includes a RL4 Baffle-Trim LED Module and a 4" compatible housing, ordered separately. Optional accessory designer trim ring ordered separately.
Module Finish Protocol Lumens CRI
RL460= 4" Retrofit Baffle Trim, LED Module, ZigBee Wireless, 90CRI,
Tunable White 2700K-5000K
WH=Matte White ZHA=ZigBee Home
Automation
6=600 lumens (nominal) 9=90 CRI
Housing Compatibility
The RL4 is UL Certified in Halo recessed housings and for use with any 4 inch diameter recessed housing constructed of steel or aluminum with an internal volume that exceeds
3
62.3 in
in addition to those noted below:
Compatible Halo LED Housings with LED luminaire connector (high-efficacy compliant)
RL4 Wireless
HALO
LED
Recessed Can Size Catalog Number
4"
H995ICAT, H995RICAT, H245ICAT, H245RICAT
Compatible Halo Incandescent E26 Screwbase Housings
Recessed Can Size Catalog Number
HALO
Designer Trim Dimensions
0.86"
[21.8mm]
RL4TRMWHB
White (Paintable)
RL4TRMTBZB
Tuscan Bronze
4"
5.3"
[134.6mm]
H99ICAT, H99TAT, H99RTAT, E4ICATSB, E4TATSB, E4RTATSB
RL4TRMSNB
Satin Nickel
0.86"
[21.8mm]
RL4TRMWH
White (Paintable)
RL4TRMTBZ
Tuscan Bronze
5.3"
[134.6mm]
RL4TRMSN
Satin Nickel
Cooper Lighting Solutions
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.cooperlighting.com
Photometric DataLighting Facts
RL4 Series Photometric*
RL460WHZHA69-3000K
Luminaire lumens 535
Input watts 8
LER (LPW) 66.9
Spacing
Criteria
Beam angle (degrees) 93.1
Field angle (degrees) 141.1
Zonal lumen Lumens % Lumens
0-30 189 35.3
0-40 300 56
0-60 475 88.8
0-90 535 100
0-180 1.18
90-270 1.18
Diagonal 1.26
* Tested in accordance with IES LM63. Field results may vary.
