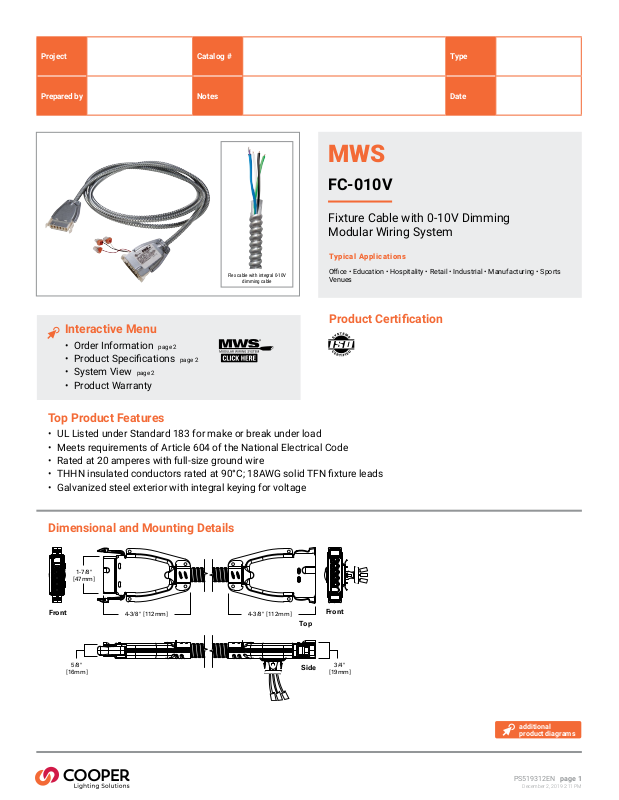

Cooper Lighting Solutions FC-010V Specifications
Project Catalog # Type
Front
Prepared by Notes Date
MWS
FC-010V
Fixture Cable with 0-10V Dimming
Modular Wiring System
Typical Applications
Flex cable with integral 0-10V
dimming cable
Oce • Education • Hospitality • Retail • Industrial • Manufacturing • Sports
Venues
Interactive Menu
Product Certication
• Order Information page 2
• Product Specications page 2
• System View page 2
• Product Warranty
Top Product Features
• UL Listed under Standard 183 for make or break under load
• Meets requirements of Article 604 of the National Electrical Code
• Rated at 20 amperes with full-size ground wire
• THHN insulated conductors rated at 90°C; 18AWG solid TFN xture leads
• Galvanized steel exterior with integral keying for voltage
Dimensional and Mounting Details
1-7/8"
[47mm]
4-3/8" [112mm] 4-3/8" [112mm]
Front
Top
5/8"
[16mm]
Side
3/4"
[19mm]
additional
product diagrams
PS519312EN page 1
December 2, 2019 2:11 PM
FC-010V
Cooper Lighting Solutions
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.cooperlighting.com
© 2020 Cooper Lighting Solutions
All
Rights Reserved.
Specifications and dimensions
subject to change without notice.
Order Information
Fixture Cable
Fixture Cable
Fixture Cable
SAMPLE ORDER NUMBER: 27FC12/3G11-010V
Voltage
Voltage Component Conductors and Size Cable Length (Feet) Dimming
12=120V
27=277V
34=347V
Component Conductors and Size Cable Length (Feet) Dimming
FC=Fixture Cable 12/2G=#12, 2 Conductors Plus Ground 07=7'
Product Specications
• UL Listed under Standard 183 for make or
breakunder load
• MWS components assembled with 12 AWG/10
AWG conductors rated at 20 amperes with full size
ground wire
• 0-10V Dimming wires 16AWG
• THHN insulated conductors rated at 90°C with
16AWG solid TFN xture leads. All leads come with
pushwire connectors
• Galvanized steel exterior with integral keying for
voltage and amperage
• Positive self-grounding locking clip ts into any 1/2”
KO on xture
System View (not to scale)
09=9'
11=11'
13=13'
15=15'
17=17'
• Unique double-blade contact ensures proper mating
of electrical components to prevent pushback or
pullout
• All unused outlets require a MWS dust cover. MWS
ST, SP, SD, CT and TC are shipped with one dust
cover attached
• Copper power and control/signal conductors
• Meets the NEC and UL listing requirements for
combining power/lighting circuits and class 2 or
class 3 signal/control circuits in the same cable
Fixture Cable (FC)
Feeds power to fixtures and allows
circuits to be carried through to
other fixtures. Locks into 1/2" KO of
access plate, fixture body or J-box.
The unit adds 7/8" to overall height
of the fixture.
Typical MWS Wiring System
Application shown utilizing Fixture
Cable (FC).
Consult MWS Installation,
Application and Specification
Manual for additional comprehen-
Quick
Connect
sive system information.
010V=0-10V Dimming
Shipping Data
Standard
Cable
Lengths Unit Wt.
7' 2.5 lbs. 10
9' 3.0 lbs. 9
11' 3.5 lbs. 7
13' 4.0 lbs. 6
15' 4.5 lbs. 6
17' 5.0 lbs. 5
Standard
Qty./Carton
MWS Autocad Drafting
Please reach out to your local representative
for MWS layout design assistance.
All electrical boxes, conduit, connections
and switches by others.
Install dust covers on unused open ends.
Scale is exaggerated on xtures and MWS
system applications.
