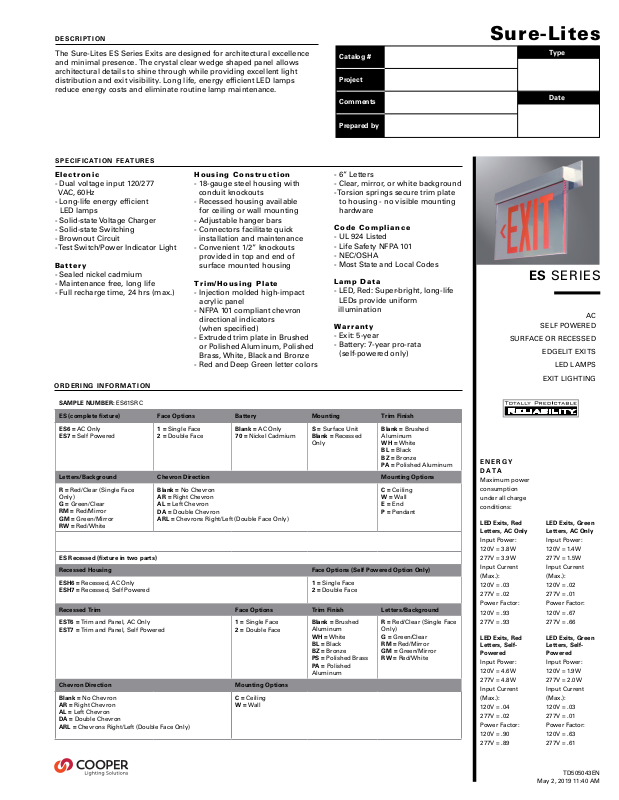

DESCRIPTION

The Sure-Lites ES Series Exits are designed for architectural excellence
and minimal presence. The crystal clear wedge shaped panel allows
architectural details to shine through while providing excellent light
distribution and exit visibility. Long life, energy efficient LED lamps

Catalog #

Project

reduce energy costs and eliminate routine lamp maintenance.

Comments

Prepared by

SPECIFICATION FEATURES

Electronic

- Dual voltage input 120/277
VAC, 60Hz

- Long-life energy efficient

LED lamps

- Solid-state Voltage Charger

- Solid-state Switching

- Brownout Circuit

- Test Switch/Power Indicator Light

Battery

- Sealed nickel cadmium

- Maintenance free, long life

- Full recharge time, 24 hrs (max.)

Housing Construction

- 18-gauge steel housing with
conduit knockouts

- Recessed housing available

for ceiling or wall mounting

- Adjustable hanger bars

- Connectors facilitate quick

installation and maintenance

- Convenient 1/2” knockouts

provided in top and end of
surface mounted housing

Trim/Housing Plate

- Injection molded high-impact

acrylic panel

- NFPA 101 compliant chevron

directional indicators
(when specified)

- Extruded trim plate in Brushed

or Polished Aluminum, Polished
Brass, White, Black and Bronze

- 6” Letters

- Clear, mirror, or white background

- Torsion springs secure trim plate
to housing - no visible mounting
hardware

Code Compliance

- UL 924 Listed

- Life Safety NFPA 101

- NEC/OSHA

- Most State and Local Codes

Lamp Data

- LED, Red: Super-bright, long-life
LEDs provide uniform

illumination

Warranty

- Exit: 5-year

- Battery: 7-year pro-rata
(self-powered only)

- Red and Deep Green letter colors

ORDERING INFORMATION

SAMPLE NUMBER: ES61SRC

ES (complete fixture) Face Options Battery Mounting Trim Finish

ES6 = AC Only
ES7 = Self Powered

Letters/Background Chevron Direction Mounting Options

R = Red/Clear (Single Face

Only)

G = Green/Clear
RM = Red/Mirror
GM = Green/Mirror
RW = Red/White

ES Recessed (fixture in two parts)

Recessed Housing Face Options (Self Powered Option Only)

ESH6 = Recessed, AC Only
ESH7 = Recessed, Self Powered

Recessed Trim Face Options Trim Finish Letters/Background

EST6 = Trim and Panel, AC Only
EST7 = Trim and Panel, Self Powered

Chevron Direction Mounting Options

Blank = No Chevron
AR = Right Chevron
AL = Left Chevron
DA = Double Chevron
ARL = Chevrons Right/Left (Double Face Only)

1 = Single Face
2 = Double Face

Blank = No Chevron
AR = Right Chevron
AL = Left Chevron
DA = Double Chevron
ARL = Chevrons Right/Left (Double Face Only)

Blank = AC Only
70 = Nickel Cadmium

1 = Single Face
2 = Double Face

C = Ceiling
W = Wall

S = Surface Unit
Blank = Recessed

Only

1 = Single Face
2 = Double Face

Blank = Brushed

Aluminum

WH = White
BL = Black
BZ = Bronze
PS = Polished Brass
PA = Polished

Aluminum

Blank = Brushed
Aluminum

WH = White
BL = Black
BZ = Bronze
PA = Polished Aluminum

C = Ceiling
W = Wall
E = End
P = Pendant

R = Red/Clear (Single Face

Only)

G = Green/Clear
RM = Red/Mirror
GM = Green/Mirror
RW = Red/White

Sure-Lites

Type

Date

ES SERIES

SELF POWERED

SURFACE OR RECESSED

EDGELIT EXITS

LED LAMPS

EXIT LIGHTING

ENERGY
DATA

Maximum power
consumption
under all charge
conditions:

LED Exits, Red
Letters, AC Only

Input Power:
120V = 3.8W
277V = 3.9W
Input Current
(Max.):
120V = .03
277V = .02
Power Factor:
120V = .93
277V = .93

LED Exits, Red
Letters, Self­Powered

Input Power:
120V = 4.6W
277V = 4.8W
Input Current
(Max.):
120V = .04
277V = .02
Power Factor:
120V = .90
277V = .89

LED Exits, Green
Letters, AC Only

Input Power:
120V = 1.4W
277V = 1.5W
Input Current
(Max.):
120V = .02
277V = .01
Power Factor:
120V = .67
277V = .66

LED Exits, Green
Letters, Self­Powered

Input Power:
120V = 1.9W
277V = 2.0W
Input Current
(Max.):
120V = .03
277V = .01
Power Factor:
120V = .63
277V = .61

AC

TD505043EN

May 2, 2019 11:40 AM

Specifications and
dimensions subject to
change without notice.

MOUNTING OPTIONS

SURFACE, WALL MOUNT

SURFACE, CEILING MOUNT

RECESSED, WALL MOUNT

163/4"

23/4"

ES SERIES

163/4" 163/4"

35/8"

2"

35/8"

1

1

/4"

73/4"

13/4

31/2"

5

"

41/4"

/8"

35/8"

73/4"

4/

1

"

4

6" Letters 7 1/2"

14"

1"

RECESSED, CEILING MOUNT

163/4"

16 "

6" Letters 7 1/2"

14"

TECHNICAL DATA

35/8"

2"

Lamp

Optimized for energy efficiency and aesthetic
appearance, the ES Series Exit uses superbright,
long-life LED lamps to illuminate the exit lens.

Power Housing (Self­Powered Only)

Dual voltage 120/277 VAC power housing
is contained in the rough-in section. It will
automatically illuminate the sign face for 90
minutes during a power interruption. Power
housing is equipped with maintenance-free
sealed nickel cadmium batteries.

Electrical

The electronics with quick connect connectors
and simple wiring combine to make installation
of the ES Series Exit fast and easy. Self­Powered and AC versions are standard 120/277
VAC. If necessary, ES Series housings and
trim assemblies can be shipped separately for
rough-in situations.

Housing Construction

The rugged 18-gauge, die formed steel housing
has conduit knockouts for easy AC wiring
connections. Fully adjustable, captive bar
hangers make installation easy.

Trim

The high-impact, clear acrylic lens panel with
precision molded lettering and NFPA 101
compliant directional chevrons makes the face
panel of this exit sign clearly superior. A choice
of red or deep green letters in clear, mirror, or
white background inserts (deep green available
in clear or mirror only) enables precise control
of the fixture’s aesthetic appearance. The

6" Letters 7 1/2"

14"

SURFACE, END MOUNT

"

163/4

6" Letters 7 1/2"

5

/8"

14"

41/4

"

rugged extruded trim plate is attached to the
housing back box with torsion springs to insure
a tight fit against any wall or ceiling surface. The
standard brushed aluminum finish blends with
most any decor. Other finishes are available.

Solid-State Charger
(Self-Powered Only)

Supplied with a 120/277 VAC, voltage regulated
solid-state charger. Immediately upon
restoration of AC current after a power failure,
the charger provides a high charge rate.
Solidstate circuitry recharges the battery
following a power failure in accordance with UL

924.

Brownout Circuit
(Self-Powered Only)

The brownout circuit on Sure-Lites’ exits
monitors the flow of AC current to the exit and
activates the emergency lighting system when
a predetermined reduction of AC power occurs.
This dip in voltage will cause most ballasted
fixtures to extinguish causing loss of normal
lighting even though a total power failure has
not occurred.

Solid-State Transfer
(Self-Powered Only)

The ES Series Exit incorporates solid-state
switching which eliminates corroded and pitted
contacts or mechanical failures associated with
relays. The switching circuit is designed to
detect a loss of AC voltage and automatically
energizes the LED lamps. Upon restoration of
AC power, the emergency circuit will switch off
and the charger will automatically recharge the
battery.

6" Letters 7 1/2"

14"

SURFACE, PENDANT MOUNT

73/4"

Standard 12"

6" Letters 7 1/2"

14"

163/4"

73/4"

5

Others Available

35/8"

/8"

Test Switch/Power Indicator Light
(Self-Powered Only)

Conveniently located combination Test Switch/
Power Indicator Light allows for manual
verification of proper operation of the transfer
circuit and emergency lamps.

Sealed Nickel Cadmium Battery
(Self-Powered Only)

Sure-Lites sealed nickel cadmium batteries are
maintenance-free with a life expectancy of 10
years. The sealed rechargeable nickel cadmium
battery offers high discharge rates and stable
performance over a wide range of temperatures.

Warranty

All Sure-Lites’ products are backed by a firm
five-year warranty against defects in material
and workmanship. Maintenance-free, long-life,
sealed nickel cadmium batteries carry a 7 year
pro-rata warranty.

41/4"
