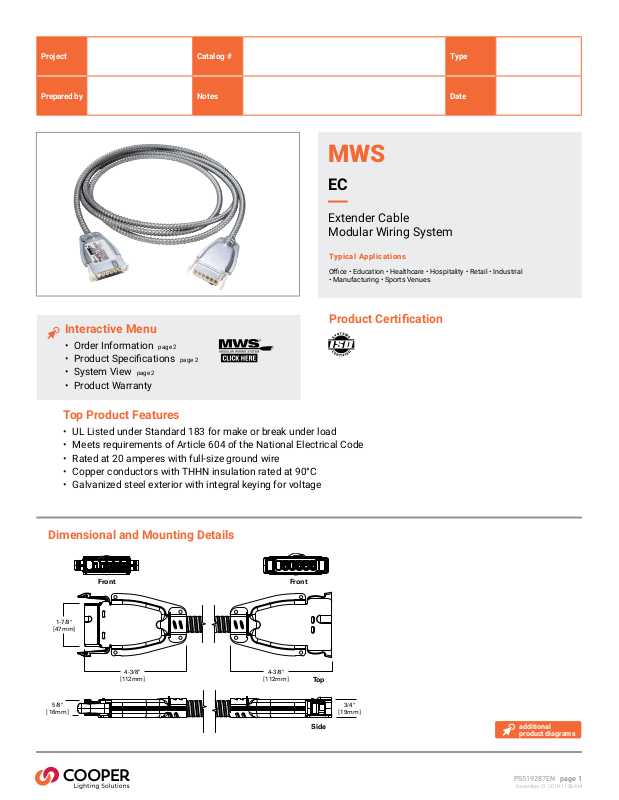

Cooper Lighting Solutions EC User Manual

Project Catalog # Type

Prepared by Notes Date

[19mm]

[16mm]

MWS

EC

Extender Cable
Modular Wiring System

Typical Applications

Oce • Education • Healthcare • Hospitality • Retail • Industrial

• Manufacturing • Sports Venues

Interactive Menu

• Order Information page 2

• Product Specications page 2

• System View page 2

• Product Warranty

Top Product Features

• UL Listed under Standard 183 for make or break under load

• Meets requirements of Article 604 of the National Electrical Code

• Rated at 20 amperes with full-size ground wire

• Copper conductors with THHN insulation rated at 90°C

• Galvanized steel exterior with integral keying for voltage

Dimensional and Mounting Details

Front

Front

Product Certication

1-7/8"

[47mm]

5/8"

4-3/8"

[112mm]

4-3/8"

[112mm]

To p

Side

3/4"

additional
product diagrams

PS519287EN page 1

November 21, 2019 11:58 AM

EC

© 2020 Cooper Lighting Solutions
All Rights Reserved.

Specifications and dimensions
subject to change without notice.

Order Information

Starter Extender Cable

SAMPLE ORDER NUMBER: 27EC12/3G17

Voltage

Voltage Component Conductors and Size Cable Length (Feet) Options

12=120V
20=208V
24=240V
27=277V
34=347V
48=480V

Component Conductors and Size Cable Length (Feet) Options

EC=Extender Cable 10/2G=#10, 2 Conductors Plus Ground

10/3G=#10, 3 Conductors Plus Ground
10/4G=#10, 4 Conductors Plus Ground
12/2G=#12, 2 Conductors Plus Ground
12/3G=#12, 3 Conductors Plus Ground
12/4G=#12, 4 Conductors Plus Ground

(2) Compatible with 5LT components. (1) 12/4G and 10/4G only.

Product Specications

• UL Listed under Standard 183 for make or break
under load

• MWS components assembled with 12 AWG/10
AWG conductors rated at 20 amperes with full size
ground wire

• Copper conductors are THHN insulated wire rated
90°C

• Galvanized steel exterior with integral keying for
voltage and amperage

• Unique double-blade contact ensures proper mating
of electrical components to prevent pushback or
pullout

• Supplies power between MWS components without
use of couplers

• All unused outlets require a MWS dust cover. MWS
ST, SP, SD, CT and TC are shipped with one dust
cover attached

System View (not to scale)

Circuit T

Extender Cable

Drop SO Cord

Extender Cable (EC)

Supplies power between MWS components.
Cables connect together without use of couplers.

Typical MWS Wiring System Application shown utilizing
Extender Cable (EC).

Consult MWS Installation, Application and Specification
Manual for additional comprehensive system information.

05=5'

19=19'
07=7'
09=9'
11=11'
13=13'
15=15'
17=17'

21=21'

26=26'

31=31'

36=36'

41=41'

Fixture
Cable

(2)

(2)

Notes Notes

Extender
Cable

Switch
Drop

Fixture Cable

Fixture
Cable

2N=2 Neutral

Fixture CableSwitch Drop

(1)

Shipping Data

Standard

Cable

Lengths Unit Wt.

Standard

Qty./Carton

5' 2.0 lbs. 12

7' 2.5 lbs. 10

9' 3.0 lbs. 9

11' 3.5 lbs. 8

13' 4.0 lbs. 7

15' 4.5 lbs. 6

17' 5.0 lbs. 6

19' 5.6 lbs. 5

21' 6.3 lbs. 5

26' 7.8 lbs. 4

31' 9.3 lbs. 4

36' 10.3 lbs. 4

41' 12.3 lbs. 4

MWS Autocad Drafting

Please reach out to your local representative
for MWS layout design assistance.

Cooper Lighting Solutions

1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800

www.cooperlighting.com

All electrical boxes, conduit, connections
and switches by others.

Install dust covers on unused open ends.

Scale is exaggerated on xtures and MWS

system applications.
