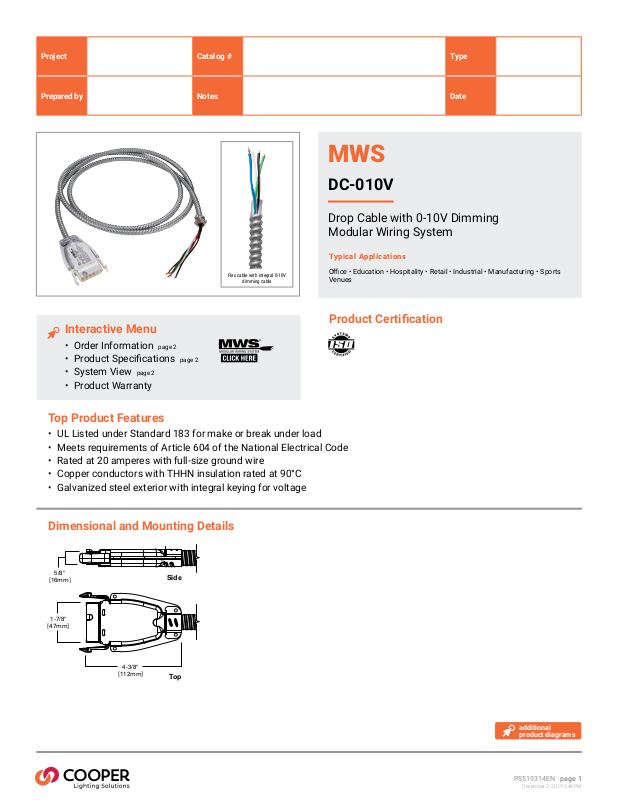

Cooper Lighting Solutions DC-010V ProductSheet

Project Catalog # Type

To p

[47mm]

Prepared by Notes Date

MWS

DC-010V

Drop Cable with 0-10V Dimming
Modular Wiring System

Typical Applications

Flex cable with integral 0-10V

dimming cable

Oce • Education • Hospitality • Retail • Industrial • Manufacturing • Sports

Venues

Interactive Menu

Product Certication

• Order Information page 2

• Product Specications page 2

• System View page 2

• Product Warranty

Top Product Features

• UL Listed under Standard 183 for make or break under load

• Meets requirements of Article 604 of the National Electrical Code

• Rated at 20 amperes with full-size ground wire

• Copper conductors with THHN insulation rated at 90°C

• Galvanized steel exterior with integral keying for voltage

Dimensional and Mounting Details

5/8"

[16mm]

Side

1-7/8"

4-3/8"

[112mm]

additional
product diagrams

PS519314EN page 1

December 2, 2019 3:44 PM

DC-010V

Cooper Lighting Solutions

1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800

www.cooperlighting.com

© 2020 Cooper Lighting Solutions
All

Rights Reserved.

Specifications and dimensions
subject to change without notice.

Order Information

SAMPLE ORDER NUMBER: 27DC12/2G11-010V

Voltage

Voltage Component Conductors and Size Cable Length (Feet) Dimming

12=120V
27=277V
34=347V

Component Conductors and Size Cable Length (Feet) Dimming

DC=Drop Cable 10/2G=#10, 2 Conductors Plus Ground

12/2G=#12, 2 Conductors Plus Ground

Product Specications

• UL Listed under Standard 183 for make or break
under load

• MWS components assembled with 12 AWG/10
AWG conductors rated at 20 amperes with full size
ground wire

• 0-10V Dimming wires 16AWG

• Copper conductors are THHN insulated wire rated
90°C

• Galvanized steel exterior with integral keying for
voltage and amperage

• Cable end supplied with 1/2" connector with locknut
and 6" pre-stripped leads

• DC cable allows you to easily supply power to
other system units such as j-boxes, receptacles or

xtures

• Copper power and control/signal conductors

• Meets the NEC and UL listing requirements for
combining power/lighting circuits and class 2 or
class 3 signal/control circuits in the same cable

System View (not to scale)

Junction Box
or any Out of

Drop Cable

Extender Cable

Splitter or

Circuit T

Extender Cable

Drop Cable (DC)

Supplies power to out of system units. (Fixtures, J-boxes, etc.).

Typical MWS Wiring System Application shown utilizing Drop
Cable (DC).

Consult MWS Installation, Application and Specification
Manual for additional comprehensive system information.

System Unit
supplied by
others.

05=5'
09=9'
11=11'
15=15'

010V=0-10V Dimming

Shipping Data

Cable

Lengths Unit Wt.

5' 2.0 lbs. 12

9' 3.0 lbs. 9

11' 3.5 lbs. 8

Standard

Qty./Carton

MWS Autocad Drafting

Please reach out to your local representative
for MWS layout design assistance.

All electrical boxes, conduit, connections
and switches by others.

Install dust covers on unused open ends.

Scale is exaggerated on xtures and MWS

system applications.
