VISION SITE ARCHITECTURAL AREA LUMINAIRE

ARCHITECTURAL AREA LUMINAIRE

VISION SITE

- Site/Parking

- Roadway

- Path of Egress

SOPHISTICATED FORM

Sleek in appearance yet bold in form, the VISION Site luminaire is designed to serve

the evolving shape of architecture. VISION Site is offered in two (2) housing sizes

to insure proper scale in application.

EXCEPTIONAL CONSTRUCTION

Designed to withstand the rigors of a harsh outdoor environment, the VISION Site luminaire

features thick wall die-cast construction and specification level sealing characteristics.

MODERN PERFORMANCE

Environmental and legislative challenges continue to propagate as the public awareness of light in

the environment expands. VISION SITE responds to these evolving design trends by offering targeted

solutions for full cutoff compliance, spill light control, and path of egress illumination,

while merging the latest in high efficiency lamp technologies.

- Full Cutoff Performance

- Horizontal Lamp Position

- Rotational Flexibility

OPTICAL SYSTEMS

3

VISION SITE Architectural Area Luminaire

Emerging trends in light control and environmental preservation

require innovative design solutions. VISION Site responds.

FULL CUTOFF PERFORMANCE

As the Nations respected authority on lighting standards and
design recommendations, the IESNA, Illuminating Engineering
Society of North America defines four unique luminaire
cutoff classifications to quantify the amount of light a
fixture directs upward toward the sky.

Each of the available VISION Site optical systems meets the
strictest "Full Cutoff" classification requirements, ensuring
that zero measurable light is directed upward from the
luminaire.

0°

90°

ALLOWABLE CANDELA @ 90° @ 80°

Full Cutoff 010%

Cutoff 2.5% 10%

Semi-Cutoff 5% 20%

Non-Cutoff No Limit No Limit

FULL CUTOFF

Full cutoff luminaires carry the endorsement of the International Dark
Sky Association (IDA) for their usefulness in limiting the detrimental
effects of sky glow, otherwise referred to as light pollution.

When faced with local or state adopted lighting ordinances, full cutoff
luminaires offer direct compliance in most all circumstances.

COMPLIANT

Full Cutoff

DARK SKY

FCO

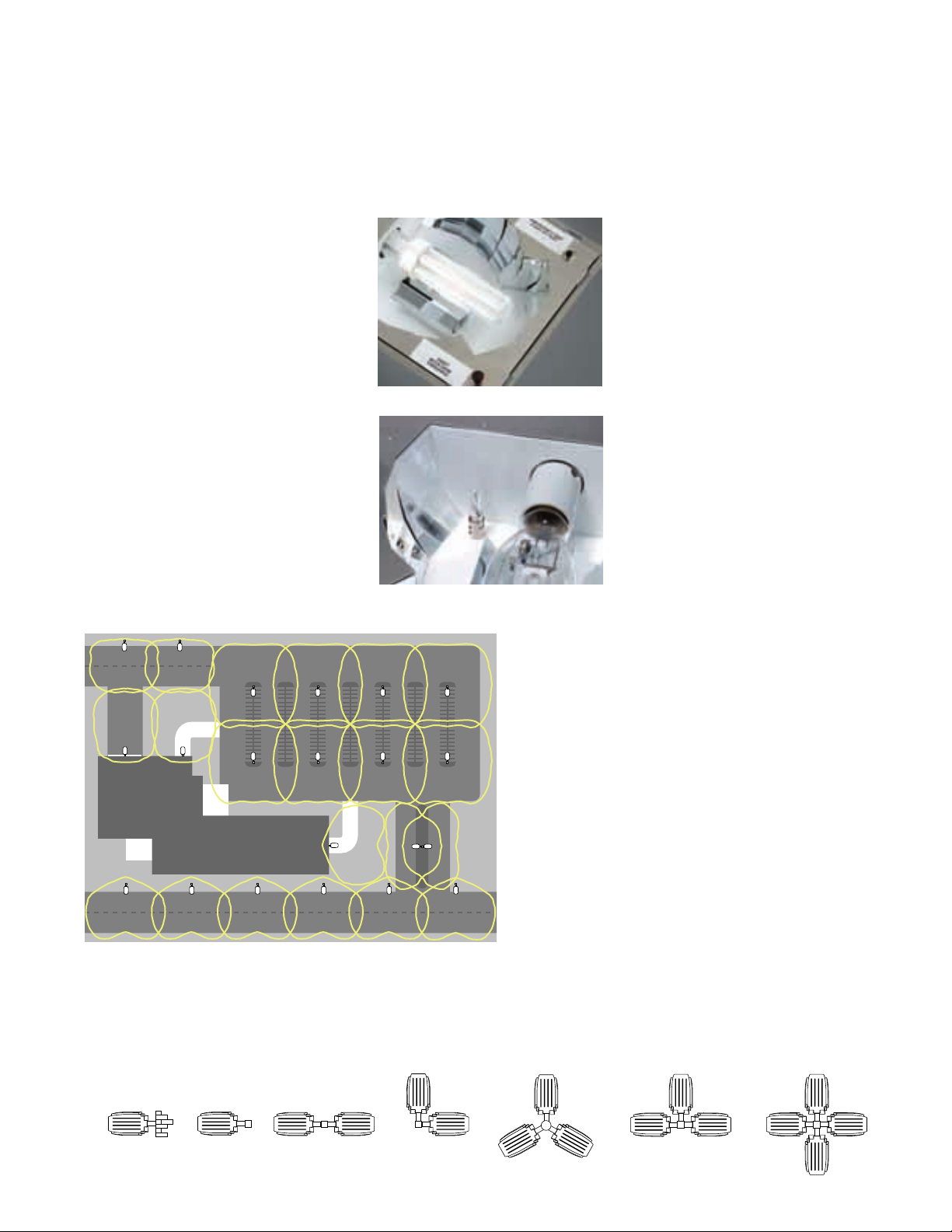

HORIZONTAL LAMP POSITION

A horizontal lamp orientation allows for a broad
selection of luminaire distribution shapes. Optical
systems are available in Type II, III, IV, SL Forward Throw,
and Square Type V distributions.

ROTATIONAL FLEXIBILITY

Optical assemblies can be rotated in 90° increments without the use of tools, allowing for
manipulation of distribution orientation independent of fixture orientation.

4

VISION SITE Architectural Area Luminaire

2S 3S 4S SL 5S

- Flawless Facets

- Rigid Construction

- Lamp Options

- Premium Materials

OPTICAL EXCELLENCE

INVUE segmented optical systems establish themselves as an

industry benchmark for excellence in performance. Our commitment

to optical research and precision build quality result in unequaled

levels of performance and repeatability.

5

VISION SITE Architectural Area Luminaire

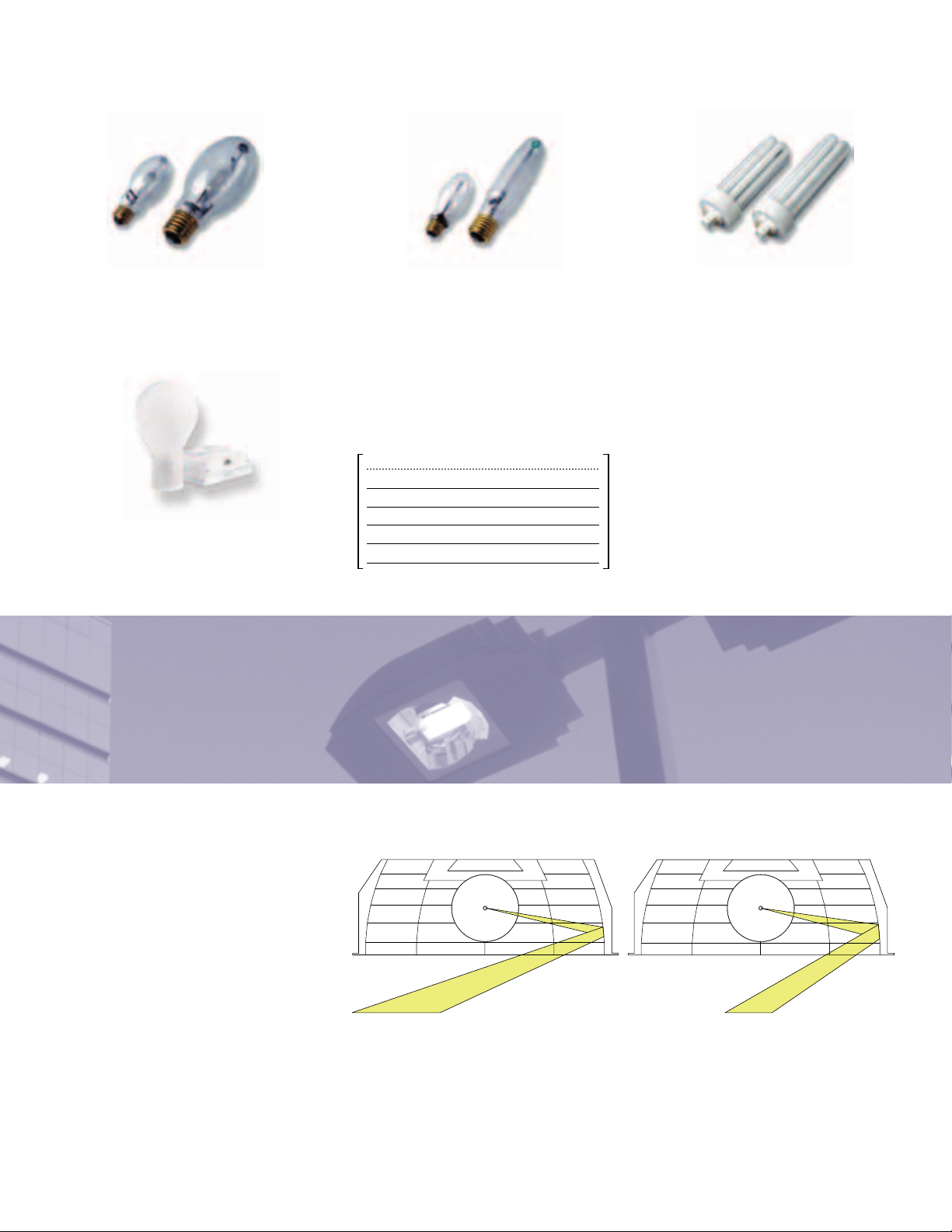

FLAWLESS FACETS

Reflector facets are flat and unobstructed, allowing for a perfect
reflection of the lamp’s arctube. All segment faces are clean of
rivet heads, tabs, or other means of attachment which may
cause streaking in the light distribution.

RIGID CONSTRUCTION

A rigid box enclosure shields optical facets
on all sides from performance degrading
damage. Each facet bank is secured to both
top and bottom of the enclosure for
repeatable facet orientation relative to
light center.
