INSTALLATION INSTRUCTIONS
V90229-1T
Avoid Fire or Electric Shock
*Installation Instructions for qualified electricians only.
*Install per National Electrical Code and local regulations.
*Read Installation Instructions completely before installation.
*Failure to follow Installation Instructions may void warranties.

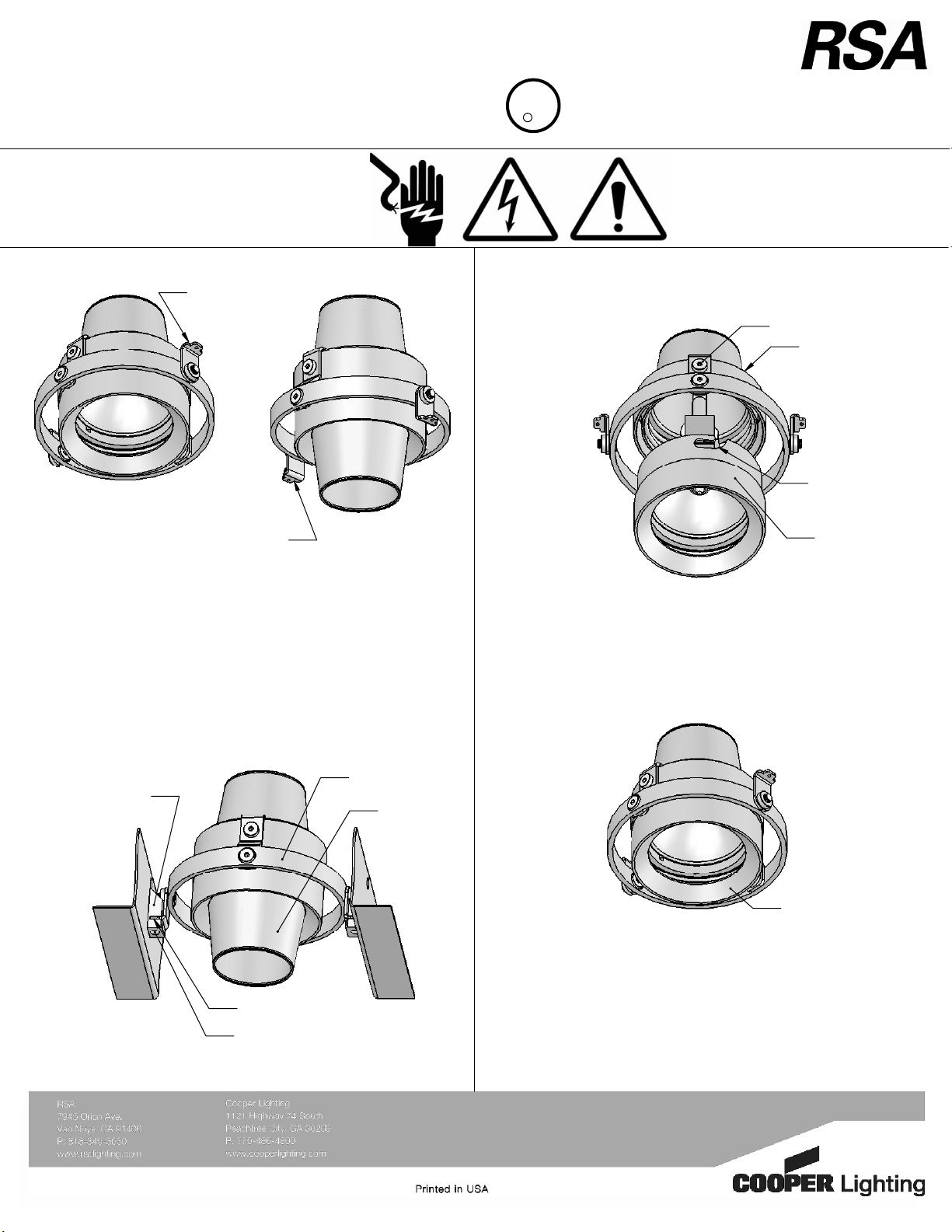

FIXTURE MOUNTING:
1. Fixture must be mounted using either BUTTERFLY MOUNTING
BRACKETS or HANGER BARS (Contact RSA Dealer for HANGER BARS).
INSTALLATION NOTE:
DO NOT install insulation within 3in of any part of the Luminaire.
Blinking light of this thermally protected Luminaire may indicate overheating.
BUTTERFLY MOUNTING:
2. Fixture comes equipped with universal BUTTERFLY MOUNTING
BRACKETS that can take common 1" or 1-1/2" black iron or galvanized
MOUNTING CHANNELS (supplied by others). See Fig 1.
3. Position fixture so the MOUNTING CHANNELS lie on top of the ceiling
runners.
4. Fasten MOUNTING CHANNELS securely to ceiling runners.
5. Secure MOUNTING CHANNELS to universal BUTTERFLY MOUNTING
BRACKETS with wire tie downs.
6. The BUTTERFLY MOUNTING BRACKETS are height-adjustable and
should be set so that the APERTURE COLLAR will be flush with the
finished ceiling plane.
R
JBOX
COMBOLIGHT
TRIMMED
Page 1 of 3
THIS PRODUCT MUST BE INSTALLED IN
ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND
OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
SCREW
JBOX COVER
Figure 2
9. A clean, square hole in the CEILING MATERIAL must be cut. Install the
ceiling material below housing as seen in Fig 4.
10. Replace the TRIM into the HOUSING by connecting the TORSION
SPRINGS to the HOUSING. Push the TRIM into the HOUSING until flush
with the CEILING MATERIAL as seen in Fig 4.
HOUSING
MOUNTING
CHANNEL
BUTTERFLY
MOUNTING
BRACKETS
HEX
SCREW
Figure 1
ELECTRICAL:
7. Remove the JBOX COVER from the JBOX by removing the four SCREWS.
Connect supply lead wires to junction box lead wires in accordance with
your local electrical code(s) or N.E.C. Replace JBOX COVER onto JBOX,
securing with SCREWS. See Fig 2.
CEILING MATERIAL INSTALLATION:
8. Pull the TRIM away from the HOUSING. The TORSION SPRINGS will hold
the TRIM onto the HOUSING. Compress the TORSION SPRINGS on each
end of the TRIM, releasing the TRIM from the HOUSING. See Fig 3.
TRIM
TORSION
SPRING
TRIM
Figure 3
Figure 4
HOUSING
CEILING
MATERIAL
INSTALLATION INSTRUCTIONS
V90229-2
Avoid Fire or Electric Shock
*Installation Instructions for qualified electricians only.
*Install per National Electrical Code and local regulations.
*Read Installation Instructions completely before installation.
*Failure to follow Installation Instructions may void warranties.
11. Lamp installation:
To install LAMP, remove the COVER RING by pushing straight back on
the COVER RING and then turning it
See Fig. 5.
12. Once removed, insert the properly-specified LAMP into the
BACK RING, ensure that the LAMP is the correct LAMP for the SOCKET
or damage to the fixture or lamp may occur. The LAMP will seat into the
COIL SPRING when installed properly. While holding the LAMP in place,
grab the SOCKET ASSY and plug or screw the LAMP firmly into it.
See Fig. 6.
BACK RING
counter-clockwise
Figure 5
to release.
COVER
RING
COIL SPRING
R
COVER
RING
COMBOLIGHT
LAMPHOLDER
Page 2 of 3
THIS PRODUCT MUST BE INSTALLED IN
ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND
OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
OPTICAL
ACCESSORY
ACCESSORY
RETAINER
RING
Figure 7
13. Optical Accessory: (skip to Step 21 if not using optical accessories)
To install OPTICAL ACCESSORY pieces, remove the ACCESSORY
RETAINER RING by unthreading until it is completely removed from the
COVER RING.
14. Install desired OPTICAL ACCESSORY pieces into the COVER RING and
re-thread the ACCESSORY RETAINER RING firmly. See Fig. 7.
*The COVER RING can accommodate three (3) accessories without the
ACCESSORY RETAINER RING or two (2) pieces with it.
*The ACCESSORY RETAINER RING may be used to lock the accessory.
For example, a linear spread lens or cross baffle can be locked in-place
into a desired orientation.
*Please note that not all accessories are compatible with each other and
with all lamps.
CEILING
LINE
SOCKET ASSY
BACK RING
PIVOT JOINT
(FOR GIMBAL
TIGHTENING)
LAMP
(MR16 shown, COIL
SPRING behind)
Figure 6
(Cover Ring Removed)
SNOOT
Flush Position
Regressed Position
Figure 8
15. Regressed Lamp Ring/Snoot: (skip to Step 19 if not regressing the lamp)
The lamp ring may be installed in a regressed position only if a
SNOOT accessory is being used. See Fig. 8. If necessary, please see step
13 for instructions on SNOOT installation. To accomplish the regressed
lamp ring position set the COVER RING aside. Remove the lamp ring assy
by loosening the two (2) SET SCREWs in the GIMBAL BLOCKs.
16. Once loosened the lamp ring assy can be removed by grasping the
GIMBAL RING and turning
BLOCKs.
clockwise
until it releases from the GIMBAL
