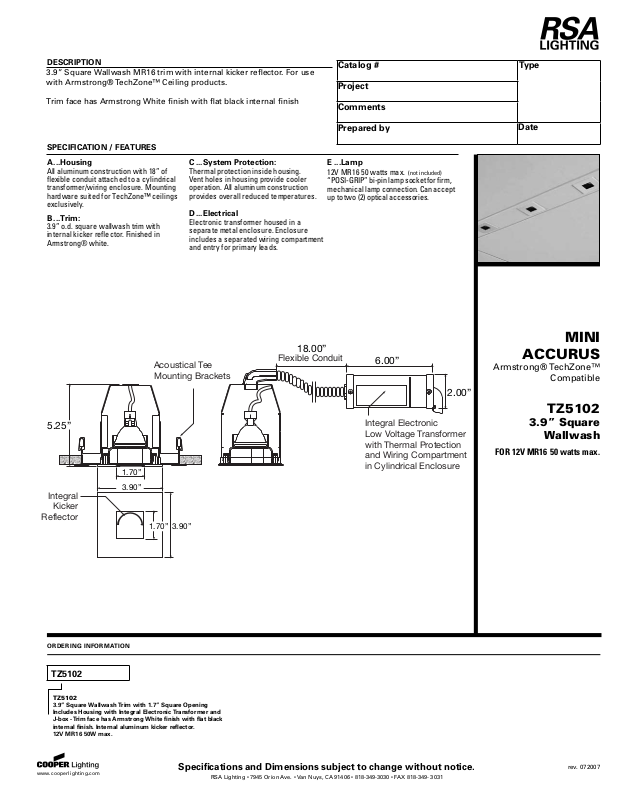

Cooper Lighting TZ5102 User Manual

DESCRIPTION

Date

Integral

Kicker

Reflector

Flexible Conduit

Integral Electronic
Low Voltage Transformer
with Thermal Protection
and Wiring Compartment
in Cylindrical Enclosure

Acoustical Tee
Mounting Brackets

5.25”

3.90”

3.90”

1.70”

1.70”

18.00”

6.00”

2.00”

3.9” Square Wallwash MR16 trim with internal kicker reflector. For use
with Armstrong® TechZone™ Ceiling products.

Trim face has Armstrong White finish with flat black internal finish

SPECIFICATION / FEATURES

A ...Housing

All aluminum construction with 18” of
flexible conduit attached to a cylindrical
transformer/wiring enclosure. Mounting
hardware suited for TechZone™ ceilings
exclusively.

B ...Trim:

3.9” o.d. square wallwash trim with
internal kicker reflector. Finished in
Armstrong® white.

C ...System Protection:

Thermal protection inside housing.
Vent holes in housing provide cooler
operation. All aluminum construction
provides overall reduced temperatures.

D ...Electrical

Electronic transformer housed in a
separate metal enclosure. Enclosure
includes a separated wiring compartment
and entry for primary leads.

Catalog # Type

Project

Comments

Prepared by

E ...Lamp

12V MR16 50 watts max.
“POSI-GRIP” bi-pin lamp socket for firm,
mechanical lamp connection. Can accept
up to two (2) optical accessories.

(not included)

Armstrong® TechZone™

MINI

ACCURUS

Compatible

ORDERING INFORMATION

TZ5102

TZ5102

3.9” Square Wallwash Trim with 1.7” Square Opening
Includes Housing with Integral Electronic Transformer and
J-box -Trim face has Armstrong White finish with flat black
internal finish. Internal aluminum kicker reflector.
12V MR16 50W max.

www.cooperlighting.com

Specifications and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX [phone]

TZ5102

3.9” Square
Wallwash

FOR 12V MR16 50 watts max.

rev. 072007
