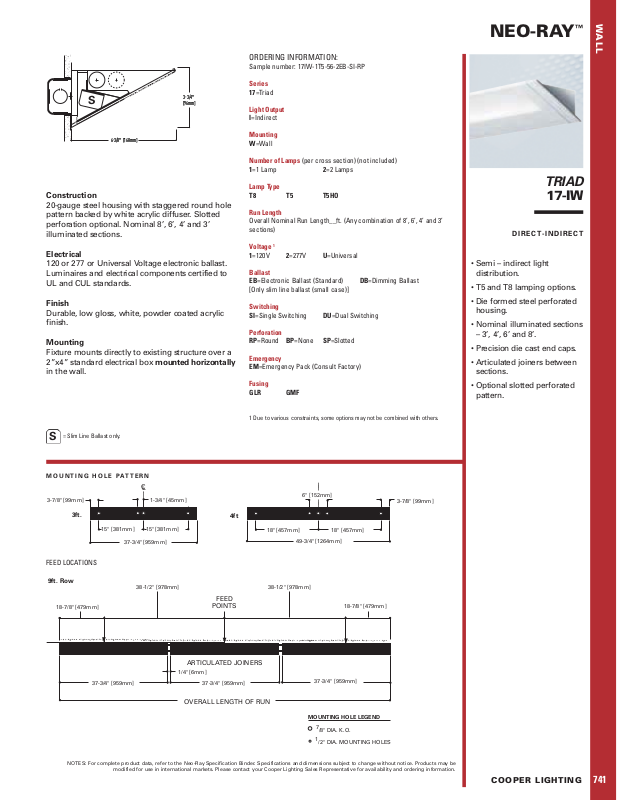

Cooper Lighting Triad 17-IW User Manual
C
L
3-7/8" [99mm]
18" [457mm]
18" [457mm]
3-7/8" [99mm]
6" [152mm]
15" [381mm] 15" [381mm]
37-3/4" [959mm]
49-3/4" [1264mm]
1-3/4" [45mm]
4ft
3ft.
18-7/8" [479mm]
37-3/4" [959mm]
38-1/2" [978mm]
FEED
POINTS
OVERALL LENGTH OF RUN
ARTICULATED JOINERS
1/4" [6mm]
37-3/4" [959mm]
37-3/4" [959mm]
7
/8" DIA. K.O.
1
/2" DIA. MOUNTING HOLES
MOUNTING HOLE LEGEND
38-1/2" [978mm]
18-7/8" [479mm]
9ft. Row
S
6-3/8" [168mm]
3-3/4"
[96mm]
Construction
20-gauge steel housing with staggered round hole
pattern backed by white acrylic diffuser. Slotted
perforation optional. Nominal 8’, 6’, 4’ and 3’
illuminated sections.
Electrical
120 or 277 or Universal Voltage electronic ballast.
Luminaires and electrical components certified to
UL and CUL standards.
Finish
Durable, low gloss, white, powder coated acrylic
finish.
Mounting
Fixture mounts directly to existing structure over a
2”x4” standard electrical box mounted horizontally
in the wall.
ORDERING INFORMATION:
Sample number: 17IW-1T5-56-2EB-SI-RP
Series
17=Triad
Light Output
I=Indirect
Mounting
W=Wall
Number of Lamps (per cross section) (not included)
1=1 Lamp 2=2 Lamps
Lamp Type
T8 T5 T5HO
Run Length
Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’
sections)
1
Voltage
1=120V 2=277V U=Universal
Ballast
EB=Electronic Ballast (Standard) DB=Dimming Ballast
[Only slim line ballast (small case)]
Switching
SI=Single Switching DU=Dual Switching
Perforation
RP=Round BP=None SP=Slotted
Emergency
EM=Emergency Pack (Consult Factory)
Fusing
GLR GMF
NEO-RAY
TRIAD
17-IW
DIRECT-INDIRECT
• Semi – indirect light
distribution.
• T5 and T8 lamping options.
• Die formed steel perforated
housing.
• Nominal illuminated sections
– 3’, 4’, 6’ and 8’.
• Precision die cast end caps.
• Articulated joiners between
sections.
• Optional slotted perforated
pattern.
™
WALL
= Slim Line Ballast only.
S
MOUNTING HOLE PATTERN
FEED LOCATIONS
1 Due to various constraints, some options may not be combined with others.
NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be
modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
COOPER LIGHTING
741
