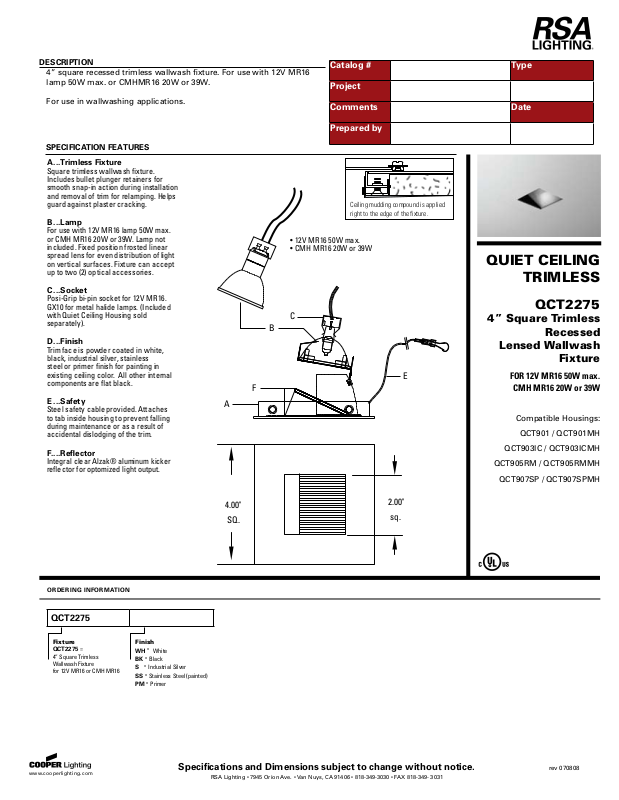

DESCRIPTION
2.00"
sq.
4.00"
SQ.
A
B
C
F
E
4” square recessed trimless wallwash fixture. For use with 12V MR16
lamp 50W max. or CMHMR16 20W or 39W.
For use in wallwashing applications.
SPECIFICATION FEATURES
A ...Trimless Fixture
Square trimless wallwash fixture.
Includes bullet plunger retainers for
smooth snap-in action during installation
and removal of trim for relamping. Helps
guard against plaster cracking.
B ...Lamp
For use with 12V MR16 lamp 50W max.
or CMH MR16 20W or 39W. Lamp not
included. Fixed position frosted linear
spread lens for even distribution of light
on vertical surfaces. Fixture can accept
up to two (2) optical accessories.
C ...Socket
Posi-Grip bi-pin socket for 12V MR16.
GX10 for metal halide lamps. (Included
with Quiet Ceiling Housing sold
separately).
D ...Finish
Trim face is powder coated in white,
black, industrial silver, stainless
steel or primer finish for painting in
existing ceiling color. All other internal
components are flat black.
E ...Safety
Steel safety cable provided. Attaches
to tab inside housing to prevent falling
during maintenance or as a result of
accidental dislodging of the trim.
F....Reflector
Integral clear Alzak® aluminum kicker
reflector for optomized light output.
Catalog # Type
Project
Comments Date
Prepared by
Ceiling mudding compound is applied
right to the edge of the fixture.
• 12V MR16 50W max.
• CMH MR16 20W or 39W
QUIET CEILING
TRIMLESS
QCT2275
4” Square Trimless
Recessed
Lensed Wallwash
Fixture
FOR 12V MR16 50W max.
CMH MR16 20W or 39W
Compatible Housings:
QCT901 / QCT901MH
QCT903IC / QCT903ICMH
QCT905RM / QCT905RMMH
QCT907SP / QCT907SPMH
www.cooperlighting.com
ORDERING INFORMATION
QCT2275
Fixture
QCT2275 =
4” Square Trimless
Wallwash Fixture
for 12V MR16 or CMH MR16
Finish
=
WH
White
=
BK
Black
=
S
Industrial Silver
=
SS
Stainless Steel (painted)
=
PM
Primer
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
rev 070808
