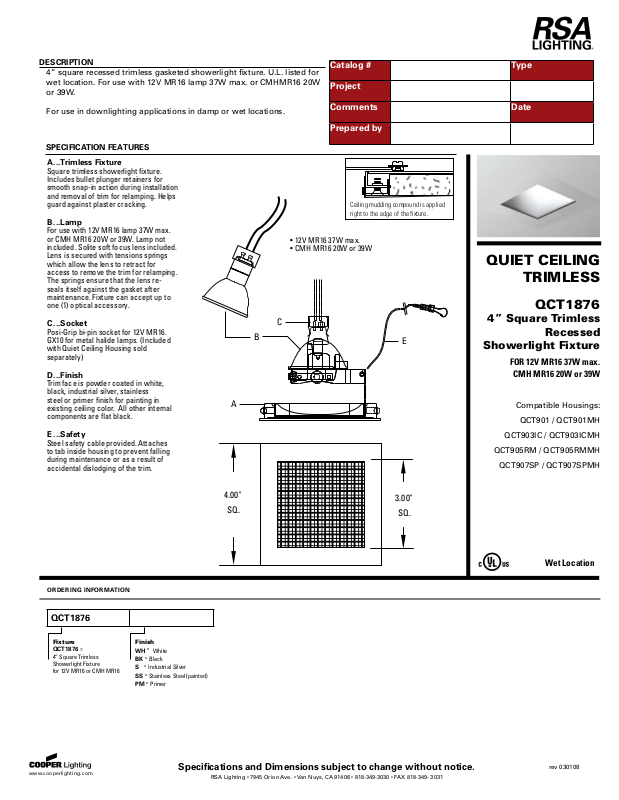

Cooper Lighting QCT1876 User Manual

DESCRIPTION

4.00"

SQ.

3.00"

SQ.

A

C

B

E

4” square recessed trimless gasketed showerlight fixture. U.L. listed for
wet location. For use with 12V MR16 lamp 37W max. or CMHMR16 20W
or 39W.

For use in downlighting applications in damp or wet locations.

SPECIFICATION FEATURES

A ...Trimless Fixture

Square trimless showerlight fixture.
Includes bullet plunger retainers for
smooth snap-in action during installation
and removal of trim for relamping. Helps
guard against plaster cracking.

B ...Lamp

For use with 12V MR16 lamp 37W max.
or CMH MR16 20W or 39W. Lamp not
included. Solite soft focus lens included.
Lens is secured with tensions springs

• 12V MR16 37W max.

• CMH MR16 20W or 39W

which allow the lens to retract for
access to remove the trim for relamping.
The springs ensure that the lens re­seals itself against the gasket after
maintenance. Fixture can accept up to
one (1) optical accessory.

C ...Socket

Posi-Grip bi-pin socket for 12V MR16.
GX10 for metal halide lamps. (Included
with Quiet Ceiling Housing sold
separately)

D ...Finish

Trim face is powder coated in white,
black, industrial silver, stainless
steel or primer finish for painting in
existing ceiling color. All other internal
components are flat black.

E ...Safety

Steel safety cable provided. Attaches
to tab inside housing to prevent falling
during maintenance or as a result of
accidental dislodging of the trim.

Catalog # Type

Project

Comments Date

Prepared by

Ceiling mudding compound is applied
right to the edge of the fixture.

QUIET CEILING

TRIMLESS

QCT1876

4” Square Trimless

Recessed

Showerlight Fixture

FOR 12V MR16 37W max.

CMH MR16 20W or 39W

Compatible Housings:

QCT901 / QCT901MH

QCT903IC / QCT903ICMH

QCT905RM / QCT905RMMH

QCT907SP / QCT907SPMH

ORDERING INFORMATION

QCT1876

Fixture

QCT1876 =
4” Square Trimless
Showerlight Fixture
for 12V MR16 or CMH MR16

www.cooperlighting.com

Wet Location

Finish

=

WH

White

=

BK

Black

=

S

Industrial Silver

=

SS

Stainless Steel (painted)

=

PM

Primer

Specifications and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX [phone]

rev 030108
