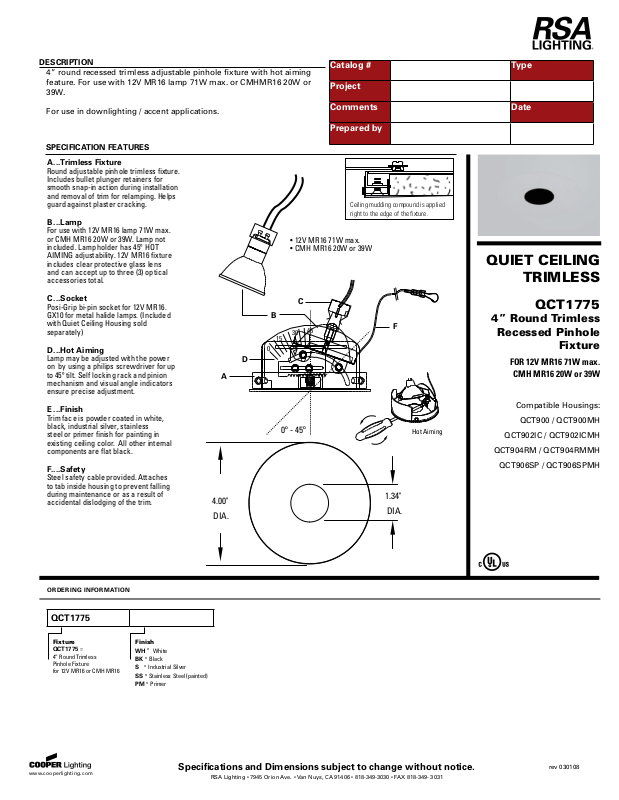

DESCRIPTION

A

D

C

F

B

0º - 45º

45

30

15

0

1.34"

DIA.

4.00"

DIA.

Hot Aiming

4” round recessed trimless adjustable pinhole fixture with hot aiming
feature. For use with 12V MR16 lamp 71W max. or CMHMR16 20W or
39W.

For use in downlighting / accent applications.

SPECIFICATION FEATURES

A ...Trimless Fixture

Round adjustable pinhole trimless fixture.
Includes bullet plunger retainers for
smooth snap-in action during installation
and removal of trim for relamping. Helps
guard against plaster cracking.

B ...Lamp

For use with 12V MR16 lamp 71W max.
or CMH MR16 20W or 39W. Lamp not
included. Lamp holder has 45º HOT
AIMING adjustability. 12V MR16 fixture

• 12V MR16 71W max.

• CMH MR16 20W or 39W

includes clear protective glass lens
and can accept up to three (3) optical
accessories total.

Catalog # Type

Project

Comments Date

Prepared by

Ceiling mudding compound is applied
right to the edge of the fixture.

QUIET CEILING

TRIMLESS

C ...Socket

Posi-Grip bi-pin socket for 12V MR16.
GX10 for metal halide lamps. (Included
with Quiet Ceiling Housing sold
separately)

D ...Hot Aiming

Lamp may be adjusted with the power
on by using a philips screwdriver for up
to 45º tilt. Self locking rack and pinion

4” Round Trimless

Recessed Pinhole

QCT1775

Fixture

FOR 12V MR16 71W max.

CMH MR16 20W or 39W

mechanism and visual angle indicators
ensure precise adjustment.

E ...Finish

Trim face is powder coated in white,
black, industrial silver, stainless
steel or primer finish for painting in
existing ceiling color. All other internal
components are flat black.

F....Safety

Compatible Housings:

QCT900 / QCT900MH

QCT902IC / QCT902ICMH

QCT904RM / QCT904RMMH

QCT906SP / QCT906SPMH

Steel safety cable provided. Attaches
to tab inside housing to prevent falling
during maintenance or as a result of
accidental dislodging of the trim.

ORDERING INFORMATION

QCT1775

www.cooperlighting.com

Fixture

QCT1775 =
4” Round Trimless
Pinhole Fixture
for 12V MR16 or CMH MR16

Finish

=

WH

White

=

BK

Black

=

S

Industrial Silver

=

SS

Stainless Steel (painted)

=

PM

Primer

Specifications and Dimensions subject to change without notice.
