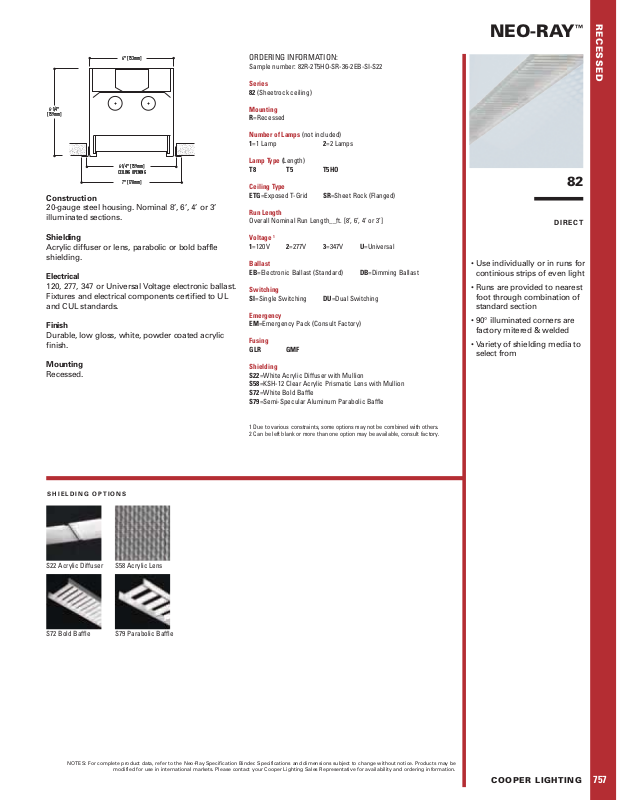

Cooper Lighting NEO-RAY 82 User Manual
NEO-RAY
RECESSED
™
6" [153mm]
6-1/4"
[159mm]
6-1/4" [159mm]
CEILING OPENING
7" [178mm]
Construction
20-gauge steel housing. Nominal 8’, 6’, 4’ or 3’
illuminated sections.
Shielding
Acrylic diffuser or lens, parabolic or bold baffle
shielding.
Electrical
120, 277, 347 or Universal Voltage electronic ballast.
Fixtures and electrical components certified to UL
and CUL standards.
Finish
Durable, low gloss, white, powder coated acrylic
finish.
Mounting
Recessed.
ORDERING INFORMATION:
Sample number: 82R-2T5HO-SR-36-2EB-SI-S22
Series
82 (Sheetrock ceiling)
Mounting
R=Recessed
Number of Lamps (not included)
1=1 Lamp 2=2 Lamps
Lamp Type (Length)
T8 T5 T5HO
Ceiling Type
ETG=Exposed T-Grid SR=Sheet Rock (Flanged)
Run Length
Overall Nominal Run Length__ft. [8’, 6’, 4’ or 3’]
1
Voltage
1=120V 2=277V 3=347V U=Universal
Ballast
EB=Electronic Ballast (Standard) DB=Dimming Ballast
Switching
SI=Single Switching DU=Dual Switching
Emergency
EM=Emergency Pack (Consult Factory)
Fusing
GLR GMF
Shielding
S22=White Acrylic Diffuser with Mullion
S58=KSH-12 Clear Acrylic Prismatic Lens with Mullion
S72=White Bold Baffle
S79=Semi-Specular Aluminum Parabolic Baffle
82
DIRECT
• Use individually or in runs for
continious strips of even light
• Runs are provided to nearest
foot through combination of
standard section
• 90° illuminated corners are
factory mitered & welded
• Variety of shielding media to
select from
SHIELDING OPTIONS
S22 Acrylic Diffuser S58 Acrylic Lens
S72 Bold Baffle S79 Parabolic Baffle
1 Due to various constraints, some options may not be combined with others.
2 Can be left blank or more than one option may be available, consult factory.
NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be
modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
