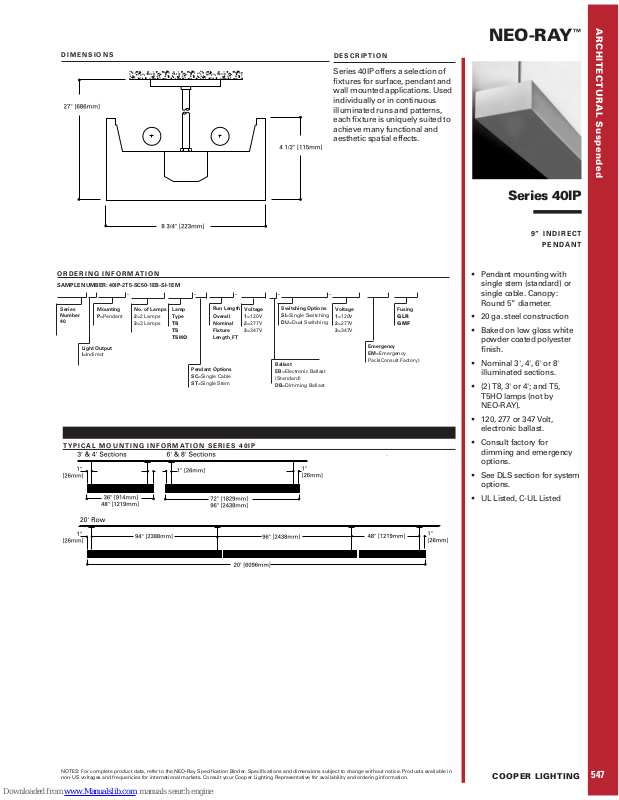

Page 1
NEO-RAY
™
ARCHITECTURAL Suspended
547
COOPER LIGHTING
Series 40IP
9” INDIRECT
PENDANT
• Pendant mounting with
single stem (standard) or
single cable. Canopy:
Round 5” diameter.
• 20 ga. steel construction
• Baked on low gloss white
powder coated polyester
finish.
• Nominal 3', 4', 6' or 8'
illuminated sections.
• (2) T8, 3' or 4'; and T5,
T5HO lamps (not by
NEO-RAY).
• 120, 277 or 347 Volt,
electronic ballast.
• Consult factory for
dimming and emergency
options.
• See DLS section for system
options.
• UL Listed, C-UL Listed
DIMENSIONS
TYPICAL MOUNTING INFORMATION SERIES 40IP
ORDERING INFORMATION
SAMPLE NUMBER: 40IP-2T5-SC50-1EB-SI-1EM
DESCRIPTION
Series 40IP offers a selection of
fixtures for surface, pendant and
wall mounted applications. Used
individually or in continuous
illuminated runs and patterns,
each fixture is uniquely suited to
achieve many functional and
aesthetic spatial effects.
NOTES: For complete product data, refer to the NEO-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products available in
non-US voltages and frequencies for international markets. Consult your Cooper Lighting Representative for availability and ordering information.
Light Output
I=Indirect
Mounting
P=Pendant
Series
Number
40
No. of Lamps
2=2 Lamps
3=3 Lamps
Lamp
Type
T8
T5
T5HO
Pendant Options
SC=Single Cable
ST=Single Stem
Ballast
EB=Electronic Ballast
(Standard)
DB=Dimming Ballast
Switching Options
SI=Single Switching
DU=Dual Switching
Voltage
1=120V
2=277V
3=347V
Emergency
EM=Emergency
Pack(Consult Factory)
Fusing
GLR
GMF
Voltage
1=120V
2=277V
3=347V
Run Length
Overall
Nominal
Fixture
Length_FT
-----
