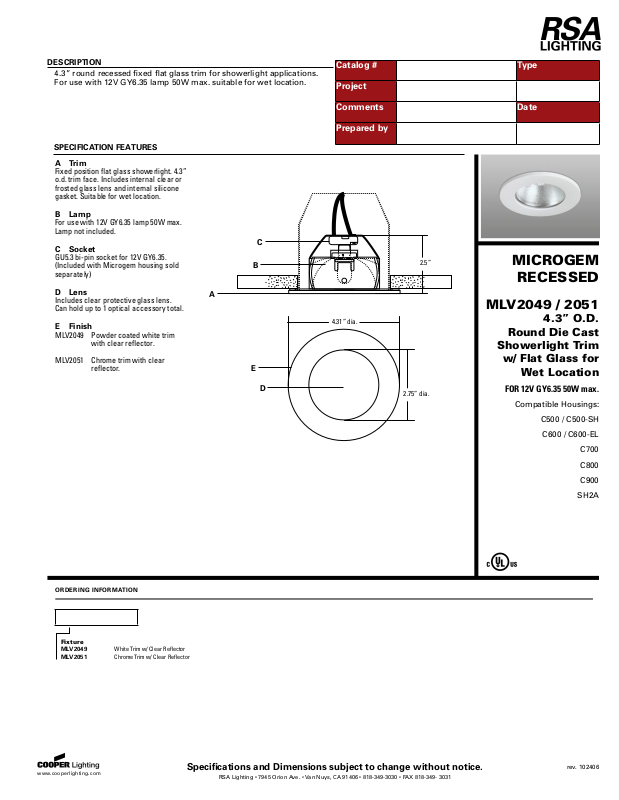

Cooper Lighting MLV2051, MLV2049 User Manual

DESCRIPTION

2.75” dia.

4.31” dia.

2.5”

A

E

B

C

D

4.3” round recessed fixed flat glass trim for showerlight applications.
For use with 12V GY6.35 lamp 50W max. suitable for wet location.

SPECIFICATION FEATURES

A Trim

Fixed position flat glass showerlight. 4.3”
o.d. trim face. Includes internal clear or
frosted glass lens and internal silicone
gasket. Suitable for wet location.

B Lamp

For use with 12V GY6.35 lamp 50W max.
Lamp not included.

C Socket

GU5.3 bi-pin socket for 12V GY6.35.
(Included with Microgem housing sold
separately)

D Lens

Includes clear protective glass lens.
Can hold up to 1 optical accessory total.

E Finish

MLV2049 Powder coated white trim

with clear reflector.

MLV2051 Chrome trim with clear
reflector.

Catalog # Type

Project

Comments Date

Prepared by

MICROGEM

RECESSED

MLV2049 / 2051

4.3” O.D.

Round Die Cast

Showerlight Trim

w/ Flat Glass for

Wet Location

FOR 12V GY6.35 50W max.

Compatible Housings:

C500 / C500-SH

C600 / C600-EL

C700

C800

C900

SH2A

ORD ERI NG INF ORM ATIO N

Fixture

MLV2049 White Trim w/ Clear Reflector
MLV2051 Chrome Trim w/ Clear Reflector

www.coo perlighti ng.com

Specifications and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX [phone]

rev. 102406
