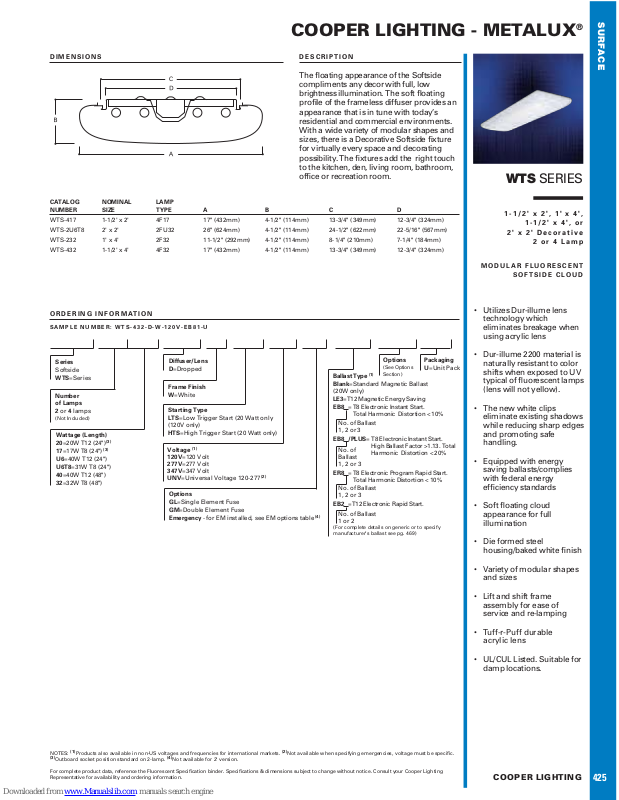

Page 1
SURFACE
425
COOPER LIGHTING

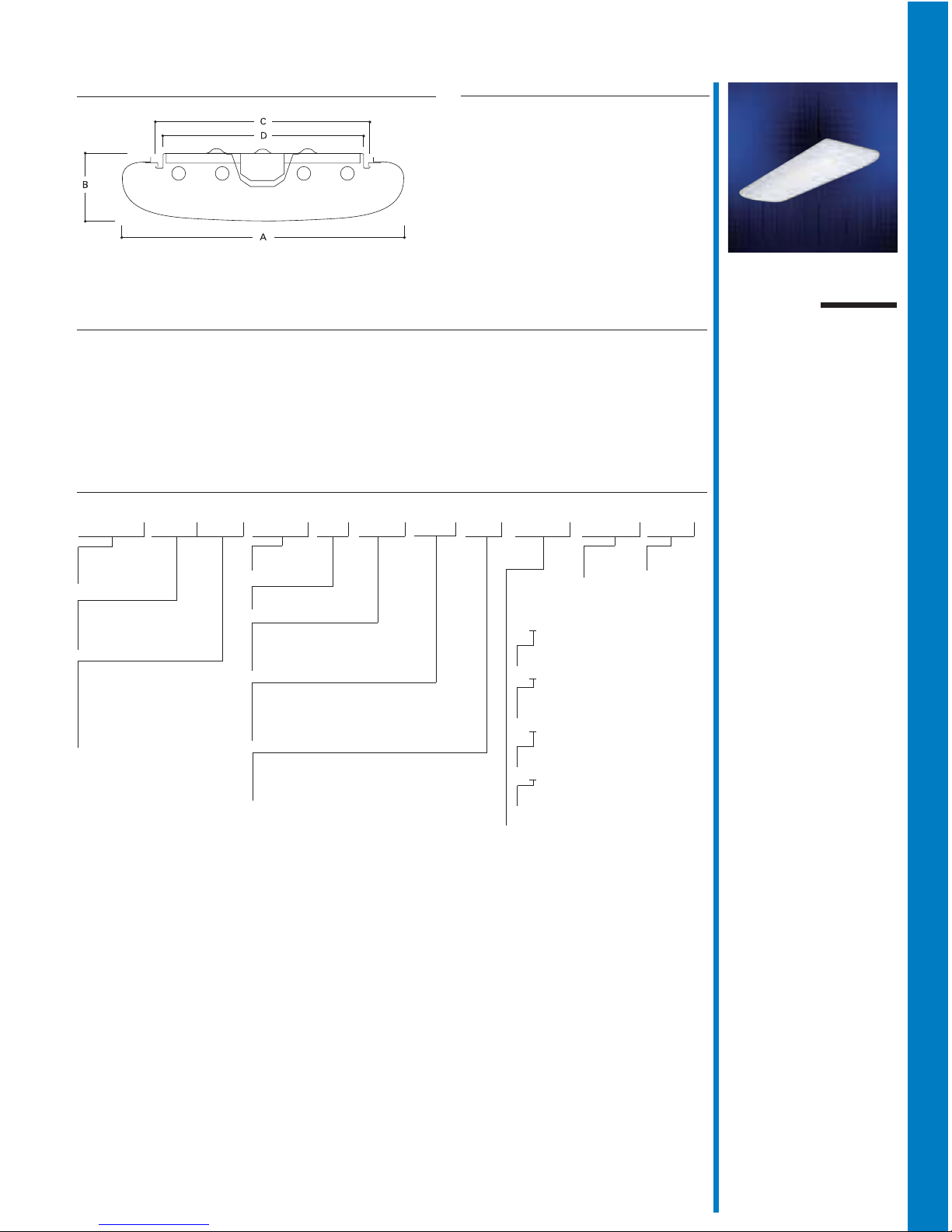

DIMENSIONS
• Utilizes Dur-illume lens
technology which
eliminates breakage when
using acrylic lens
• Dur-illume 2200 material is
naturally resistant to color
shifts when exposed to UV
typical of fluorescent lamps
(lens will not yellow).
• The new white clips
eliminate existing shadows
while reducing sharp edges
and promoting safe
handling.
• Equipped with energy
saving ballasts/complies
with federal energy
efficiency standards
• Soft floating cloud
appearance for full
illumination
• Die formed steel
housing/baked white finish
• Variety of modular shapes
and sizes
• Lift and shift frame
assembly for ease of
service and re-lamping
• Tuff-r-Puff durable
acrylic lens
• UL/CUL Listed. Suitable for
damp locations.
DESCRIPTION
The floating appearance of the Softside
compliments any decor with full, low
brightness illumination. The soft floating
profile of the frameless diffuser provides an
appearance that is in tune with today’s
residential and commercial environments.
With a wide variety of modular shapes and
sizes, there is a Decorative Softside fixture
for virtually every space and decorating
possibility. The fixtures add the right touch
to the kitchen, den, living room, bathroom,
office or recreation room.
WTS SERIES
1-1/2' x 2', 1' x 4',
1-1/2' x 4', or
2' x 2' Decorative
2 or 4 Lamp
MODULAR FLUORESCENT
SOFTSIDE CLOUD
ORDERING INFORMATION
SAMPLE NUMBER: WTS-432-D-W-120V-EB81-U
Series
Softside
WTS=Series
Number
of Lamps
2 or 4 lamps
(Not Included)
Wattage (Length)
20=20W T12 (24")
(3)
17=17W T8 (24")
(3)
U6=40W T12 (24")
U6T8=31W T8 (24")
40=40W T12 (48")
32=32W T8 (48")
Diffuser/Lens
D=Dropped
Frame Finish
W=White
Starting Type
LTS=Low Trigger Start (20 Watt only
(120V only)
HTS=High Trigger Start (20 Watt only)
Voltage
(1)
120V=120 Volt
277V=277 Volt
347V=347 Volt
UNV=Universal Voltage 120-277
(2)
Options
GL=Single Element Fuse
GM=Double Element Fuse
Emergency - for EM installed, see EM options table
(4)
Ballast Type
(1)
Blank=Standard Magnetic Ballast
(20W only)
LE3=T12 Magnetic Energy Saving
EB8
= T8 Electronic Instant Start.
Total Harmonic Distortion < 10%
EB8
/PLUS= T8 Electronic Instant Start.
High Ballast Factor >1.13. Total
Harmonic Distortion < 20%
ER8
= T8 Electronic Program Rapid Start.
Total Harmonic Distortion < 10%
EB2
=T12 Electronic Rapid Start.
(For complete details on generic or to specify
manufacturer’s ballast see pg. 469)
No. of Ballast
1, 2 or 3
No. of
Ballast
1, 2 or 3
No. of Ballast
1, 2 or 3
No. of Ballast
1 or 2
Options
(See Options
Section)
Packaging
U=Unit Pack
NOTES:
(1)
Products also available in non-US voltages and frequencies for international markets.
(2)
Not available when specifying emergencies, voltage must be specific.
(3)
Outboard socket position standard on 2-lamp.
(4)
Not available for 2' version.
For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting
Representative for availability and ordering information.
COOPER LIGHTING - METALUX
®
CATALOG NOMINAL LAMP
NUMBER SIZE TYPE A B C D
WTS-417 1-1/2' x 2' 4F17 17" (432mm) 4-1/2" (114mm) 13-3/4" (349mm) 12-3/4" (324mm)
WTS-2U6T8 2' x 2' 2FU32 26" (624mm) 4-1/2" (114mm) 24-1/2" (622mm) 22-5/16" (567mm)
WTS-232 1' x 4' 2F32 11-1/2" (292mm) 4-1/2" (114mm) 8-1/4" (210mm) 7-1/4" (184mm)
WTS-432 1-1/2' x 4' 4F32 17" (432mm) 4-1/2" (114mm) 13-3/4" (349mm) 12-3/4" (324mm)
