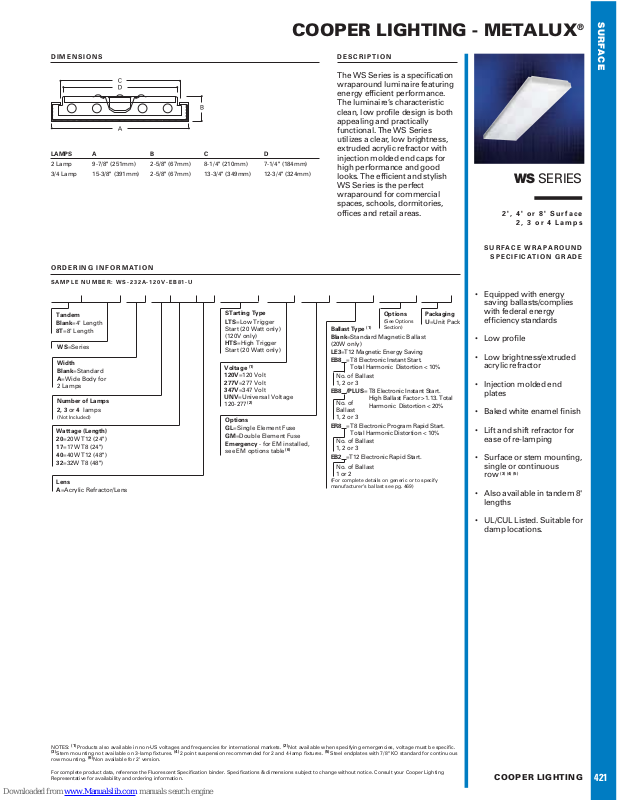

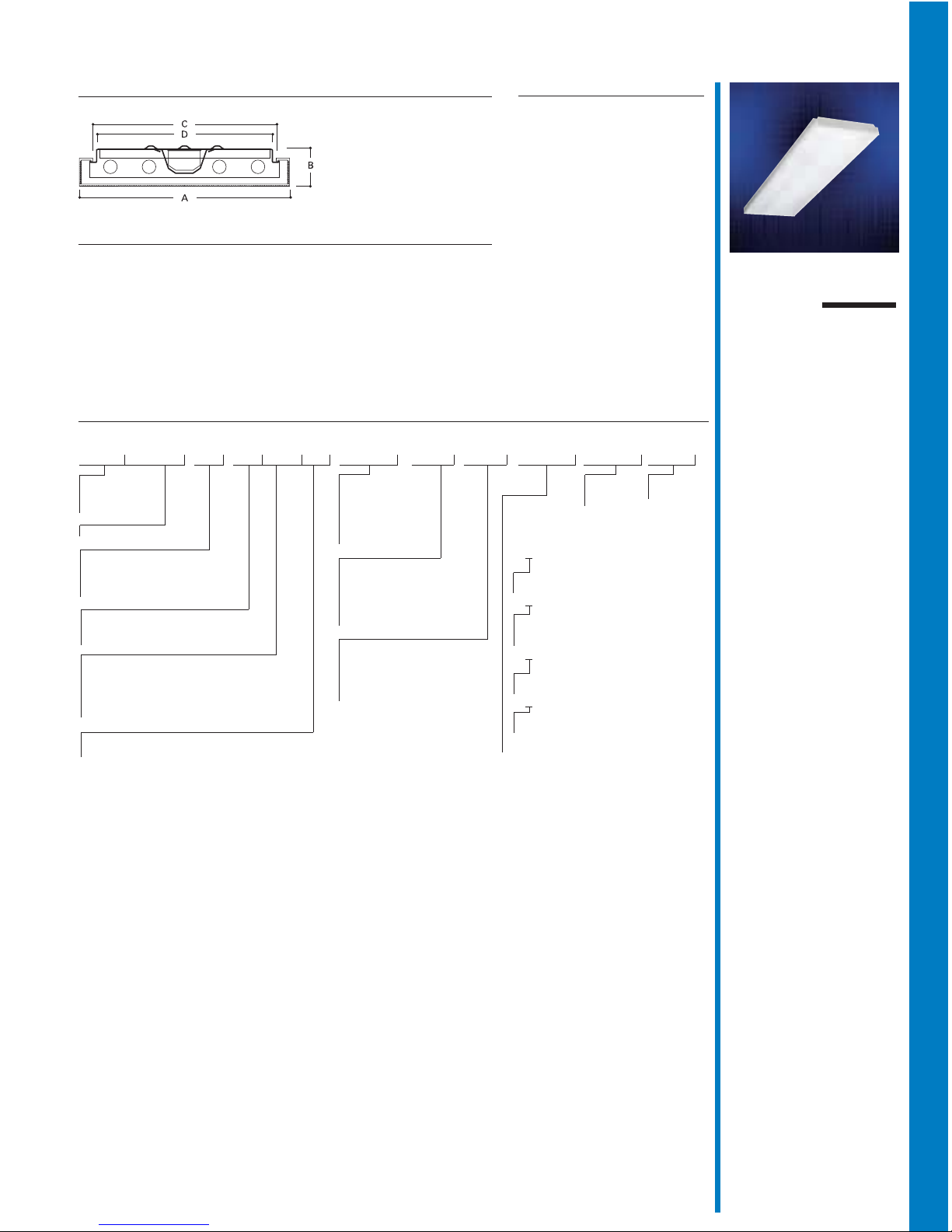

Page 1

SURFACE

421

COOPER LIGHTING

• Equipped with energy saving ballasts/complies with federal energy efﬁciency standards

• Low proﬁle

• Low brightness/extruded acrylic refractor

• Injection molded end plates

• Baked white enamel ﬁnish

• Lift and shift refractor for ease of re-lamping

• Surface or stem mounting, single or continuous row

(3) (4) (5)

• Also available in tandem 8' lengths

• UL/CUL Listed. Suitable for damp locations.

WS SERIES

2', 4' or 8' Surface

2, 3 or 4 Lamps

SURFACE WRAPAROUND

SPECIFICATION GRADE

DIMENSIONS DESCRIPTION

The WS Series is a speciﬁcation wraparound luminaire featuring energy efﬁcient performance. The luminaire’s characteristic clean, low proﬁle design is both appealing and practically functional. The WS Series utilizes a clear, low brightness, extruded acrylic refractor with injection molded end caps for high performance and good looks. The efﬁcient and stylish WS Series is the perfect wraparound for commercial spaces, schools, dormitories, ofﬁces and retail areas.

LAMPS A B C D

2 Lamp 9-7/8" (251mm) 2-5/8" (67mm) 8-1/4" (210mm) 7-1/4" (184mm)

3/4 Lamp 15-3/8" (391mm) 2-5/8" (67mm) 13-3/4" (349mm) 12-3/4" (324mm)

ORDERING INFORMATION

SAMPLE NUMBER: WS-232A-120V-EB81-U

Number of Lamps 2, 3 or 4 lamps

(Not Included)

Voltage

(1)

120V=120 Volt 277V=277 Volt 347V=347 Volt UNV=Universal Voltage

120-277

(2)

Wattage (Length) 20=20W T12 (24") 17=17W T8 (24") 40=40W T12 (48") 32=32W T8 (48")

Lens A=Acrylic Refractor/Lens

STarting Type LTS=Low Trigger

Start (20 Watt only) (120V only) HTS=High Trigger Start (20 Watt only)

Options GL=Single Element Fuse GM=Double Element Fuse Emergency - for EM installed,

see EM options table

(6)

WS=Series

Tandem Blank=4' Length 8T=8' Length

Width Blank=Standard A=Wide Body for

2 Lamps

Options

(See Options Section)

Packaging U=Unit Pack

Ballast Type

(1)

Blank=Standard Magnetic Ballast

(20W only)

LE3=T12 Magnetic Energy Saving EB8

= T8 Electronic Instant Start.

Total Harmonic Distortion < 10%

EB8

/PLUS= T8 Electronic Instant Start.

High Ballast Factor >1.13. Total Harmonic Distortion < 20%

ER8

= T8 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%

EB2

=T12 Electronic Rapid Start.

(For complete details on generic or to specify manufacturer’s ballast see pg. 469)

No. of Ballast 1, 2 or 3

No. of Ballast 1 or 2

NOTES:

(1)

Products also available in non-US voltages and frequencies for international markets.

(2)

Not available when specifying emergencies, voltage must be speciﬁc.

(3)

Stem mounting not available on 3-lamp ﬁxtures.

(4)

2 point suspension recommended for 2 and 4-lamp ﬁxtures.

(5)

Steel endplates with 7/8" KO standard for continuous

row mounting.

(6)

Non available for 2' version.

For complete product data, reference the Fluorescent Speciﬁcation binder. Speciﬁcations & dimensions subject to change without notice. Consult your Cooper Lighting Representative for availability and ordering information.
