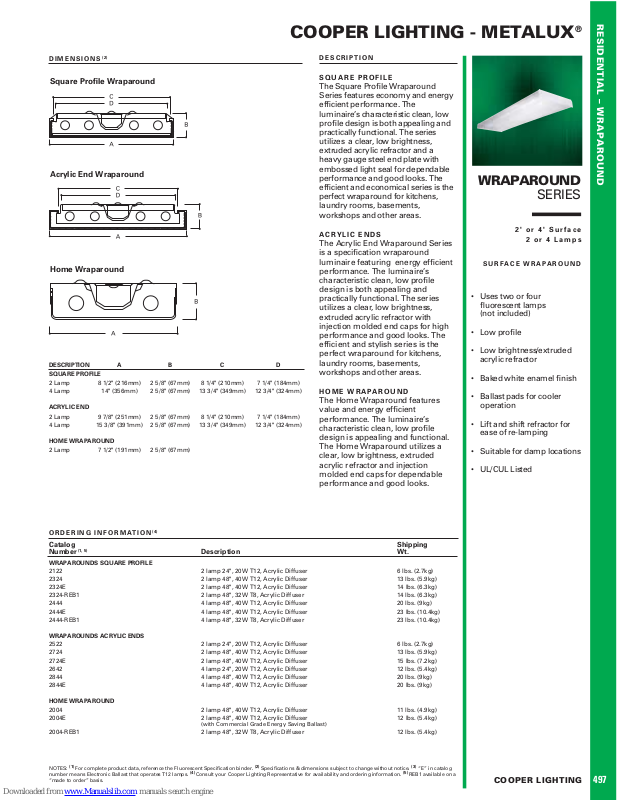

RESIDENTIAL – WRAPAROUND
497
COOPER LIGHTING
DIMENSIONS
(2)
• Uses two or four
fluorescent lamps
(not included)
• Low profile
• Low brightness/extruded
acrylic refractor
• Baked white enamel finish
• Ballast pads for cooler
operation
• Lift and shift refractor for
ease of re-lamping
• Suitable for damp locations
• UL/CUL Listed
DESCRIPTION
SQUARE PROFILE
The Square Profile Wraparound
Series features economy and energy
efficient performance. The
luminaire’s characteristic clean, low
profile design is both appealing and
practically functional. The series
utilizes a clear, low brightness,
extruded acrylic refractor and a
heavy gauge steel end plate with
embossed light seal for dependable
performance and good looks. The
efficient and economical series is the
perfect wraparound for kitchens,
laundry rooms, basements,
workshops and other areas.
ACRYLIC ENDS
The Acrylic End Wraparound Series
is a specification wraparound
luminaire featuring energy efficient
performance. The luminaire’s
characteristic clean, low profile
design is both appealing and
practically functional. The series
utilizes a clear, low brightness,
extruded acrylic refractor with
injection molded end caps for high
performance and good looks. The
efficient and stylish series is the
perfect wraparound for kitchens,
laundry rooms, basements,
workshops and other areas.
HOME WRAPAROUND
The Home Wraparound features
value and energy efficient
performance. The luminaire’s
characteristic clean, low profile
design is appealing and functional.
The Home Wraparound utilizes a
clear, low brightness, extruded
acrylic refractor and injection
molded end caps for dependable
performance and good looks.
WRAPAROUND
SERIES
2' or 4' Surface
2 or 4 Lamps
SURFACE WRAPAROUND
NOTES:
(1)
For complete product data, reference the Fluorescent Specification binder.
(2)
Specifications & dimensions subject to change without notice.
(3)
“E” in catalog
number means Electronic Ballast that operates T12 lamps.
(4)
Consult your Cooper Lighting Representative for availability and ordering information.
(5)
REB1 available on a
“made to order” basis.
ORDERING INFORMATION
(4)
Catalog Shipping
Number
(1, 5)
Description Wt.
WRAPAROUNDS SQUARE PROFILE
2122 2 lamp 24", 20W T12, Acrylic Diffuser 6 lbs. (2.7kg)
2324 2 lamp 48", 40W T12, Acrylic Diffuser 13 lbs. (5.9kg)
2324E 2 lamp 48", 40W T12, Acrylic Diffuser 14 lbs. (6.3kg)
2324-REB1 2 lamp 48", 32W T8, Acrylic Diffuser 14 lbs. (6.3kg)
2444 4 lamp 48", 40W T12, Acrylic Diffuser 20 lbs. (9kg)
2444E 4 lamp 48", 40W T12, Acrylic Diffuser 23 lbs. (10.4kg)
2444-REB1 4 lamp 48", 32W T8, Acrylic Diffuser 23 lbs. (10.4kg)
WRAPAROUNDS ACRYLIC ENDS
2522 2 lamp 24", 20W T12, Acrylic Diffuser 6 lbs. (2.7kg)
2724 2 lamp 48", 40W T12, Acrylic Diffuser 13 lbs. (5.9kg)
2724E 2 lamp 48", 40W T12, Acrylic Diffuser 15 lbs. (7.2kg)
2642 4 lamp 24", 20W T12, Acrylic Diffuser 12 lbs. (5.4kg)
2844 4 lamp 48", 40W T12, Acrylic Diffuser 20 lbs. (9kg)
2844E 4 lamp 48", 40W T12, Acrylic Diffuser 20 lbs. (9kg)
HOME WRAPAROUND
2004 2 lamp 48", 40W T12, Acrylic Diffuser 11 lbs. (4.9kg)
2004E 2 lamp 48", 40W T12, Acrylic Diffuser 12 lbs. (5.4kg)
(with Commercial Grade Energy Saving Ballast)
2004-REB1 2 lamp 48", 32W T8, Acrylic Diffuser 12 lbs. (5.4kg)
DESCRIPTION A B C D
SQUARE PROFILE
2 Lamp 8 1/2" (216mm) 2 5/8" (67mm) 8 1/4" (210mm) 7 1/4" (184mm)
4 Lamp 14" (356mm) 2 5/8" (67mm) 13 3/4" (349mm) 12 3/4" (324mm)
ACRYLIC END
2 Lamp 9 7/8" (251mm) 2 5/8" (67mm) 8 1/4" (210mm) 7 1/4" (184mm)
4 Lamp 15 3/8" (391mm) 2 5/8" (67mm) 13 3/4" (349mm) 12 3/4" (324mm)
HOME WRAPAROUND
2 Lamp 7 1/2" (191mm) 2 5/8" (67mm)
Square Profile Wraparound
Acrylic End Wraparound
Home Wraparound
