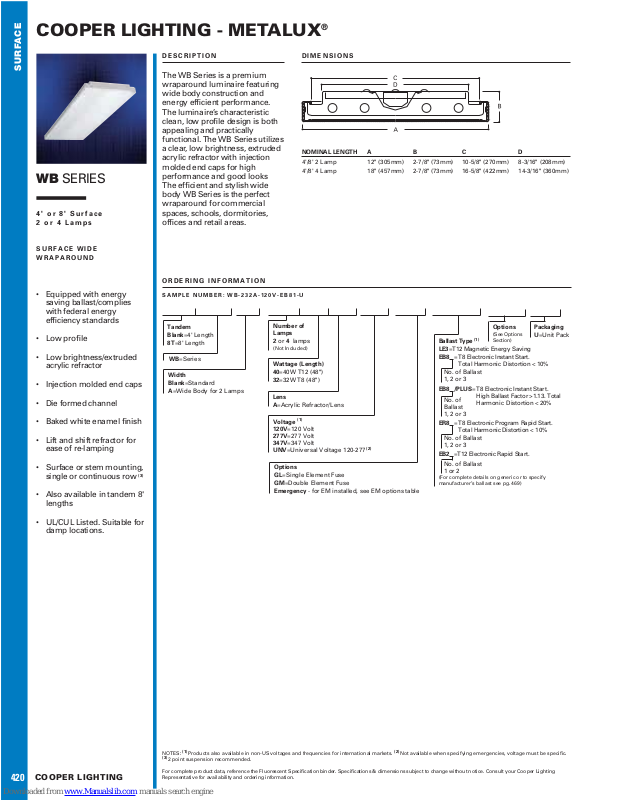

Cooper Lighting Metalux WB SERIES Specifications

Download

Page 1

SURFACE

420

COOPER LIGHTING

• Equipped with energy saving ballast/complies with federal energy efﬁciency standards

• Low proﬁle

• Low brightness/extruded acrylic refractor

• Injection molded end caps

• Die formed channel

• Baked white enamel ﬁnish

• Lift and shift refractor for ease of re-lamping

• Surface or stem mounting, single or continuous row

(3)

• Also available in tandem 8' lengths

• UL/CUL Listed. Suitable for damp locations.

WB SERIES

4' or 8' Surface 2 or 4 Lamps

SURFACE WIDE WRAPAROUND

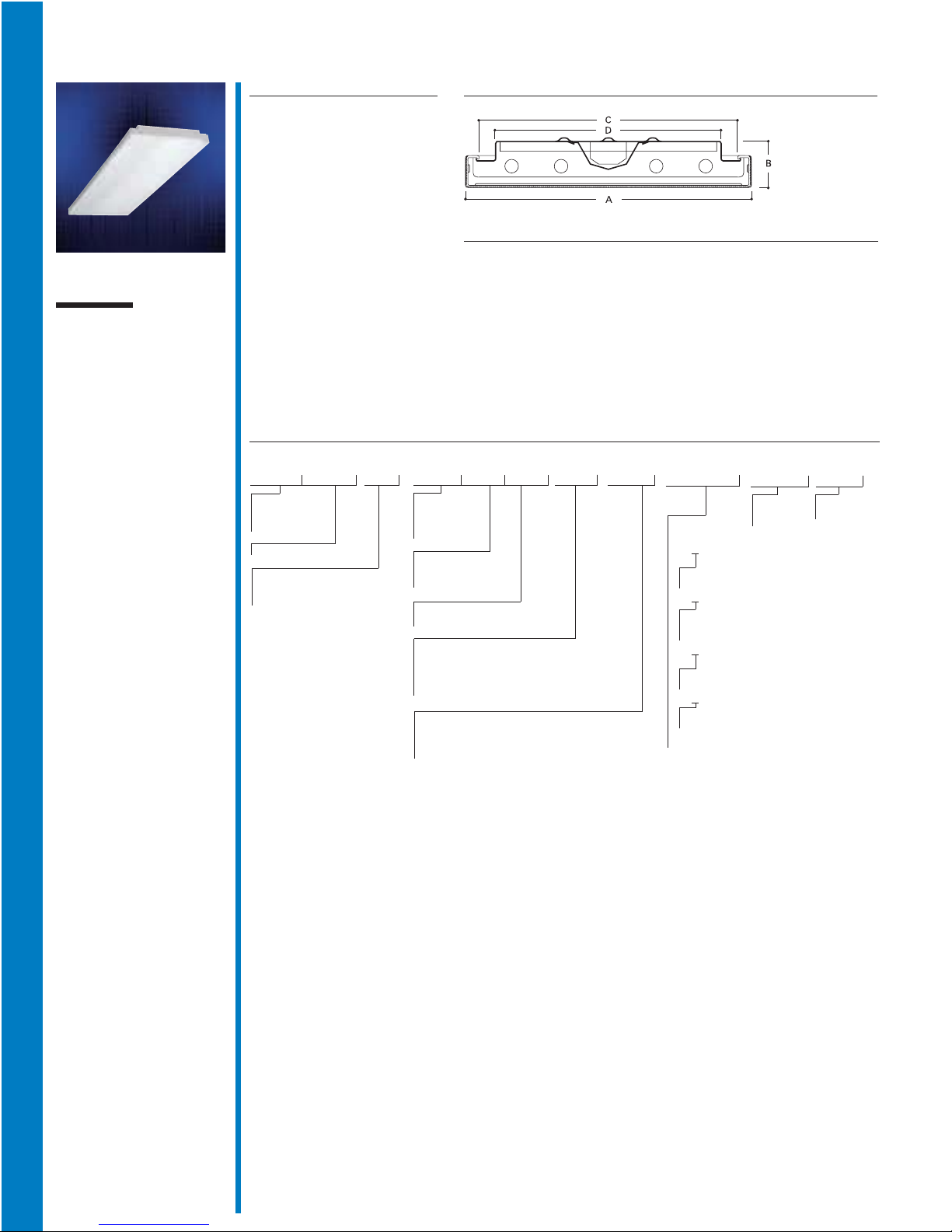

DIMENSIONSDESCRIPTION

The WB Series is a premium wraparound luminaire featuring wide body construction and energy efﬁcient performance. The luminaire’s characteristic clean, low proﬁle design is both appealing and practically functional. The WB Series utilizes a clear, low brightness, extruded acrylic refractor with injection molded end caps for high performance and good looks The efﬁcient and stylish wide body WB Series is the perfect wraparound for commercial spaces, schools, dormitories, ofﬁces and retail areas.

ORDERING INFORMATION

SAMPLE NUMBER: WB-232A-120V-EB81-U

WB=Series

Number of Lamps 2 or 4 lamps

(Not Included)

Voltage

(1)

120V=120 Volt 277V=277 Volt 347V=347 Volt UNV=Universal Voltage 120-277

(2)

Wattage (Length) 40=40W T12 (48") 32=32W T8 (48")

Lens A=Acrylic Refractor/Lens

NOMINAL LENGTH A B C D

4'/8' 2 Lamp 12" (305mm) 2-7/8" (73mm) 10-5/8" (270mm) 8-3/16" (208mm)

4'/8' 4 Lamp 18" (457mm) 2-7/8" (73mm) 16-5/8" (422mm) 14-3/16" (360mm)

Options GL=Single Element Fuse GM=Double Element Fuse Emergency - for EM installed, see EM options table

Tandem Blank=4' Length 8T=8' Length

Width Blank=Standard A=Wide Body for 2 Lamps

Ballast Type

(1)

LE3=T12 Magnetic Energy Saving EB8

= T8 Electronic Instant Start.

Total Harmonic Distortion < 10%

EB8

/PLUS= T8 Electronic Instant Start.

High Ballast Factor >1.13. Total Harmonic Distortion < 20%

ER8

= T8 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%

EB2

=T12 Electronic Rapid Start.

(For complete details on generic or to specify manufacturer’s ballast see pg. 469)

No. of Ballast 1, 2 or 3

No. of Ballast 1 or 2

Options

(See Options Section)

Packaging U=Unit Pack

NOTES:

(1)

Products also available in non-US voltages and frequencies for international markets.

(2)

Not available when specifying emergencies, voltage must be speciﬁc.

(3)

2 point suspension recommended.

For complete product data, reference the Fluorescent Speciﬁcation binder. Speciﬁcations & dimensions subject to change without notice. Consult your Cooper Lighting Representative for availability and ordering information.

COOPER LIGHTING - METALUX
