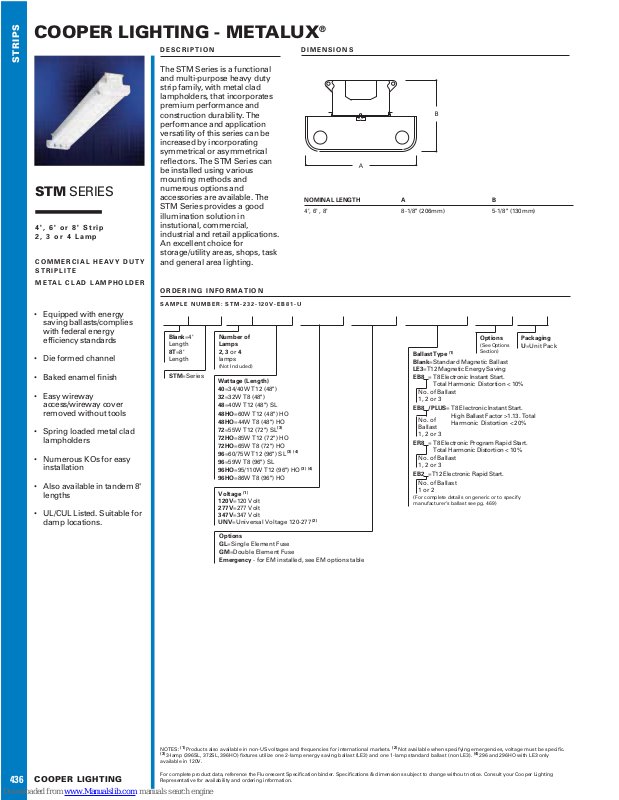

Page 1
STRIPS
436
COOPER LIGHTING
DIMENSIONS
DESCRIPTION
The STM Series is a functional
and multi-purpose heavy duty
strip family, with metal clad
lampholders, that incorporates
premium performance and
construction durability. The
performance and application
versatility of this series can be
increased by incorporating
symmetrical or asymmetrical
reflectors. The STM Series can
be installed using various
mounting methods and
numerous options and
accessories are available. The
STM Series provides a good
illumination solution in
instutional, commercial,
industrial and retail applications.
An excellent choice for
storage/utility areas, shops, task
and general area lighting.
STM SERIES
4', 6' or 8' Strip
2, 3 or 4 Lamp
COMMERCIAL HEAVY DUTY
STRIPLITE
METAL CLAD LAMPHOLDER
• Equipped with energy
saving ballasts/complies
with federal energy
efficiency standards
• Die formed channel
• Baked enamel finish
• Easy wireway
access/wireway cover
removed without tools
• Spring loaded metal clad
lampholders
• Numerous KOs for easy
installation
• Also available in tandem 8'
lengths
• UL/CUL Listed. Suitable for
damp locations.
NOTES:
(1)
Products also available in non-US voltages and frequencies for international markets.
(2)
Not available when specifying emergencies, voltage must be specific.
(3)
3-lamp (396SL, 372SL, 396HO) fixtures utilize one 2-lamp energy saving ballast (LE3) and one 1-lamp standard ballast (non LE3).
(4)
296 and 296HO with LE3 only
available in 120V.
For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting
Representative for availability and ordering information.
NOMINAL LENGTH A B
4', 6' , 8' 8-1/8" (206mm) 5-1/8" (130mm)
ORDERING INFORMATION
SAMPLE NUMBER: STM-232-120V-EB81-U
Number of
Lamps
2, 3 or 4
lamps
(Not Included)
Wattage (Length)
40=34/40W T12 (48")
32=32W T8 (48")
48=40W T12 (48") SL
48HO=60W T12 (48") HO
48HO=44W T8 (48") HO
72=55W T12 (72") SL
(3)
72HO=85W T12 (72") HO
72HO=65W T8 (72") HO
96=60/75W T12 (96") SL
(3) (4)
96=59W T8 (96") SL
96HO=95/110W T12 (96") HO
(3) (4)
96HO=86W T8 (96") HO
Voltage
(1)
120V=120 Volt
277V=277 Volt
347V=347 Volt
UNV=Universal Voltage 120-277
(2)
Blank=4'
Length
8T=8'
Length
STM=Series
Options
GL=Single Element Fuse
GM=Double Element Fuse
Emergency - for EM installed, see EM options table
Ballast Type
(1)
Blank=Standard Magnetic Ballast
LE3=T12 Magnetic Energy Saving
EB8
= T8 Electronic Instant Start.
Total Harmonic Distortion < 10%
EB8
/PLUS= T8 Electronic Instant Start.
High Ballast Factor >1.13. Total
Harmonic Distortion < 20%
ER8
= T8 Electronic Program Rapid Start.
Total Harmonic Distortion < 10%
EB2
=T12 Electronic Rapid Start.
(For complete details on generic or to specify
manufacturer’s ballast see pg. 469)
No. of Ballast
1, 2 or 3
No. of
Ballast
1, 2 or 3
No. of Ballast
1, 2 or 3
No. of Ballast
1 or 2
Options
(See Options
Section)
Packaging
U=Unit Pack
COOPER LIGHTING - METALUX
®
