Page 1
Structural Options
11
Pole Mount
PRCPS=Strut Rod and Clevis Set for
Square Poles
(Painted to match fixture)
12
PRCSS=Stainless Steel Strut Rod and
Clevis Set for Square Poles
(Clevis’ painted to match fixture)
12
PRCPR=Strut Rod and Clevis Set for
Round Poles
(Painted to match fixture)
13
PRCSR=Stainless Steel Strut Rod and
Clevis Set for Round Poles
(Clevis’ painted to match fixture)
13
Wall Mount
WRCP=Strut Rod and Clevis
(Painted to match fixture)
12
WRCS=Stainless Steel Strut Rod and
Clevis Set (Clevis’ painted to
match fixture)
12
Options
11
F=Single Fuse (120, 277 or 347V)
Specify Voltage
FF=Double Fused
(208, 240 or 480V)
Specify Voltage
Q=Quartz Restrike
14
EM=Quartz Restrike with Time
Delay (Also Strikes at Cold
Start)
14
EM/SC=Quartz Emergency
Separate Circuit
14
42CF/EM=Emergency Battery
Backup
15
PC=Button Type Photocontrol
(Specify Voltage)
HS=House Side Shield
16
VS=Polycarbonate Vandal
Shield
L=Lamp Included
Accessories
17
OA/RA1016=Photocontrol—Multi-Tap
OA/RA1027=Photocontrol—480V
OA/RA1201=Photocontrol—347V
MA1071-XX=5" Arm For Square Pole
MA1074-XX=5" Arm For Round Pole
MA1073-XX=Direct Mount for Square Pole
MA1076-XX=Direct Mount For Round Pole
MA1077-XX=Wall Bracket with 5" Arm
18
MA1200-XX=Direct Wall Mount Kit
18
MA1101-XX=Single Arm Tenon Adapter for 2 3/8" O.D. Tenon
MA1102-XX=2 @ 180° Tenon Adapter for 2 3/8" O.D. Tenon
MA1103-XX=3 @ 120° Tenon Adapter for 2 3/8" O.D. Tenon
MA1104-XX=4 @ 90° Tenon Adapter for 2 3/8" O.D. Tenon
MA1105-XX=2 @ 90° Tenon Adapter for 2 3/8" O.D. Tenon
MA1106-XX=3 @ 90° Tenon Adapter for 2 3/8" O.D. Tenon
MA1107-XX=2 @ 120° Tenon Adapter for 2 3/8" O.D. Tenon
MA1108-XX=Single Arm Tenon Adapter for 3 1/2" O.D. Tenon
MA1109-XX=2 @ 180° Tenon Adapter for 3 1/2" O.D. Tenon
MA1110-XX=3 @ 120° Tenon Adapter for 3 1/2" O.D. Tenon
MA1111-XX=4 @ 90° Tenon Adapter for 3 1/2" O.D. Tenon
MA1112-XX=2 @ 90° Tenon Adapter for 3 1/2" O.D. Tenon
MA1113-XX=3 @ 90° Tenon Adapter for 3 1/2" O.D. Tenon
MA1114-XX=2 @ 120° Tenon Adapter for 3 1/2" O.D. Tenon
INVUE
TM
1100
COOPER LIGHTING

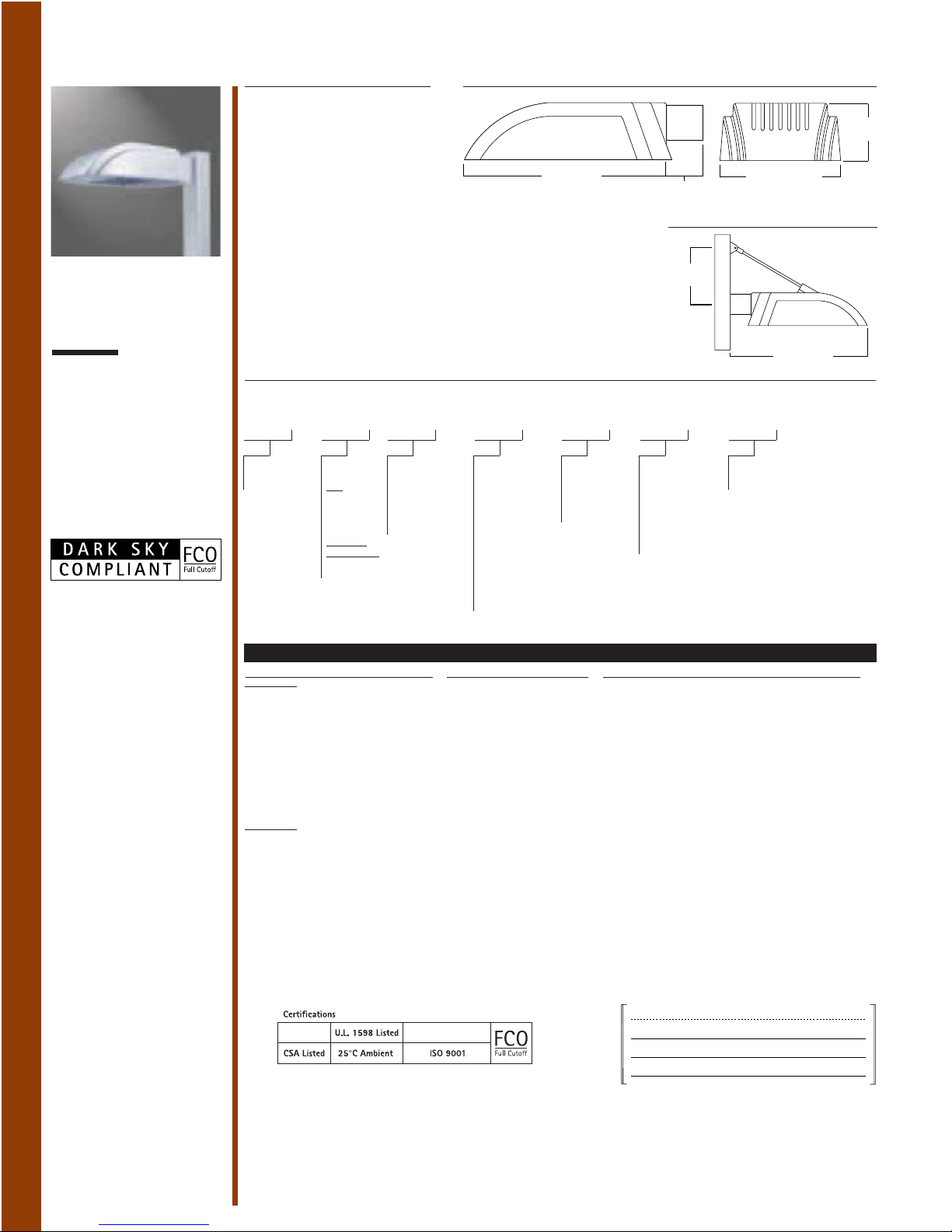

DIMENSIONS
STRUCTURAL MOUNT
AREA ROADWAY
• One-piece, die-cast
aluminum housing
• One-piece aluminum
die-cast door frame. Door
frame opens via release
of one flush mount
toolless latch
• One-piece extruded
rectangular 5" arm
• Optional Strut Rod and
Clevis set for pole mount
or wall mount
• Impact resistant 1/8" thick
tempered clear flat glass
• Ballast and related
electrical componentry
are mounted to a
reinforced one piece
galvanized steel tray with
integral handle
• Choice of five (5) high
efficiency segmented
optical systems
constructed of premium
95% reflective anodized
aluminum sheet
• Medium-base porcelain
socket for HID lamp
sources
• Approximate net weight:
35 lbs. (16 kgs.)
DESCRIPTION
The classic lines and
sophisticated construction of the
Vision Site luminaire makes it an
ideal complement to site design.
The combination of smooth
contours and sharp rear reveals
allow the fixture to change
character from different viewing
angles while providing excellent
low-glare photometrics. U.L.
listed and CSA certified for wet
locations.

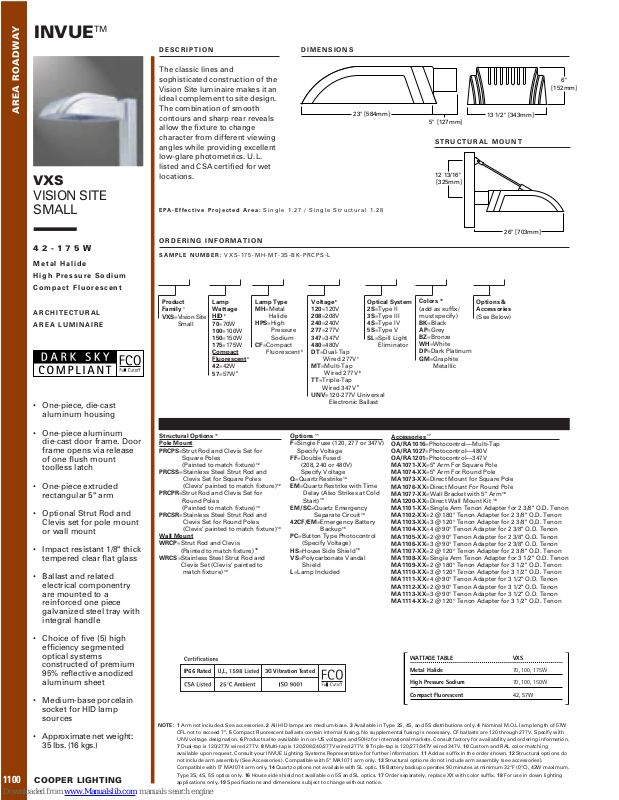

VXS
VISION SITE
SMALL
42-175W
Metal Halide
High Pressure Sodium
Compact Fluorescent
ARCHITECTURAL
AREA LUMINAIRE
ORDERING INFORMATION
SAMPLE NUMBER: VXS-175-MH-MT-3S-BK-PRCPS-L
NOTE: 1 Arm not included. See accessories. 2 All HID lamps are medium-base. 3 Available in Type 3S, 4S, and 5S distributions only. 4 Nominal M.O.L lamp length of 57W
CFL not to exceed 7". 5 Compact Fluorescent ballasts contain internal fusing. No supplemental fusing is necessary. CF ballasts are 120 through 277V. Specify with
UNV voltage designation. 6 Products also available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering information.
7 Dual-tap is 120/277V wired 277V. 8 Multi-tap is 120/208/240/277V wired 277V. 9 Triple-tap is 120/277/347V wired 347V. 10 Custom and RAL color matching
available upon request. Consult your INVUE Lighting Systems Representative for further information. 11 Add as suffix in the order shown. 12 Structural options do
not include arm assembly (See Accessories). Compatible with 5" MA1071 arm only. 13 Structural options do not include arm assembly (see accessories).
Compatible with 5" MA1074 arm only. 14 Quartz options not available with SL optic. 15 Battery backup operates 90 minutes at minimum 32°F (0°C), 42W maximum.
Type 3S, 4S, 5S optics only. 16 House side shield not available on 5S and SL optics. 17 Order separately, replace XX with color suffix. 18 For use in down lighting
applications only. 19 Specifications and dimensions subject to change without notice.
EPA-Effective Projected Area: Single 1.27 / Single Structural 1.28
23" [584mm]
5" [127mm]
6"
[152mm]
13 1/2" [343mm]
Product
Family
1
VXS=Vision Site
Small
Lamp
Wattage
HID
2
70=70W
100=100W
150=150W
175=175W
Compact
Fluorescent
3
42=42W
57=57W
4
Lamp Type
MH=Metal
Halide
HPS=High
Pressure
Sodium
CF=Compact
Fluorescent
5
Voltage
6
120=120V
208=208V
240=240V
277=277V
347=347V
480=480V
DT=Dual-Tap
Wired 277V
7
MT=Multi-Tap
Wired 277V
8
TT=Triple-Tap
Wired 347V
9
UNV=120-277V Universal
Electronic Ballast
Optical System
2S=Type II
3S=Type III
4S=Type IV
5S=Type V
SL=Spill Light
Eliminator
Colors
10
(add as suffix/
must specify)
BK=Black
AP=Grey
BZ=Bronze
WH=White
DP=Dark Platinum
GM=Graphite
Metallic
Options &
Accessories
(See Below)
IP66 Rated
3G Vibration Tested
VXS
Metal Halide 70, 100, 175W
High Pressure Sodium 70, 100, 150W
Compact Fluorescent 42, 57W
WATTAGE TABLE
12 13/16"
[325mm]
26" [703mm]
Page 2
Structural Options
13
Pole Mount
PRCPS=Strut Rod and Clevis Set for
Square Poles (Painted to match
fixture)
14
PRCSS=Stainless Steel Strut Rod and
Clevis Set for Square Poles
(Clevis’ painted to match fixture)
14
PRCPR=Strut Rod and Clevis Set for Round
Poles (Painted to match fixture)
15
PRCSR=Stainless Steel Strut Rod and
Clevis Set for Round Poles
(Clevis’ painted to match fixture)
15
Wall Mount
WRCP=Strut Rod and Clevis
(Painted to match fixture)
16
WRCS=Stainless Steel Strut Rod and
Clevis Set (Clevis’ painted to match
fixture)
16
Options
13
F=Single Fuse (120, 277 or 347V)
Specify Voltage
FF=Double Fuse
(208, 240 or 480V)
Specify Voltage
Q=Quartz Restrike
17
EM=Quartz Restrike with Time
Delay (Also Strikes at Cold
Start)
17
EM/SC=Quartz Emergency
Separate Circuit
17
R=NEMA Twistlock Photocell
Receptacle
DS=Dual Fluorescent Switching
Control
18
HS=House Side Shield
19
VS=Polycarbonate Vandal Shield
T=Terminal Block
L=Lamp Included
Accessories
20
OA/RA1016=Photocontrol—Multi-Tap
OA/RA1027=Photocontrol—480V
OA/RA1201=Photocontrol—347V
MA1050-XX=6" Arm For Square Pole
MA1051-XX=10" Arm For Square Pole
21
MA1052-XX=6" Arm For Round Pole
MA1053-XX=10" Arm For Round Pole
21
MA1054-XX=Wall Bracket with 6" Arm
22
MA1056-XX=Direct Mount for Square Pole
MA1057-XX=Direct Mount for Round Pole
MA1201-XX=Direct Wall Mount Kit
22
MA1207-XX=Mast Arm Adapter
MA1231-XX=VXM Structural Mount Wall Mount Arm
23
MA1017-XX=Single Arm Tenon Adapter for 2 3/8" O.D. Tenon
MA1018-XX=2 @ 180° Tenon Adapter for 2 3/8" O.D. Tenon
MA1019-XX=3 @ 120° Tenon Adapter for 2 3/8" O.D. Tenon
MA1045-XX=4 @ 90° Tenon Adapter for 2 3/8" O.D. Tenon
MA1048-XX=2 @ 90° Tenon Adapter for 2 3/8" O.D. Tenon
MA1115-XX=3 @ 90° Tenon Adapter for 2 3/8" O.D. Tenon
MA1116-XX=2 @ 120° Tenon Adapter for 2 3/8" O.D. Tenon
MA1010-XX=Single Arm Tenon Adapter for 3 1/2" O.D. Tenon
MA1011-XX=2 @ 180° Tenon Adapter for 3 1/2" O.D. Tenon
MA1012-XX=3 @ 120° Tenon Adapter for 3 1/2" O.D. Tenon
MA1013-XX=4 @ 90° Tenon Adapter for 3 1/2" O.D. Tenon
MA1014-XX=2 @ 90° Tenon Adapter for 3 1/2" O.D. Tenon
MA1016-XX=3 @ 90° Tenon Adapter for 3 1/2" O.D. Tenon
MA1015-XX=2 @ 120° Tenon Adapter for 3 1/2" O.D.Tenon
INVUE
TM
1101
COOPER LIGHTING
AREA ROADWAY

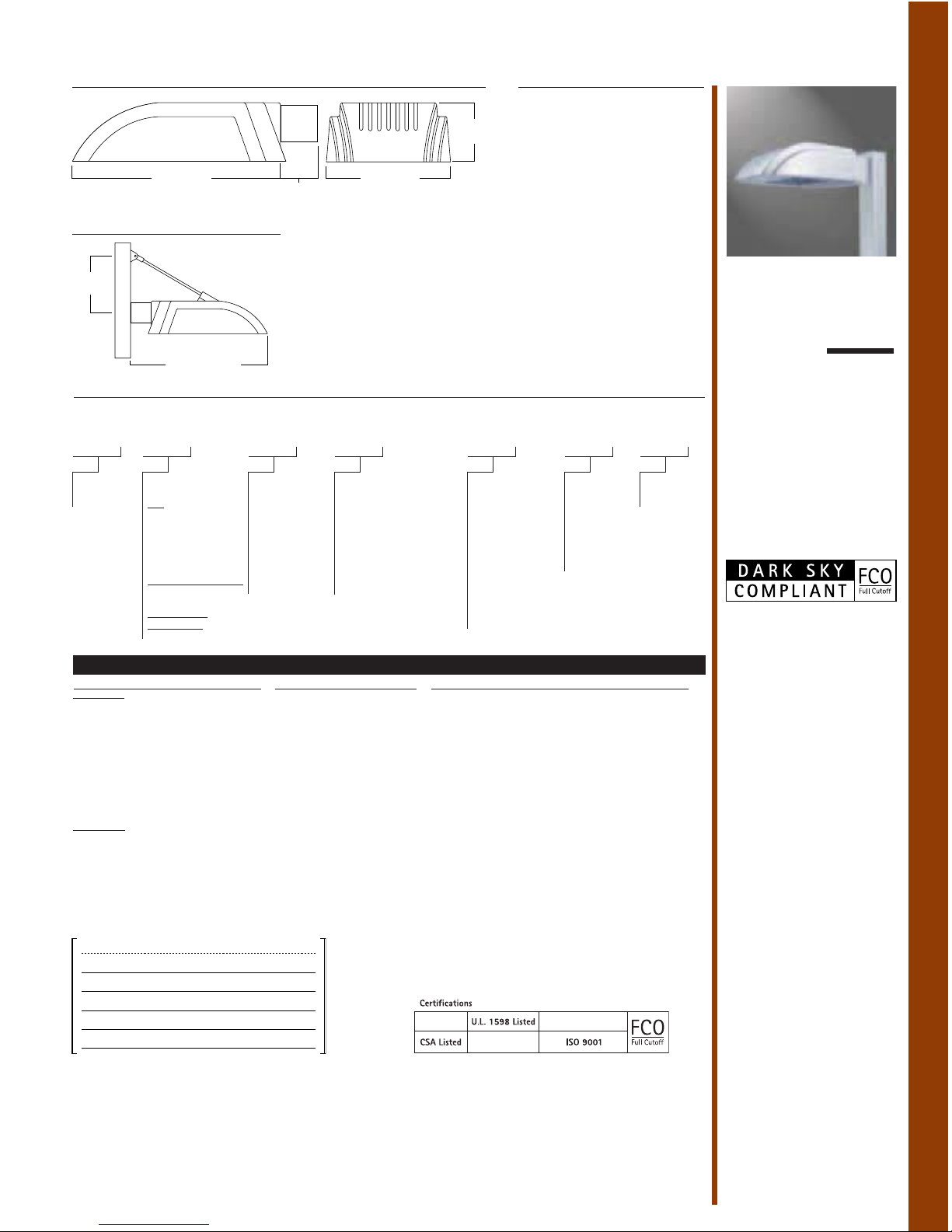

DIMENSIONS
• One-piece, die-cast
aluminum housing
• One-piece aluminum
die-cast door frame. Door
frame opens via release
of one flush mount
toolless latch
• One-piece extruded
rectangular 6" or 10" arm
• Optional Strut Rod and
Clevis set for pole mount
or wall mount
• Impact resistant 1/8" thick
tempered clear flat glass
• Ballast and related
electrical componentry
are mounted to a
reinforced one piece
galvanized steel tray with
integral handle
• Choice of two (2) high
efficiency segmented
optical systems
constructed of premium
95% reflective anodized
aluminum sheet
• Mogul-base porcelain
socket for HID lamp
sources
• Approximate net weight:
51 lbs. (23 kgs.)
DESCRIPTION
The classic lines and
sophisticated construction of the
Vision Site luminaire makes it an
ideal complement to site design.
The combination of smooth
contours and sharp rear reveals
allow the fixture to change
character from different viewing
angles while providing excellent
low-glare photometrics. U.L.
listed and CSA certified for wet
locations.
VXM
VISION SITE
MEDIUM
85-400W
Metal Halide
Pulse Start Metal Halide
High Pressure Sodium
Compact Fluorescent
Electrodeless Fluorescent
ARCHITECTURAL
AREA LUMINAIRE
NOTE: 1 Arm not included. See accessories. 2 All HID lamps are mogul-base. 3 320/350W Pulse Start Metal Halide lamps only. 4 400W Metal Halide requires reduced
envelope ED28 lamp. 5 Dual Compact Fluorescent lamp options available in Type 4S distribution only. 6 Electrodeless Fluorescent QL lamp only. Available in Type
3S and 5S distributions only. 120V only. 7 Compact Fluorescent ballasts contain internal fusing. No supplemental fusing is necessary. CF ballasts are 120 through
277V. Specify with UNV voltage designation. 8 Products also available in non-US voltages and 50Hz for international markets. Consult factory for availability and
ordering information. 9 Dual-tap is 120/277V wired 277V. 10 Multi-tap is 120/208/240/277V wired 277V. 11 Triple-tap is 120/277/347V wired 347V. 12 Custom and
RAL color matching available upon request. Consult your INVUE Lighting Systems Representative for further information. 13 Add as suffix in the order shown.
14 Structural options do not include arm assembly (see accessories). Compatible with 10" MA1051 arm only. 15 Structural options do not include arm assembly
(see accessories). Compatible with 10" MA1053 arm only. 16 Wall mount structural options do not include arm assembly (See Accessories). Compatible with 10"
MA1231 arm only. 17 Quartz options not available with SL optic. 18 Dual switching requires dual 57W or dual 70W Compact Fluorescent lamps. Allows
independent switching control of each lamp through use of two (2) electronic ballasts. Allows 50% power reduction when dual ballasts are independently wired
and controlled. 19 House side shield not available on 5S and SL optics. 20 Order separately, replace XX with color suffix. 21 Use when mounting fixture heads at
90° increments. 22 For use in down lighting applications only. 23 Includes arm only. Must specify WRCP or WRCS in fixture ordering logic. Down light only.
24 Specifications and dimensions subject to change without notice.
7"
[178mm]
28" [724mm]
6" [152mm
10" [254mm]
17" [432mm]
ORDERING INFORMATION
SAMPLE NUMBER: VXM-400-MH-MT-3S-BK-PRCPS-L
EPA-Effective Projected Area: Single 1.6 / Single Structural 1.82
Product
Family
1
VXM=Vision
Site
Medium
Lamp
Wattage
HID
2
150=150W
175=175W
250=250W
320=320W
3
350=350W
3
400=400W
4
Compact Fluorescent
114=(2) 57W
5
140=(2) 70W
5
Electrodeless
Fluorescent
85=85W
6
Lamp Type
MH=Metal
Halide
MP=Pulse Start
Metal Halide
HPS=High
Pressure
Sodium
CF=Compact
Fluorescent
7
QL=Electrodeless
Fluorescent
Voltage
8
120=120V
208=208V
240=240V
277=277V
347=347V
480=480V
DT=Dual-Tap Wired 277V
9
MT=Multi-Tap Wired 277V
10
TT=Triple-Tap Wired 347V
11
UNV=120-277V Universal
Electronic Ballast
Optical System
2S=Type II
3S=Type III
4S=Type IV
5S=Type V
SL=Spill Light
Eliminator
2F=Design 20
Formed
3F=Design 30
Formed
4F=Design 40
Formed
5F=Design 50
Formed
Colors
12
(add as suffix/
must specify)
BK=Black
AP=Grey
BZ=Bronze
WH=White
DP=Dark Platinum
GM=Graphite Metallic
Options &
Accessories
(See Below)
3G Vibration Tested
IP54 Rated
40°C Ambient
VXM
Metal Halide 175, 250, 400W
Pulse Start Metal Halide 250, 320, 350, 400W
High Pressure Sodium 150, 250, 400W
Compact Fluorescent (2) 57, (2) 70W
Electrodeless Fluorescent 85W
WATTAGE TABLE
STRUCTURAL MOUNT
15 7/8"
[404mm]
33 7/8" [860mm]
Loading...
