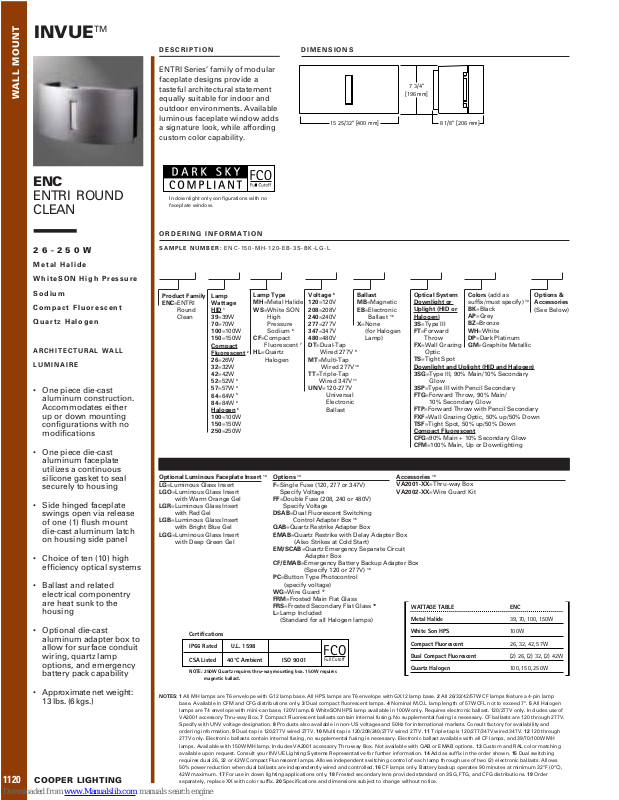

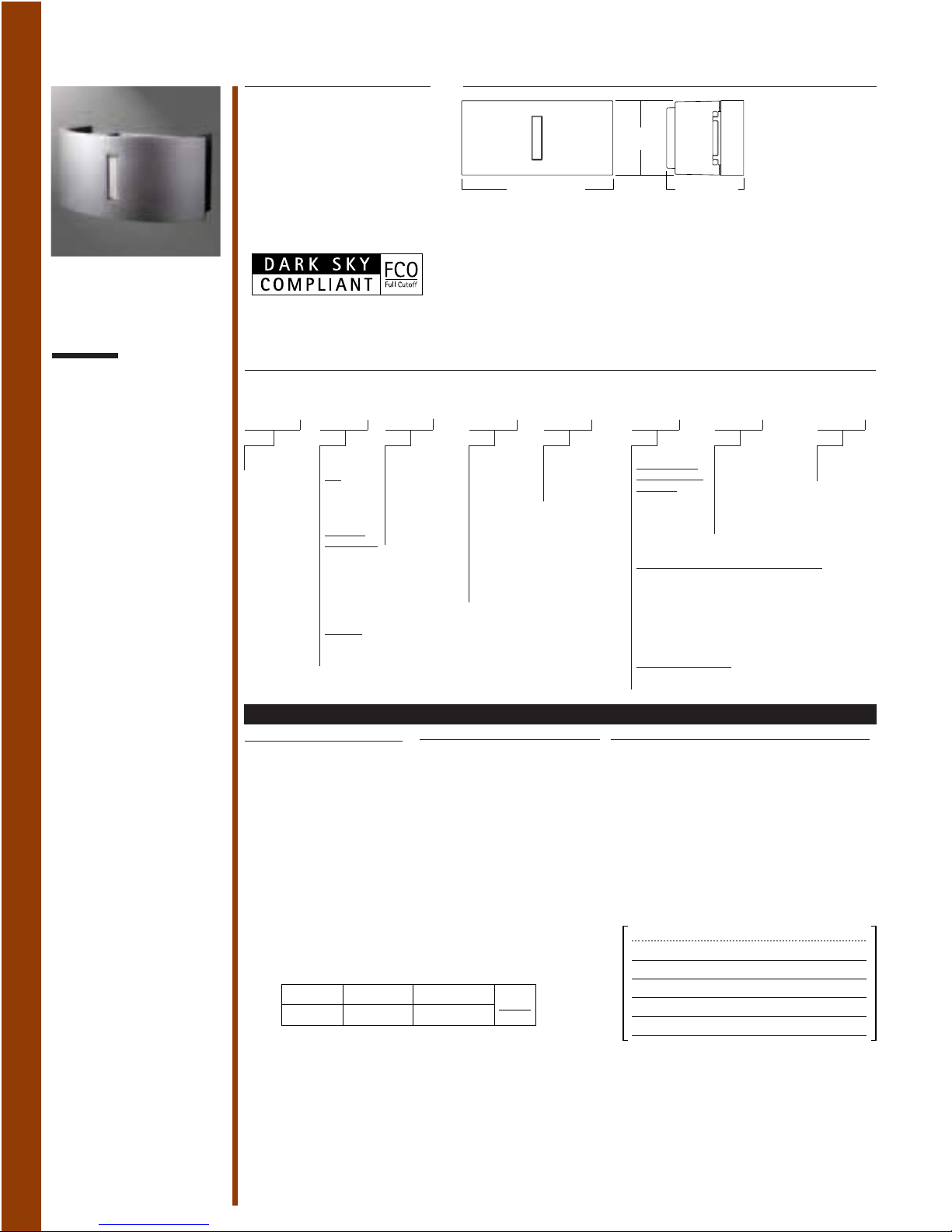

Page 1
INVUE
TM
1120
COOPER LIGHTING
DIMENSIONS
WALL MOUNT
• One piece die-cast
aluminum construction.
Accommodates either
up or down mounting
configurations with no
modifications
• One piece die-cast
aluminum faceplate
utilizes a continuous
silicone gasket to seal
securely to housing
• Side hinged faceplate
swings open via release
of one (1) flush mount
die-cast aluminum latch
on housing side panel
• Choice of ten (10) high
efficiency optical systems
• Ballast and related
electrical componentry
are heat sunk to the
housing
• Optional die-cast
aluminum adapter box to
allow for surface conduit
wiring, quartz lamp
options, and emergency
battery pack capability
• Approximate net weight:
13 lbs. (6 kgs.)
DESCRIPTION
ENTRI Series’ family of modular
faceplate designs provide a
tasteful architectural statement
equally suitable for indoor and
outdoor environments. Available
luminous faceplate window adds
a signature look, while affording
custom color capability.
ENC
ENTRI ROUND
CLEAN
26-250W
Metal Halide
WhiteSON High Pressure
Sodium
Compact Fluorescent
Quartz Halogen
ARCHITECTURAL WALL
LUMINAIRE
15 25/32" [400 mm]
7 3/4"
[196 mm]
8 1/8" [206 mm]
IP66 Rated U.L. 1598
Full Cutoff
FCO
CSA Listed 40°C Ambient ISO 9001
Certifications
NOTE: 250W Quartz requires thru-way mounting box. 150W requires
magnetic ballast.
In downlight only configurations with no
faceplate window.
Optional Luminous Faceplate Insert
14
LG=Luminous Glass Insert
LGO=Luminous Glass Insert
with Warm Orange Gel
LGR=Luminous Glass Insert
with Red Gel
LGB=Luminous Glass Insert
with Bright Blue Gel
LGG=Luminous Glass Insert
with Deep Green Gel
Options
14
F=Single Fuse (120, 277 or 347V)
Specify Voltage
FF=Double Fuse (208, 240 or 480V)
Specify Voltage
DSAB=Dual Fluorescent Switching
Control Adapter Box
15
QAB=Quartz Restrike Adapter Box
EMAB=Quartz Restrike with Delay Adapter Box
(Also Strikes at Cold Start)
EM/SCAB=Quartz Emergency Separate Circuit
Adapter Box
CF/EMAB=Emergency Battery Backup Adapter Box
(Specify 120 or 277V)
16
PC=Button Type Photocontrol
(specify voltage)
WG=Wire Guard
17
FRM=Frosted Main Flat Glass
FRS=Frosted Secondary Flat Glass
18
L=Lamp Included
(Standard for all Halogen lamps)
Accessories
19
VA2001-XX=Thru-way Box
VA2002-XX=Wire Guard Kit
NOTES: 1 All MH lamps are T6 envelope with G12 lamp base. All HPS lamps are T6 envelope with GX12 lamp base. 2 All 26/32/42/57W CF lamps feature a 4-pin lamp
base. Available in CFM and CFG distributions only. 3 Dual compact fluorescent lamps. 4 Nominal M.O.L lamp length of 57W CFL not to exceed 7". 5 All Halogen
lamps are T4 envelope with mini-can base, 120V lamp. 6 WhiteSON HPS lamp available in 100W only. Requires electronic ballast. 120/277V only. Includes use of
VA2001 accessory Thru-way Box. 7 Compact Fluorescent ballasts contain internal fusing. No supplemental fusing is necessary. CF ballasts are 120 through 277V.
Specify with UNV voltage designation. 8 Products also available in non-US voltages and 50Hz for international markets. Consult factory for availability and
ordering information. 9 Dual-tap is 120/277V wired 277V. 10 Multi-tap is 120/208/240/277V wired 277V. 11 Triple-tap is 120/277/347V wired 347V. 12 120 through
277V only. Electronic ballasts contain internal fusing, no supplemental fusing is necessary. Electronic ballast available with all CF lamps, and 39/70/100W MH
lamps. Available with 150W MH lamp. Includes VA2001 accessory Thru-way Box. Not available with QAB or EMAB options. 13 Custom and RAL color matching
available upon request. Consult your INVUE Lighting Systems Representative for further information. 14 Add as suffix in the order shown. 15 Dual switching
requires dual 26, 32 or 42W Compact Fluorescent lamps. Allows independent switching control of each lamp through use of two (2) electronic ballasts. Allows
50% power reduction when dual ballasts are independently wired and controlled. 16 CF lamps only. Battery backup operates 90 minutes at minimum 32°F (0°C),
42W maximum. 17 For use in down lighting applications only. 18 Frosted secondary lens provided standard on 3SG, FTG, and CFG distributions. 19 Order
separately, replace XX with color suffix. 20 Specifications and dimensions subject to change without notice.
ORDERING INFORMATION
SAMPLE NUMBER: ENC-150-MH-120-EB-3S-BK-LG-L
Product Family
ENC=ENTRI
Round
Clean
Lamp
Wattage
HID
1
39=39W
70=70W
100=100W
150=150W
Compact
Fluorescent
2
26=26W
32=32W
42=42W
52=52W
3
57=57W
4
64=64W
3
84=84W
3
Halogen
5
100=100W
150=150W
250=250W
Lamp Type
MH=Metal Halide
WS=White SON
High
Pressure
Sodium
6
CF=Compact
Fluorescent
7
HL=Quartz
Halogen
Optical System
Downlight or
Uplight (HID or
Halogen)
3S=Type III
FT=Forward
Throw
FX=Wall Grazing
Optic
TS=Tight Spot
Downlight and Uplight (HID and Halogen)
3SG=Type III, 90% Main/10% Secondary
Glow
3SP=Type III with Pencil Secondary
FTG=Forward Throw, 90% Main/
10% Secondary Glow
FTP=Forward Throw with Pencil Secondary
FXF=Wall Grazing Optic, 50% up/50% Down
TSF=Tight Spot, 50% up/50% Down
Compact Fluorescent
CFG=90% Main + 10% Secondary Glow
CFM=100% Main, Up or Downlighting
Colors (add as
suffix/must specify)
13
BK=Black
AP=Grey
BZ=Bronze
WH=White
DP=Dark Platinum
GM=Graphite Metallic
Options &
Accessories
(See Below)
Voltage
8
120=120V
208=208V
240=240V
277=277V
347=347V
480=480V
DT=Dual-Tap
Wired 277V
9
MT=Multi-Tap
Wired 277V
10
TT=Triple-Tap
Wired 347V
11
UNV=120-277V
Universal
Electronic
Ballast
Ballast
MB=Magnetic
EB=Electronic
Ballast
12
X=None
(for Halogen
Lamp)
ENC
Metal Halide 39, 70, 100, 150W
White Son HPS 100W
Compact Fluorescent 26, 32, 42, 57W
Dual Compact Fluorescent (2) 26, (2) 32, (2) 42W
Quartz Halogen 100, 150, 250W
WATTAGE TABLE
