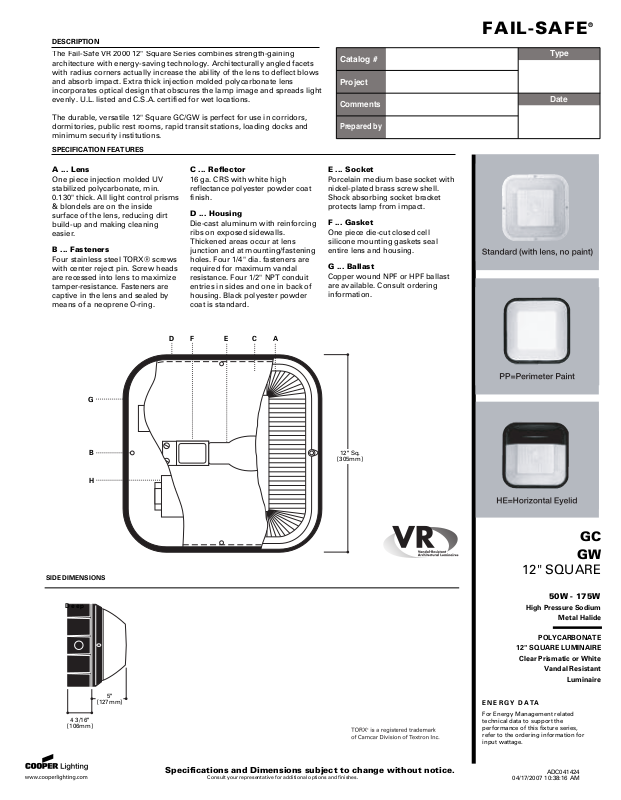

SPECIFICATION FEATURES

04/17/2007 10:38:16 AM

Consult your representative for additional options and finishes.

Specifications and Dimensions subject to change without notice.

ADC041424

SIDE DIMENSIONS

DESCRIPTION

The Fail-Safe VR 2000 12" Square Series combines strength-gaining

architecture with energy-saving technology. Architecturally angled facets

with radius corners actually increase the ability of the lens to deflect blows

and absorb impact. Extra thick injection molded polycarbonate lens

incorporates optical design that obscures the lamp image and spreads light

evenly. U.L. listed and C.S.A. certified for wet locations.

The durable, versatile 12" Square GC/GW is perfect for use in corridors,

dormitories, public rest rooms, rapid transit stations, loading docks and

minimum security institutions.

A ... Lens

One piece injection molded UV

stabilized polycarbonate, min.

0.130" thick. All light control prisms

& blondels are on the inside

surface of the lens, reducing dirt

build-up and making cleaning

easier.

B ... Fasteners

Four stainless steel TORX® screws

with center reject pin. Screw heads

are recessed into lens to maximize

tamper-resistance. Fasteners are

captive in the lens and sealed by

means of a neoprene O-ring.

C ... Reflector

16 ga. CRS with white high

reflectance polyester powder coat

finish.

D ... Housing

Die-cast aluminum with reinforcing

ribs on exposed sidewalls.

Thickened areas occur at lens

junction and at mounting/fastening

holes. Four 1/4" dia. fasteners are

required for maximum vandal

resistance. Four 1/2" NPT conduit

entries in sides and one in back of

housing. Black polyester powder

coat is standard.

E ... Socket

Porcelain medium base socket with

nickel-plated brass screw shell.

Shock absorbing socket bracket

protects lamp from impact.

F ... Gasket

One piece die-cut closed cell

silicone mounting gaskets seal

entire lens and housing.

G ... Ballast

Copper wound NPF or HPF ballast

are available. Consult ordering

information.

GC

GW

12" SQUARE

50W - 175W

High Pressure Sodium

Metal Halide

POLYCARBONATE

12" SQUARE LUMINAIRE

Clear Prismatic or White

Vandal Resistant

Luminaire

G

B

H

ACEFD

12" Sq.

[305mm]

D e e p

4 3/16"

[106mm]

5"

[127mm]

E N E R G Y D AT A

For Energy Management related
technical data to support the
performance of this fixture series,
refer to the ordering information for
input wattage.

FAIL-SAFE

®

Specifications and Dimensions subject to change without notice.

PHOTOMETRICS

ORDERING INFORMATION

ORDERING MATRIX

12 " SQUARE

GC/GW

C a ndl ep ow er D is tr ib ut io n

Test No. 766618

HPGC-150N-120V

Lamp=150W HPS
Lumens=16000

5

4

3

2

1

0

1

2

3

4

5

5 4 3 2 1 0 1 2 3 4 5

A B C D E F

F o otc an dl e Ta b le

Select mounting height and read across for footcandle values
of each isofootcandle line.

Mounting
Height Footcandle Values for
GC-2 Isofootcandle Lines

A B C D E F

6' 22.50 11.25 4.50 2.25 1.13 0.45

9' 10.00 5.00 2.00 1.00 0.50 0.20

12' 5.63 2.81 1.13 0.56 0.28 0.11

No te s:

For additio nal options, consult your Cooper Lighting Representative. Specific ations and dimensions subject to change without notice.
Products al so available in non-US voltages a nd 50Hz for international markets .

1. Supplied from factory with deep casting. 2. Not av ailable with white lens. 3. Only available in HPF

.
