Cooper Lighting GRF4111 User Manual

D

ouble Gimbals

4

5º x 45º locking
angular adjustment


Thermal protector

Junction Box w/
Electronic Transformer

Tabs for 
aircraft cable 
s

uspension

A

C

D

B







Ceiling Tiles and T-Bar by others

Ceiling Tile

.125" Aluminum 
Coverplate

T-Bar Support

Fixture
Retaining
Clip

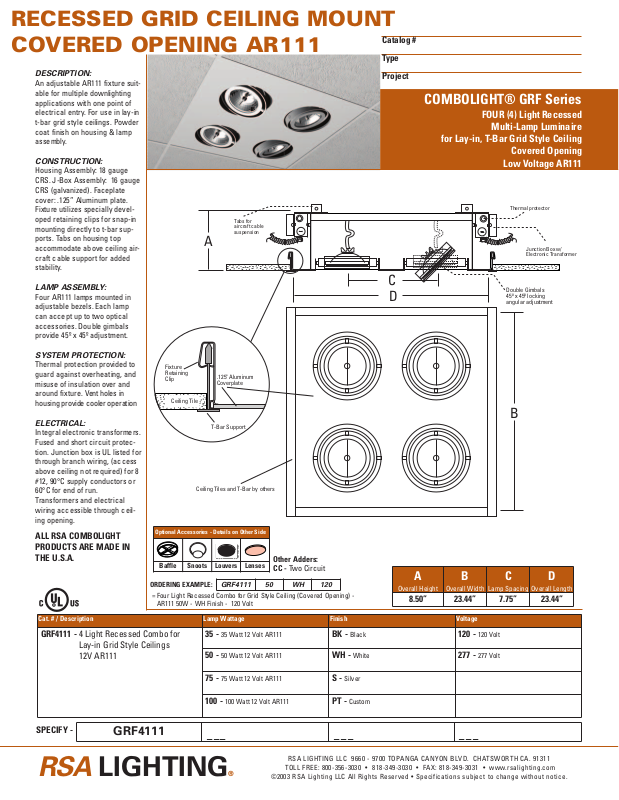

RECESSED GRID CEILING MOUNT

___

___

___

COVERED OPENING AR111

Catalog #

Type

DESCRIPTION:

An adjustable AR111 fixture suit­able for multiple downlighting
applications with one point of
electrical entry. For use in lay-in
t-bar grid style ceilings. Powder
coat finish on housing & lamp
assembly.

CONSTRUCTION:

Housing Assembly: 18 gauge
CRS. J-Box Assembly: 16 gauge
CRS (galvanized). Faceplate
cover: .125” Aluminum plate.
Fixture utilizes specially devel­oped retaining clips for snap-in
mounting directly to t-bar sup­ports. Tabs on housing top
accommodate above ceiling air­craft cable suppor
stability.

LAMP ASSEMBLY:

Four AR111 lamps mounted in
adjustable bezels. Each lamp
can accept up to two optical
accessories. Double gimbals
provide 45º x 45º adjustment.

t for added

Project

COMBOLIGHT® GRF Series

FOUR (4) Light Recessed

Multi-Lamp Luminaire

for Lay-in, T

-Bar Grid Style Ceiling
Covered Opening

Low Voltage AR111

SYSTEM PROTECTION:

Thermal protection provided to
guard against overheating, and
misuse of insulation over and
around fixture. Vent holes in
housing provide cooler operation

ELECTRICAL:

Integral electronic transformers.
Fused and short circuit protec­tion. Junction box is UL listed for
through branch wiring, (access
above ceiling not required) for 8
#12, 90°C supply conductors or
60°C for end of run.
Transformers and electrical
wiring accessible through ceil­ing opening.

ALL RSA COMBOLIGHT
PRODUCTS ARE MADE IN
THE U.S.A.

Cat. # / Description Lamp W

GRF4111 - 4 Light Recessed Combo for

Lay-in Grid Style Ceilings
12V AR111

Optional Accessories - Details on Other Side

Baffle Snoots Louvers Lenses

ORDERING EXAMPLE:

Four Light Recessed Combo for Grid Style Ceiling (Cover

=

AR111 50W - WH Finish - 120 Volt

GRF4111 50 WH 120

attage

att 12 Volt AR111

35 - 35 W

att 12 Volt AR111

50 - 50 W

75 - 75 Watt 12 Volt AR111 S - Silver

Other Adders:

wo Circuit

T

CC -

A

ed Opening) -

Finish V

BK - Black 120 - 120 V

WH - White 277 - 277 V

Overall HeightBOverall W

8.50” 23.44” 7.75” 23.44”

C

idth

Lamp SpacingDOverall Length

oltage

olt

olt

100 - 100 Watt 12 Volt AR111 PT - Custom

SPECIFY -

GRF4111

RSA LIGHTING®

RSA LIGHTING LLC 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311

TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: [phone] • www.rsalighting.com

©2003 RSA Lighting LLC All Rights Reserved • Specifications subject to change without notice.
