Cooper Lighting GR416 User Manual
Regular Yoke
Lamp Holder
shown with optional
Snoot and Spill Shield
380º x 45º locking
angular adjustment
E
LECTRONIC
Transformers
Thermal protector
Junction Box
T
abs for
a
ircraft cable
suspension
E
LECTRONIC
Transformers
A
C
D
B
Ceiling Tiles and T-Bar by others
Ceiling Tile
Fixture
Housing
T-Bar Support
Fixture
Retaining
Clip

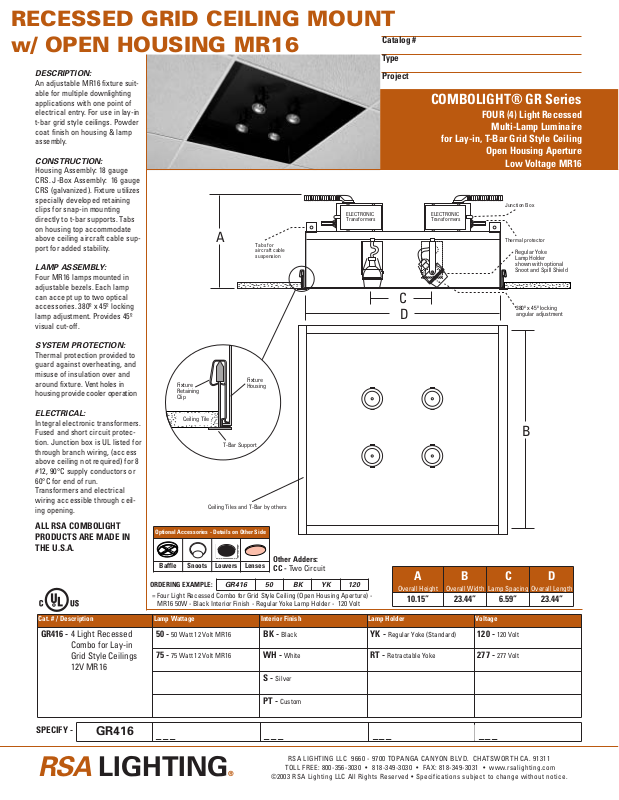

RECESSED GRID CEILING MOUNT
___
___
___
___
w/ OPEN HOUSING MR16
Catalog #
Type
DESCRIPTION:
An adjustable MR16 fixture suitable for multiple downlighting
applications with one point of
electrical entry. For use in lay-in
t-bar grid style ceilings. Powder
coat finish on housing & lamp
assembly.
CONSTRUCTION:
Housing Assembly: 18 gauge
CRS. J-Box Assembly: 16 gauge
CRS (galvanized). Fixture utilizes
specially developed retaining
clips for snap-in mounting
directly to t-bar supports. Tabs
on housing top accommodate
above ceiling aircraft cable support for added stability.
LAMP ASSEMBLY:
Four MR16 lamps mounted in
adjustable bezels. Each lamp
can accept up to two optical
accessories. 380º x 45º locking
lamp adjustment. Provides 45º
visual cut-off.
Project
COMBOLIGHT® GR Series
FOUR (4) Light Recessed
Multi-Lamp Luminaire
for Lay-in, T
-Bar Grid Style Ceiling
Open Housing Aperture
Low Voltage MR16
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and
misuse of insulation over and
around fixture. Vent holes in
housing provide cooler operation
ELECTRICAL:
Integral electronic transformers.
Fused and short circuit protection. Junction box is UL listed for
through branch wiring, (access
above ceiling not required) for 8
#12, 90°C supply conductors or
60°C for end of run.
Transformers and electrical
wiring accessible through ceiling opening.
ALL RSA COMBOLIGHT
PRODUCTS ARE MADE IN
Optional Accessories - Details on Other Side
THE U.S.A.
Baffle Snoots Louvers Lenses
ORDERING EXAMPLE:
Four Light Recessed Combo for Grid Style Ceiling (Open Housing Aper
=
Cat. # / Description Lamp W
GR416 - 4 Light Recessed
Combo for Lay-in
Grid Style Ceilings
12V MR16
MR16 50W - Black Interior Finish - Regular Yoke Lamp Holder - 120 Volt
50 - 50 W
75 - 75 W
attage
att 12 Volt MR16
att 12 Volt MR16
Other Adders:
GR416 50 BK YK 120
Interior Finish Lamp Holder V
wo Circuit
T
CC -
BK - Black YK - Regular Y
WH - White R
S - Silver
PT - Custom
e) -
tur
T -
Retractable Y
A
Overall HeightBOverall W
idth
C
Lamp SpacingDOverall Length
10.15” 23.44” 6.59” 23.44”
oltage
oke (Standard)
oke
120 - 120 V
277 - 277 V
olt
olt
SPECIFY -
GR416
RSA LIGHTING®
RSA LIGHTING LLC 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311
TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com
©2003 RSA Lighting LLC All Rights Reserved • Specifications subject to change without notice.
