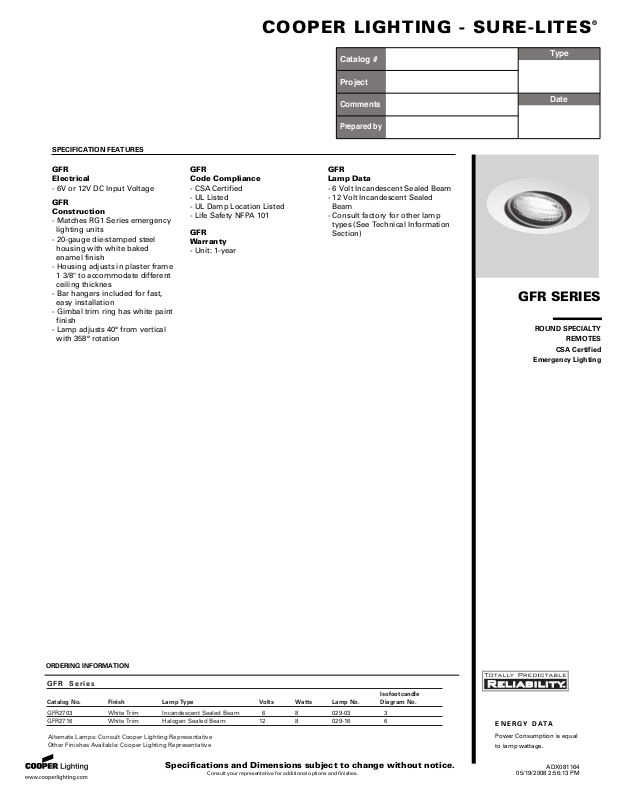

Cooper Lighting GFR User Manual

Catalog #

Project

Comments

Prepared by

Type

Date

SPECIFICATION FEATURES

05/19/2008 2:56:13 PM

Consult your representative for additional options and finishes.

Specifications and Dimensions subject to change without notice.

ADX081164

ORDERING INFORMATION

GFR

Electrical

- 6V or 12V DC Input Voltage

GFR

Construction

- Matches RG1 Series emergency

lighting units

- 20-gauge die-stamped steel

housing with white baked

enamel finish

- Housing adjusts in plaster frame

1 3/8" to accommodate different

ceiling thicknes

- Bar hangers included for fast,

easy installation

- Gimbal trim ring has white paint

finish

- Lamp adjusts 40° from vertical

with 358° rotation

GFR

Code Compliance

- CSA Certified

- UL Listed

- UL Damp Location Listed

- Life Safety NFPA 101

GFR

Warranty

- Unit: 1-year

GFR

Lamp Data

- 6 Volt Incandescent Sealed Beam

- 12 Volt Incandescent Sealed

Beam

- Consult factory for other lamp

types (See Technical Information

Section)

GFR SERIES

ROUND SPECIALTY

REMOTES

CSA Certified

Emergency Lighting

E N E R G Y D AT A

Power Consumption is equal

to lamp wattage.

G F R S er ie s

Isofootcandle

.oN margaiD.oN pmaLsttaWstloVepyT pmaLhsiniF.oN golataC

GFR2703 White Trim Incandescent Sealed Beam 6 8 029-03 3
GFR2716 White Trim Halogen Sealed Beam 12 8 029-16 6

Alternate Lamps: Consult Cooper Lighting Representative
Other Finishes Available: Cooper Lighting Representative

COOPER LIGH T I NG - SURE- L I T ES

®

Specifications and Dimensions subject to change without notice.

PHOTOMETRICS

SERIES

GFR

LAMP

AXIS

10
FEET
LEFT

FEET

RIGHT

10

0 10 20 30 40 50 60

FEET FROM LAMP (Measured on axis)

1F

C 0.5 0.3 0.2 0.1

70

0

LAMP

AXIS

10
FEET
LEFT

FEET

RIGHT

10

0 10 20 30 40 50 60

FEET FROM LAMP (Measured on axis)

1F

C 0.5 0.3 0.2 0.1

70

0

H o r iz on ta l Di st ri bu ti on

Ve rt ic al D is tr ib ut io n

Diagram No. 3 Lamp No. 029-03 @ 108 Initial Lumens

LAMP

AXIS

10
FEET
LEFT

FEET

RIGHT

15

0 10 20 30 40 50 60

FEET FROM LAMP (Measured on axis)

70

0

1FC

0.5 0.3 0.2 0.1

LAMP

AXIS

10
FEET
LEFT

FEET

RIGHT

15

0 10 20 30 40 50 60

FEET FROM LAMP (Measured on axis)

70

0

1FC

0.5 0.3 0.2 0.1

Diagram No. 12 Lamp No. 029-121 @ 75 Initial Lumens

Diagram No. 3

Lamp No. 029-03

Diagram No. 12 Lamp No. 029-121

0 20 50 100

15

FEET

LEFT

FEET

RIGHT

15

FEET FROM LAMP (Measured on axis)

10 4030 90807060

0.

5 0.3

0.2

0.1

1FC

LAMP

AXIS

0

0 20 50 100

15
FEET
LEFT

FEET

RIGHT

15

FEET FROM LAMP (Measured on axis)

10 4030 90807060

0.

5 0.3 0.2 0.1

1FC

0

LAMP

AXIS

Diagram No. 6 Lamp No. 029-16 @ 155 Initial Lumens

Diagram No. 6

Lamp No. 029-16
