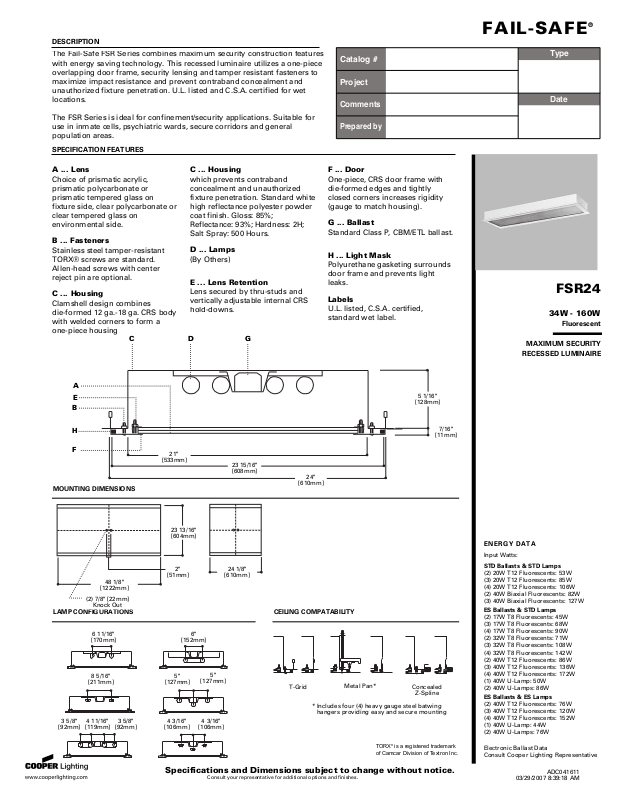

Cooper Lighting FSR24 User Manual
Catalog #
Project
Comments
Prepared by
Type
Date
SPECIFICATION FEATURES
03/29/2007 8:39:18 AM
Consult your representative for additional options and finishes.
Specifications and Dimensions subject to change without notice.
ADC041611
LAMP CONFIGURATIONS
CEILING COMPATABILITY
MOUNTING DIMENSIONS
DESCRIPTION
The Fail-Safe FSR Series combines maximum security construction features
with energy saving technology. This recessed luminaire utilizes a one-piece
overlapping door frame, security lensing and tamper resistant fasteners to
maximize impact resistance and prevent contraband concealment and
unauthorized fixture penetration. U.L. listed and C.S.A. certified for wet
locations.
The FSR Series is ideal for confinement/security applications. Suitable for
use in inmate cells, psychiatric wards, secure corridors and general
population areas.
A ... Lens
Choice of prismatic acrylic,
prismatic polycarbonate or
prismatic tempered glass on
fixture side, clear polycarbonate or
clear tempered glass on
environmental side.
B ... Fasteners
Stainless steel tamper-resistant
TORX® screws are standard.
Allen-head screws with center
reject pin are optional.
C ... Housing
Clamshell design combines
die-formed 12 ga.-18 ga. CRS body
with welded corners to form a
one-piece housing
C ... Housing
which prevents contraband
concealment and unauthorized
fixture penetration. Standard white
high reflectance polyester powder
coat finish. Gloss: 85%;
Reflectance: 93%; Hardness: 2H;
Salt Spray: 500 Hours.
D ... Lamps
(By Others)
E ... Lens Retention
Lens secured by thru-studs and
vertically adjustable internal CRS
hold-downs.
F ... Door
One-piece, CRS door frame with
die-formed edges and tightly
closed corners increases rigidity
(gauge to match housing).
G ... Ballast
Standard Class P, CBM/ETL ballast.
H ... Light Mask
Polyurethane gasketing surrounds
door frame and prevents light
leaks.
Labels
U.L. listed, C.S.A. certified,
standard wet label.
FSR24
34W - 160W
Fluorescent
MAXIMUM SECURITY
RECESSED LUMINAIRE
F
A
B
E
H
C D G
24"
[610mm]
23 15/16"
[608mm]
21"
[533mm]
5 1/16"
[128mm]
7/16"
[11mm]
EN ER GY D AT A
Input Watts:
STD Ballasts & STD Lamps
(2) 20W T12 Fluorescents: 53W
(3) 20W T12 Fluorescents: 85W
(4) 20W T12 Fluorescents: 106W
(2) 40W Biaxial Fluorescents: 82W
(3) 40W Biaxial Fluorescents: 127W
ES Ballasts & STD Lamps
(2) 17W T8 Fluorescents: 45W
(3) 17W T8 Fluorescents: 68W
(4) 17W T8 Fluorescents: 90W
(2) 32W T8 Fluorescents: 71W
(3) 32W T8 Fluorescents: 108W
(4) 32W T8 Fluorescents: 142W
(2) 40W T12 Fluorescents: 86W
(3) 40W T12 Fluorescents: 136W
(4) 40W T12 Fluorescents: 172W
(1) 40W U-Lamp: 50W
(2) 40W U-Lamps: 86W
ES Ballasts & ES Lamps
(2) 40W T12 Fluorescents: 76W
(3) 40W T12 Fluorescents: 120W
(4) 40W T12 Fluorescents: 152W
(1) 40W U-Lamp: 44W
(2) 40W U-Lamps: 76W
Electronic Ballast Data
Consult Cooper Lighting Representative
6 11/16"
[170mm]
8 5/16"
[211mm]
5"
[127mm]
5"
[127mm]
3 5/8"
[92mm]
4 11/16"
[119mm]
3 5/8"
[92mm]
4 3/16"
[106mm]
4 3/16"
[106mm]
6"
[152mm]
T-Grid Concealed
Z-Spline
Metal Pan*
* Includes four (4) heavy gauge steel batwing
hangers providing easy and secure mounting
(2) 7/8" [22mm]
Knock Out
24 1/8"
[610mm]
23 13/16"
[604mm]
48 1/8"
[1222mm]
2"
[51mm]
TORX®is a registered trademark
of Camcar Division of Textron Inc.
FAIL - SAFE
®
Specifications and Dimensions subject to change without notice.
PHOTOMETRICS
ORDERING INFORMATION
FSR24
600
1200
1800
2400
3000
C a ndl ep ow er D is tr ib ut io n
Z o nal L um en S um ma ry
Zone Lumens %Lamp %Luminaire
0-30 2195 22.9 32.0
0-40 3713 38.7 54.2
0-60 5992 62.4 87.5
0-90 6852 71.4 100.0
90-180 0 0.0 0.0
0-180 6852 71.4 100.0
80% 70% 50% 30% 10% 0%
70 50 30 10 50 30 10 50 10 50 10 50 10 0
85 85 85 85 83 83 83 79 79 76 76 73 73 71
79 76 74 71 75 72 70 72 68 69 66 66 64 63
73 68 64 61 67 63 60 64 59 62 57 60 56 55
68 61 56 52 60 56 52 58 51 56 50 55 49 48
63 55 50 45 54 49 45 52 44 51 44 49 43 42
58 49 44 39 49 43 39 47 39 46 38 44 38 36
53 45 39 34 44 38 34 43 34 41 34 40 33 32
49 40 34 30 40 34 30 38 30 37 30 37 29 28
45 36 30 26 36 30 26 35 26 34 26 33 26 24
42 32 27 23 32 26 23 31 23 30 22 30 22 21
39 29 24 20 29 24 20 28 20 28 20 27 20 19
rc=Ceiling reflectance, rw=W all reflectance, RCR=Room cavity ratio
CU Data Based on 20% Effective Floor Cavity Reflectance.
Test No. 5933
FMR24-X-340
Lamp=(3) F40T12RS/
WW
Lumens=3200
Spacing Criteri
a
=1.
5 =1.3
Efficiency=71.4%
rc
rw
RCR
0
1
2
3
4
5
6
7
8
9
10
C o eff ic ie nt o f Ut il iz at io n
C a ndl ep ow er
Deg.
0 2692 2692
5 2665 2654
15 2714 2627
25 2686 2443
35 2611 2143
45 2019 1512
55 1125 861
65 583 542
75 331 324
85 87 81
90 0 0
LNL= LED Night Light
(50,000 hrs.) provided
by Cooper
SAMPLE NUMBER: FSR-TG-X24-240-120-80/86-LE3-GLR
Fail-Safe • Customer First Center • 1121 Highway 74 South • Peachtree City, GA 30269 • TEL 770.486.4800 • FAX 770.486.4801
03/29/2007 8:39:18 AM
ADC041611
