ENTRI Series ARCHITECTURAL WALL LUMINAIRE

ARCHITECTURAL WALL LUMINAIRE

ENTRI Series

DOWN MOUNT
– Walkways
– Entryways
– Wall Surfaces
– Parking Areas
– Roadways

UP MOUNT
– Canopies
– Ceilings
– Cornices + Columns
– Wall Surfaces

- Architectural Highlights

MODULAR FORM AND APPLICATION

ENTRI Series’ family of modular faceplate designs provide a tasteful architectural statement equally

suitable for indoor and outdoor environments. Available luminous faceplate window adds a

signature look, while affording custom color capability.

EXCEPTIONAL CONSTRUCTION

Designed to sustain a lifetime of tough environmental conditions, ENTRI Series’ precisely

engineered die-cast aluminum housing and faceplates integrate IP66 rated gasketing

strategies that combined with a 5 stage premium TGIC polyester powder coat finish,

seal out performance degrading contaminants.

OPTICAL FLEXIBILITY

Whether providing community friendly full cutoff performance in downlighting applications, or

showcasing architectural features through available up or up/down combination configurations,

the ENTRI Series provides a palette of optical solutions to paint

any surface in the right light.

3

ENTRI Series Architectural Wall Luminaire

UNIVERSAL MOUNTING

The ENTRI Series symmetrical form can be mounted either Up

or Down with no modifications to the door or housing.

DOWNLIGHT UPLIGHT DOWNLIGHT + UPLIGHT

- Downlight

- Uplight

- Downlight + Uplight

4

ENTRI Series Architectural Wall Luminaire

FACEPLATES

A choice of six (6) architectural faceplate designs allows the matching of fixture style to surrounding environment.

MODULAR FORM

ENC ENC-LG

ENV ENV-LG

ENT ENT-LG

- Full Cutoff Performance

- Lamp Options

- Color Capabilities

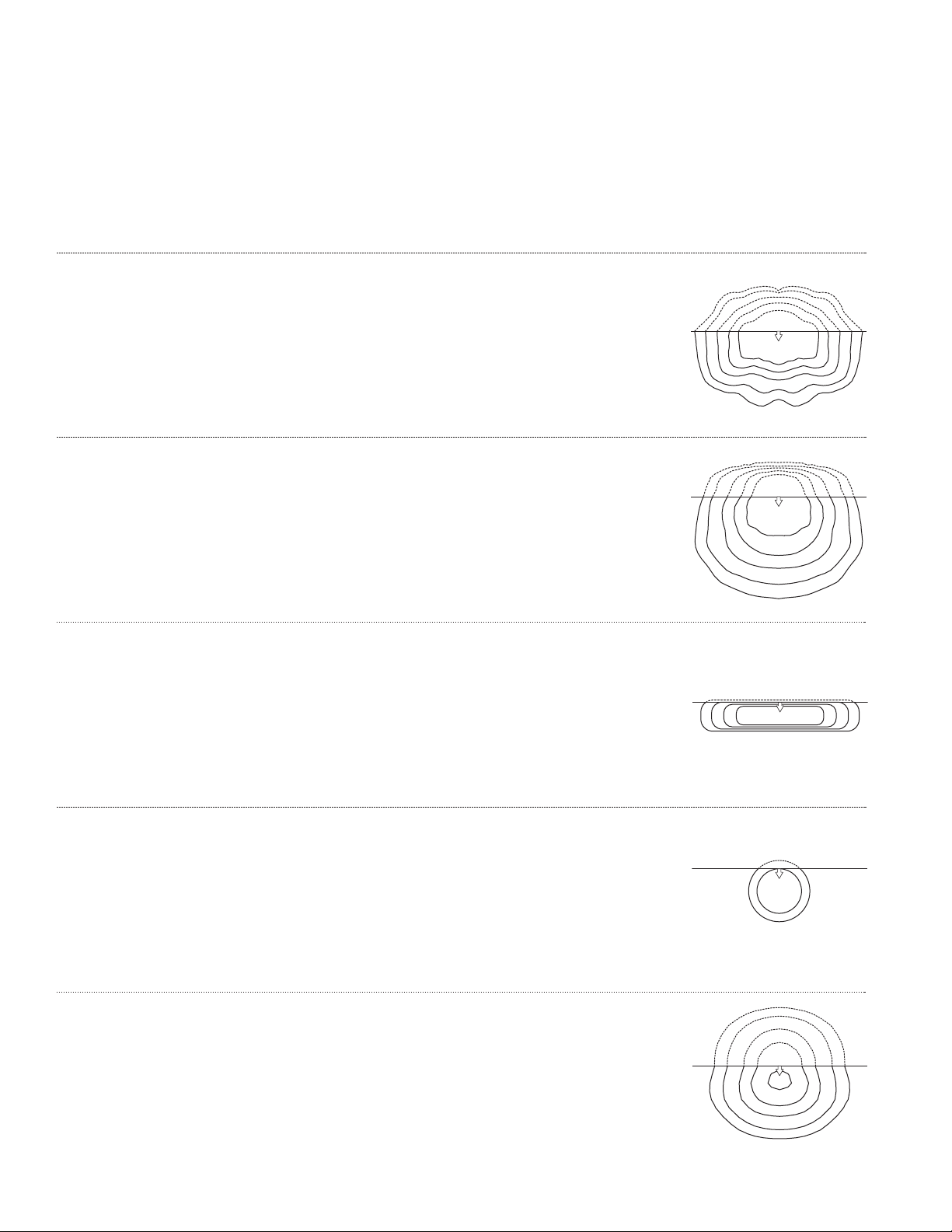

OPTICAL SYSTEMS

5

ENTRI Series Architectural Wall Luminaire

Emerging trends in light control and environmental preservation

require innovative design solutions. ENTRI Series responds.

FULL CUTOFF PERFORMANCE

As the nations’ respected authority on lighting standards and
design recommendations the IESNA, Illuminating Engineering
Society of North America, defines four (4) unique luminaire
cutoff classifications to quantify the amount of light a
fixture directs upward toward the sky.

In downlight only applications, each of the available
ENTRI Series optical systems meets the strictest "Full Cutoff"
classification requirements, insuring that zero measurable
light is directed upward from the luminaire.

FULL CUTOFF

Full cutoff luminaires carry the endorsement of the International Dark
Sky Association (IDA) for their usefulness in limiting the detrimental
effects of sky glow, otherwise referred to as light pollution.

When faced with local or state adopted lighting ordinances, full cutoff
luminaires offer direct compliance in most all circumstances.

ENTRI Series presents an attractive alterative
to traditional refractive based non-cutoff wall
pack luminaires, which generate considerable
amounts of glare while providing a less
appealing form.

ALLOWABLE CANDELA @ 90° @ 80°

Full Cutoff 0 10%

Cutoff 2.5% 10%

Semi-Cutoff 5% 20%

Non-Cutoff No Limit No Limit

90°

0°

DARK SKY

COMPLIANT

FCO

Full Cutoff

6

ENTRI Series Architectural Wall Luminaire

COLOR CAPABILITIES

ENTRI faceplates can be enhanced by specifying the colored luminous insert option.
Colored gel films are internally secured behind the glass insert, providing easy access for
replacement or color changes. Standard colors include: Deep Green, Bright Blue, Red, and
Warm Orange. Other colors available, consult your INVUE Lighting Systems representative
for more information.

T6 METAL HALIDE

FEATURES: Produces a whitish-blue

light with excellent color rendition—
up to 95 CRI, high efficacy (lumens
per watt) and superior color consistency.
For optimal efficacy and operating
characteristics specify along with
optional electronic ballast.

APPLICATION: Generally, Metal Halide
sources best compliment concrete
surfaces, light-colored masonry, foliage,
and bright colored objects or surfaces.

WHITE SON HPS

FEATURES: Produces a warm 2500K

color temperature light source with an

80 CRI, high efficacy (lumens per watt),

and long life.

APPLICATION: Adds a richness and

warmth that best compliments brick,

wood, and dark-colored masonry or

stone surfaces.

COMPACT FLUORESCENT

FEATURES: Energy conscious with

excellent lumen maintenance. Available
in a variety of color temperatures to suit
varying applications.

APPLICATION: Compact Fluorescent
sources can be used in indoor or
outdoor environments to compliment
any surface finish or environment.

QUARTZ HALOGEN

FEATURES: Ideal color rendition and

a warm inviting color.

APPLICATION: Quartz Halogen sources
can be used in indoor or outdoor
environments to compliment any
surface finish or environment.

LAMP OPTIONS

ENTRI Series optical systems are offered with a variety of high efficiency lamp sources.

AVAILABLE LAMP OPTIONS PER
HOUSING

ELECTRONIC BALLASTS

Available electronic HID ballasts improve
fixture efficiency, performance, and value.

Benefits include a 30-50% improvement
in lumen maintenance over conventional
magnetic ballasts, greatly improved
color consistency, internal fusing and a
reduction in total system energy usage.

ENC | ENV | ENT

Metal Halide 39, 70, 100, 150W

White Son HPS 100W

Compact Fluorescent 26, 32, 42, 57W

Dual Compact Fluorescent (2) 26, (2) 32, (2) 42W

Quartz Halogen 100, 150, 250W

- Flawless Facets

- Rigid Construction

- Premium Materials

- Frosted Lens

OPTICAL EXCELLENCE

INVUE’s commitment to optical research and precision build quality

result in unequaled levels of performance and repeatability.

FLAWLESS FACETS

Reflector facets on the ENTRI Series segmented optical modules
are flat and unobstructed, allowing for a perfect reflection of the
lamp’s arctube. All segment faces are clean of rivet heads, tabs,
or other means of attachment which may cause streaking on the
wall, ground, or ceiling surface.

RIGID CONSTRUCTION

A rigid box enclosure shields optical facets
on all sides from performance degrading
damage. Each facet bank is secured to both
top and bottom of the enclosure for
repeatable facet orientation relative to
light center.

7
