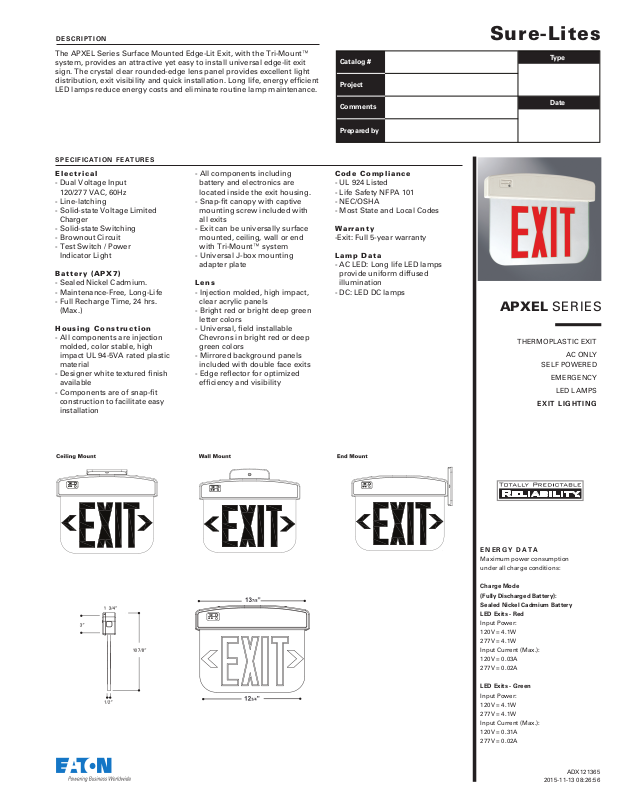

Page 1
DESCRIPTION
The APXEL Series Surface Mounted Edge-Lit Exit, with the Tri-Mount™
system, provides an attractive yet easy to install universal edge-lit exit
sign. The crystal clear rounded-edge lens panel provides excellent light
distribution, exit visibility and quick installation. Long life, energy efficient
LED lamps reduce energy costs and eliminate routine lamp maintenance.
SPECIFICATION FEATURES
Electrical
- Dual Voltage Input
120/277 VAC, 60Hz
- Line-latching
- Solid-state Voltage Limited
Charger
- Solid-state Switching
- Brownout Circuit
- Test Switch / Power
Indicator Light
- All components including
battery and electronics are
located inside the exit housing.
- Snap-fit canopy with captive
mounting screw included with
all exits

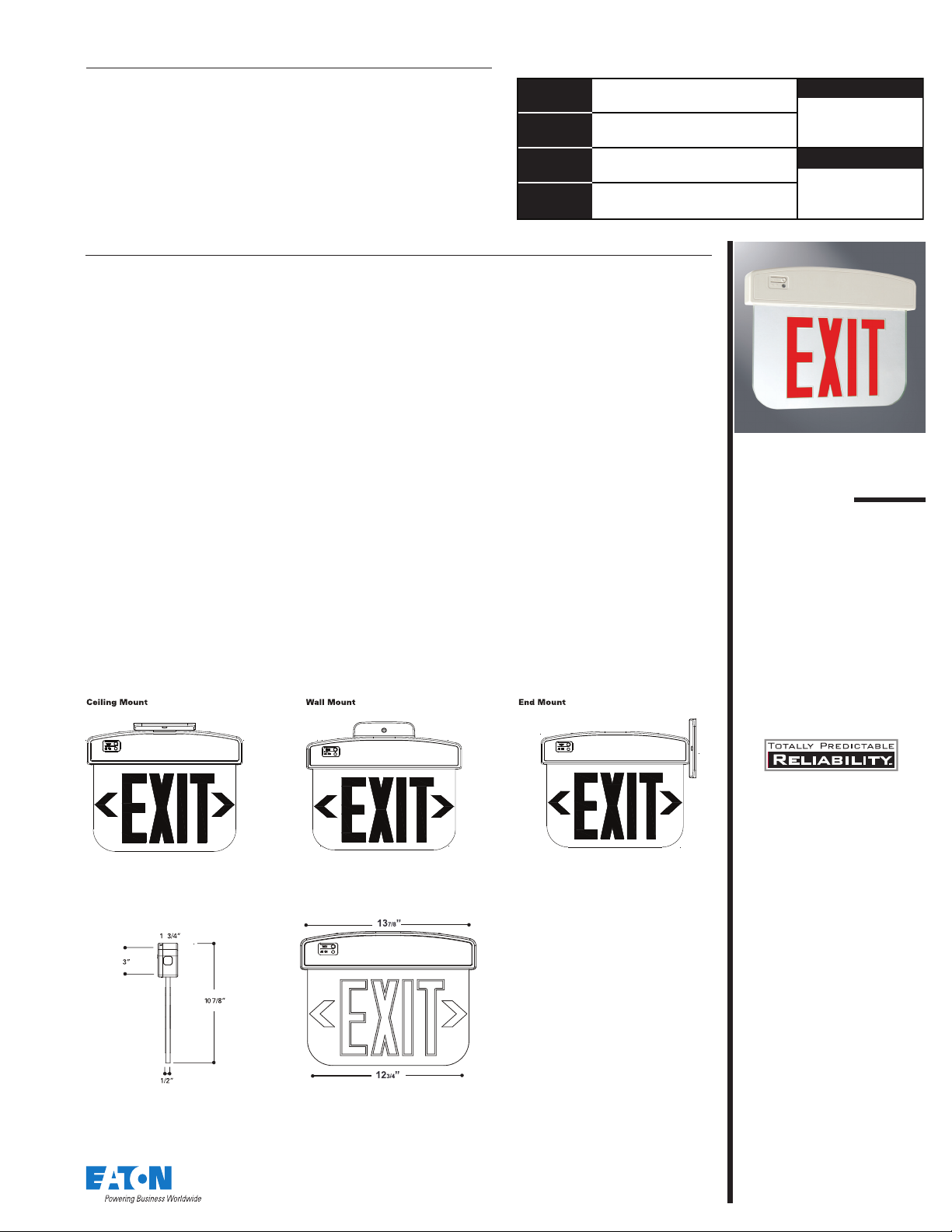

- Exit can be universally surface
mounted, ceiling, wall or end
with Tri-Mount™ system
- Universal J-box mounting
adapter plate
Battery (APX7)
- Sealed Nickel Cadmium.
- Maintenance-Free, Long-Life
- Full Recharge Time, 24 hrs.
(Max.)
Lens
- Injection molded, high impact,
clear acrylic panels
- Bright red or bright deep green
letter colors
Housing Construction
- All components are injection
molded, color stable, high
impact UL 94-5VA rated plastic
material
- Designer white textured finish
available
- Universal, field installable
Chevrons in bright red or deep
green colors
- Mirrored background panels
included with double face exits
- Edge reflector for optimized
efficiency and visibility
- Components are of snap-fit
construction to facilitate easy
installation
Catalog #
Project
Comments
Prepared by
Code Compliance
- UL 924 Listed
- Life Safety NFPA 101
- NEC/OSHA
- Most State and Local Codes
Warranty
-Exit: Full 5-year warranty
Lamp Data
- AC LED: Long life LED lamps
provide uniform diffused
illumination
- DC: LED DC lamps
Sure-Lites
Type
Date
APXEL SERIES
THERMOPLASTIC EXIT
AC ONLY
SELF POWERED
EMERGENCY
LED LAMPS
EXIT LIGHTING
ENERGY DATA
Maximum power consumption
under all charge conditions:
Charge Mode
(Fully Discharged Battery):
Sealed Nickel Cadmium Battery
LED Exits - Red
Input Power:
120V = 4.1W
277V = 4.1W
Input Current (Max.):
120V = 0.03A
277V = 0.02A
LED Exits - Green
Input Power:
120V = 4.1W
277V = 4.1W
Input Current (Max.):
120V = 0.31A
277V = 0.02A
2015-11-13 08:26:56
ADX121365
Page 2
SPECIFICATION FEATURES
SAMPLE NUMBER: APXEL71R
Family LED Face Options Battery Housing Trim
APXEL=Edge-Lit
Exit Series
TECHNICAL DATA
Lamps
The APXEL Series Exits use energy efficient,
long-life LEDs to provide uniform diffuse
illumination of the exit face. These red and
green LEDs require no maintenance. The
low operating costs and zero maintenance
requirement makes LED lamps the wisest choice
for exit signs today. Emergency illumination is
provided by LED lamps.
Housing Construction
Durable, injection-molded plastic materials
are used throughout the APXEL Series exits.
All structural components are designed with
reinforcing ribs to add additional rigidity and to
maximize structural integrity. These materials
are impact and scratch-resistant and they have
been UV stabilized to resist discoloration due
to age and ultraviolet radiation. All components
are designed to be of snap-fit construction to
6=LED Lamps,
AC Only
7=LED Lamps,
Self powered
1=Single Face
2=Double Face
[Blank]=Nickel
Cadmium
Line-Latched (Self-Powered Only)
Sure-Lites line-latched electronic circuitry
makes installation easy and economical. A
labor efficient AC activated load switch prevents
the lamps from turning on during installation
to a non-energized AC circuit. Line-latching
eliminates the need for a contractor’s return
to a job site to connect the batteries when the
building’s main power is turned on.
Solid-State Charger
Supplied with a 120/277 VAC, voltage regulated
solid-state charger, the battery is recharged
immediately upon restoration of AC current
after a power failure. The charge circuit reacts to
the condition of the battery in order to maintain
peak battery capacity and maximize battery life.
Solid-state construction recharges the battery
following a power failure in accordance with UL
924.
Finish
[Blank]=White
Only
facilitate easy installation. APXEL Series exits
can be wall-, ceiling- or end-mounted. A rugged,
snap-fit, low profile canopy with captive screw
is included with every exit.
Brownout Circuit
The brownout circuit on Sure-Lites exits
monitors the flow of AC current to the exit and
activates the emergency lighting system when
Lens
Lens for the APXEL series edge-lit exits are
injection-molded from impact-resistant clear
acrylic. A choice of red or green letter colors
and clear, or mirror backgrounds enable precise
a predetermined reduction of AC power occurs.
This dip in voltage will cause most ballasted
fixtures to extinguish causing loss of normal
lighting even though a total power failure has
not occurred.
control of the fixtures aesthetic appearance.
Universal, field-installable chevrons are
provided in bright red or deep green colors
allowing for universal configuration of the
exit sign based on the directional needs of the
application. The edge reflector further enhances
visibility.
Solid-State Transfer
The APXEL Series Exit incorporates solid-state
switching which eliminates corroded and pitted
contacts or mechanical failures associated with
relays. The switching circuit is designed to
detect a loss of AC voltage and automatically
energizes the lamps using DC power. Upon
restoration of AC power, the DC power will be
disconnected and the charger will automatically
recharge the battery.
Letter/Background
Color
R=Red
G=Green
Chevron Direction
[Blank]=Universal
Stick-on Chevrons
Test Switch/Power Indicator Light
A test switch located on the front of the exit
permits the activation of the emergency circuit
for a complete operational systems check. The
Power Indicator Light provides visual assurance
that the AC power is on.
Sealed Nickel Cadmium Battery
Sure-Lites sealed nickel cadmium batteries are
maintenance-free with a life expectancy of 10
years. The sealed rechargeable nickel cadmium
battery offers high discharge rates and stable
performance over a wide range of temperatures.
The specially designed resealable vent
automatically controls cell pressure, assuring
safety and reliability. This battery is best suited
for harsh ambient temperatures because the
electrolyte is not active in the electrochemical
process.
Warranty
All Sure-Lites’ products are backed by a full fiveyear warranty against defects in material and
workmanship.
APXEL SERIES
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
