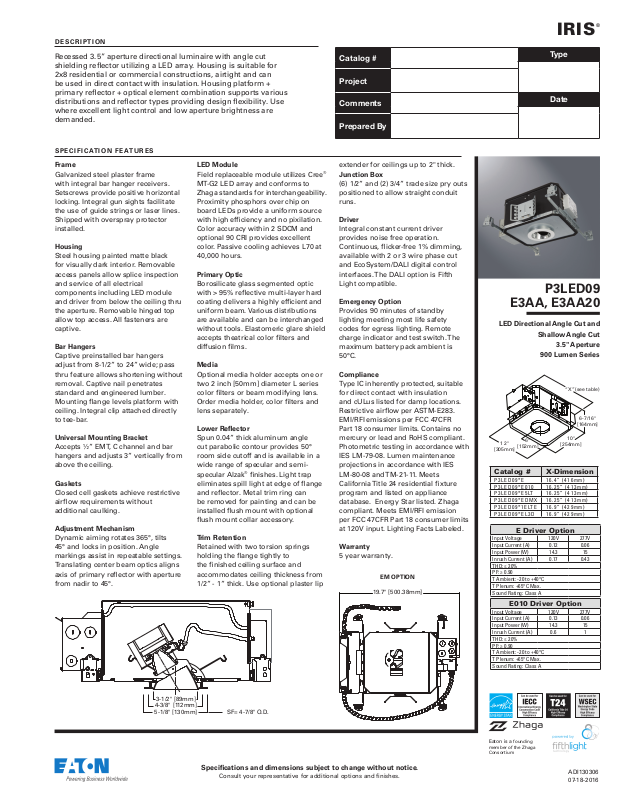

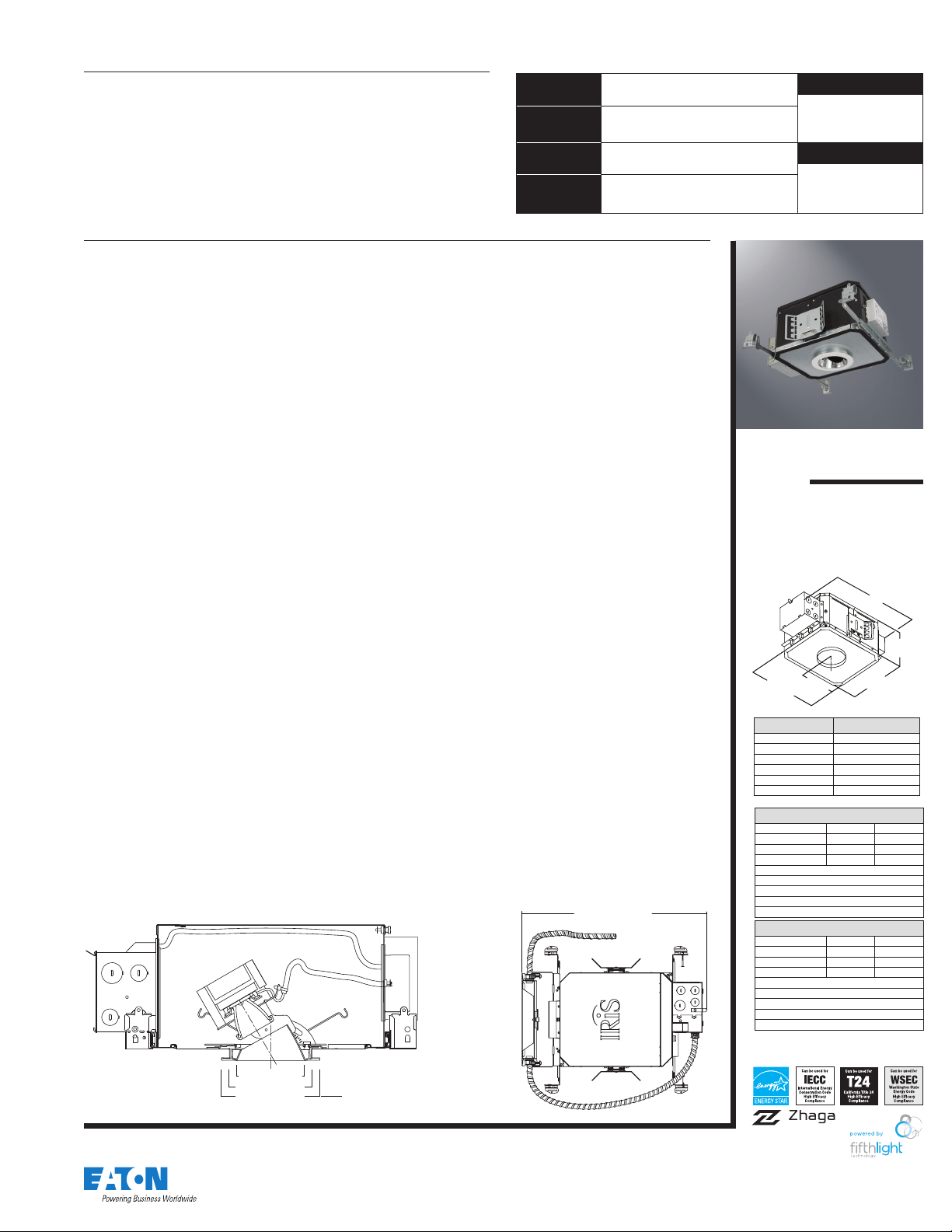

Page 1
DESCRIPTION
see table)
Recessed 3.5” aperture directional luminaire with angle cut
shielding reflector utilizing a LED array. Housing is suitable for
2x8 residential or commercial constructions, airtight and can
be used in direct contact with insulation. Housing platform +
primary reflector + optical element combination supports various
distributions and reflector types providing design flexibility. Use
where excellent light control and low aperture brightness are
demanded.
SPECIFICATION FEATURES
Frame
Galvanized steel plaster frame
with integral bar hanger receivers.
Setscrews provide positive horizontal
locking. Integral gun sights facilitate
the use of guide strings or laser lines.
Shipped with overspray protector
installed.
LED Module
Field replaceable module utilizes Cree
MT-G2 LED array and conforms to
Zhaga standards for interchangeability.
Proximity phosphors over chip on
board LEDs provide a uniform source
with high efficiency and no pixilation.
Color accuracy within 2 SDCM and
optional 90 CRI provides excellent
Housing
Steel housing painted matte black
for visually dark interior. Removable
access panels allow splice inspection
and service of all electrical
components including LED module
and driver from below the ceiling thru
the aperture. Removable hinged top
allow top access. All fasteners are
captive.
color. Passive cooling achieves L70 at
40,000 hours.
Primary Optic
Borosilicate glass segmented optic
with > 95% reflective multi-layer hard
coating delivers a highly efficient and
uniform beam. Various distributions
are available and can be interchanged
without tools. Elastomeric glare shield
accepts theatrical color filters and
Bar Hangers
diffusion films.
Captive preinstalled bar hangers
adjust from 8-1/2” to 24” wide; pass
thru feature allows shortening without
removal. Captive nail penetrates
standard and engineered lumber.
Mounting flange levels platform with
ceiling. Integral clip attached directly
Media
Optional media holder accepts one or
two 2 inch [50mm] diameter L series
color filters or beam modifying lens.
Order media holder, color filters and
lens separately.
to tee-bar.
Lower Reflector
Universal Mounting Bracket
Accepts ½” EMT, C channel and bar
hangers and adjusts 3” vertically from
above the ceiling.
Spun 0.04” thick aluminum angle
cut parabolic contour provides 50°
room side cutoff and is available in a
wide range of specular and semi-
specular Alzak® finishes. Light trap
Gaskets
Closed cell gaskets achieve restrictive
airflow requirements without
additional caulking.
eliminates spill light at edge of flange
and reflector. Metal trim ring can
be removed for painting and can be
installed flush mount with optional
flush mount collar accessory.
Adjustment Mechanism
Dynamic aiming rotates 365°, tilts
45° and locks in position. Angle
markings assist in repeatable settings.
Translating center beam optics aligns
axis of primary reflector with aperture
from nadir to 45°.
Trim Retention
Retained with two torsion springs
holding the flange tightly to
the finished ceiling surface and
accommodates ceiling thickness from
1/2” - 1” thick. Use optional plaster lip
Catalog #
Project
Comments
Prepared By
extender for ceilings up to 2" thick.
®
Junction Box
(6) 1/2” and (2) 3/4” trade size pry outs
positioned to allow straight conduit
runs.
Driver
Integral constant current driver
provides noise free operation.
Continuous, flicker-free 1% dimming,
available with 2 or 3 wire phase cut
and EcoSystem/DALI digital control
interfaces. The DALI option is Fifth
Light compatible.
Emergency Option
Provides 90 minutes of standby
lighting meeting most life safety
codes for egress lighting. Remote
charge indicator and test switch. The
maximum battery pack ambient is
50°C.
Compliance
Type IC inherently protected, suitable
for direct contact with insulation
and cULus listed for damp locations.
Restrictive airflow per ASTM-E283.
EMI/RFI emissions per FCC 47CFR
Part 18 consumer limits. Contains no
mercury or lead and RoHS compliant.
Photometric testing in accordance with
IES LM-79-08. Lumen maintenance
projections in accordance with IES
LM-80-08 and TM-21-11. Meets
California Title 24 residential fixture
program and listed on appliance
database. Energy Star listed. Zhaga
compliant. Meets EMI/RFI emission
per FCC 47CFR Part 18 consumer limits
at 120V input. Lighting Facts Labeled.
Warranty
5 year warranty.
EM OPTION
19.7" [500.38mm]
IRIS
Type
Date
P3LED09
E3AA, E3AA20
LED Directional Angle Cut and
Shallow Angle Cut
3.5" Aperture
900 Lumen Series
“X”(
6-7/16"
[164mm]
6"
12"
[152mm]
[305mm]
Catalog # X-Dimension
P3LED09*E 16.4” (416mm)
P3LED09*E010 16.25” (413mm)
P3LED09*E5LT 16.25” (413mm)
P3LED09*EDMX 16.25” (413mm)
P3LED09*1ELTE 16.9” (429mm)
P3LED09*EL3D 16.9” (429mm)
E Driver Option
Input Voltage 120V 277V
Input Current (A) 0.12 0.06
Input Power (W) 14.3 15
Inrush Current (A) 0.17 0.43
THD: ≤ 20%
PF: ≥ 0.90
T Ambient: -20 to +40°C
T Plenum: +65°C Max.
Sound Rating: Class A
E010 Driver Option
Input Voltage 120V 277V
Input Current (A) 0.13 0.06
Input Power (W) 14.3 15
Inrush Current (A) 0.6 1
THD: ≤ 20%
PF: ≥ 0.90
T Ambient: -20 to +40°C
T Plenum: +65°C Max.
Sound Rating: Class A
10"
[254mm]
®
3-1/2" [89mm]
4-3/8" [112mm]
5-1/8" [130mm]
SF= 4-7/8" O.D.
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Eaton is a founding
member of the Zhaga
Consortium
ADI130306
07-18-2016

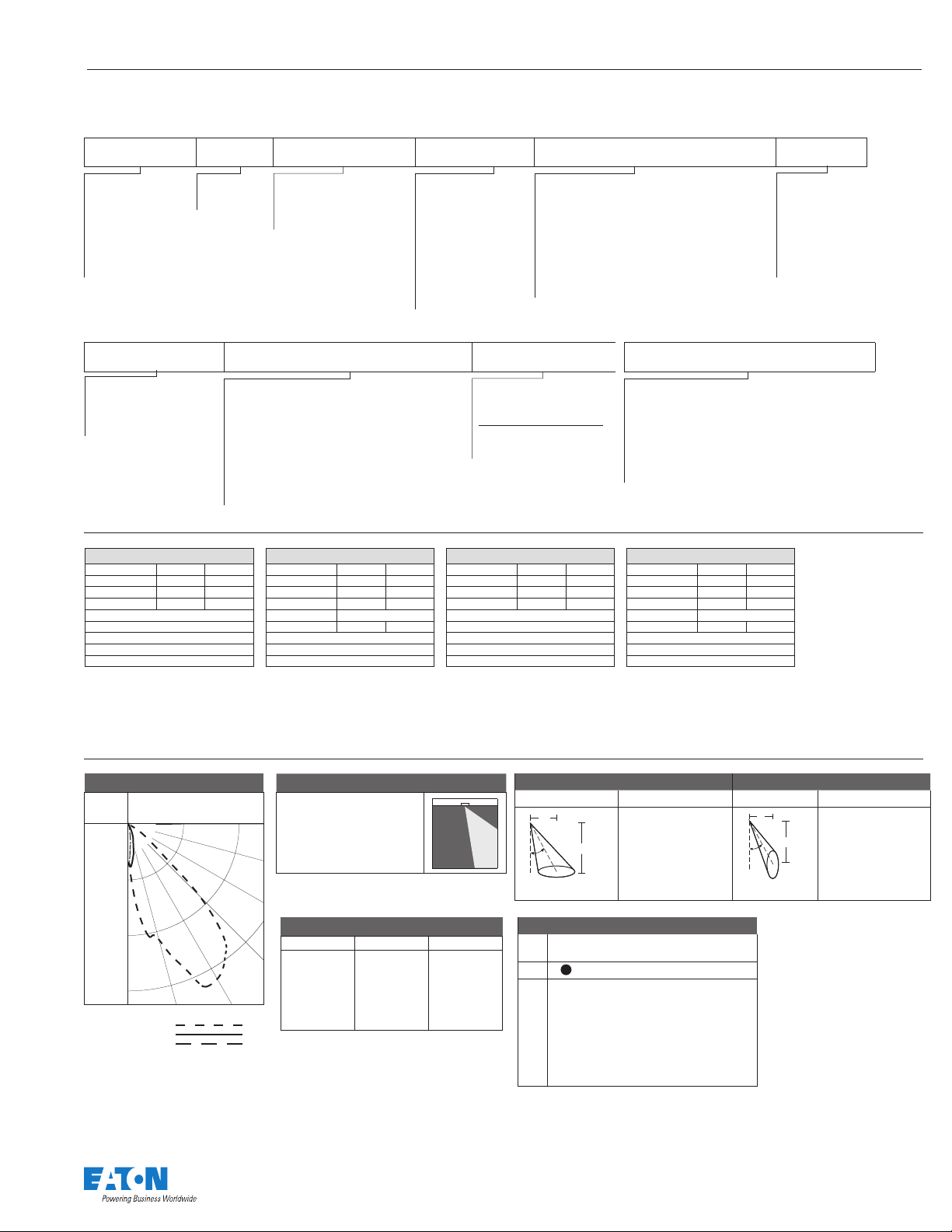

Page 2
ORDERING INFORMATION
Complete luminaire consists of a housing platform and optical element. Housing platform can be ordered without primary optic. Order primary optics separately.
Example: PLED09830E RG50SP15 E3AAH
Platform Lumens
1
Distribution Color Driver Options
P3LED
IRIS
®
P3LED = 3.5” Aperture
IC, AT LED Housing
Platform
P3LEDCP = 3.5”
Aperture IC, AT LED
Housing Platform,
CCEA listed for City
of Chicago Plenum
Requirements
Optical Element Finishes Options Accessories
09 = 900
Lumens
(Nominal)
[Blank] = Omit Primary Optic
NSP10 = 10° Beam
SP15 = 15° Beam
NFL25 = 25° Beam
FL40 = 40° Beam
827 = 80 CRI Minimum,
2,700 K CCT
927 = 90 CRI Minimum,
2,700 K CCT
830 = 80 CRI Minimum,
3,000 K CCT
930 = 90 CRI Minimum,
3,000 K CCT
835 = 80 CRI Minimum,
3,500 K CCT
840 = 80 CRI Minimum,
4,000 K CCT
E = 120 – 277V 50/60Hz Leading or Trailing Edge
Phase Cut 1% Dimming (phase cut dimming at
120V only)
E010 = 120 – 277V 50/60Hz 0 -10V 10% Dimming
ED010 = 120 – 277V 50/60Hz 0 -10V 1% Dimming
1ELTE = 120V 60Hz Leading Edge 1% Dimming,
Lutron A-Series
EDMX = 120 – 277V 50/60Hz DMX 1% Dimming
E5LT = 120 – 277V 50/60Hz DALI 1% Dimming
EL3D = 120 – 277V 50/60Hz 3-wire and EcoSystem
1% Dimming, Lutron A-Series
EM = Integral
Battery Backup
with Remote
Test Switch and
Indicator Light
(Not available
with 1ELTE and
EL3D driver
options)
E3AA
E3AA = 3.5” Aperture Open
Angle Cut Reflector
E3AA20 = 3.5” Aperture
Shallow Open Angle Cut
Reflector
ENERGY DATA P3LED E3AA/E3AA20
1ELTE Driver Option
Input Voltage 120V 277V
Input Current (A) 0.13
Input Power (W) 15.7
Inrush Current (A) 1.9
THD: ≤ 20%
PF: ≥ 0.90
T Ambient: -20 to +40°C
T Plenum: +65°C Max.
Sound Rating: Class A
Alzak® Finishes
C = Specular Clear
H = Semi-Specular Clear
G = Gold
WMH = Warm Haze
WH = Wheat
WHH = Wheat Haze
GP = Graphite
GPH = Graphite Haze
K = Cognac
KH = Cognac Haze
EL3D Driver Option
Input Voltage 120V 277V
Input Current (A) 0.13 0.06
Input Power (W) 15.6 16
Inrush Current (A) 1.9 2
THD ≤20%
PF ≥0.90 ≥0.80
T Ambient: -20 to +40°C
T Plenum: +65°C Max.
Sound Rating: Class A
CC = Chocolate
CCH = Chocolate Haze
B = Black
Painted Finishes
MW = Matte White
W = Gloss White
BB = Black Baffle
WB = White Baffle
Input Voltage 120V 277V
Input Current (A) 0.12 0.06
Input Power (W) 14.3 15.2
Inrush Current (A) 1.73 1.8
THD: ≤ 20%
PF: ≥ 0.90
T Ambient: -20 to +40°C
T Plenum: +65°C Max.
Sound Rating: Class A
[Blank] = Metal Trim Ring,
Matte White
Not available with BB or WB
SF = Self Flanged
SFWF = Self Flanged, Matte
White Flange
E5LT Driver Option
RG50NSP10 = 10° Beam Glass Reflector, 50mm
RG50SP15 = 15° Beam Glass Reflector, 50mm
RG50NFL25 = 25° Beam Glass Reflector, 50mm
RG50FL40 = 40° Beam Glass Reflector, 50mm
RG50MH = Media Holder for two inch [50mm]
diameter L series color filters or beam modifying lens.
Attaches directly to RG50 series 50mm Reflectors
FMC3 = Flush Mount Collar Accessory
PLE3 = Plaster Lip Extender for Up to 2” Thick Ceilings
ZLM03 = Replacement LED module, see specification
sheet for catalog number and performance data
EDMX Driver Option
Input Voltage 120V 277V
Input Current (A) 0.13 0.06
Input Power (W) 15.1 16.1
Inrush Current (A) 1.82 1.89
THD ≤20%
PF ≥0.90 ≥0.0
T Ambient: -20 to +40°C
T Plenum: +65°C Max.
Sound Rating: Class A
PHOTOMETRICS P3LED E3AA/E3AA20
CANDLEPOWER DISTRIBUTION
Directional
700
1400
2100
LEGEND:
90-deg:
180- deg:
15º
0-deg:
Tes t Nu mber P 106710
Platform P3L ED09830E
Element E3A AC RG50FL40
90º
Lumens 994 Lm
Efficacy 6 9.5 Lm/W
75º
60º
30º
ZONAL LUMEN SUMMARY
Zone Lumen s %Fixture
45º
30º
0-30 475 51.4
0-40 744 8 0.5
0-60 922 99.7
0-90 924 100
90 -180 0 0
0-18 0 924 100
30º HORIZONTAL PLANE 30º VERTICAL PLANE
MH FC L W CB D FC L W CB
CB
5.5' 21.5
7' 13.3
8' 10 .2
D
9' 8
10' 6.5
12' 4.5 12.8 8.8 6.9 12' 11.2 7.4 7. 8 20.8
5.8 4
7.4 5
8.5 5.8
9.5 6.6
10.6 7.2
3.2
D
4
4.6
30º
5.2
5.8
SINGLE UNIT FOOTCANDLES
3' FROM WAL L
(Dist ance From Fix ture Along Wall)
DD 1' 2' 3' 4' 5' 6'
1' 0 0 0 0.1 0 0 0
2' 12.2 6.6 0 0 0 0 0
3' 47. 7 20.7 6.3 0.1 0 0 0
4' 49.2 35.8 9.9 2.8 0.3 0 0
5' 33.8 2 7.8 13.5 3.4 1.2 0.2 0
6' 22.8 19. 2 11 .1 4.7 1.4 0.5 0.1
7' 14.7 13. 4 8.3 4.5 2 0.6 0.2
8' 9.2 9.8 6.1 3.8 2 0.8 0.2
9' 6.3 6.8 4.4 3 1.8 0.9 0.3
10' 4.4 4.5 3.4 2.3 1.5 0.9 0.4
5.5'
53 .1
3.4 3.4
7' 32.8 4.3 4.4
CB
8' 2 5.1 4.9 5.2 13.9
9'
19.8
5.6 5.8
10'
16.1
6.2 6.4
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
9.5
12.1
15.6
17. 3
ADI130306
07-18-2016

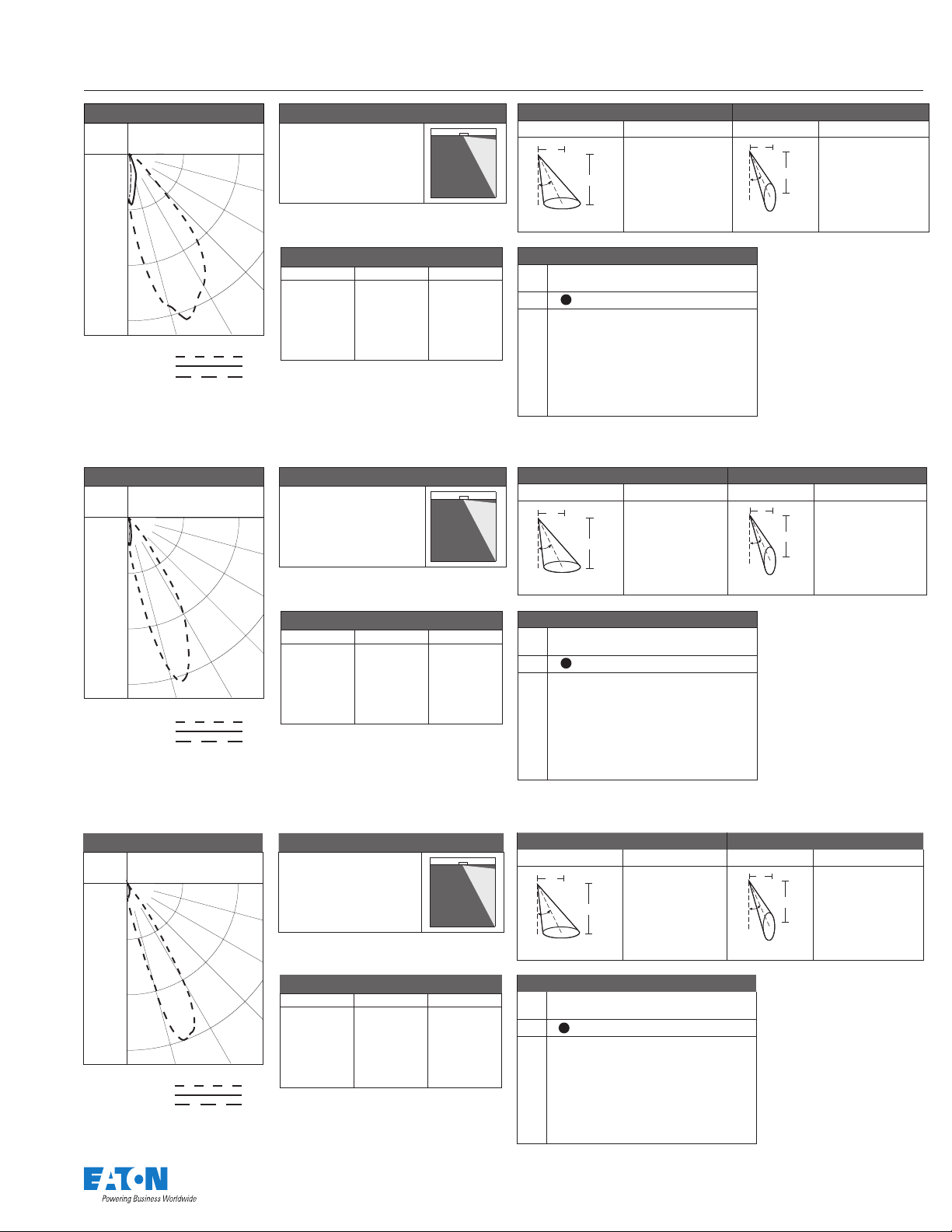

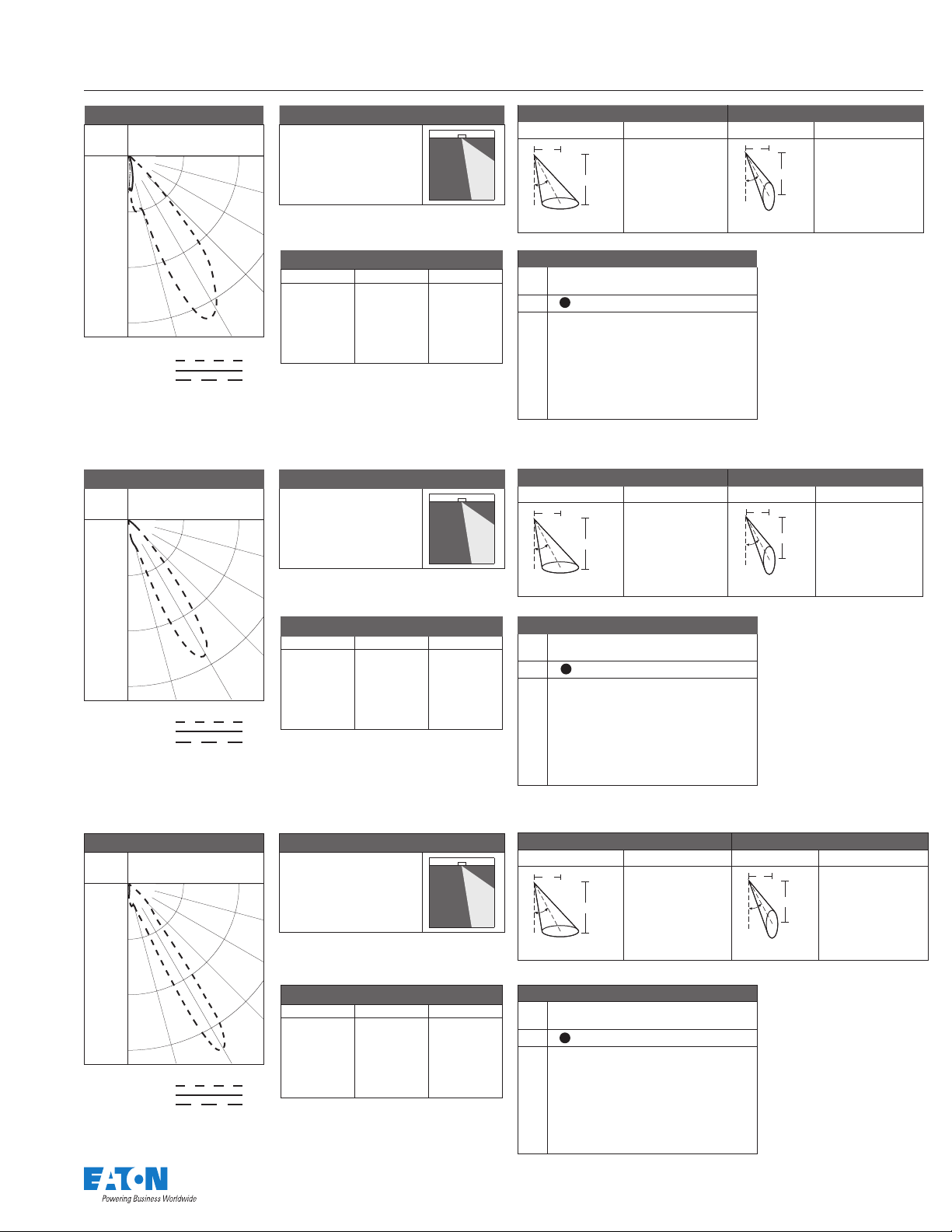

Page 3
IRIS
PHOTOMETRICS P3LED E3AA/E3AA20
®
CANDLEPOWER DISTRIBUTION
Directional
125 0
2500
3750
LEGEND:
90-deg:
180- deg:
15º 30º
0-deg:
CANDLEPOWER DISTRIBUTION
Directional
2500
5000
LEGEND:
90-deg:
180- deg:
15º
0-deg:
7500
30º HORIZONTAL PLANE 30º VERTICAL PLANE
Tes t Nu mber P 106626
Platform P3L ED09830E
Element E3A AC RG50NF25
90º
Lumens 1016 Lm
Efficacy 7 1.6 Lm/ W
75º
60º
ZONAL LUMEN SUMMARY
Zone Lumen s %Fixture
45º
0-30 559 59.2
0-40 866 91.6
0-60 944 99.9
0-90 945 100
90 -180 0 0
0-18 0 945 10 0
CB
30º
SINGLE UNIT FOOTCANDLES
3' FROM WAL L
(Dist ance From Fix ture Along Wall)
DD 1' 2' 3' 4' 5' 6'
1' 0.1 0 0 0 0 0 0
2' 0.3 0.3 0.1 0 0 0 0
3' 27. 8 8.5 0.1 0.1 0 0 0
4' 71.3 32.4 7 0.1 0 0 0
5' 57.3 38.3 12 .9 1.4 0 0 0
6' 40.2 29.7 13 3.8 0.6 0 0
7' 25.9 20.4 10 .3 3.6 1. 5 0.2 0
8' 15.5 13. 6 7.5 3 1. 5 0.5 0 .1
9' 9.2 8.8 5.5 2.4 1.3 0.6 0.2
10' 5.5 5.4 4.2 1.9 1. 2 0.5 0.2
MH FC L W CB D FC L W CB
5.5'
27. 7
7 4
7'
17.1
8.9 5
8'
13.1
D
9'
10'
12'
10.2 5.8
10.3
11.4 6.4
8.4
12.7 7.2
5.8 15.3 8.6 6.9
3.2
4
4.6
30º
5.2
5.8
5.5'
D
7' 51.7 3.6 3.4
CB
8' 39.6 4 .1 4 13. 9
9'
10'
12'
83.7
2.8 2.6
31.3
4.6 4.4
25.3
5.1 5
17. 6 6.1 6 20.8
9.5
12.1
15.6
17. 3
30º HORIZONTAL PLANE 30º VERTICAL PLANE
Tes t Nu mber P106806
Platform P3L ED09830E
Element E3A AC RG50SP15
90º
Lumens 1129 L m
Efficacy 7 8.4 Lm /W
75º
60º
ZONAL LUMEN SUMMARY
Zone Lumens %Fixture
45º
30º
0-30 554 52.8
0-40 938 89.4
0-60 1037 98.8
0-90 1050 100
90 -180 0 0
0-18 0 1050 100
CB
30º
SINGLE UNIT FOOTCANDLES
3' FROM WAL L
(Dist ance From Fix ture Along Wall)
DD 1' 2' 3' 4' 5' 6'
1' 1.2 0 .1 0.1 0 0 0 0
2' 3.2 0.1 0.2 0.2 0.1 0 0
3' 33.3 8.8 1.1 0.1 0.1 0 .1 0 .1
4' 10 9 34.2 7. 8 0.1 0 0 0 .1
5' 1 05.1 43.3 2.2 0.9 0.1 0 0
6' 68.2 35.4 12.1 3 .1 0.4 0 .1 0
7' 37. 8 22.1 9.9 2.9 1.2 0 .1 0
8' 8.4 13 6.9 2.6 1.2 0.4 0
9' 8.9 7. 9 4.8 2.1 1.1 0.5 0 .1
10' 4.8 4.8 3.5 1.6 0.9 0.5 0.2
MH FC L W CB D FC L W CB
5.5'
40.2
4.8 2.8
7'
24.8
6.1 3.6
8'
19
D
9'
10'
12' 8.4 10.5 6.4 6.9 12' 32.4 4.8 4.2 20.8
15
12.2
7 4.2
7.8 4.8
8.8 5.2
3.2
4
4.6
30º
5.2
5.8
5.5'
D
7' 95.2 2.7 2.4
CB
8' 72.9 3.1 2.8 13.9
9'
10'
154. 2
57. 6
46.6
2.2 1.8
3.6 3
4 3.4
9.5
12.1
15.6
17. 3
CANDLEPOWER DISTRIBUTION
Directional
2500
5000
7500
LEGEND:
90-deg:
180- deg:
15º 30º
0-deg:
Tes t Nu mber P106854
Platform P3L ED09830E
Element E3A AC RG50NSP10
90º
Lumens 1066 Lm
Efficacy 74 .6 Lm /W
75º
60º
ZONAL LUMEN SUMMARY
45º
Zone Lumens %Fixture
0-30 518 52.2
0-40 869 8 7.6
0-60 982 9 9.1
0-90 991 10 0
90 -180 0 0
0-18 0 991 100
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
30º HORIZONTAL PLANE 30º VERTICAL PLANE
MH FC L W CB D FC L W CB
5.5'
41.6
30º
CB
7'
8'
D
9'
10'
12' 8.7 8.6 4.8 6.9 12' 39 3.3 3 2 0.8
25.7
19.7
15.5
12.6
4. 2.2
5. 2.8
5.8 3.2
6.5 3.6
7.2 4
3.2
4
4.6
5.2
5.8
SINGLE UNIT FOOTCANDLES
3' FROM WAL L
(Dist ance From Fix ture Along Wall)
DD 1' 2' 3' 4' 5' 6'
1' 0.6 0.1 0 .1 0. 3 0.1 0 .1 0.
2' 0.4 0.2 0.1 0 0 .1 0 0 .1
3' 42.8 15 .7 0 .1 0 0 .1 0 0
4' 84.3 30.2 9.6 0.1 0 0 0
5' 12 7.1 29.7 12 2. 2 0 0 0
6' 73.8 22.3 10 .3 4 0.9 0.1 0
7' 24.5 13.7 7.6 3.7 1. 6 0.3 0.1
8' 9.6 9.3 5.5 2.9 1.6 0.6 0.1
9' 5.6 6.2 4.3 2.3 1.4 0.6 0.2
10' 3.6 4 3 .4 1.8 1.2 0.6 0.2
30º
5.5'
D
7' 114.7 1.8 1. 8
CB
8' 8 7.8 2 .1 2 13 .9
9'
10'
185. 7
69.4
56.2
1.5 1. 4
2.5 2.2
2.8 2.4
ADI130306
07-18-2016
9.5
12.1
15.6
17. 3
Page 4
IRIS
CB
D
CB
D
CB
D
PHOTOMETRICS P3LED E3AA/E3AA20
®
CANDLEPOWER DISTRIBUTION
Directional
800
1600
2400
LEGEND:
90-deg:
180- deg:
15º 30º
0-deg:
CANDLEPOWER DISTRIBUTION
Directional
150 0
3000
LEGEND:
90-deg:
180- deg:
15º
0-deg:
4500
30º HORIZONTAL PLANE 30º VERTICAL PLANE
Tes t Nu mber P106002
Platform P3LED09830E
Element E3AA20C RG50FL40
90º
Lumens 977 L m
Efficacy 68.3 L m/ W
75º
60º
ZONAL LUMEN SUMMARY
Zone Lumens %Fixture
45º
0-30 565 62 .1
0-40 806 88.8
0-60 907 99.9
0-90 908 100
90 -180 0 0
0-18 0 908 10 0
20 º
SINGLE UNIT FOOTCANDLES
3' FROM WAL L
(Dist ance From Fix ture Along Wall)
DD 1' 2' 3' 4' 5' 6'
1' 0 0 0 0 0 0 0
2' 5.7 0.6 0 0 0 0 0
3' 18.9 11. 5 3.8 0 0 0 0
4' 41.3 2 7.2 6.6 1.9 0.1 0 0
5' 32.3 25.7 11.9 3 0.9 0.1 0
6' 22.8 19. 3 11. 2 4.3 1. 3 0.4 0 .1
7' 16.6 13.7 9 4.6 1.9 0.6 0 .1
8' 12.2 9.9 7 4 .1 2.1 0.8 0.3
9' 8.7 7. 4 5.3 3.5 2 1 0.4
10' 6.2 5.7 4 2.8 1.7 1 0.5
MH FC L W CB D FC L W CB
5.5'
28.7
4.8 3.6
7'
17.7
6.1 4.6
8'
13.6
10.7
8.7
7 5.2
7.9 6
8.7 6.6
D
9'
10'
12' 6 10.5 8 6.9 12' 10 8.8 8 2 0.8
3.2
4
4.6
20 º
5.2
5.8
5.5'
47. 7
4 3.6
7' 29.5 5 .1 4.6
CB
8' 22.6 5.8 5.2 13 .9
9'
17. 8
6.6 6
10'
14.4
7.3 6.6
9.5
12.1
15.6
17. 3
30º HORIZONTAL PLANE 30º VERTICAL PLANE
Tes t Nu mber P105990
Platform P3LED09830E
Element E3A A20C RG50NFL25
90º
Lumens 95 5 Lm
Efficacy 66.8 L m/ W
75º
60º
ZONAL LUMEN SUMMARY
Zone Lumens %Fixture
45º
30º
0-30 656 73.8
0-40 863 9 7.1
0-60 888 99.9
0-90 889 10 0
90 -180 0 0
0-18 0 889 100
20 º
SINGLE UNIT FOOTCANDLES
3' FROM WAL L
(Dist ance From Fix ture Along Wall)
DD 1' 2' 3' 4' 5' 6'
1' 0.1 0 0 0 0 0 0
2' 0.3 0.2 0 0 0
3' 6.5 0.5 0.1 0 0 0
4' 35.5 18 .2 1.1 0.1 0 0 0
5' 47. 6 28.9 8.3 0 .1 0 0 0
6' 38.4 28.2 8.7 2.7 0.1 0 0
7' 29.7 22.1 8.5 3.6 1 0.1 0
8' 22.1 16.4 7.6 3.2 1.4 0.4 0
9' 16 12 6.2 2 .7 1.4 0.5 0.1
10' 11.3 8.8 4.8 2.3 1. 3 0.6 0. 2
MH FC L W CB D FC L W CB
5.5'
46.3
4.1 2.8
7'
28.6
5.2 3.6
8'
21.9
D
9'
17. 3
6.8 4.6
10'
14
7.5 5
12' 9.7 8.9 6.2 6.9 12' 15. 7 7.4 6 20.8
6 4
3.2
4
4.6
20 º
5.2
5.8
0
0
0
5.5'
74. 9
3.3 2.6
7' 4 6.2 4.3 3.4
CB
8' 35.4 4.9 4 13.9
9'
28
5.5 4.4
10'
22.7
6.2 5
9.5
12.1
15.6
17. 3
CANDLEPOWER DISTRIBUTION
Directional
Tes t Nu mber P105978
Platform P3LED09830E
Element E3AA20C RG50SP15
90º
Lumens 10 81 Lm
Efficacy 75.6 L m/ W
75º
2500
60º
ZONAL LUMEN SUMMARY
5000
45º
7500
LEGEND:
90-deg:
180- deg:
15º 30º
0-deg:
Zone Lumens %Fixture
0-30 765 76 .1
0-40 969 96.4
0-60 997 99.2
0-90 1006 10 0
90 -180 0 0
0-18 0 1006 10 0
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
30º HORIZONTAL PLANE 30º VERTICAL PLANE
MH FC L W CB D FC L W CB
5.5'
68.6
20 º
3.7 2.2
7'
42.4
4.7 3
8'
32.4
25.6
20.8
5.4 3.4
6.7 4.2
D
9'
10'
12' 14.4 8.1 5.2 6.9 12' 2 7.3 5.7 4.4 20.8
6 3.8
3.2
4
4.6
20 º
5.2
5.8
SINGLE UNIT FOOTCANDLES
3' FROM WAL L
(Dist ance From Fix ture Along Wall)
DD 1' 2' 3' 4' 5' 6'
1' 0.4 0.3 0 0 0.1 0.1 0
2' 0 0 0 0 0 .1 0 0
3' 5.7 2.8 0 0 0 0 0
4' 33 17.5 1.8 0.1 0 0 0
5' 66.9 27 7. 6 0.8 0 .1 0 0
6' 67. 1 3 4.1 8.6 2 0.3 0 .1 0
7' 49.8 3 1.1 8.2 3. 2 0.8 0 .1 0
8' 36 .1 23.3 7.2 2.9 1. 3 0.3 0
9' 25 16 5.9 2.7 1.3 0.5 0 .1
10' 16 .1 10. 8 4.6 2.3 1. 2 0.5 0.1
5.5'
130. 2
2.5 2
7' 80.4 3.3 2.6
CB
8' 61.5 3.8 2.8 13 .9
9'
48.6
4.3 3.2
10'
39.4
4.7 3.6
9.5
12.1
15.6
17. 3
ADI130306
07-18-2016
Page 5
PHOTOMETRICS P3LED E3AA/E3AA20
CB
D
IRIS
®
CANDLEPOWER DISTRIBUTION
Directional
3000
6000
9000
LEGEND:
90-deg:
180- deg:
15º 30º
0-deg:
Tes t Nu mber P105966
Platform P3LED09830E
Element E3A A20C RG50NSP10
90º
Lumens 105 5 Lm
Efficacy 73.3 Lm/W
75º
60º
ZONAL LUMEN SUMMARY
Zone Lumens %Fixture
45º
0-30 780 79.5
0-40 9 41 95.9
0-60 968 98.7
0-90 9 81 100
90 -180 0 0
0-18 0 981 100
20º HORIZONTAL PLANE 20º VERTICAL PLANE
MH FC L W CB D FC L W CB
5.5'
87. 3
20 º
2.7 1.8
7'
53.9
3.5 2.2
8'
41.3
D
9'
32.6
4.5 2.8
10'
26.4
5.1 3.2
12' 18.3 6.1 3.8 6.9 12' 31.4 4 .1 3.4 20.8
4 2.6
3.2
4
4.6
20 º
5.2
5.8
SINGLE UNIT FOOTCANDLES
3' FROM WAL L
(Dist ance From Fix ture Along Wall)
DD 1' 2' 3' 4' 5' 6'
1' 0 0 0.4 0 .1 0 0 0
2' 1. 3 0.2 0 .1 0.2 0 .1 0.1 0
3' 1. 8 0. 3 0.3 0 .1 0.2 0 0.1
4' 26.4 15 .3 1 0.1 0.1 0 .1 0 .1
5' 30.7 18.6 7.9 0 0 0 0
6' 58.5 20 8.5 2.6 0.1 0 0
7' 59.7 23.2 8 3.8 1 0 0
8' 45 .1 2 1.1 6.6 3.5 1.7 0.4 0
9' 31.7 15. 2 5.2 3 1.6 0.7 0 .1
10' 19.6 9.8 4 2.6 1.5 0.8 0.2
5.5'
CB
10'

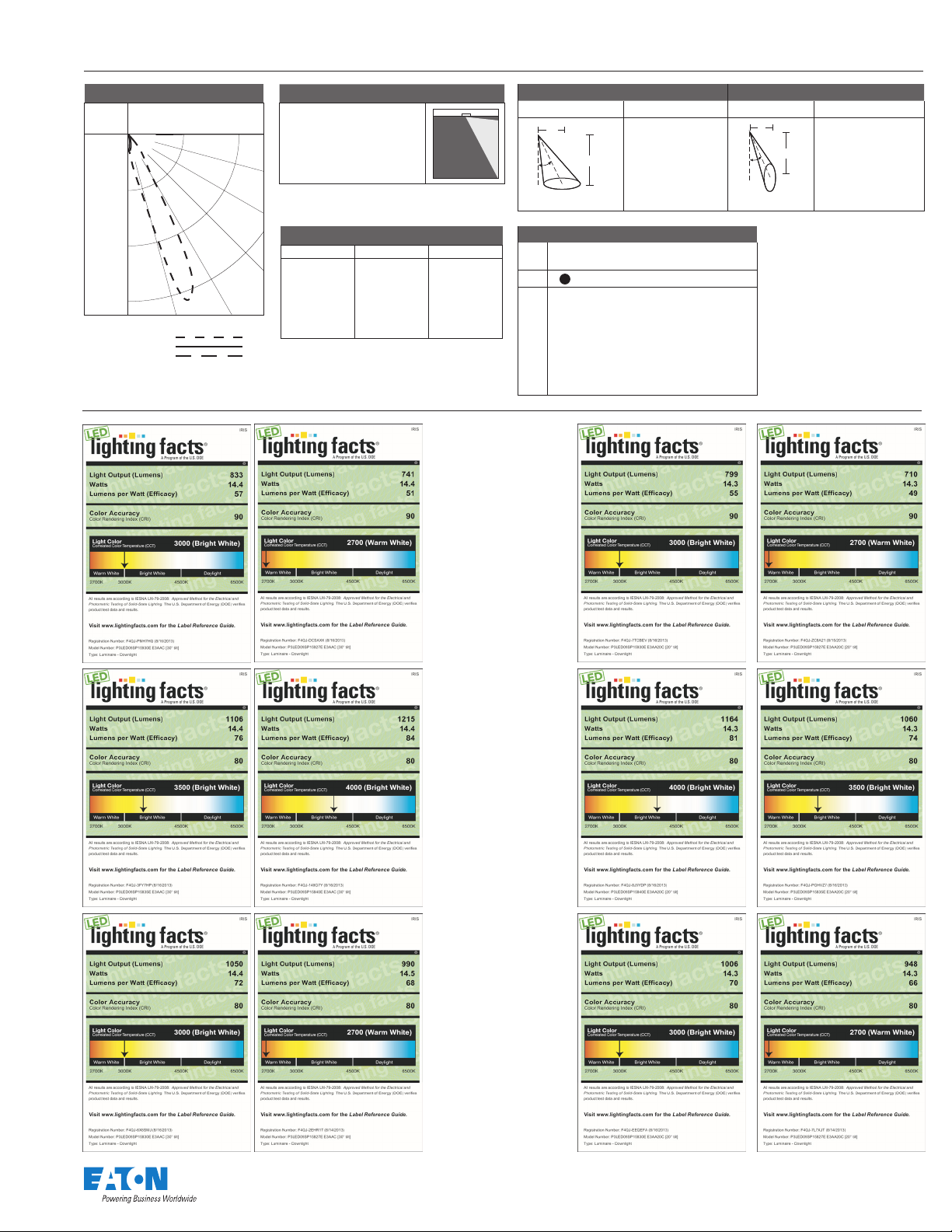

LIGHTING FACTS
149. 2
1.9 1.4
7' 92 .1 2.4 2
8' 70.5 2.7 2.2 13. 9
9'
55.7
3.1 2.4
45 .1
3.5 2.8
9.5
12.1
15.6
17. 3
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Please see LightingFacts.com for a complete listing of products.
ADI130306
07-18-2016
Loading...
