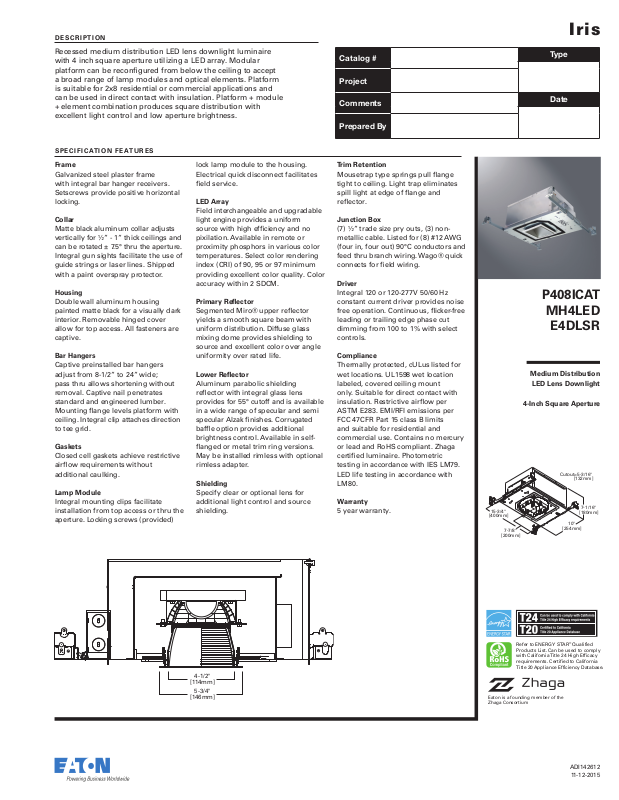

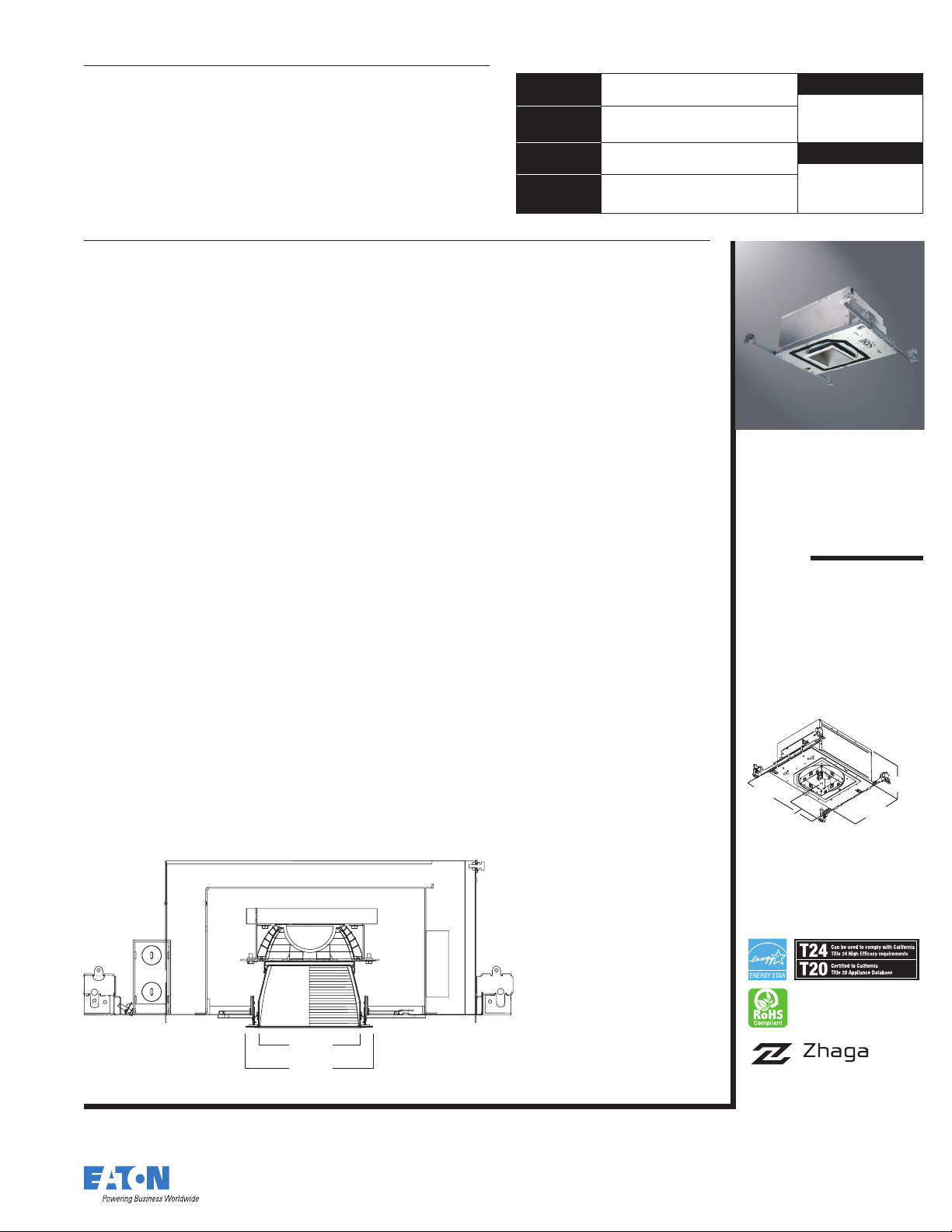

Cooper Lighting LLC CPK1932 Specifications

DESCRIPTION

Recessed medium distribution LED lens downlight luminaire with 4 inch square aperture utilizing a LED array. Modular platform can be reconﬁgured from below the ceiling to accept a broad range of lamp modules and optical elements. Platform is suitable for 2x8 residential or commercial applications and can be used in direct contact with insulation. Platform + module + element combination produces square distribution with excellent light control and low aperture brightness.

SPECIFICATION FEATURES

Frame

Galvanized steel plaster frame with integral bar hanger receivers. Setscrews provide positive horizontal locking.

lock lamp module to the housing. Electrical quick disconnect facilitates ﬁeld service.

LED Array

Field interchangeable and upgradable

Collar

Matte black aluminum collar adjusts vertically for ½” - 1” thick ceilings and can be rotated ± 7.5° thru the aperture. Integral gun sights facilitate the use of guide strings or laser lines. Shipped with a paint overspray protector.

light engine provides a uniform source with high efﬁciency and no pixilation. Available in remote or proximity phosphors in various color temperatures. Select color rendering index (CRI) of 90, 95 or 97 minimum providing excellent color quality. Color accuracy within 2 SDCM.

Housing

Double wall aluminum housing painted matte black for a visually dark interior. Removable hinged cover allow for top access. All fasteners are captive.

Primary Reﬂector

Segmented Miro® upper reﬂector yields a smooth square beam with uniform distribution. Diffuse glass mixing dome provides shielding to source and excellent color over angle

Bar Hangers

uniformity over rated life. Captive preinstalled bar hangers adjust from 8-1/2” to 24” wide; pass thru allows shortening without removal. Captive nail penetrates standard and engineered lumber. Mounting ﬂange levels platform with ceiling. Integral clip attaches direction to tee grid.

Lower Reﬂector

Aluminum parabolic shielding

reﬂector with integral glass lens

provides for 55° cutoff and is available

in a wide range of specular and semi

specular Alzak ﬁnishes. Corrugated

bafﬂe option provides additional

brightness control. Available in self-

Gaskets

Closed cell gaskets achieve restrictive airﬂow requirements without

ﬂanged or metal trim ring versions.

May be installed rimless with optional

rimless adapter. additional caulking.

Lamp Module

Integral mounting clips facilitate installation from top access or thru the

Shielding

Specify clear or optional lens for

additional light control and source

shielding. aperture. Locking screws (provided)

Catalog #

Project

Comments

Prepared By

Trim Retention

Mousetrap type springs pull ﬂange tight to ceiling. Light trap eliminates spill light at edge of ﬂange and reﬂector.

Junction Box

(7) ½” trade size pry outs, (3) nonmetallic cable. Listed for (8) #12 AWG (four in, four out) 90°C conductors and feed thru branch wiring. Wago® quick connects for ﬁeld wiring.

Driver

Integral 120 or 120-277V 50/60 Hz constant current driver provides noise free operation. Continuous, ﬂicker-free leading or trailing edge phase cut dimming from 100 to 1% with select controls.

Compliance

Thermally protected, cULus listed for wet locations. UL1598 wet location labeled, covered ceiling mount only. Suitable for direct contact with insulation. Restrictive airﬂow per ASTM E283. EMI/RFI emissions per FCC 47CFR Part 15 class B limits and suitable for residential and commercial use. Contains no mercury or lead and RoHS compliant. Zhaga certiﬁed luminaire. Photometric testing in accordance with IES LM79. LED life testing in accordance with LM80.

Warranty

5 year warranty.

15-3/4"

[400mm]

P408ICAT

MH4LED

Medium Distribution LED Lens Downlight

4-Inch Square Aperture

7-7/8"

[200mm]

Iris

Type

Date

E4DLSR

Cutout=5-3/16"

[132mm]

7-1/16"

[180mm]

10"

[254mm]

4-1/2"

[114mm]

5-3/4"

[146mm]

Refer to ENERGY STAR® Qualified Products List. Can be used to comply with California Title 24 High Efficacy requirements. Certified to California Title 20 Appliance Efficiency Database.

Eaton is a founding member of the Zhaga Consortium

ADI142612

11-12-2015

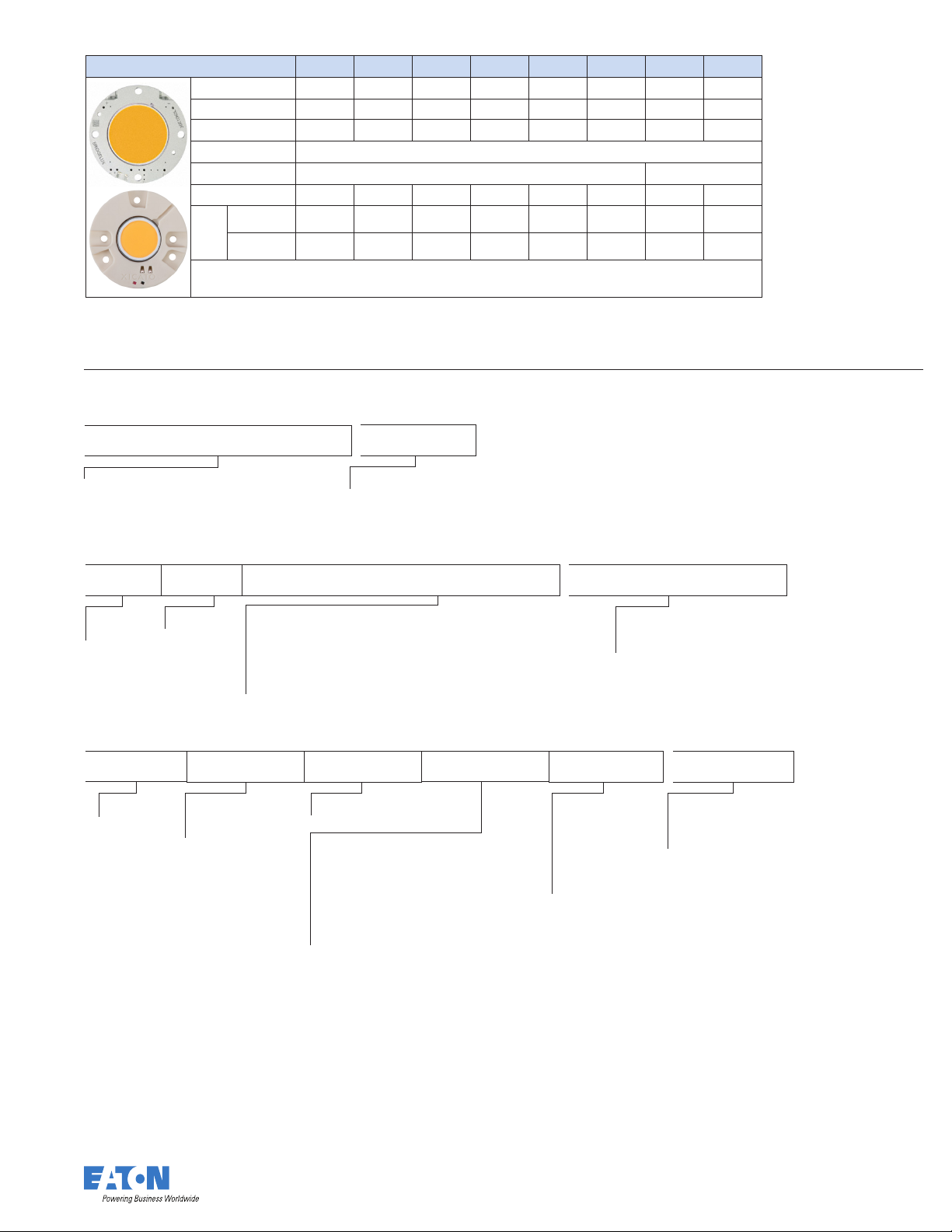

Delivered Performace V927 V930 V935 V940 D927 D930 A927 A930

CRI (Min) 90 90 90 90 97 97 95 95

R9 (Min) 50 50 50 50 95 95 90 90

CCT (K5) 2700 3000 3500 4000 2700 3000 2700 3000

SDCM 2-Step

Life (L70) 50,000 Hours 40,000 Hours*

LPW**

15W

20W

Lumens

Performance data based on goniometer measurements with 'E' driver option and E4DLSR3GH lower shielding reflector. *Projected lumen maintanence. **LPW based on 15W and 'E' driver option.

49 53 58 65 39 43 40 42

710 758 835 933 569 620 570 608

963 1028 11 33 1266 771 841 773 824

ORDERING INFORMATION

(Order housing platform, lamp module and optical element separately

Iris

Housing Platform

P408ICAT = 4” square housing platform, IC, airtight RA4X4 = Rimless adapter for 4” housing platforms

Lamp Module Wattage DriverLight Engine

MH4LED =

4" square LED module

Element

E4DLSR = 4”

Lens Reﬂector

15 = 15 Watts 20 = 20 Watts

1G = Prismatic Glass 2G = Diffuse Glass 3G = Clear Glass 5G = Opal White Glass

V927 = Bridgelux Vero Series, Zhaga certiﬁed, 90 CRI min, 2700 K CCT V930 = Bridgelux Vero Series, Zhaga certiﬁed, 90 CRI min, 3000 K CCT V935 = Bridgelux Vero Series, Zhaga certiﬁed, 90 CRI min, 3500 K CCT V940 = Bridgelux Vero Series, Zhaga certiﬁed, 90 CRI min, 4000 K CCT D927 = Bridgelux Décor Series, Zhaga certiﬁed, 97 CRI min, 2700 K CCT D930 = Bridgelux Décor Series, Zhaga certiﬁed, 97 CRI min, 3000 K CCT A927 = Xicato XTM Artist Series, Zhaga compatible, 95 CRI min, 2700 K CCT A930 = Xicato XTM Artist Series, Zhaga compatible, 95 CRI min, 3000 K CCT

Media

[Blank] = Smooth CB = Corrugated Bafﬂe

Alzak Finishes LI = Clear Low

Iridescent

H = Clear Haze G = Champagne Gold WMH = Warm Haze WH = Wheat WHH = Wheat Haze GP = Graphite GPH = Graphite Haze

Accessories

EDC4X41 = Extended depth collar for 1" - 1-1/2" thick ceilings

FinishTexture Flange Style

[Blank] = Metal Trim

Ring, Matte White

SF = Self-Flanged

K = Cognac KH = Cognac Haze CC = Chocolate CCH = Chocolate Haze B = Black

Painted Finishes MB = Matte Black MW = Matte White W = Gloss White

SFWF = Self-Flanged,

Matte White Painted Flange (not available with corrugated bafﬂe) RL = Rimless, Use with Rimless Adapter

E = 120 - 277V 50/60 Hz LE/TE phase cut dimming to 1% (dimming at 120V input only) 1ELTE = 120V 60 Hz LE phase cut dimming to 1%, Lutron A-Series

Accessories

L4X4HEX = Matte Black Hex Cell Louver MTR4MW = 4” Metal Trim Ring, Matte White MTR4MB = 4” Metal Trim Ring, Matte Black MTR4SN = 4” Metal Trim Ring, Satin Nickel MTR4TBZ = 4” Metal Trim Ring, Tuscon Bronze

Eaton

1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lighting

Specifications and dimensions subject to change without notice.

ADI142612

11-12-2015

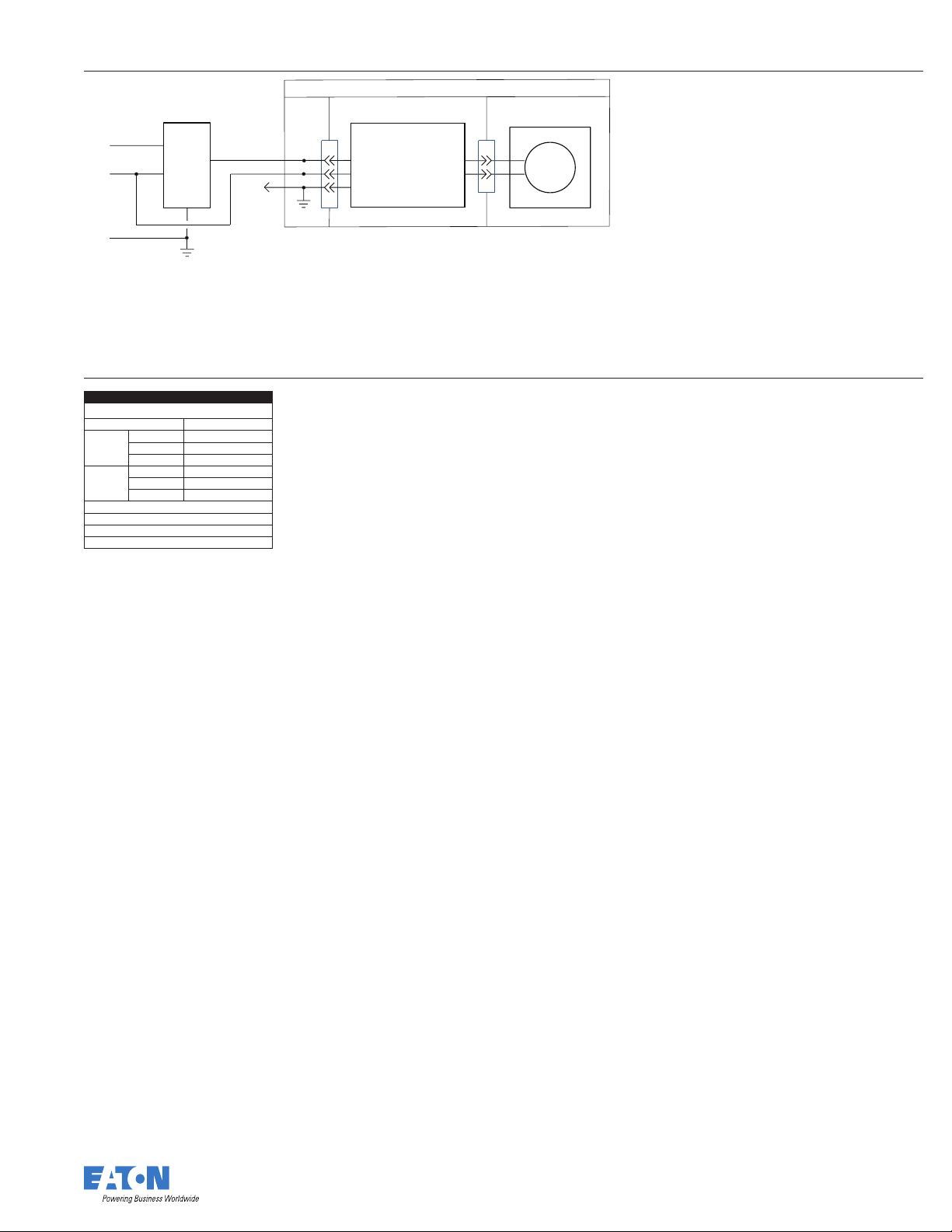

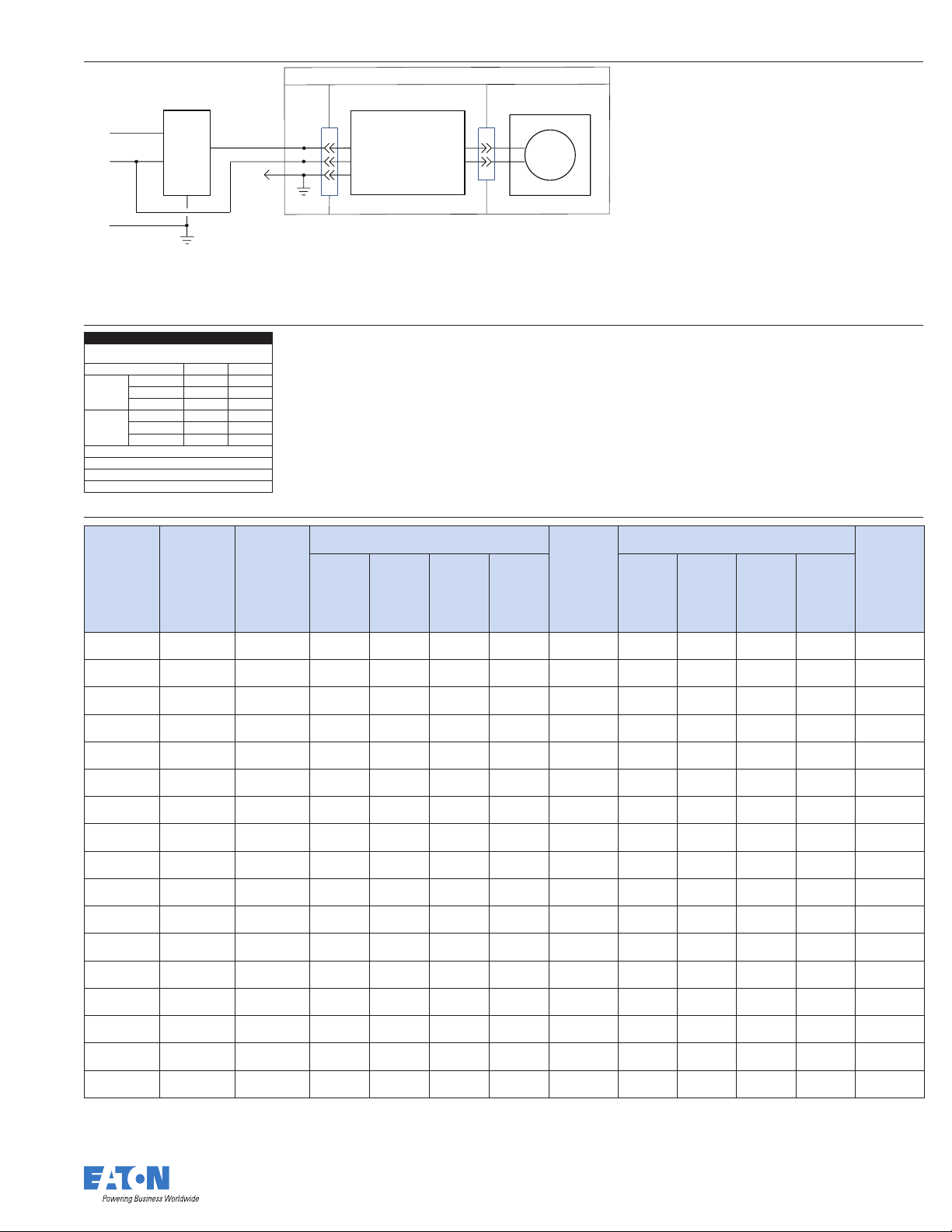

WIRING DIAGRAM

mM

Main

• Phase cut dimming at 120V input only.

Wiring Diagram

s

Control

Line

Neutral

GND

Load

GND

Juncon

Box

Iris

Luminaire

Plaor

Input

P1

Line Neutral

Output

P2

+

-

Ground

Driver

odule

LED Array

120 - 277VAC 50/60 Hz

Notes

• Consult controls manufacturer for detailed wiring and condions of acceptability

• Input voltage conngent on control and driver opons selected

• Field wiring to conﬁrm to all naonal and local codes

ENERGY

ENERGY DATA

E = LE & TE Phase Cut

Input Voltage 120V 277V

Input Power (W) 14.4 15.4

Input Current (A) 0.121 0.059

15W

Inrush (A) 0.16 0.288

Input Power (W) 21.2 21.8

Input Current (A) 0.178 0.082

20W

Inrush (A) 0.218 0.403

T Ambient -40 - +40˚C

Power Factor ≥ 0.90

Sound Rating Class A

THD ≤ 20%

COMPATIBLE CONTROLS

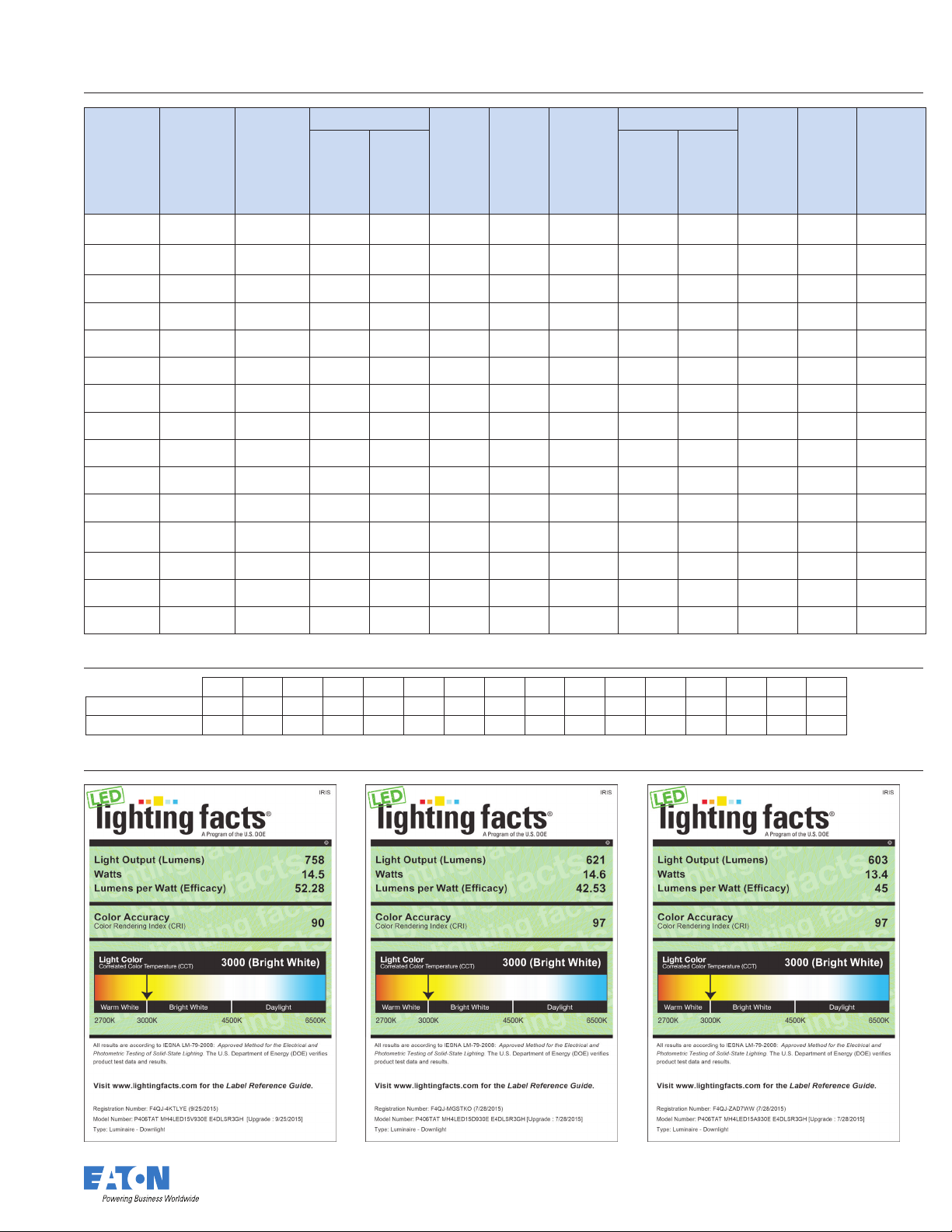

15W

Series

Manufacturer

Lutron Ariadni AY-600P 1 37 9% 98% <1s 1 27 11% 98% <1s

Lutron Contour CT103P 1 62 1% 98% >1s 1 45 4% 98% <1s

Model

Minimum

Luminaires

(per Circuit)

Maximum

Luminaires

(per Circuit)

Minimum

Measured

Light Output

Maximum

Measured

Light Output

LE Start Time

Maximum

Luminaires

(per Circuit)

Minimum

Measured

20W

Light Output

(per Circuit)

Maximum

Measured

Light Output

Minimum

Luminaires

LE Start Time

Lutron Contour CT-600P 1 37 1% 98% >1s 1 27 3% 98% <1s

Lutron Rotary D-600P 1 37 1% 98% >1s 1 27 3% 98% >1s

Lutron Diva DV-600P 1 37 1% 98% >1s 1 27 2% 98% <1s

Lutron Glyder GL-600P 1 37 2% 99% <1s 1 27 7% 98% <1s

Lutron Lumia LG-600PH 1 37 1% 98% >1s 1 27 1% 98% >1s

Lutron Nova N-600 1 37 0% 99% >1s 1 27 1% 99% <1s

Lutron Skylark S-600P 1 37 1% 98% >1s 1 27 1% 98% >1s

Lutron Centurion C-600P 1 37 3% 99% >1s 1 27 5% 99% >1s

Lutron Ariadni AYLV-600P 1 28 4% 98% <1s 1 20 9% 98% <1s

Lutron Glyder GLV600 1 28 1% 99% <1s 1 20 3% 99% <1s

Lutron Diva DVLV-600P 1 28 2% 97% <1s 1 20 6% 98% <1s

Lutron Lumina LG-103P 1 62 5% 98% <1s 1 45 10% 98% <1s

Lutron Skylark SLV-600P 1 28 1% 98% >1s 1 20 3% 98% >1s

Lutron Nova NTLV600 1 28 9% 99% <1s 1 20 12% 99% <1s

Lutron Nova NT600 1 37 2% 99% >1s 1 27 4% 99% >1s

Eaton

1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lighting

Specifications and dimensions subject to change without notice.

ADI142612

11-12-2015

COMPATIBLE CONTROLS

Iris

15W

Series

Manufacturer

Lutron Maestro

Lutron

Lutron Panel module

Lutron Stanza SZ-6ND 1 23 19% 99% >1s 1 15 20% 99% >1s

Lutron

Maestro Wireless

RadioRA2 1000 W

RadioRA2 Adaptive Dimmer

HomeWorks QS 600 W

HomeWorks QS 1000 W

HomeWorks QS Adaptive Dimmer

HomeWorks 600 W Dimmer

"Grafik Eye 3000/ HomeWorks"

"Grafik QS/ Wallbox Power Module"

RPM-4U Module (LCP, HomeWorks,

GRAFIK Systems, Quantum)

RPM-4A Module (LCP, HomeWorks,

GRAFIK Systems, Quantum)

Model

Minimum

Luminaires

MACL153M(_)*

MRF2-6ND 1 10 20% 99% >1s 1 7 19% 100% >1s

MRF2-6ELV - - - - - 1 7 19% 100% >1s

RRD-10ND 1 10 20% 99% >1s 1 7 19% 100% >1s

RRD-6NA - - - - - 1 7 19% 100% >1s

HQRD-6ND 1 10 20% 99% >1s 1 7 19% 100% >1s

HQRD-10ND 1 10 20% 99% >1s 1 7 19% 100% >1s

HQRD-6NA - - - - - 1 7 19% 100% >1s

HxD-6ND 1 23 19% 99% >1s 1 15 20% 99% >1s

"Grafik Eye 3000 Family/ HWI-WPM6D-120"

"Grafik Eye QS Main Unit Family/ LQRJ-WPM6P"

HW-RPM4U-120,

LP-RPM4U-120

HW-RPM4A-120,

LP-RPM4A-120

GP (Harrier) Card

"PHPM-PA with Grafik Eye QS Main Unit"

"PHPM-WBX with 3-wire fluorescent control"

1 10 20% 98% <1s - - - - -

1 35 20% 98% >1s 1 22 20% 100% >1s

1 86 20% 96% >1s 1 55 18% 97% >1s

1 53 19% 99% >1s 1 34 19% 98% >1s

- - - - - 1 50 19% 97% >1s

1 71 19% 98% >1s 1 55 20% 99% >1s

Maximum

(per Output)

Luminaires

(per Output)

Light Output

Minimum Measured

Light Output

Maximum Measured

LE Start Time

Minimum

Luminaires

(per Output)

20W

Maximum

Luminaires

(per Output)

Light Output

Minimum Measured

Light Output

Maximum Measured

LE Start Time

Eaton

1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lighting

Specifications and dimensions subject to change without notice.

ADI142612

11-12-2015

COMPATIBLE CONTROLS

Iris

15W

Series

Manufacturer

Vantage

Vantage ScenePoint DS / RD 1 8 96.1% 1.7% 3.4s 1 7 95.9% 0.2% 5s

Vantage RFLC DRD4 1 8 100% 6.3% 2.3s 1 7 100% 8.4% 1.9s

Crestron Green Light GLX-DIM6 -- -- 100% 15% -- -- -- 100% 9% --

Crestron Green Light GLXX-2DIM8 -- -- 100% 15% -- -- -- 100% 9% --

Crestron Green Light

Crestron Green Light DIN-1DIM4 -- -- 100% 6% -- -- -- 100% 7% --

Crestron Green Light DIN-1DIMU4 -- -- 100% 14% -- -- -- 100% 9% --

Savant LMD-4120 -- -- 100% 3.5% <1s -- -- 100% 2.7% <1s

Savant LMD-8120 -- -- 100% 10.1% <1s -- -- 100% 10.4% <1s

Savant LMD-IN120 -- -- 100% 3.5% <1s -- -- 100% 3.1% <1s

Enclosure Module

Model

Minimum

Luminaires

SDM12 EM 1 25 96.1% 1.7% 3.4s 1 17 95.9% 0.2% 5s

EDIMMOD 1 37 98.8% 3.8% 2.4s 1 25 95.8% 4.9% 1.9s

CLS-EXPDIMU

-- -- 100% 8% -- -- -- 100% 11% --

Maximum

(per circuit)

Luminaires

(per circuit)

Maximum Measured

Minimum Measured

LE Start Time

20W

Minimum

Luminaires

Maximum

Luminaires

Maximum Measured

Minimum Measured

LE Start Time

15W

Series

Manufacturer

CWD Ilumen SC277-06-UN 1 38 100% 13% <1s 1 28 99.40% 16.58% <1s

CWD Aspire 9530AW 1 30 100% 5% <1s 1 21 100.00% 13.07% <1s

CWD Skye DE06P 1 30 98% 11% <1s 1 21 96.78% 14.81% <1s

CWD Devine RI061 1 30 99% 21% >1s 1 21 98.81% 24.23% >1s

CWD Devine TAL06P 1 37 100% 10% <1s 1 27 99.22% 11.91% <1s

CWD Toggle DAL06P 1 37 100% 4% <1s 1 27 99.16% 5.66% <1s

CWD Skye SAL06P 1 37 100% 9% <1s 1 27 99.16% 13.00% <1s

CWD Skye SLC06P 1 37 99% 2% >1s 1 27 98.27% 1.76% >1s

CWD Devine DLC06P 1 18 99% 2% >1s 1 13 98.57% 3.09% <1s

CWD Toggle TI061 1 30 97% 5% <1s 1 21 96.36% 12.58% <1s

CWD Smart AAL06 1 37 99% 10% <1s 1 27 98.51% 13.33% <1s

Model

Minimum

Luminaires

(per circuit)

Maximum

Luminaires

(per circuit)

Maximum Measured

Minimum Measured

LE Start Time

20W

Minimum

Luminaires

Maximum

Luminaires

Maximum Measured

Minimum Measured

LE Start Time

Eaton

1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lighting

Specifications and dimensions subject to change without notice.

ADI142612

11-12-2015

WIRING DIAGRAM

mM

Main

• Field wiring to conﬁrm to all naonal and local codes

Wiring Diagram

s

Control

Line

Load

Neutral

GND

120 50/60 Hz

Notes

• Consult controls manufacturer for detailed wiring and condions of acceptability

• Input voltage conngent on control and driver opons selected

ENERGY

ENERGY DATA

1ELTE = LE Phase Cut

Input Voltage 120V

Input Power (W) 16.3

Input Current (A) 0.14

15W

Inrush (A) 1.128

Input Power (W) 23.2

Input Current (A) 0.195

20W

Inrush (A) 1.112

T Ambient -40 - +40˚C

Power Factor ≥ 0.90

Sound Rating Class A

THD ≤ 20%

GND

Juncon

Box

Iris

Luminaire

Plaor

Input

P1

Line Neutral

Output

P2

+

-

Ground

Driver

odule

LED Array

Eaton

1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lighting

Specifications and dimensions subject to change without notice.

ADI142612

11-12-2015

COMPATIBLE CONTROLS

Iris

15W

Series

Manufacturer

Lutron Nova T

Lutron

Lutron GP Panels Various 1 26 100% 1% <1s 1 26 100% 1% <1s

Maestro Wireless

RadioRA2 1000 W

RadioRA2 Adaptive Dimmer

RadioRA 600 W

RadioRA 1000 W

HomeWorks QS 600 W

HomeWorks QS 1000 W

HomeWorks QS Adaptive Dimmer

HomeWorks QS WPM

HomeWorks 600 W Dimmer

HomeWorks 1000 W dimmer

HomeWorks WPM

GRAFIK Eye QSQSGR-,

GRAFIK Eye 3000

RPM-4U Module (LCP, HomeWorks,

GRAFIK Systems, Quantum)

RPM-4A Module (LCP, HomeWorks,

GRAFIK Systems, Quantum)

Model

Minimum

Luminaires

NTLV-600CPN0199

MRF26ND-120

RRD-10ND 1 13 100% 1% <1s 1 13 100% 1% <1s

RRD-6NA 1 8 100% 1% <1s 1 8 100% 1% <1s

RA-6ND 1 8 100% 1% <1s 1 8 100% 1% <1s

RA-10ND 1 13 100% 1% <1s 1 13 100% 1% <1s

HQRD-6ND 1 8 100% 1% <1s 1 8 100% 1% <1s

HQRD-10ND 1 13 100% 1% <1s 1 13 100% 1% <1s

HQRD-6NA 1 8 100% 1% <1s 1 8 100% 1% <1s

HQRJ-WPM6D-120

HRD-6ND 1 8 100% 1% <1s 1 8 100% 1% <1s

HWD-10ND, HRD-10ND

HWI-WPM6D-120

QSGRJ-

GRX-3100, GRX-3500

HW-RPM4U-120,

LP-RPM4U-120

HW-RPM4A-120,

LP-RPM4A-120

1 8 100% 1% <1s 1 8 100% 1% <1s

1 10 100% 1% <1s 1 10 100% 1% <1s

1 8 100% 1% <1s 1 8 100% 1% <1s

1 10 100% 1% <1s 1 10 100% 1% <1s

1 26 100% 1% <1s 1 26 100% 1% <1s

1 13 100% 1% <1s 1 13 100% 1% <1s

Maximum

Luminaires

Maximum Measured

Minimum Measured

LE Start Time

20W

Minimum

Luminaires

Maximum

Luminaires

Maximum Measured

Minimum Measured

LE Start Time

Lutron Stanza SZ-6ND 1 8 100% 1% <1s 1 8 100% 1% <1s

"Ariadni®

Lutron

C•L® 250 W dimmer"

"Diva® C•L® 250 W dimmer"

AYCL-253P- 1 8 100% 1% <1s 1 8 100% 1% <1s

DVCL253P- S

DVSCCL-253P 1 8 100% 1% <1s 1 8 100% 1% <1s

Eaton

1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lighting

1 8 100% 1% <1s 1 8 100% 1% <1s

Specifications and dimensions subject to change without notice.

ADI142612

11-12-2015

COMPATIBLE CONTROLS

Iris

15W

Series

Manufacturer

Vantage

Vantage ScenePoint DS / RD 1 7 95.1% 1.0% 1.90s 1 4 95.3% 1.0% 1.70s

Crestron Green Light GLX-DIM6 -- -- 100% 1% -- -- -- 100% 1% --

Crestron Green Light CLX-2DIM8 -- -- 100% 1% -- -- -- 100% 1% --

Crestron Green Light GLXX-2DIM8 -- -- 100% 1% -- -- -- 100% 1% --

Crestron Green Light CLS-EXP-DIM -- -- 100% 1% -- -- -- 100% 1% --

Crestron Green Light CLS-C6 -- -- 100% 1% -- -- -- 100% 1% --

Crestron Green Light CLW-DIMEX -- -- 100% 1% -- -- -- 100% 1% --

Crestron Green Light CLX-1DELV4 -- -- 100% 1% -- -- -- 100% 1% --

Crestron Green Light DIN-1DIMU4 -- -- 100% 1% -- -- -- 100% 1% --

Cooper Control

Savant -- LMD-8120 -- -- 100% 3.0% <1s -- -- 100% 3.0% <1s

Enclosure Module

ilumin

Model

Minimum

Luminaires

SDM12 EM 1 21 95.1% 1.0% 1.90s 1 17 95.3% 1.0% 1.70s

EDIMMOD 1 31 95.8% 0.9% 1.90s 1 25 96.2% 1.0% 1.80s

SC277-06UN-1P

1 38 99% 0% >1s 1 28 99% 0% <1s

Maximum

Luminaires

Maximum Measured

Minimum Measured

LE Start Time

20W

Minimum

Luminaires

Maximum

Luminaires

Maximum Measured

Minimum Measured

LE Start Time

Savant -- LMD-IN120 -- -- 100% 4.0% <1s -- -- 100% 4.0% <1s

Savant -- WCD-101xx -- -- 100% 3% <1s -- -- 100% 0.03 <1s

FINISH MULTIPLIERS

LI H G WMH WH WHH GP GPH K KH CC CCH B MB MW W

[Blank] = Smooth 1.14 1 1.04 1. 15 1.03 0.83 0.88 0.92 0.87 0.77 0.8 0.74 0.76 0.76 1.04 1.04

CB = Corrugated 1.1 2 0.98 1.02 1.1 3 1.0 1 0.81 0.86 0.90 0.85 0.75 0.78 0.73 0.74 0.74 1.02 1.02

LIGHTING FACTS

Eaton

1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lighting

Specifications and dimensions subject to change without notice.

ADI142612

11-12-2015

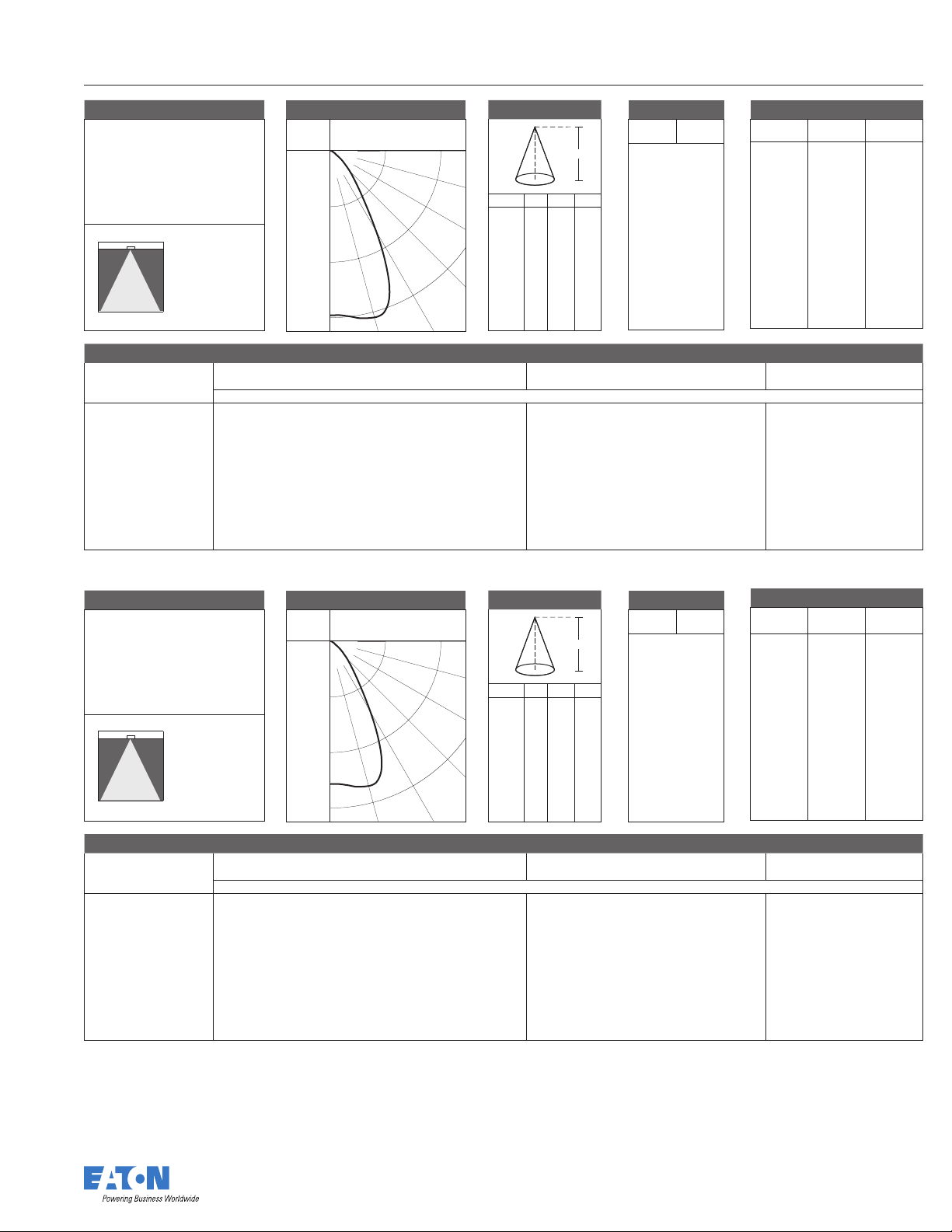

PHOTOMETRICS

Iris

Tes t Nu mber P128205

Platform P406TAT

Element MH4LED15V930E E4DLSR2GH

Lumens 676

Efficacy 46.9 Lm/W

SC 1. 03

COEFFICIENTS OF UTILIZATION

Ceiling 80% 70% 50% Wall % 70 50 30 10 50 30 10 50 10

RCR Zonal cav ity met hod -- fl oor refl ectan ce = 20%

0 119 119 119 11 9 11 6 116 116 111 111 1 113 110 107 105 108 10 5 10 3 104 100 2 107 101 97 93 99 95 92 96 90 3 100 93 88 84 92 87 83 89 82 4 95 87 80 76 85 80 75 83 74 5 90 80 74 69 79 73 69 78 68 6 85 75 68 64 74 68 64 73 63 7 80 70 64 59 69 63 59 68 58 8 76 66 59 55 65 59 55 64 54 9 72 62 55 51 61 55 51 60 51

10 68 58 52 48 58 52 48 57 47

CANDLEPOWER DISTRIBUTION

Downlight

200

400

600

15º

CONE OF LIGHT

90º

75º

60º

45º

30º

0º

D FC L W

5.5' 18.9 5.6 5.6

7' 11. 6 7.2 7.2

8' 8.9 8.2 8.2

9' 7 9.2 9.2

10' 5.7 10.2 10.2

12' 4 12.2 12.2

D

CANDELA TABLE

Degrees

Vertical

Candela

0 570

5 574

15 598

25 478

35 19 9

45 91

55 33

65 13

75 6

85 2

90 0

ZONAL LUMEN SUMMARY

Zone Lume ns %Fixture

0-30 435 64.3

0-40 566 83.8

0-60 657 9 7.2

0-90 676 10 0.0

90 -180 0 0

0-18 0 676 10 0.0

Tes t Nu mber P12 8197

Platform P406TAT

Element MH4LED20V930E E4DLSR2GH

Lumens 916

Efficacy 43.1 Lm /W

SC 1. 03

COEFFICIENTS OF UTILIZATION

Ceiling 80% 70% 50% Wall % 70 50 30 10 50 30 10 50 10

RCR Zonal cav ity met hod -- fl oor refl ectan ce = 20%

0 119 119 119 11 9 11 6 116 116 111 111 1 113 110 107 105 108 10 5 10 3 104 100 2 107 101 97 93 99 95 92 96 90 3 100 93 88 84 92 87 83 89 82 4 95 87 80 76 85 80 75 83 74 5 90 80 74 69 79 73 69 78 68 6 85 75 68 64 74 68 64 73 63 7 80 70 64 59 69 63 59 68 58 8 76 66 59 55 65 59 55 64 54 9 72 62 55 51 61 55 51 60 51

10 68 58 52 48 58 52 48 57 47

CANDLEPOWER DISTRIBUTION

Downlight

300

600

900

15º

CONE OF LIGHT

90º

75º

60º

45º

30º

0º

D FC L W

5.5' 25.6 5.6 5.6

7' 15. 8 7.2 7. 2

8' 12 .1 8.2 8.2

9' 9.6 9.2 9.2

10' 7.7 10.2 10. 2

12' 5.4 12.2 12. 2

D

CANDELA TABLE

Degrees

Vertical

Candela

0 774

5 779

15 812

25 648

35 270

45 124

55 45

65 18

75 8

85 2

90 0

ZONAL LUMEN SUMMARY

Zone Lume ns %Fixture

0-30 589 6 4.3

0-40 768 83.8

0-60 891 9 7.2

0-90 9 16 10 0.0

90 -180 0 0

0-18 0 916 10 0.0

Eaton

1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lighting

Specifications and dimensions subject to change without notice.

ADI142612

11-12-2015

PHOTOMETRICS

Iris

Tes t Nu mber P12 8206

Platform P406TAT

Element MH4LED15D930E E4DLSR2GH

Lumens 552

Efficacy 38.4 Lm/W

SC 1. 03

COEFFICIENTS OF UTILIZATION

Ceiling 80% 70% 50% Wall % 70 50 30 10 50 30 10 50 10

RCR Zonal cav ity met hod -- fl oor refl ectan ce = 20%

0 119 119 119 11 9 11 6 116 116 111 111 1 113 110 107 105 108 10 5 10 3 104 100 2 107 101 97 93 99 95 92 96 90 3 100 93 88 84 92 87 83 89 82 4 95 87 80 76 85 80 75 83 74 5 90 80 74 69 79 73 69 78 68 6 85 75 68 64 74 68 64 73 63 7 80 70 64 59 69 63 59 68 58 8 76 66 59 55 65 59 55 64 54 9 72 62 55 51 61 55 51 60 51

10 68 58 52 48 58 52 48 57 47

CANDLEPOWER DISTRIBUTION

Downlight

160

320

480

15º 30º

90º

75º

60º

45º

CONE OF LIGHT

0º

D FC L W

5.5' 15.4 5.6 5.6

7' 9.5 7. 2 7. 2

8' 7.3 8.2 8.2

9' 5.8 9.2 9.2

10' 4.7 10.2 10.2

12' 3.2 12 .2 12. 2

CANDELA TABLE

Degrees

Vertical

D

Candela

0 467

5 470

15 489

25 391

35 162

45 75

55 27

65 11

75 5

85 1

90 0

ZONAL LUMEN SUMMARY

Zone Lume ns %Fixture

0-30 355 64.3

0-40 463 83.8

0-60 537 9 7.2

0-90 552 10 0.0

90 -180 0 0

0-18 0 552 10 0.0

Tes t Nu mber P12 8198

Platform P406TAT

Element MH4L ED20D930E E4DLSR2G H

Lumens 749

Efficacy 35.2 Lm/ W

SC 1. 03

COEFFICIENTS OF UTILIZATION

Ceiling 80% 70% 50% Wall % 70 50 30 10 50 30 10 50 10

RCR Zonal cav ity met hod -- fl oor refl ectan ce = 20%

0 119 119 119 11 9 11 6 116 116 111 111 1 113 110 107 105 108 10 5 10 3 104 100 2 107 101 97 93 99 95 92 96 90 3 100 93 88 84 92 87 83 89 82 4 95 87 80 76 85 80 75 83 74 5 90 80 74 69 79 73 69 78 68 6 85 75 68 64 74 68 64 73 63 7 80 70 64 59 69 63 59 68 58 8 76 66 59 55 65 59 55 64 54 9 72 62 55 51 61 55 51 60 51

10 68 58 52 48 58 52 48 57 47

CANDLEPOWER DISTRIBUTION

Downlight

250

500

750

15º 30º

90º

75º

60º

45º

CONE OF LIGHT

0º

D FC L W

5.5' 20.9 5.6 5.6

7' 12. 9 7. 2 7. 2

8' 9.9 8.2 8.2

9' 7.8 9.2 9.2

10' 6.3 10.2 10. 2

12' 4.4 12.2 12. 2

CANDELA TABLE

Degrees

Vertical

D

Candela

0 633

5 637

15 664

25 530

35 220

45 101

55

65

75

85

90

37

15

6

2

0

ZONAL LUMEN SUMMARY

Zone Lume ns %Fixture

0-30 4 82 64.3

0-40 628 83.8

0-60 728 9 7.2

0-90 749 100.0

90 -180 0 0

0-18 0 749 100 .0

Eaton

1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.eaton.com/lighting

Specifications and dimensions subject to change without notice.

ADI142612

11-12-2015
