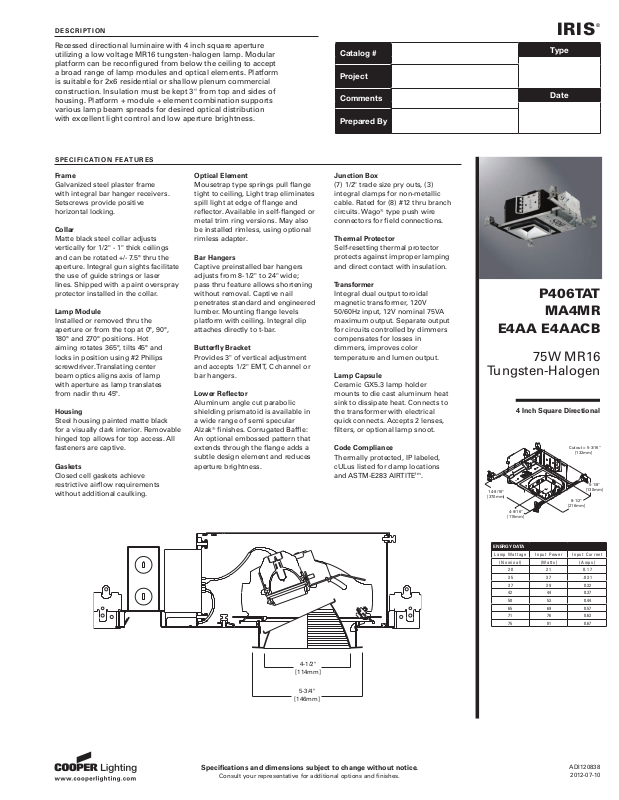

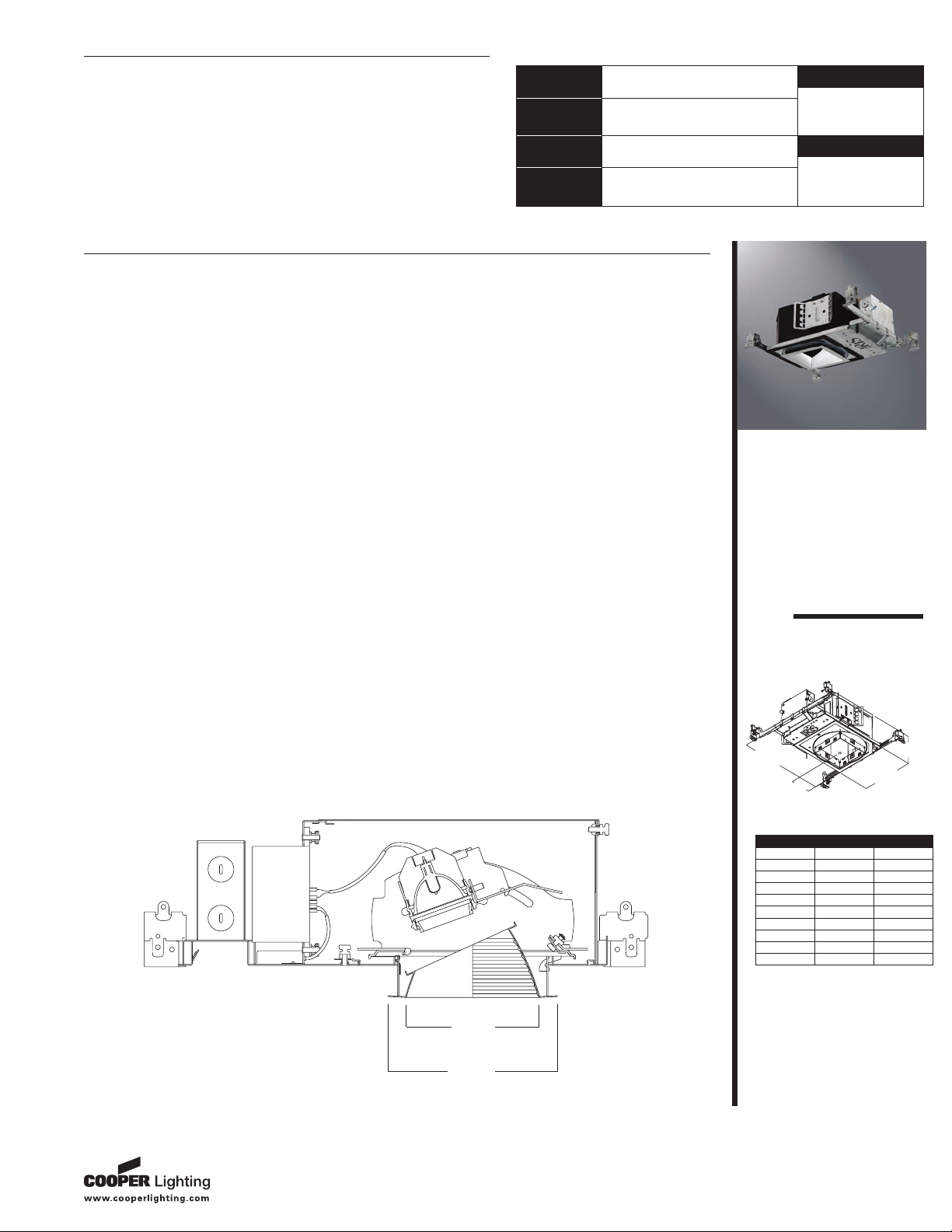

DESCRIPTION
Recessed directional luminaire with 4 inch square aperture
utilizing a low voltage MR16 tungsten-halogen lamp. Modular
platform can be reconfigured from below the ceiling to accept
a broad range of lamp modules and optical elements. Platform
is suitable for 2x6 residential or shallow plenum commercial
construction. Insulation must be kept 3" from top and sides of
housing. Platform + module + element combination supports
various lamp beam spreads for desired optical distribution
with excellent light control and low aperture brightness.
SPECIFICATION FEATURES
Frame
Galvanized steel plaster frame
with integral bar hanger receivers.
Setscrews provide positive
horizontal locking.
Optical Element
Mousetrap type springs pull flange
tight to ceiling, Light trap eliminates
spill light at edge of flange and
reflector. Available in self-flanged or
metal trim ring versions. May also
Collar
Matte black steel collar adjusts
be installed rimless, using optional
rimless adapter.
vertically for 1/2" - 1" thick ceilings
and can be rotated +/- 7.5° thru the
aperture. Integral gun sights facilitate
the use of guide strings or laser
lines. Shipped with a paint overspray
protector installed in the collar.
Bar Hangers
Captive preinstalled bar hangers
adjusts from 8-1/2" to 24" wide;
pass thru feature allows shortening
without removal. Captive nail
penetrates standard and engineered
Lamp Module
Installed or removed thru the
aperture or from the top at 0°, 90°,
lumber. Mounting flange levels
platform with ceiling. Integral clip
attaches directly to t-bar.
180° and 270° positions. Hot
aiming rotates 365°, tilts 45° and
locks in position using #2 Philips
screwdriver. Translating center
beam optics aligns axis of lamp
Buttery Bracket
Provides 3" of vertical adjustment
and accepts 1/2" EMT, C channel or
bar hangers.
with aperture as lamp translates
from nadir thru 45°.
Lower Reector
Aluminum angle cut parabolic
Housing
Steel housing painted matte black
for a visually dark interior. Removable
hinged top allows for top access. All
fasteners are captive.
shielding prismatoid is available in
a wide range of semi specular
®
finishes. Corrugated Baffle:
Alzak
An optional embossed pattern that
extends through the flange adds a
subtle design element and reduces
Gaskets
aperture brightness.
Closed cell gaskets achieve
restrictive airflow requirements
without additional caulking.
Catalog #
Project
Comments
Prepared By
Junction Box
(7) 1/2" trade size pry outs, (3)
integral clamps for non-metallic
cable. Rated for (8) #12 thru branch
circuits. Wago
connectors for field connections.
Thermal Protector
Self-resetting thermal protector
protects against improper lamping
and direct contact with insulation.
Transformer
Integral dual output toroidal
magnetic transformer, 120V
50/60Hz input, 12V nominal 75VA
maximum output. Separate output
for circuits controlled by dimmers
compensates for losses in
dimmers, improves color
temperature and lumen output.
Lamp Capsule
Ceramic GX5.3 lamp holder
mounts to die cast aluminum heat
sink to dissipate heat. Connects to
the transformer with electrical
quick connects. Accepts 2 lenses,
filters, or optional lamp snoot.
Code Compliance
Thermally protected, IP labeled,
cULus listed for damp locations
and ASTM-E283 AIRTITE
®
type push wire
tm
.
IRIS
Type
Date
P406TAT
MA4MR
E4AA E4AACB
75W MR16
Tungsten-Halogen
4 Inch Square Directional
Cutout = 5-3/16"
[132mm]
5-1/8"
14-9/16"
[370mm]
4-9/16"
[115mm]
ENERGY DATA
Lamp Wattage Input Power Input Current
(Nominal) (Watts) (Amps)
20 21 0.17
35 37 .031
37 39 0.32
42 44 0.37
50 53 0.44
65 69 0.57
71 76 0.63
75 81 0.67
8-1/2"
[216mm]
[130mm]
®
4-1/2"
[114mm]
5-3/4"
[146mm]
Specications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
ADI120838
2012-07-10
Page 2
IRIS
'2
'3
'4
'5
'6
'2
'3
'4
'5

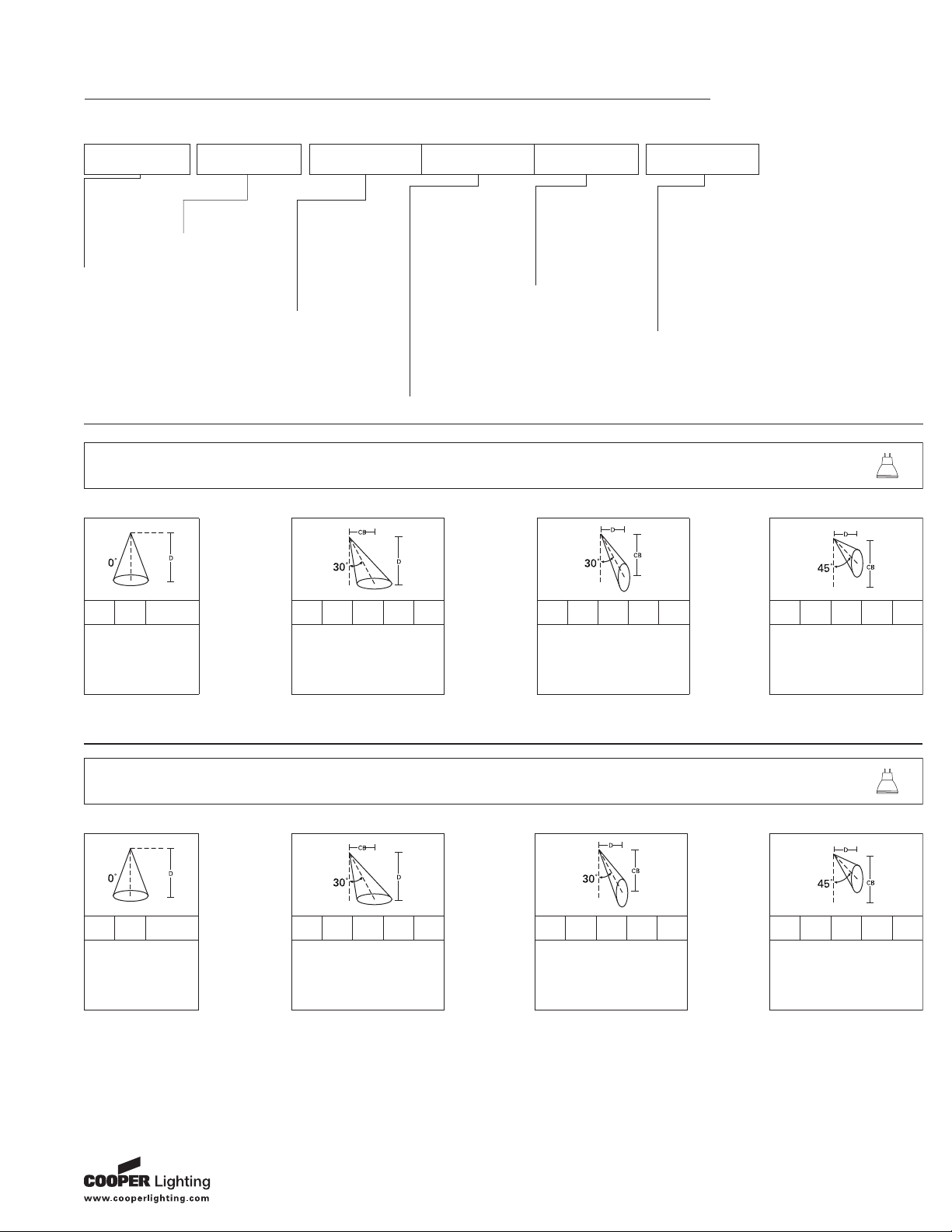

ORDERING INFORMATION: Complete unit consists of platform, lamp module and optical element.
Example: P406TAT + MA4MR + E4AAHSF
Platform
Lamp Module FlangeFinish
Optical Element
MA4MR
P406TAT = 4"
Square Aperture
Non-IC Housing
P406TCP = 4"
Square Aperture
Non-IC Chicago
Plenum Housing
PHOTOMETRICS P406TAT MA4MR E4AA E4AACB
MA4MR = MR16
Directional Lamp
Module, 120V Input
E4AA = 4" Square
Aperture Angle Cut
Lower Shielding
Prismatoid, Open
E4AACB = 4" Square
Aperture Corrugated
Angle Cut Lower
Shielding Prismatoid,
Open
Trim: E4AAH
Lamp: 42MR16VNSP9
®
Alzak
Finishes
LI = Specular Clear, Low
Iridescence
H = Semi-Specular Clear
G = Gold
WMH = Warm Haze
WH = Wheat
WHH = Wheat Haze
GP = Graphite
GPH = Graphite Haze
K = Cognac
KH = Cognac Haze
CC = Chocolate
CCH = Chocolate Haze
B = Black
Painted Finishes
MB = Matte Black
MW = Matte White
W = Gloss White
[Blank] = Metal Trim
Ring, Matte White
SF = Self Flanged
SFWF = Self Flanged,
Matte White Flange
(SFWF not available
with corrugated baffle)
RL = Rimless, use with
rimless adapter
Accessories
RA4X4 = Rimless adapter for 4" optical
elements
PLR4X4 = Plaster lathing ring for rimless
RLA4X4 = Rimless adapter for solid ceiling
surfaces
LSA16 = Matte black lamp snoot accessory
L4X4HEX = Matte black hex cell louver
MTR4MW = Metal trim ring, matte white
MTR4MB = Metal trim ring, matte black
MTR4SN = Metal trim ring, satin nickel
MTR4TBZ = Metal trim ring, tuscan bronze
L Series - Filter Media For MR16 lamps
(See Accessories specification sheet)
®
0º Horizontal Aiming
DFC
Beam
Diameter
8' 12 6 1.1'
9' 100 1.2'
10'81 1.3'
13'48 1.7'
15'36 2.0'
Trim: E4AAH
Lamp: 50W MR16 IR SP10
0º Horizontal Aiming
DFC
8' 183 1.3'
9' 144 1.5'
10' 117 1.6'
13'69 2.1'
15'52 2.5'
Beam
Diameter
30º Horizontal Footcandles
DFCL WCB
8' 85 1.7' 1.2' 4.6
9' 67 1.9' 1.3' 5.2
10'54 2.1' 1.4' 5.8
13'32 2.7' 1.9' 7.5
15'24 3.1' 2.2' 8.7
30º Horizontal Footcandles
DFCL WCB
8' 109 2.0' 1.7' 4.6
9' 86 2.2' 1.9' 5.2
10'70 2.5' 2.1' 5.8
13'41 3.2' 2.7' 7. 5
15'31 3.7' 3.1' 8.7
30º Vertical Footcandles
DFCL WCB
2' 2901.1'0.6'3.5
3' 1291.6'0.8'5.2
4' 72 2.1' 1. 1' 6.9
5' 46 2.7' 1.4' 8.7
6' 32 3.2' 1.7' 10.4
30º Vertical Footcandles
DFCL WCB
2' 390 1.3' 0.7' 3.5
3' 1731.9'1.0'5.2
4' 98 2.6' 1.4' 6.9
5' 62 3.2' 1.7' 8.7
6' 43 3.8' 2.0' 10.4
45º Vertical Footcandles
DFCLWCB
2' 7760.6'0.4
3' 3460.9' 0.6
4' 1940.2' 0.8
5' 12 41.5' 1.0
6' 86 1.8' 1.1' 6
45º Vertical Footcandles
DFCLWCB
2' 9630.7'0.5
3' 4281.1'0.8
4' 2411.4'1.1
5' 1541.8'1.3
6' 1072.1'1.6
Specications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
ADI120838
2012-07-10

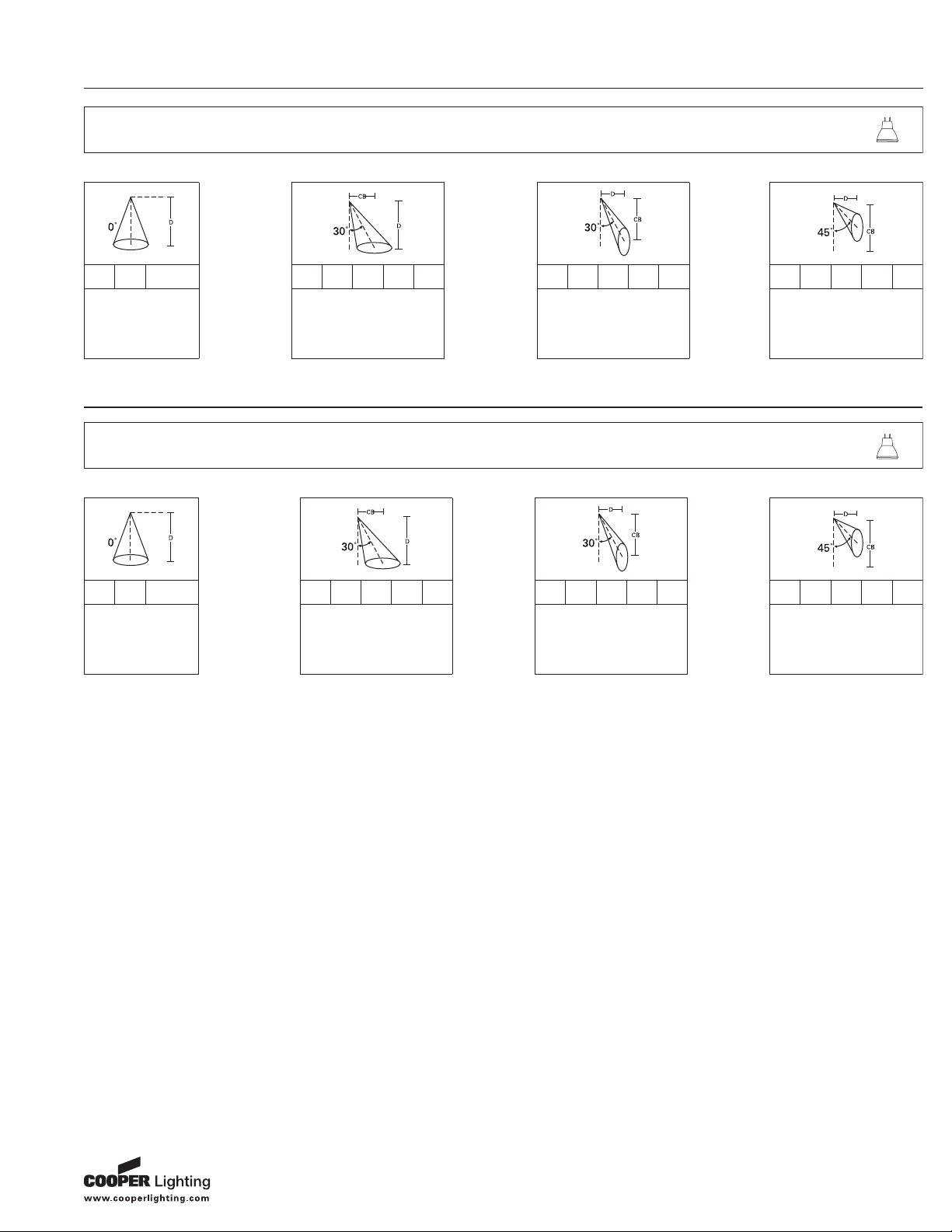

Page 3
Trim: E4AAH
Lamp: 42MR16VNSP9
Trim: E4AAH
Lamp: 50W MR16 IR SP10
DFCLWCB
2' 9630.7'0.5'2
3' 4281.1'0.8'3
4' 2411.4'1.1'4
5' 1541.8'1.3'5
6' 1072.1'1.6'6
30º Vertical Footcandles
DFCL WCB
2' 390 1.3' 0.7' 3.5
3' 1731.9'1.0'5.2
4' 98 2.6' 1.4' 6.9
5' 62 3.2' 1.7' 8.7
6' 43 3.8' 2.0' 10.4
DFCL WCB
8' 109 2.0' 1.7' 4.6
9' 86 2.2' 1.9' 5.2
10'70 2.5' 2.1' 5.8
13'41 3.2' 2.7' 7. 5
15'31 3.7' 3.1' 8.7
DFC
Beam
Diameter
8' 183 1.3'
9' 144 1.5'
10' 117 1.6'
13'69 2.1'
15'52 2.5'
45º Vertical Footcandles
45º Vertical Footcandles
DFCLWCB
2' 7760.6'0.4'2
3' 3460.9' 0.6'3
4' 1940.2' 0.8'4
5' 12 41.5' 1.0'5
6' 86 1.8' 1.1' 6
30º Vertical Footcandles
DFCL WCB
2' 2901.1'0.6'3.5
3' 1291.6'0.8'5.2
4' 72 2.1' 1. 1' 6.9
5' 46 2.7' 1.4' 8.7
6' 32 3.2' 1.7' 10.4
30º Horizontal Footcandles
30º Horizontal Footcandles
DFCL WCB
8' 85 1.7' 1.2' 4.6
9' 67 1.9' 1.3' 5.2
10'54 2.1' 1.4' 5.8
13'32 2.7' 1.9' 7.5
15'24 3.1' 2.2' 8.7
0º Horizontal Aiming
0º Horizontal Aiming
DFC
Beam
Diameter
8' 12 6 1.1'
9' 100 1.2'
10'81 1.3'
13'48 1.7'
15'36 2.0'
'2
'3
'2
'3
'4
PHOTOMETRICS P406TAT MA4MR E4AA E4AACB
Trim: E4AAH
Lamp: 65W MR16 40FL
0º Horizontal Aiming
30º Horizontal Footcandles
30º Vertical Footcandles
45º Vertical Footcandles
IRIS
®
DFC
8' 29 5.2'
9' 23 5.8'
10'19 6.5'
13'11 8.4'
15'8 9.7'
Beam
Diameter
Trim: E4AAH
Lamp: 71MR16 NFL
0º Horizontal Plane
DFC
8' 57 3.4'
9' 45 3.8'
10'37 4.2'
13'22 5.5'
15'16 6.3'
Beam
Diameter
DFCL WCB
8' 21 5.5' 5.6' 4.6
9' 17 6.2' 6.3' 5.2
10'13 6.9' 7.0' 5.8
13'89.0' 9.0' 7. 5
15'610.4' 10.4' 8.7
30º Horizontal Plane
DFCL WCB
8' 39 3.9' 3.5' 4.6
9' 31 4.4' 4.0' 5.2
10'25 4.9' 4.4' 5.8
13'156.3' 5.8' 7.5
15'11 7.3' 6.6' 8.7
DFCL WCB
2' 121 2.0'1.9'3.5
3' 54 3.0' 2.8' 5.2
4' 30 4.0' 3.8' 6.9
5' 19 5.0' 4.7' 8.7
6' 13 6.0' 5.7' 10.4
30º Vertical Plane
DFCL WCB
2' 1652.1'1.3'3.5
3' 73 3.1' 2.0' 5.2
4' 41 4.1' 2.7' 6.9
5' 26 5.1' 3.3' 8.7
6' 18 6.2' 4.0' 10.4
DFCLWCB
2' 2011.6'1.7
3' 89 2.4' 2.6
4' 50 3.2' 3.4
5' 32 4.0' 4.3' 5
6' 22 4.8' 5.1' 6
45º Vertical Plane
DFCLWCB
2' 3571.3'1.0
3' 1592.0'1.6
4' 89 2.6' 2.1' 4
5' 57 3.3' 2.6' 5
6' 40 3.9' 3.1' 6
Specications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
ADI120838
2012-07-10
