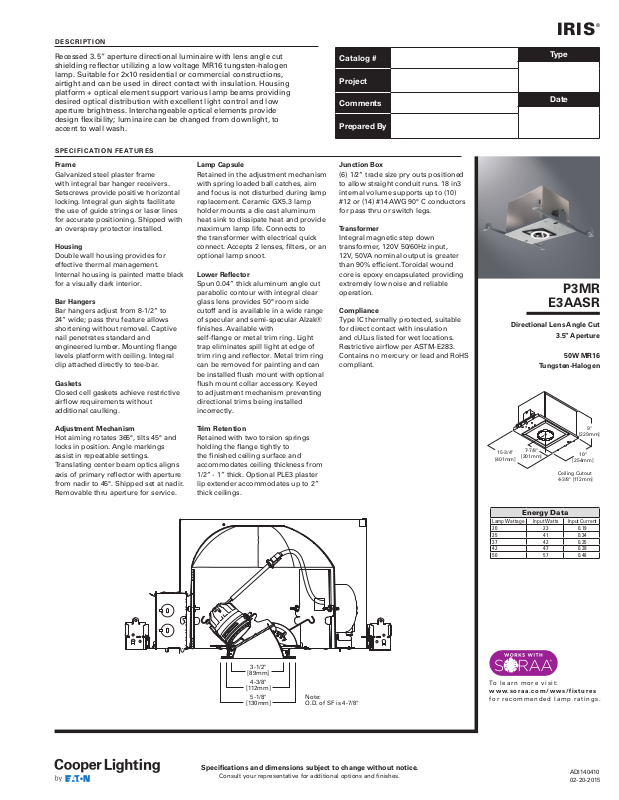

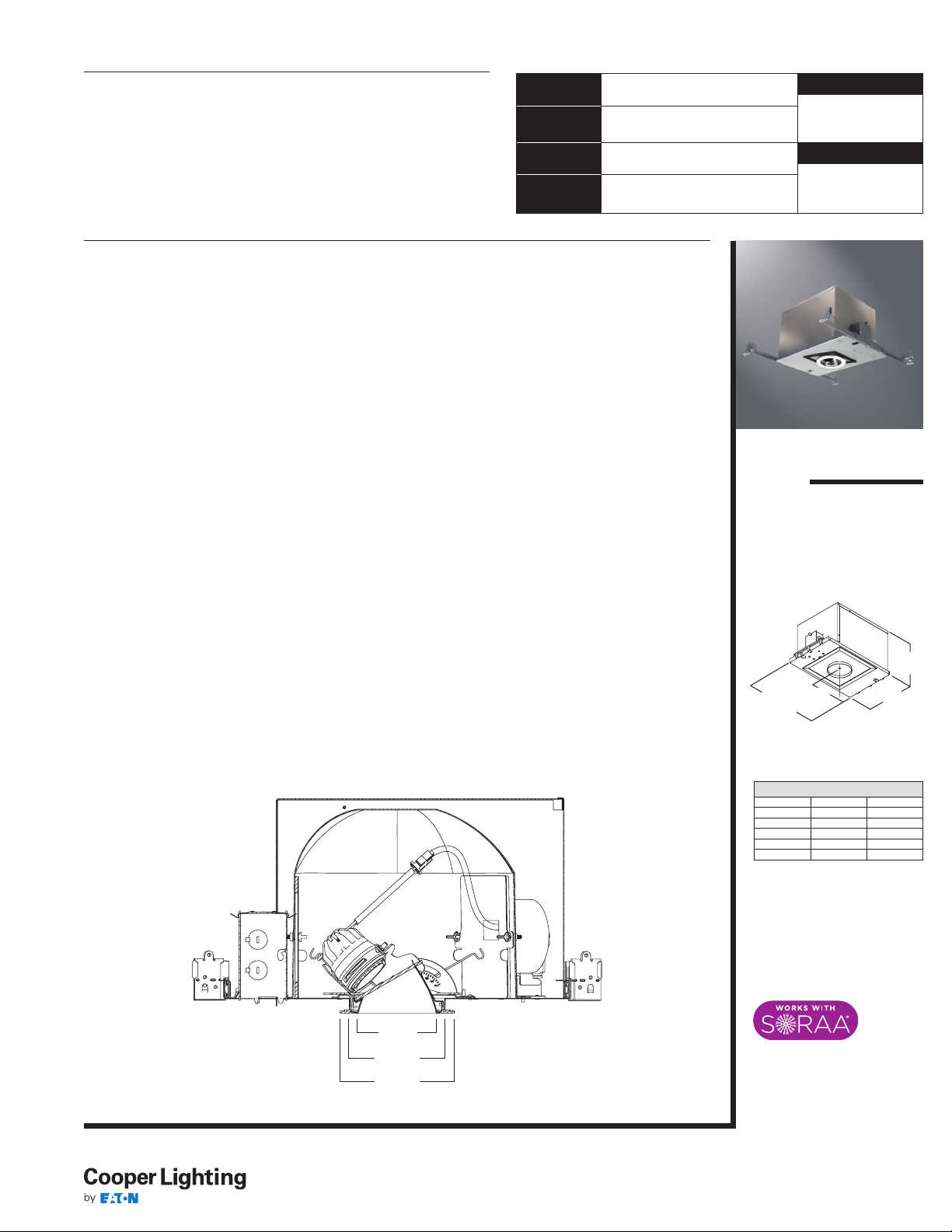

Page 1
DESCRIPTION
Recessed 3.5” aperture directional luminaire with lens angle cut
shielding reflector utilizing a low voltage MR16 tungsten-halogen
lamp. Suitable for 2x10 residential or commercial constructions,
airtight and can be used in direct contact with insulation. Housing
platform + optical element support various lamp beams providing
desired optical distribution with excellent light control and low
aperture brightness. Interchangeable optical elements provide
design flexibility; luminaire can be changed from downlight, to
accent to wall wash.
SPECIFICATION FEATURES
Frame
Galvanized steel plaster frame
with integral bar hanger receivers.
Setscrews provide positive horizontal
locking. Integral gun sights facilitate
the use of guide strings or laser lines
for accurate positioning. Shipped with
an overspray protector installed.
Lamp Capsule
Retained in the adjustment mechanism
with spring loaded ball catches, aim
and focus is not disturbed during lamp
replacement. Ceramic GX5.3 lamp
holder mounts a die cast aluminum
heat sink to dissipate heat and provide
maximum lamp life. Connects to
the transformer with electrical quick
Housing
Double wall housing provides for
connect. Accepts 2 lenses, filters, or an
optional lamp snoot.
effective thermal management.
Internal housing is painted matte black
for a visually dark interior.
Lower Reflector
Spun 0.04” thick aluminum angle cut
parabolic contour with integral clear
Bar Hangers
Bar hangers adjust from 8-1/2” to
24” wide; pass thru feature allows
shortening without removal. Captive
nail penetrates standard and
engineered lumber. Mounting flange
levels platform with ceiling. Integral
clip attached directly to tee-bar.
glass lens provides 50° room side
cutoff and is available in a wide range
of specular and semi-specular Alzak®
finishes. Available with
self-flange or metal trim ring. Light
trap eliminates spill light at edge of
trim ring and reflector. Metal trim ring
can be removed for painting and can
be installed flush mount with optional
Gaskets
Closed cell gaskets achieve restrictive
airflow requirements without
additional caulking.
flush mount collar accessory. Keyed
to adjustment mechanism preventing
directional trims being installed
incorrectly.
Adjustment Mechanism
Hot aiming rotates 365°, tilts 45° and
locks in position. Angle markings
assist in repeatable settings.
Translating center beam optics aligns
axis of primary reflector with aperture
from nadir to 45°. Shipped set at nadir.
Removable thru aperture for service.
Trim Retention
Retained with two torsion springs
holding the flange tightly to
the finished ceiling surface and
accommodates ceiling thickness from
1/2” - 1” thick. Optional PLE3 plaster
lip extender accommodates up to 2”
thick ceilings.
Catalog #
Project
Comments
Prepared By
Junction Box
(6) 1/2” trade size pry outs positioned
to allow straight conduit runs. 18 in3
internal volume supports up to (10)
#12 or (14) #14 AWG 90° C conductors
for pass thru or switch legs.
Transformer
Integral magnetic step down
transformer, 120V 50/60Hz input,
12V, 50VA nominal output is greater
than 90% efficient. Toroidal wound
core is epoxy encapsulated providing
extremely low noise and reliable
operation.
Compliance
Type IC thermally protected, suitable
for direct contact with insulation
and cULus listed for wet locations.
Restrictive airflow per ASTM-E283.
Contains no mercury or lead and RoHS
compliant.
IRIS
Type
Date
E3AASR
Directional Lens Angle Cut
3.5” Aperture
Tungsten-Halogen
7-7/8"
15-3/4"
[201mm]
[401mm]
Ceiling Cutout
4-3/8" [112mm]
P3MR
50W MR16
9"
[229mm]
10"
[254mm]
®
3-1/2"
[89mm]
4-3/8"
[112mm]
5-1/8"
[130mm]
Note:
O.D. of SF is 4-7/8"
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Energy Data
Lamp Wattage Input Watts Input Current
20 23 0.19
35 41 0.34
37 42 0.35
42 47 0.39
50 57 0.48
To learn more visit:
www.soraa.com/wws/fixtures
for recommended lamp ratings.
ADI140410
02-20-2015
Page 2
ORDERING INFORMATION P3MR E3AASR
=Plaster lip extender for up to 2” thick ceilings
Housing Optical Element FinishesOptions Accessories
P3MR=3.5” aperture IC, AT low
voltage 50W MR16 housing platform
w/integral 120V transformer
P3MRDR20=3.5” aperture IC, AT low
voltage 20W MR16 housing platform
w/integral 120V transformer
P3MRDR35=3.5” aperture IC, AT low
voltage 35W MR16 housing platform
w/integral 120V transformer
P3MRDR37=3.5” aperture IC, AT low
voltage 37W MR16 housing platform
w/integral 120V transformer
P3MRREMOTE=3.5” aperture IC, AT
low voltage MR16 housing platform
for remote transformer
E3AASR=3.5” aperture lens angle cut
reflector
Alzak Finishes
C=Specular Clear
H=Semi-Specular Clear
G=Gold
WMH=Warm Haze
WH=Wheat
WHH=Wheat Haze
GP=Graphite
GPH=Graphite Haze
K=Cognac
KH=Cognac Haze
CC=Chocolate
CCH=Chocolate Haze
B=Black
Painted Finishes
MW=Matte white
W=Gloss white
(Blank)=Metal trim ring,
matte white
SF=Self-flanged
SFWF=Self-flanged, matte
white flange
FMC3=Flush mount collar accessory
PLE3
LSA16=Matte black lamp snoot accessory, for use
with die cast lamp capsule
LHEX=2-inch diameter matte black hex cell louver
provides 45° cutoff
LLNR=Skytek linear spread lens
LSF=Solite lens
LSPD=Crystal #73 prismatic spread lens
LUV=Ultraviolet reducing lens
L27K=2,700°K dichroic filter
LLPINK=Light Pink
LLSTRAW=Light Straw
LDAY=Daylight Filter
LPLAV=Pale Lavender
LSPINK=Surprise Pink

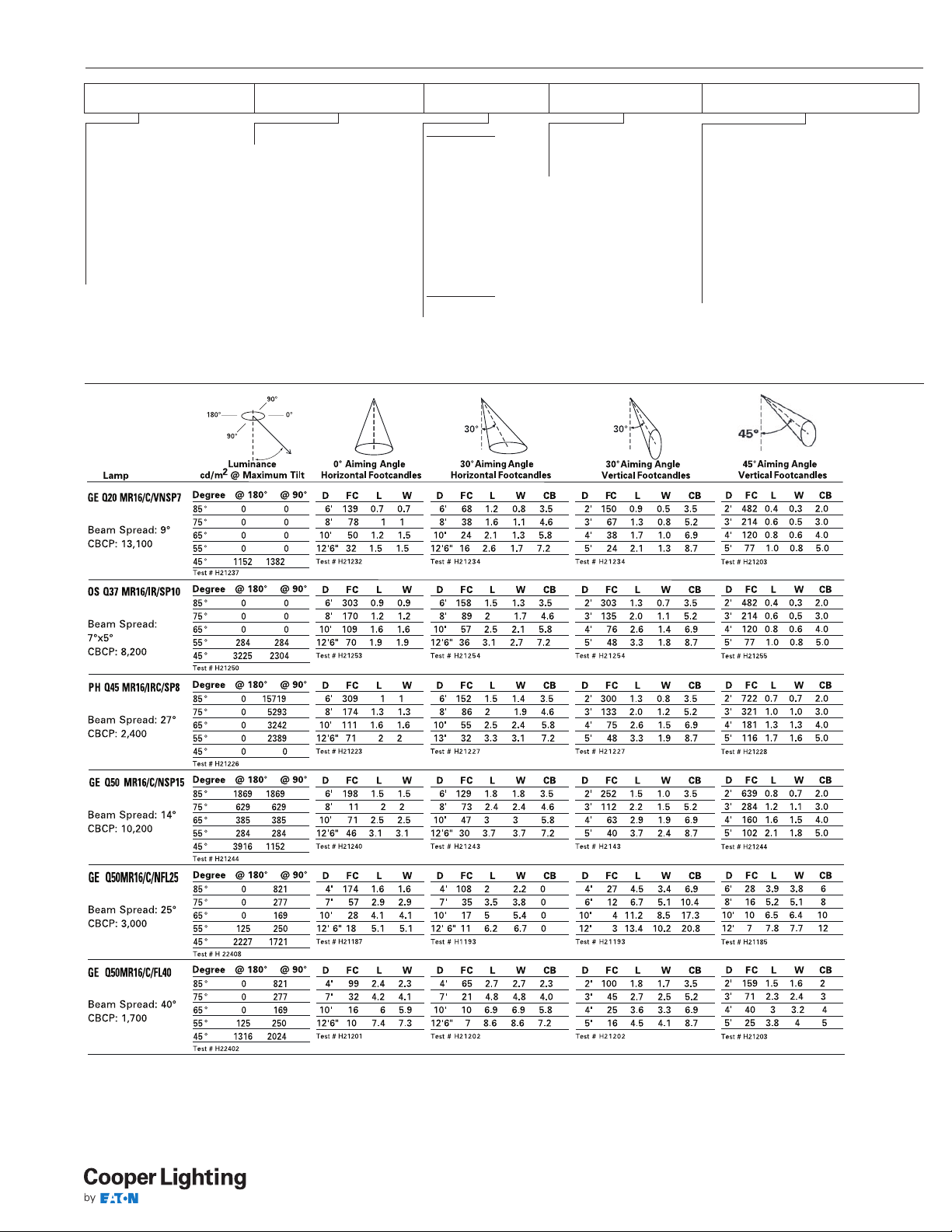

PHOTOMETRICS
IRIS
®
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
ADI140410
02-20-2015
