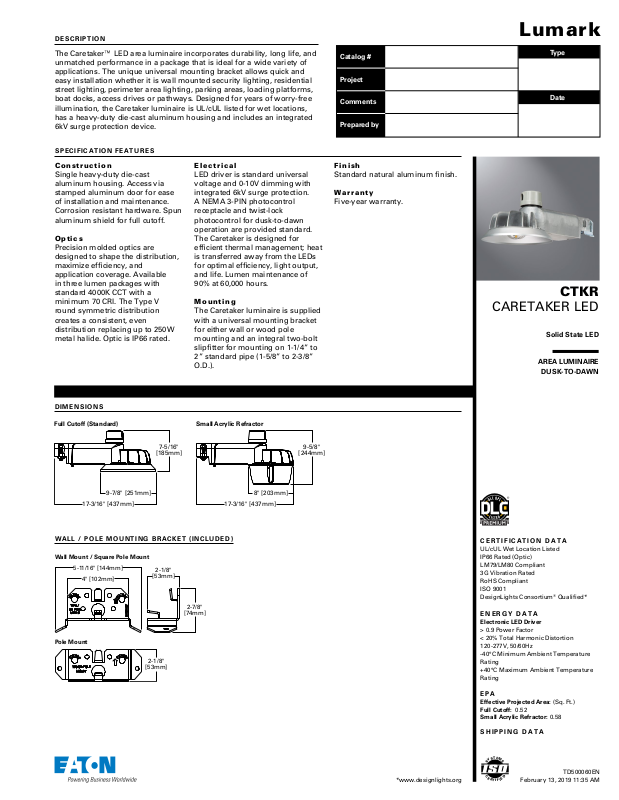

Page 1
DESCRIPTION
Small Acrylic RefractorFull Cutoff (Standard)
Wall Mount / Square Pole Mount
S
T
E
M
R
T
I
F
*www.designlights.org
The Caretaker™ LED area luminaire incorporates durability, long life, and
unmatched performance in a package that is ideal for a wide variety of
applications. The unique universal mounting bracket allows quick and
easy installation whether it is wall mounted security lighting, residential
street lighting, perimeter area lighting, parking areas, loading platforms,
boat docks, access drives or pathways. Designed for years of worry-free
illumination, the Caretaker luminaire is UL/cUL listed for wet locations,
has a heavy-duty die-cast aluminum housing and includes an integrated
6kV surge protection device.
SPECIFICATION FEATURES
Construction
Single heavy-duty die-cast
aluminum housing. Access via
stamped aluminum door for ease
of installation and maintenance.
Corrosion resistant hardware. Spun
aluminum shield for full cutoff.
Electrical
LED driver is standard universal
voltage and 0-10V dimming with
integrated 6kV surge protection.
A NEMA 3-PIN photocontrol
receptacle and twist-lock
photocontrol for dusk-to-dawn
operation are provided standard.
Optics
Precision molded optics are
designed to shape the distribution,
maximize efficiency, and
application coverage. Available
in three lumen packages with
The Caretaker is designed for
efficient thermal management; heat
is transferred away from the LEDs
for optimal efficiency, light output,
and life. Lumen maintenance of
90% at 60,000 hours.
standard 4000K CCT with a
minimum 70 CRI. The Type V
round symmetric distribution
creates a consistent, even
distribution replacing up to 250W
metal halide. Optic is IP66 rated.
Mounting
The Caretaker luminaire is supplied
with a universal mounting bracket
for either wall or wood pole
mounting and an integral two-bolt
slipfitter for mounting on 1-1/4” to
2” standard pipe (1-5/8” to 2-3/8”
O.D.).
Catalog #
Project
Comments
Prepared by
Finish
Standard natural aluminum finish.
Warranty
Five-year warranty.
Lumark
Type
Date
CTKR
CARETAKER LED
Solid State LED
AREA LUMINAIRE
DUSK-TO-DAWN

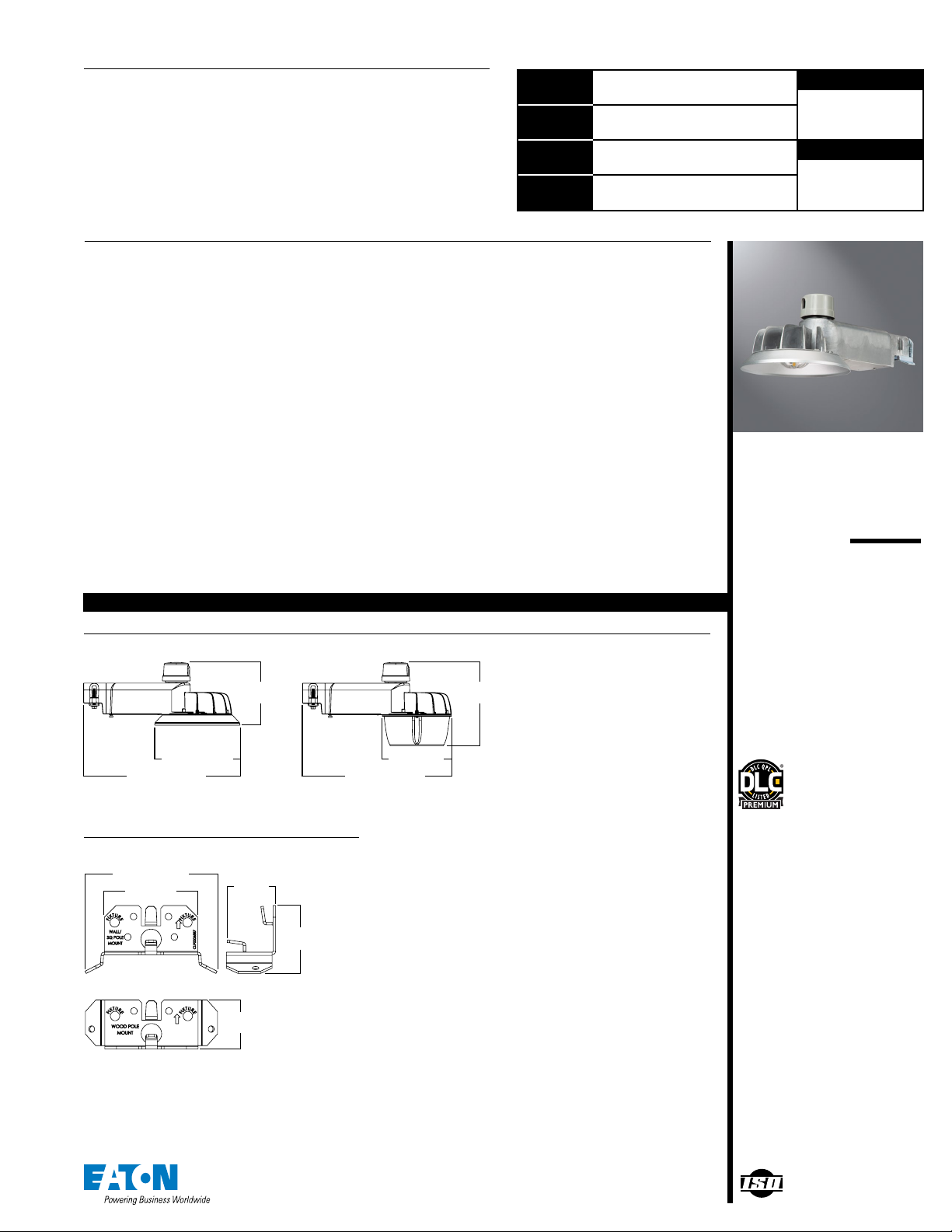

DIMENSIONS
17-3/16" [437mm]
WALL / POLE MOUNTING BRACKET (INCLUDED)
5-11/16" [144mm]
4" [102mm]
Pole Mount
9-7/8" [251mm]
7-5/16"
[185mm]
2-1/8"
[53mm]
2-1/8"
[53mm]
2-7/8"
[74mm]
8" [203mm]
17-3/16" [437mm]
9-5/8"
[244mm]
CERTIFICATION DATA
UL/cUL Wet Location Listed
IP66 Rated (Optic)
LM79/LM80 Compliant
3G Vibration Rated
RoHS Compliant
ISO 9001
DesignLights Consortium
ENERGY DATA
Electronic LED Driver
> 0.9 Power Factor
< 20% Total Harmonic Distortion
120-277V, 50/60Hz
-40°C Minimum Ambient Temperature
Rating
+40°C Maximum Ambient Temperature
Rating
EPA
Effective Projected Area: (Sq. Ft.)
Full Cutoff: 0.52
Small Acrylic Refractor: 0.58
SHIPPING DATA
®
Qualified*
S
Y
S
C
D
E
E
I
February 13, 2019 11:35 AM
TD500060EN
Page 2
CTKR CARETAKER LEDpage 2
POWER AND LUMENS
LUMEN MULTIPLIER
Light Engine 1B 2B 3B
Power (Wat ts) 29W 50W 71W
Input Current @ 120V (A) 0.25 0.42 0.60
Input Current @ 277V (A) 0 .11 0 .17 0.26
Standard
Small A cryl ic
Refractor
Lumens 4,515 7,110 9, 741
BUG Rating B3- U0-G1 B3-U0 -G2 B4-U0-G2
Lumens 4,435 6,983 9,56 7
BUG Rating B3-U3-G2 B3-U3-G2 B4-U3-G3
LUMEN MAINTENANCE
CTKRV1B, CTKRV2B
CTKRV3B
ORDERING INFORMATION
Stock Number Accessories (Order Separately)
CTKRV1B=Caretaker 29W, 4500lm, UNV, Dimming, Photocontrol
CTKRV2B=Caretaker 50W, 7100lm, UNV, Dimming, Photocontrol
CTKRV3B=Caretaker 71W, 9700lm, UNV, Dimming, Photocontrol
SR-CARETAKER=Small Acrylic Refractor
RMARROA5=ANSI/NEMA Acrylic Refractor Assembly
DS-HSS-CRTK2=Drop Shield House Side Shield
OA/RA1013=Shorting Cap
Ambient
Temperature
Lumen
Multiplier
10°C 1.02
15°C 1. 01
25°C 1.0 0
40°C 0.99
Ambient
Temperature
TM-21 Lumen
Maintenance
(60,000 Hours)
Theoretical L70
25°C 90.72% >220,00 0
40°C 90.72% >220,00 0
25°C 90.72% >220,00 0
40°C 87.70% >162,000
(Hours)
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
February 13, 2019 11:35 AM
TD500060EN
