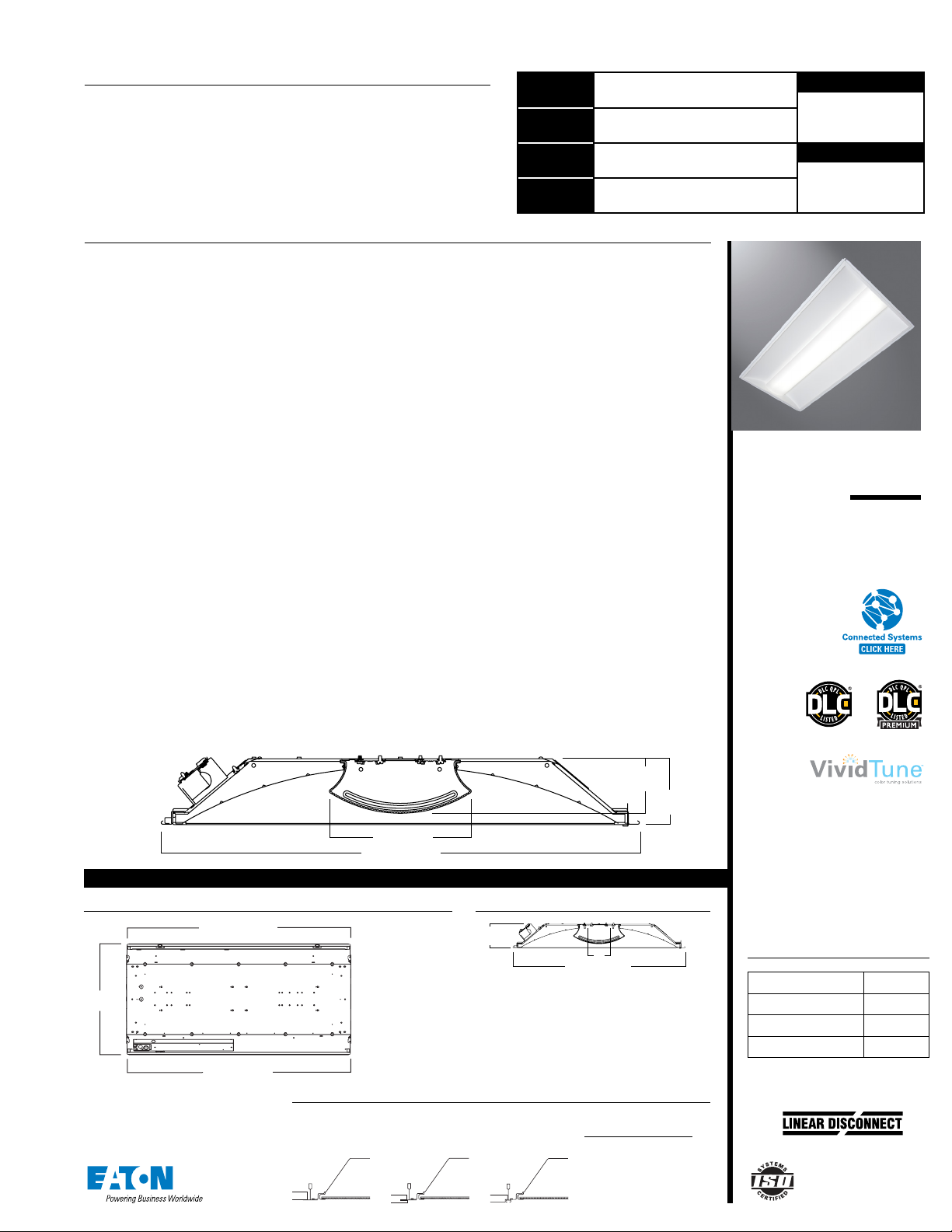

Cooper Lighting LLC CPK1868 Specifications

[83mm]

23-3/4" [603mm]

Safe and convenient means of

[603mm]

47-3/4" [1212mm]

47-15/16" [1218mm]

[83mm]

23-3/4" [603mm]

Ceiling Trim

G

G

G

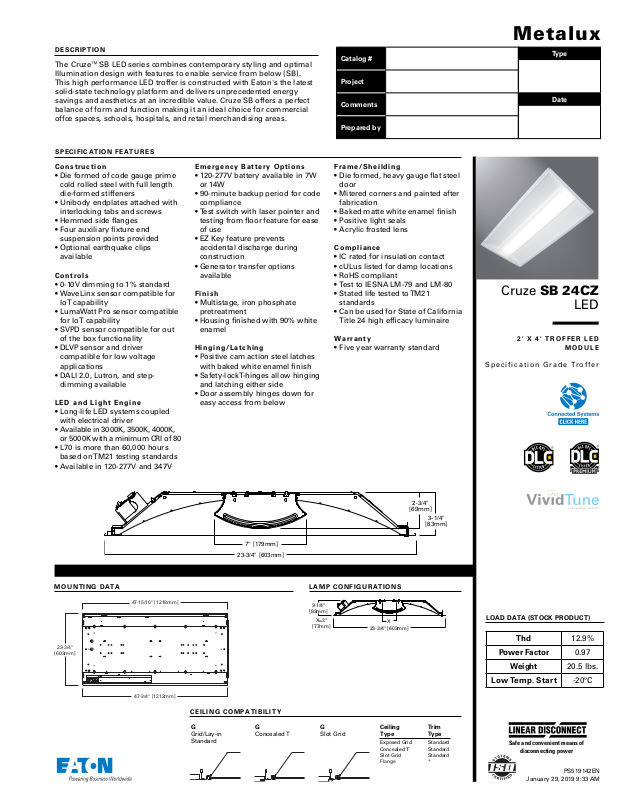

DESCRIPTION

The Cruze™SB LED series combines contemporary styling and optimal
Illumination design with features to enable service from below (SB).
This high performance LED troffer is constructed with Eaton's the latest
solid-state technology platform and delivers unprecedented energy
savings and aesthetics at an incredible value. Cruze SB offers a perfect
balance of form and function making it an ideal choice for commercial
offce spaces, schools, hospitals, and retail merchandising areas.

SPECIFICATION FEATURES

Construction

• Die formed of code gauge prime
cold rolled steel with full length
die-formed stiffeners

• Unibody endplates attached with
interlocking tabs and screws

• Hemmed side flanges

• Four auxiliary fixture end
suspension points provided

• Optional earthquake clips
available

Emergency Battery Options

• 120-277V battery available in 7W
or 14W

• 90-minute backup period for code
compliance

• Test switch with laser pointer and
testing from floor feature for ease
of use

• EZ Key feature prevents
accidental discharge during
construction

• Generator transfer options

Controls

available

• 0-10V dimming to 1% standard

• WaveLinx sensor compatible for
IoT capability

• LumaWatt Pro sensor compatible
for IoT capability

• SVPD sensor compatible for out

Finish

• Multistage, iron phosphate
pretreatment

• Housing finished with 90% white
enamel

of the box functionality

• DLVP sensor and driver
compatible for low voltage
applications

• DALI 2.0, Lutron, and step-
dimming available

Hinging/Latching

• Positive cam action steel latches
with baked white enamel finish

• Safety-lock T-hinges allow hinging
and latching either side

• Door assembly hinges down for

LED and Light Engine

easy access from below

• Long-life LED systems coupled
with electrical driver

• Available in 300 0K, 3500K, 400 0K,
or 5000K with a minimum CRI of 80

• L70 is more than 60,000 hours
based on TM21 testing standards

• Available in 120-277V and 347V

Catalog #

Project

Comments

Prepared by

Frame/Sheilding

• Die formed, heavy gauge flat steel
door

• Mitered corners and painted after
fabrication

• Baked matte white enamel finish

• Positive light seals

• Acrylic frosted lens

Compliance

• IC rated for insulation contact

• cULus listed for damp locations

• RoHS compliant

• Test to IESNA LM-79 and LM-80

• Stated life tested to TM21
standards

• Can be used for State of California
Title 24 high efficacy luminaire

Warranty

• Five year warranty standard

Metalux

Type

Date

Cruze SB 24CZ

LED

2' X 4' TROFFER LED

MODULE

Specification Grade Troffer

MOUNTING DATA

23-3/4"

7" [179mm]

CEILING COMPATIBILITY

Grid/Lay-in
Standard

Concealed T

LAMP CONFIGURATIONS

3-1/4"

X=3"

[77mm]

Slot Grid

X

Type Type

Exposed Grid Standard
Concealed TStandard
Slot GridStandard

Flange *

2-3/4"

[69mm]

3-1/4"

LOAD DATA (STOCK PRODUCT)

Thd 12.9%

Power Factor 0.97

Weight 20.5 lbs.

Low Temp. Start -20ºC

disconnecting power

January 29, 2019 9:33 AM

PS519142EN

24CZ-LD5-50-UNV-

Candlepower

%0

85

24CZ-LD5-40-UNV-

Candlepower

Coef

%0

RC

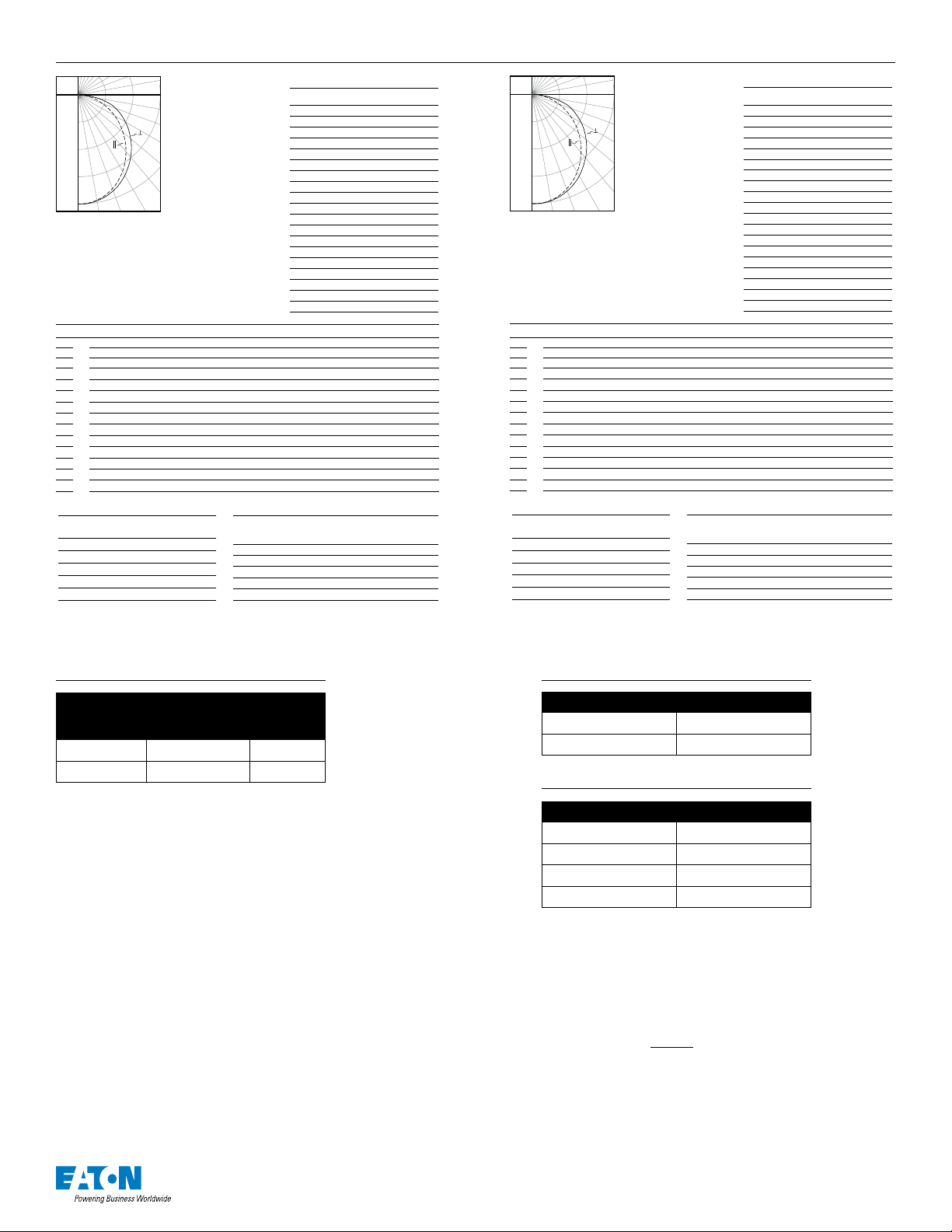

PHOTOMETRICS

90˚

L835-CD1-U

80˚

347

694

1040

1387

0˚ 30˚

10˚

20˚

Electronic Driver

70˚

Linear LED 3500K

Spacing criterion:

60˚

(II) 1.2 x mounting

50˚

height, (⊥) 1.26 x
mounting height

40˚

Lumens: 3964

Input Watts: 29W

Effi cacy: 136.7 lm/W

Test Report:
24CZ-LD5-40-UNV­L835-CD1-U.IES

ficients of Utilization

Effective fl oor cavity refl ectance 20%

rc 80%70% 50%30% 10

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

R

119 119 119 119 11 6 11 6 116 116 111 111 111 106 106 106 102 102 102 100

0

108 103 99 95 106 101 97 93 97 93 90 93 90 88 89 87 85 83

1

98 90 83 77 96 88 81 76 84 79 74 81 76 72 78 74 71 68

2

89 79 70 63 87 77 69 63 74 67 62 71 65 61 69 64 60 57

3

82 69 60 54 79 68 60 53 66 58 52 63 57 52 61 56 51 49

4

75 62 53 46 73 61 52 46 59 51 45 57 50 45 55 49 44 42

5

69 56 47 40 67 55 46 40 53 45 40 51 44 39 50 44 39 37

6

64 51 42 35 63 50 41 35 48 41 35 47 40 35 45 39 35 33

7

60 46 38 32 58 45 37 32 44 37 31 43 36 31 42 36 31 29

8

56 42 34 28 55 42 34 28 41 33 28 40 33 28 39 32 28 26

9

52 39 31 26 51 39 31 26 38 31 26 37 30 26 36 30 25 24

10

Zonal Lumen Summary

Zone Lumens% Fixture
0-30

1065 26.9

0-40

1731 43.7

0-60

3043 76.8

3964 10 0.0

0-90

3964 10 0.0

0-180

Luminance Data

Angle
in Deg

45
55
65
75
85

Angle Along II 45°Across ⊥

0

1385 1385 1385

5

1379 1375 1383

10

1355 1354 1364
1316 1322 1334

15

1261 1273 1292

20

1193 1213 1237

25

1115 1144 1174

30

1024 1064 1101

35

930 978 1023

40

830 889 943

45

726 797 857

50

623 704 770

55

519 608 679

60

415 512 590

65

309 417 497

70

211 326 375

75

116 219 234

80

45 87 81

85

0 0 0

90

Average

0-Deg
cd/sm

1798 19 26 2043
1664 1880 2056
1504 1856 2138
1249 19 29 2219
791 1529 1423

Average

45-Deg

cd/sm

Average

90-Deg

cd/sm

24CZ LED

90˚

L835-CD1-U

80˚

432

864

1295

1727

0˚ 30˚

10˚

20˚

Electronic Driver

70˚

Linear LED 3500K

Spacing criterion:

60˚

(II) 1.2 x mounting

50˚

height, (⊥) 1.26 x
mounting height

40˚

Lumens: 4988

Input Watts: 40.6W

Effi cacy: 122.9 lm/W

Test Report:
24CZ-LD5-50-UNV­L835-CD1-U.IES

Coefficients of Utilization

Effective fl oor cavity refl ectance 20%

%

rc 80%70% 50%30% 10

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR

119 119 119 119 11 6 11 6 116 116 111 111 111 10 6 106 106 102 102 102 100

0

108 103 99 95 10 5 101 97 93 97 93 90 93 90 87 89 87 85 83

1

98 90 82 76 95 88 81 76 84 79 74 81 76 72 78 74 70 68

2

89 78 70 63 87 77 69 63 74 67 62 71 65 60 68 64 59 57

3

82 69 60 53 79 68 60 53 65 58 52 63 57 52 61 55 51 49

4

75 62 53 46 73 61 52 46 59 51 45 57 50 45 55 49 44 42

5

69 56 47 40 67 55 46 40 53 45 39 51 44 39 50 43 39 37

6

64 50 42 35 62 50 41 35 48 40 35 47 40 35 45 39 34 32

7

60 46 37 31 58 45 37 31 44 36 31 43 36 31 42 35 31 29

8

56 42 34 28 54 42 34 28 40 33 28 39 33 28 38 32 28 26

9

52 39 31 26 51 38 31 26 37 30 25 36 30 25 36 30 25 23

10

Zonal Lumen Summary

Zone Lumens % Fixture
0-30

1326 26.6

0-40

2159 43.3

0-60

3815 76.5

4988 10 0.0

0-90

4988 10 0.0

0-180

Luminance Data

Angle
in Deg

45
55
65
75

Angle Along II 45°Across ⊥

0

1726 1726 1726

5

1718 1712 1722

10

1689 1686 1699
1639 1644 1661

15

1572 1586 1607

20

1490 1512 1541

25

1392 1426 1463

30

1285 1330 1374

35

1170 1225 1284

40

1048 1116 1186

45

921 10 05 1079

50

793 891 974

55

664 774 860

60

536 654 740

65

404 533 626

70

278 412 469

75

156 272 294

80

61 112 101

85

0 0 0

90

Average

0-Deg

cd/sm

2270 2417 2569
2118 2379 2601
1943 2370 2682
1645 2438 2775
1072 1968 1775

Average

45-Deg

cd/sm

Average

90-Deg

cd/sm

%

Version

TM-21 Lumen

Maintenance

(60,000 hours)

Theoretical

L70

(hours)

Standard > 89% > 196,000

High Efficiency > 93% > 340,000

SHIELDINGLUMEN MAINTENANCE

Lumen Adjustment Factors

S RDP/SQP

1.05 0.673

90 CRI

Lumen Adjustment Factors 80->90 CRI

3000K 0.88

3500K 0.861

4000K 0.0865

5000K 0.87

Example of Lumen

Adjustment Calculation

24CZ-LD5-40-UNV-L835-CD1-U

at 90CRI at 3500K

Lumen Adjustment Factor = 0.861

Total Light Output =

3,964 lm x 0.861 = 3,413 lm

Efficacy = = 117.6 lm/W

3,413 lm

29 W

Eaton

1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting

Specifications and
dimensions subject to
change without notice.

January 29, 2019 9:33 AM

PS519142EN

ENERGY AND PERFORMANCE DATA BY CATALOG NUMBER

Stock or

MTO

Catalog Logic
(Ribbed Lens)

Delivered

Lumens

Watts

MTO 24CZ-LD5-30-UNV-L830-CD1-U 2833 21.6 131

MTO 24CZ-LD5-30-UNV-L835-CD1-U 3010 21.6 139

MTO 24CZ-LD5-30-UNV-L840-CD1-U 3070 21.6 142

MTO 24CZ-LD5-30-UNV-L850-CD1-U 3321 21.6 154

MTO 24CZ-LD5-35-UNV-L830-CD1-U 3289 25.3 130

MTO 24CZ-LD5-35-UNV-L835-CD1-U 3494 25.3 138

MTO 24CZ-LD5-35-UNV-L840-CD1-U 3564 25.3 141

MTO 24CZ-LD5-35-UNV-L850-CD1-U 3855 25.3 152

MTO 24CZ-LD5-40-UNV-L830-CD1-U 3731 29.0 128

STOCK 24CZ-LD5-40-UNV-L835-CD1-U 3964 29.0 137

STOCK 24CZ-LD5-40-UNV-L840-CD1-U 4043 29.0 139

MTO 24CZ-LD5-40-UNV-L850-CD1-U 4374 29.0 151

MTO 24CZ-LD5-45-UNV-L830-CD1-U 4207 35.7 11 8

MTO 24CZ-LD5-45-UNV-L835-CD1-U 4469 35.7 125

MTO 24CZ-LD5-45-UNV-L840-CD1-U 4558 35.7 128

MTO 24CZ-LD5-45-UNV-L850-CD1-U 4931 35.7 138

MTO 24CZ-LD5-50-UNV-L830-CD1-U 4695 40.7 11 5

STOCK 24CZ-LD5-50-UNV-L835-CD1-U 4988 40.7 123

STOCK 24CZ-LD5-50-UNV-L840-CD1-U 5088 40.7 125

MTO 24CZ-LD5-50-UNV-L850-CD1-U 5503 40.7 135

MTO 24CZ-LD5-55-UNV-L830-CD1-U 5181 45.8 11 3

MTO 24CZ-LD5-55-UNV-L835-CD1-U 5504 45.8 120

MTO 24CZ-LD5-55-UNV-L840-CD1-U 5614 45.8 123

MTO 24CZ-LD5-55-UNV-L850-CD1-U 6073 45.8 133

MTO 24CZ-LD5-60-UNV-L830-CD1-U 5741 52.2 11 0

MTO 24CZ-LD5-60-UNV-L835-CD1-U 6099 52.2 11 7

MTO 24CZ-LD5-60-UNV-L840-CD1-U 6221 52.2 11 9

MTO 24CZ-LD5-60-UNV-L850-CD1-U 6729 52.2 129

MTO 24CZ-LD5-65-UNV-L830-CD1-U 6193 57.6 107

MTO 24CZ-LD5-65-UNV-L835-CD1-U 6579 57.6 114

MTO 24CZ-LD5-65-UNV-L840-CD1-U 6711 57.6 116

MTO 24CZ-LD5-65-UNV-L850-CD1-U 7259 57.6 126

MTO 24CZ-LD5-70-UNV-L830-CD1-U 6668 64.2 104

MTO 24CZ-LD5-70-UNV-L835-CD1-U 7084 64.2 11 0

MTO 24CZ-LD5-70-UNV-L840-CD1-U 7226 64.2 11 3

MTO 24CZ-LD5-70-UNV-L850-CD1-U 7816 64.2 122

MTO 24CZ-LD5-75-UNV-L830-CD1-U 7052 69.1 102

MTO 24CZ-LD5-75-UNV-L835-CD1-U 7491 69.1 108

MTO 24CZ-LD5-75-UNV-L840-CD1-U 7641 69.1 111

MTO 24CZ-LD5-75-UNV-L850-CD1-U 8265 69.1 120

Efficacy

(lm/W)

24CZ LED

Standard Efficacy Versions

Stock or

MTO

Catalog Logic
(Ribbed Lens)

Delivered

Lumens

Watts

Efficacy

(lm/W)

MTO 24CZ-LD5-30SE-UNV-L830-CD1-U 2878 23.5 122

STOCK 24CZ-LD5-30SE-UNV-L835-CD1-U 3057 23.5 130

STOCK 24CZ-LD5-30SE-UNV-L840-CD1-U 3118 23.5 133

MTO 24CZ-LD5-30SE-UNV-L850-CD1-U 3373 23.5 144

MTO 24CZ-LD5-35SE-UNV-L830-CD1-U 3324 28.6 11 6

STOCK 24CZ-LD5-35SE-UNV-L835-CD1-U 3531 28.6 124

STOCK 24CZ-LD5-35SE-UNV-L840-CD1-U 3602 28.6 126

MTO 24CZ-LD5-35SE-UNV-L850-CD1-U 3896 28.6 136

MTO 24CZ-LD5-40SE-UNV-L830-CD1-U 3783 32.6 11 6

STOCK 24CZ-LD5-40SE-UNV-L835-CD1-U 4019 32.6 123

STOCK 24CZ-LD5-40SE-UNV-L840-CD1-U 4099 32.6 126

MTO 24CZ-LD5-40SE-UNV-L850-CD1-U 4434 32.6 136

MTO 24CZ-LD5-45SE-UNV-L830-CD1-U 4304 39.9 108

STOCK 24CZ-LD5-45SE-UNV-L835-CD1-U 4572 39.9 11 5

STOCK 24CZ-LD5-45SE-UNV-L840-CD1-U 4663 39.9 11 7

MTO 24CZ-LD5-45SE-UNV-L850-CD1-U 5044 39.9 126

MTO 24CZ-LD5-50SE-UNV-L830-CD1-U 4788 46.6 103

STOCK 24CZ-LD5-50SE-UNV-L835-CD1-U 5086 46.6 109

STOCK 24CZ-LD5-50SE-UNV-L840-CD1-U 5188 46.6 111

MTO 24CZ-LD5-50SE-UNV-L850-CD1-U 5612 46.6 121

MTO 24CZ-LD5-55SE-UNV-L830-CD1-U 5216 54.7 95

MTO 24CZ-LD5-55SE-UNV-L835-CD1-U 5541 54.7 101

MTO 24CZ-LD5-55SE-UNV-L840-CD1-U 5652 54.7 103

MTO 24CZ-LD5-55SE-UNV-L850-CD1-U 6 114 54.7 11 2

MTO 24CZ-LD5-60SE-UNV-L830-CD1-U 5611 60.0 94

MTO 24CZ-LD5-60SE-UNV-L835-CD1-U 5961 60.0 99

MTO 24CZ-LD5-60SE-UNV-L840-CD1-U 6080 60.0 101

MTO 24CZ-LD5-60SE-UNV-L850-CD1-U 6577 60.0 11 0

MTO 24CZ-LD5-65SE-UNV-L830-CD1-U 6154 59.6 103

MTO 24CZ-LD5-65SE-UNV-L835-CD1-U 6537 59.6 11 0

MTO 24CZ-LD5-65SE-UNV-L840-CD1-U 6668 59.6 11 2

MTO 24CZ-LD5-65SE-UNV-L850-CD1-U 7213 59.6 121

Eaton

1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting

Specifications and
dimensions subject to
change without notice.

January 29, 2019 9:33 AM

PS519142EN

ENERGY AND PERFORMANCE DATA BY CATALOG NUMBER

Stock or

MTO

Catalog Logic

(Smooth Lens)

Delivered

Lumens

Watts

MTO 24CZ-LD5-30-S-UNV-L830-CD1-U 2890 21.6 134

MTO 24CZ-LD5-30-S-UNV-L835-CD1-U 3070 21.6 14 2

MTO 24CZ-LD5-30-S-UNV-L840-CD1-U 3132 21.6 14 5

MTO 24CZ-LD5-30-S-UNV-L850-CD1-U 3387 21.6 157

MTO 24CZ-LD5-35-S-UNV-L830-CD1-U 3355 25.3 132

MTO 24CZ-LD5-35-S-UNV-L835-CD1-U 3564 25.3 14 1

MTO 24CZ-LD5-35-S-UNV-L840-CD1-U 3635 25.3 14 4

MTO 24CZ-LD5-35-S-UNV-L850-CD1-U 3932 25.3 155

MTO 24CZ-LD5-40-S-UNV-L830-CD1-U 3806 29.0 131

MTO 24CZ-LD5-40-S-UNV-L835-CD1-U 4043 29.0 139

MTO 24CZ-LD5-40-S-UNV-L840-CD1-U 4124 29.0 14 2

MTO 24CZ-LD5-40-S-UNV-L850-CD1-U 4461 29.0 154

MTO 24CZ-LD5-45-S-UNV-L830-CD1-U 4291 35.7 120

MTO 24CZ-LD5-45-S-UNV-L835-CD1-U 4558 35.7 128

MTO 24CZ-LD5-45-S-UNV-L840-CD1-U 4650 35.7 130

MTO 24CZ-LD5-45-S-UNV-L850-CD1-U 5029 35.7 14 1

MTO 24CZ-LD5-50-S-UNV-L830-CD1-U 4789 40.7 11 8

MTO 24CZ-LD5-50-S-UNV-L835-CD1-U 5088 40.7 125

MTO 24CZ-LD5-50-S-UNV-L840-CD1-U 5190 40.7 128

MTO 24CZ-LD5-50-S-UNV-L850-CD1-U 5614 40.7 138

MTO 24CZ-LD5-55-S-UNV-L830-CD1-U 5285 45.8 11 5

MTO 24CZ-LD5-55-S-UNV-L835-CD1-U 5614 45.8 123

MTO 24CZ-LD5-55-S-UNV-L840-CD1-U 5726 45.8 125

MTO 24CZ-LD5-55-S-UNV-L850-CD1-U 6194 45.8 135

MTO 24CZ-LD5-60-S-UNV-L830-CD1-U 5856 52.2 11 2

MTO 24CZ-LD5-60-S-UNV-L835-CD1-U 6221 52.2 11 9

MTO 24CZ-LD5-60-S-UNV-L840-CD1-U 6345 52.2 122

MTO 24CZ-LD5-60-S-UNV-L850-CD1-U 6864 52.2 132

MTO 24CZ-LD5-65-S-UNV-L830-CD1-U 6317 57.6 11 0

MTO 24CZ-LD5-65-S-UNV-L835-CD1-U 6711 57.6 11 6

MTO 24CZ-LD5-65-S-UNV-L840-CD1-U 6845 57.6 11 9

MTO 24CZ-LD5-65-S-UNV-L850-CD1-U 7404 57.6 128

MTO 24CZ-LD5-70-S-UNV-L830-CD1-U 6802 64.2 106

MTO 24CZ-LD5-70-S-UNV-L835-CD1-U 7226 64.2 11 3

MTO 24CZ-LD5-70-S-UNV-L840-CD1-U 7370 64.2 11 5

MTO 24CZ-LD5-70-S-UNV-L850-CD1-U 7972 64.2 124

MTO 24CZ-LD5-75-S-UNV-L830-CD1-U 7193 69.1 104

MTO 24CZ-LD5-75-S-UNV-L835-CD1-U 7641 69.1 111

MTO 24CZ-LD5-75-S-UNV-L840-CD1-U 7794 69.1 11 3

MTO 24CZ-LD5-75-S-UNV-L850-CD1-U 8430 69.1 122

Efficacy

(lm/W)

24CZ LED

Standard Efficacy Versions

Stock or

MTO

Catalog Logic

(Smooth Lens)

Delivered

Lumens

Watts

MTO 24CZ-LD5-30SE-S-UNV-L830-CD1-U 2935 23.5 125

MTO 24CZ-LD5-30SE-S-UNV-L835-CD1-U 3 118 23.5 133

MTO 24CZ-LD5-30SE-S-UNV-L840-CD1-U 3181 23.5 135

MTO 24CZ-LD5-30SE-S-UNV-L850-CD1-U 3440 23.5 146

MTO 24CZ-LD5-35SE-S-UNV-L830-CD1-U 3390 28.6 119

MTO 24CZ-LD5-35SE-S-UNV-L835-CD1-U 3602 28.6 126

MTO 24CZ-LD5-35SE-S-UNV-L840-CD1-U 3674 28.6 129

MTO 24CZ-LD5-35SE-S-UNV-L850-CD1-U 3974 28.6 139

MTO 24CZ-LD5-40SE-S-UNV-L830-CD1-U 3859 32.6 119

MTO 24CZ-LD5-40SE-S-UNV-L835-CD1-U 4099 32.6 126

MTO 24CZ-LD5-40SE-S-UNV-L840-CD1-U 4181 32.6 128

MTO 24CZ-LD5-40SE-S-UNV-L850-CD1-U 4523 32.6 139

MTO 24CZ-LD5-45SE-S-UNV-L830-CD1-U 4390 39.9 110

MTO 24CZ-LD5-45SE-S-UNV-L835-CD1-U 4663 39.9 117

MTO 24CZ-LD5-45SE-S-UNV-L840-CD1-U 4757 39.9 119

MTO 24CZ-LD5-45SE-S-UNV-L850-CD1-U 5145 39.9 129

MTO 24CZ-LD5-50SE-S-UNV-L830-CD1-U 4883 46.6 10 5

MTO 24CZ-LD5-50SE-S-UNV-L835-CD1-U 5188 46.6 111

MTO 24CZ-LD5-50SE-S-UNV-L840-CD1-U 5291 46.6 114

MTO 24CZ-LD5-50SE-S-UNV-L850-CD1-U 5724 46.6 123

MTO 24CZ-LD5-55SE-S-UNV-L830-CD1-U 5320 54.7 97

MTO 24CZ-LD5-55SE-S-UNV-L835-CD1-U 5652 54.7 10 3

MTO 24CZ-LD5-55SE-S-UNV-L840-CD1-U 5765 54.7 10 5

MTO 24CZ-LD5-55SE-S-UNV-L850-CD1-U 6236 54.7 114

MTO 24CZ-LD5-60SE-S-UNV-L830-CD1-U 5724 60.0 95

MTO 24CZ-LD5-60SE-S-UNV-L835-CD1-U 6080 60.0 101

MTO 24CZ-LD5-60SE-S-UNV-L840-CD1-U 6202 60.0 10 3

MTO 24CZ-LD5-60SE-S-UNV-L850-CD1-U 6709 60.0 112

MTO 24CZ-LD5-65SE-S-UNV-L830-CD1-U 6277 59.6 10 5

MTO 24CZ-LD5-65SE-S-UNV-L835-CD1-U 6668 59.6 112

MTO 24CZ-LD5-65SE-S-UNV-L840-CD1-U 6801 59.6 114

MTO 24CZ-LD5-65SE-S-UNV-L850-CD1-U 7357 59.6 123

Efficacy

(lm/W)

Eaton

1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting

Specifications and
dimensions subject to
change without notice.

January 29, 2019 9:33 AM

PS519142EN

SAMPLE NUMBER: 24CZ-LD5-45-UNV-L835-CD1-U

)

ORDERING INFORMATION

Flexible Metal Conduit Options

Flex options available for 0-10V dimming control, DALI dimming control, emergency and night light functions. 72-inch factory-in
connector. Not all options may be combined and installation ratings vary by type.

A3/8-4/18GDIM series notes:

NEC® 250.118, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645, 72; Federal Specification A-A-59544 (f
through penetration with applicable fire stop product (not included). May be surface mounted, fished and/or embedded in plaster. Cable tray and approved raceway rated, install per NEC®; Environmental Air-Handling Space
Installation per NEC® 300.22(C ).

Specifications & dimensions subject to change without notice. Consult your Eaton Representative for availability and ordering in

24CZ LED

Rating
Blank=

Standard
ATW-SW4=
Chicago
Rated

(8)

Series
24CZ=2x4 Cruze SB

Series

Door Frame
Standard=Flat White Steel

Door (Leave Blank)

Lamp Type
LD5=LED 5.0

Cruze SB

Lumen Output
30=3000 Lumens
35=3500 Lumens
40=4000 Lumens
45=4500 Lumens
50=5000 Lumens
55=5500 Lumens
60=6000 Lumens
65=6500 Lumens
70=7000 Lumens
75=7500 Lumens

Standard Efficacy

Lumen Output

30SE=3000 Lumens
35SE=3500 Lumens
40SE=4000 Lumens
45SE=4500 Lumens
50SE=5000 Lumens
55SE=5500 Lumens
60SE=6000 Lumens
65SE=6500 Lumens

Shielding
Blank=Ribbed Frosted

Acrylic Lens (standard)

S=Smooth Frosted Acrylic Lens
SQP=Smooth Lens with Square

Pattern Insert
RDP=Smooth Lens with Round
Pattern Insert

(2)

Voltage
347V=347 Volt
UNV=Universal Voltage 120-277
48V=48 Volt Low-voltage (Class 2)

Options

GL=Single Element Fuse
GM=Double Element Fuse

Emergency
EL7W=7-watt, 120V-277V emergency

battery pack installed
EL14W=14-watt 120V-277V emergency
battery pack installed
ELV7W=7-watt, DLVP-compatible low voltage
emergency battery pack installed
ELV14W=14-watt DLVP-compatible low voltage
emergency battery pack installed
GTR2=Bodine Generator Transfer Relay

ETRD=Iota Emergency Transfer Relay with
dimming control

CCT

(10)

(10)

(10)

L830=3000K
L835=3500K
L840=4000K
L850=5000K

L930=3000K
L935=3500K
L940=4000K
L950=5000K
L83050=80CRI 3000K-5000K White Tuning
L93050=90CRI 3000K-5000K White Tuning
L82765=80CRI 2700K-6500K White Tuning
L92765=90CRI 2700K-6500K White Tuning

Flex

A3/8-4/18GDIM=3/8" Flex with 0-10V Dimming Leads
A3/8-2/18G=3/8" Flex with line and common
A3/8-5/18GDIM=Flex with 0-10V Dimming leads and Blue for alternate wiring

See below for details.

(6)

(C)

(3)

(3)

(C)

(C)

(7)

Driver Type
CD=0-10V Dimming Driver

(1%-100% Dimming)
SR=Sensor-ready Dimming Driver
for LWIPD1 option
(1%-100% Dimming)
5LTD=Fifth Light DALI Driver
(10%-100% Dimming)
5LTHD=Fifth Light Dimming Driver
(1%-100% Dimming)
LV1=DLVP Dimming Driver
(0%-100% Dimming)
SD=Step Dimming Driver
(50% or 100% Dimming)
LH=Lutron HiLume (LDE1 series) 1%-100% EcoSystem Driver
with Soft-on Fade to Black dimming

L5=Lutron 5 Series (LDE5-Series) 5%-100% EcoSystem Driver
W2A=White Tuning, 2 ch, Analog 0-10V Intensity and CCT Control

(7)

(9)

(9)

(9)

(9)

(B)

(E)

(E)

(C)

(4)

Number of Drivers

1=1 Driver
2=2 Drivers

(F)

(F)

(9

Integrated Sensing Systems
SWPD1=WaveLinx Wireless Integrated Sensor
LWIPD1=LumaWatt Pro Wireless Integrated Sensor
LWTPD1=LumaWatt Pro Wireless Tile-mount Sensor
SLVPD1=DLVP Low-voltage Integrated Sensor
SVPD1=0-10V Stand-alone Integrated Sensor

Sensor Accessories

DV=Dual Band

NOTES:

switch/indicator/laser test. For approximate delivered lumens multiply the lumens per watt of the desired fixture by the wattage of the emergency battery pack (100 lm/W x 7=700 lumens). IES-format photometry for
luminaire under emergency operation available.

opposite side from sensor band to provide symmetric appearance.

drivers with 347V are available but not DLC qualified.
dimming drivers. ETRD option only requires one relay when used on a dimming fixture. Must specify voltage as 120V or 277V when ordering these devices.
DLC Standard and DLC Premium, refer to www.designlights.org for details.
used in conjunction with W2A driver only. Must be used with two (2) 10V dimming control channels, 1 color, 1 intensity. Not compatible with other control or sensor options.

Integrated Sensing and Control System Options

NOTES: Integrated options must be used in conjunction with the associated system and may not be compatible with other options or accessories. Please refer to the following:

additional details and compatibility.
pages for additional details and compatibility.
Compatible only with driver series shown, and may require two or more drivers. Requires field commissioning to operate or dim. Contact Lutron at www.lutron.com.

(5)

(1)

An EQ Grid Clip is recommended for all 9/16" ceiling systems. Four required per fixture.

(B)

Consult LumaWatt Pro system pages for additional details and compatibility.

Factory installed dimming option 3/8” flexible metal conduit with 2-#18 power and ground wires and 2-#18 UL-listed jacketed 0-10V +/- control wires. Meets UL 66, 83, 1479, 1569, 1581, 2556.

(A)

(B)

(B)

(C)

(D)

(4)

Step dim driver option is not available with 3000, 3500, 4000, 7000 and 7500 lumen packages and 3000SE, 3500SE, 6000SE and 6500SE versions.

(7)

Used to bypass local control during outage. Must be used in conjunction with UL 1008 device (provided by others). GTR2 option includes 2 relays on fixtures with

(E)

Consult Fifth Light system pages for additional details and compatibility.

Packaging
U=Unit Pack
PAL=Job Pack, out of carton
PALC=Job Pack, in carton

ACCESSORIES

EQ-CLIP-U=T-BAR Safety Earthquake Clips
DF-24-W=2' x 4' Drywall Frame Kit
SK-24-WS=2' x 4' Shallow Surface Mount Kit
SK-24-WT=2' x 4' Tall Surface Mount Kit
ISHH-01=Programming Remote for Integrated Sensor
ISHH-02=Personal Control Remote for Integrated Sensor

(2)

Products also available in non-US voltages and frequencies for international markets.

(6)

347V versions are not available with emergency options. 347V driver option requires two drivers with 7000 and 7500 lumen packages. SD, 5LTD, and SR

(9)

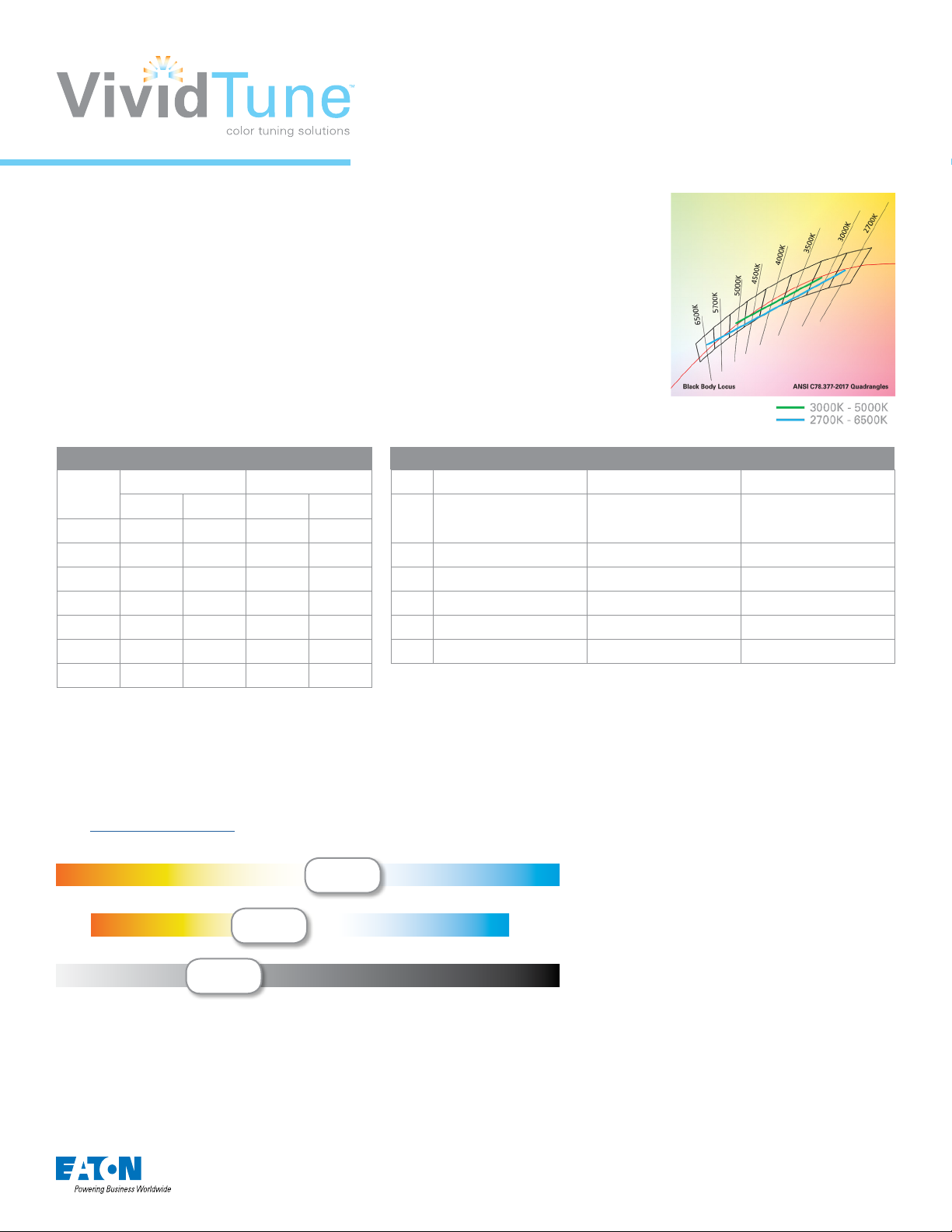

White tuning provides correlated color temperatures (CCT) between 3000K (warm) to 5000K (cool) or 2700K (warm) to 6500K (cool). Must be

(1)

(D)

(D)

(3)

With integral test

(5)

Provides blank band on

(8)

DesignLights Consortium® Qualified and classified for both

(10)

White tuning not available with this model.

(A)

(C)

Consult DLVP system pages for additional details and compatibility.

(F)

Consult Marketplace Options - Lutron system pages for additional details and compatibility.

stalled and pre-wired to driver, fitted to luminaire housing access plate with 90° enclosed FMC

ormerly J-C-30B); all applicable OSHA and HUD Requirements. UL Classified 1-, 2-, and 3-hour

formation.

Consult WaveLinx system pages for

(D)

Consult SVPD series system

SHIPPING DATA

Catalog No. Wt.

24CZ-LD5-45 20.5 lbs.

Eaton

1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting

Specifications and
dimensions subject to
change without notice.

24CZ-LD5-55 20.5 lbs.

January 29, 2019 9:33 AM

PS519142EN

24CZ LED

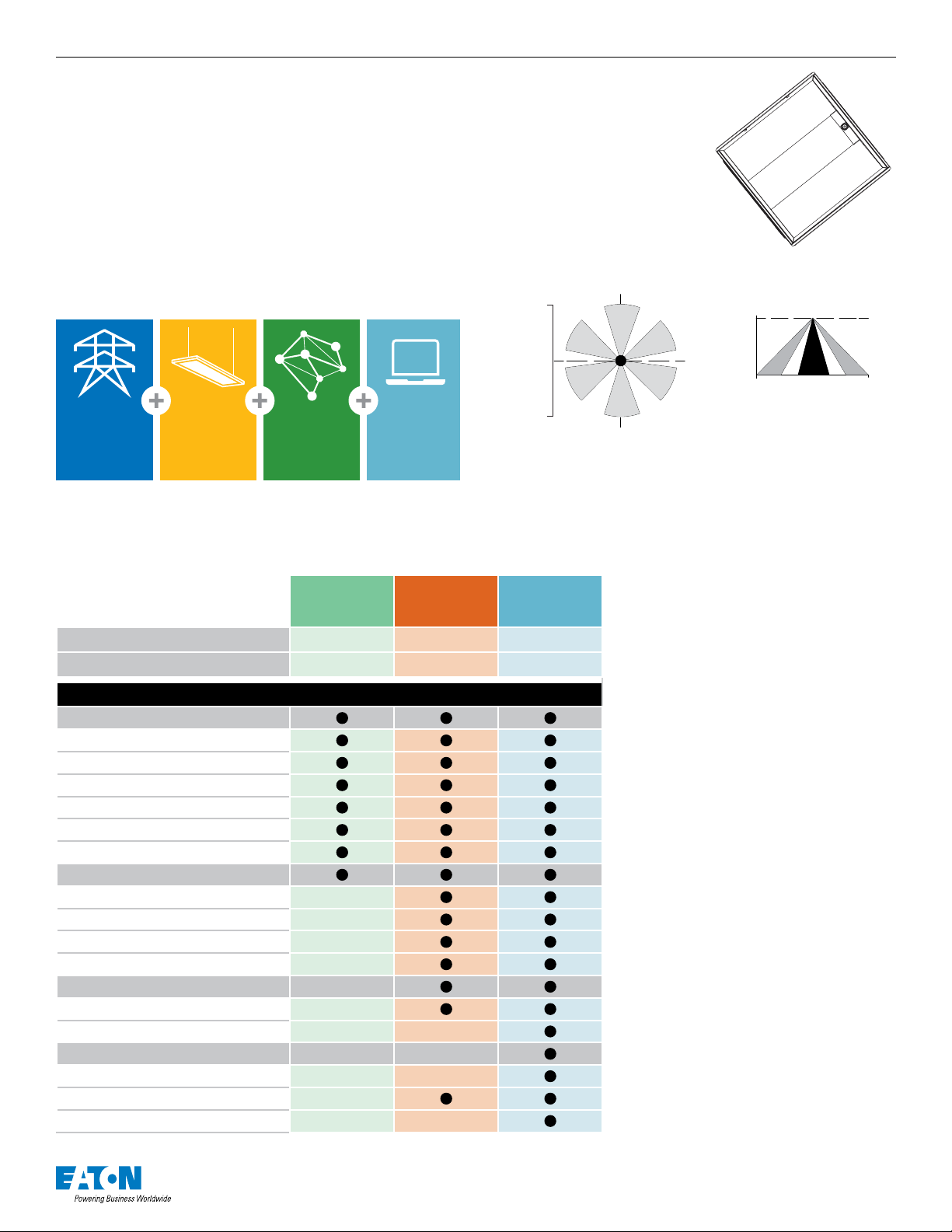

INTEGRATED SENSOR

The Cruze SB with Integrated Sensor technology provides automatic energy savings without sacrificing performance. Traditionally,
these types of energy savings required coordination between the luminaire and a lighting control system. The Cruze SB delivers
superior lighting with integrated occupancy and daylighting controls.

Capture the benefits of traditional lighting controls, without complicated coverage planning or special wiring. Ideal for
new construction or retrofit, the Cruze SB delivers automatic ON to an energy saving light level, while ensuring
lighting is turned OFF when the space is unoccupied.

The integral daylight sensor reduces the need for special daylight zone planning. Each luminaire will automatically
adjust the light level based on reflected light beneath the sensor in a closed loop method.

The integral sensor can be offered in both standalone (SVPD1) and networked (SWPD1, LWIPD1, and SLVPD1) for
application versatility.

Top View Side View

C

We make connections work

4m

[12 ft.]

Coverage

L

3.3m

[10 ft.]

0m

[0 ft.]

4m

Major Motion

[12 ft.]

Installation of integrated sensors within 3-ft (1m) of HVAC air vents
is not recommended.

Unparalleled knowledge

of electrical

power management

LIGHT ING APPSEATON POWER

Advanced LED fixtures

CONNECTIVITY

Communications &
sensing technology

Physical devices

& controllers

Software applications

Data accumulation

& analysis

Systems comparison chart

Eaton provides many lighting system solutions designed to satisfy code requirements and meet

Stand-alone or Network Stand-alone Both Network

Need-based feature progression

Basic compliance only

Occupancy sensing

Daylight harvesting

Individual fixture control

Retrofit+Building Integration

Total wireless connectivity

UI options (touchscreen, apps, etc.)

Enterprise level building integration

Facility management & tools

Floor plan & reporting tools

Value-added services

Analytics/higher problem solving

the unique needs of any project.

Distributed

Low-Voltage

WaveLinx

Power System

Space type Interior Interior/Outdoor Any

Zone control

Scheduling

0-10V dimming

A/V integration

BMS integration

Asset tracking

API integration

LumaWatt

Pro

0m

[0 ft.]

4m

[12 ft.]

Reccomended Mounting Height 8–12 ft.

0m

[0 ft.]

4m

[12 ft.]

Eaton

1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting

Specifications and
dimensions subject to
change without notice.

January 29, 2019 9:33 AM

PS519142EN

24 Cruze SB LED with VividTune Tunable White

VividTune tunable white luminaires from Eaton deliver high-quality light in a
broad range of continuously variable color temperatures and intensities. Create a
dynamic environment by adjusting the ambient light warmer or cooler to influence
mood, support the task at hand, or create a dramatic ambience. The ability to
control correlated color temperature and intensity separately using simple controls
is the next evolution of LED lighting for the commercial, educational, healthcare
and hospitality space. The unparalleled flexibility and number of available lighting
environments enable users to find the right light with tunable white.

Performance Data*

24CZ LED

Tunable White - Lumen Adjustment Factors

CCT

2700K - - 0.943 0.805

3000K 0.971 0.799 0.969 0.837

3500K 1.027 0.873 1.003 0.879

4000K 1.078 0.943 1.025 0.907

4500K 1.089 0.959 1.043 0.930

5000K 1.089 0.959 1.058 0.949

6500K - - 1.073 0.975

3000K-5000K 2700K-6500K

80 CRI 90 CRI 80 CRI 90 CRI

CCT

Setting

3000K - 3849 3169

3500K 3964 4073 3462

4000K - 4277 3739

4500K - 4317 3804

5000K - 4317 3804

2' x 4' Cruze SB LED - Example of Approximate Lumen Calculation

Standard Catalog # VividTune 80 CRI Catalog # VividTune 90 CRI Catalog #

24CZ-LD5-40-UNV-L835-CD1-U 24CZ-LD5-40-UNV-L83050-W2A1-U 24CZ-LD5-40-UNV-L93050-W2A1-U

Controlling VividTune Tunable White

VividTune luminaires make tunable white more accessible by using simple and
familiar controls. From wall dimmers to wireless controls, VividTune tunable white
luminaires are compatible with industry standard 0-10V dimming controls. A single
0-10V dimming input is used to control intensity (brightness) while a second 0-10V
dimming input is used to adjust CCT. For suggested control configurations,
go to www.eaton.com/lighting for tunable white application guides.

warm 2700K cool 6500K

warm 3000K cool 5000K

10% 100 %

Intensity

0-10V

CCT

0-10V

CCT

0-10V

Example of Lumen

Adjustment Calculation

24CZ-LD5-40-UNV-L83050-W2A1-U

at 80 CRI tuned to 3500K

Adjusted Lumen =

published lm x adjusted lm factor

Adjusted Lumen = 3964 x 1.027

Adjusted Lumen = 4073 lm

* Lumen adjustment factors are for reference

and may be different for each product selected.

Refer to IES files for actual performance data on each.

Eaton

1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting

Specifications and
dimensions subject to
change without notice.

January 29, 2019 9:33 AM

PS519142EN
