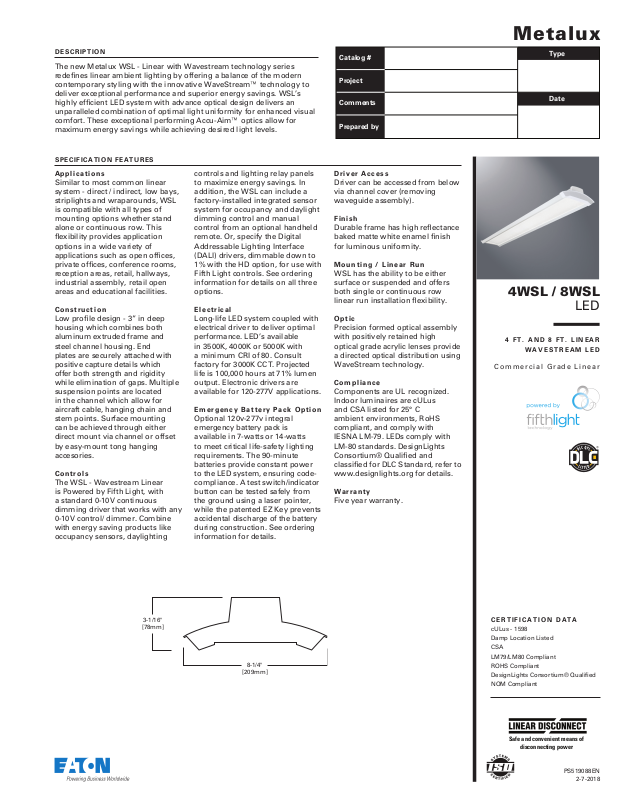

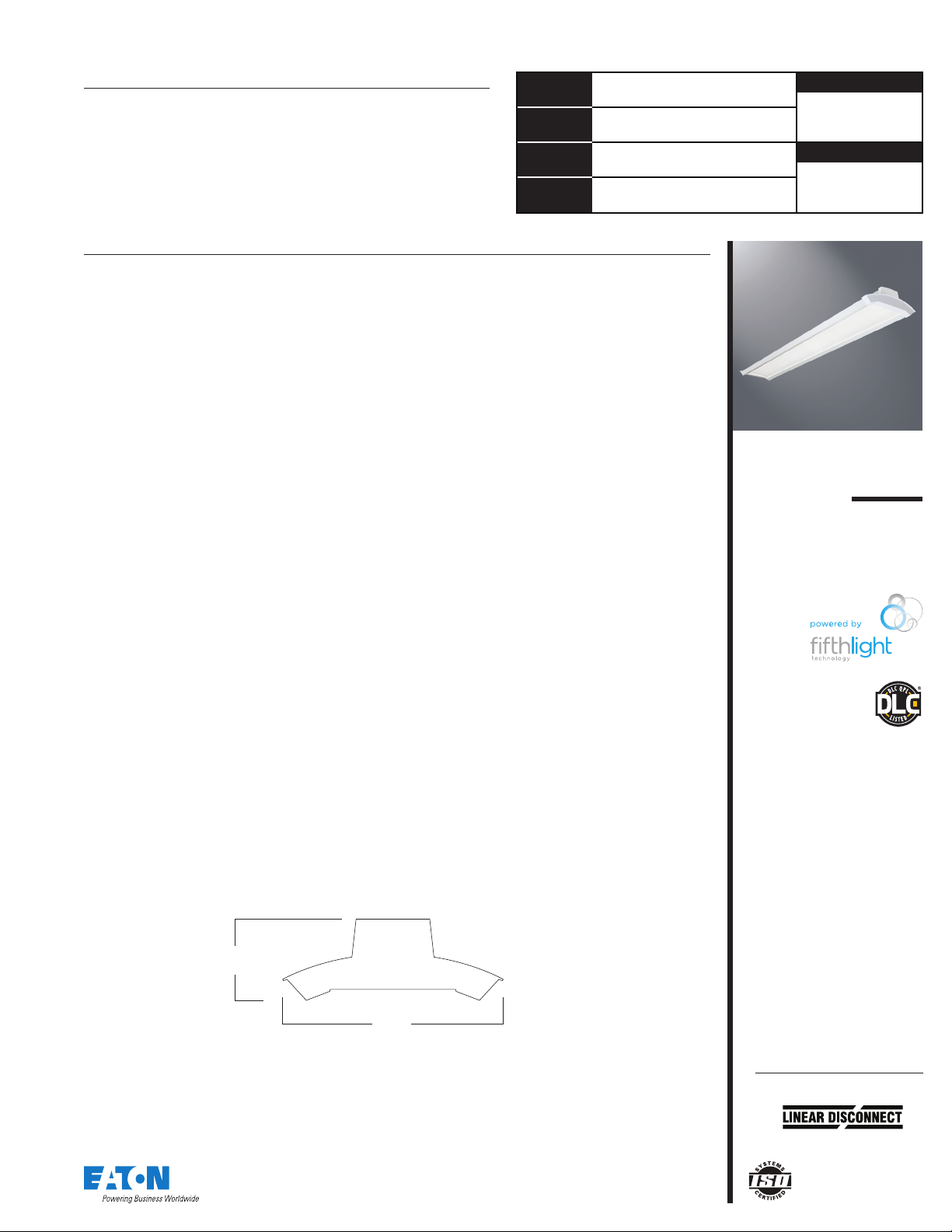

Page 1
DESCRIPTION
[209mm]
[78mm]
Safe and convenient means of
The new Metalux WSL - Linear with Wavestream technology series
redefines linear ambient lighting by offering a balance of the modern
contemporary styling with the innovative WaveStream™ technology to
deliver exceptional performance and superior energy savings. WSL’s
highly efficient LED system with advance optical design delivers an
unparalleled combination of optimal light uniformity for enhanced visual
comfort. These exceptional performing Accu-Aim™ optics allow for
maximum energy savings while achieving desired light levels.
SPECIFICATION FEATURES
Applications
Similar to most common linear
system - direct / indirect, low bays,
striplights and wraparounds, WSL
is compatible with all types of
mounting options whether stand
alone or continuous row. This
flexibility provides application
options in a wide variety of
applications such as open offices,
private offices, conference rooms,
reception areas, retail, hallways,
industrial assembly, retail open
areas and educational facilities.
Construction
Low profile design - 3” in deep
housing which combines both
aluminum extruded frame and
steel channel housing. End
plates are securely attached with
positive capture details which
offer both strength and rigidity
while elimination of gaps. Multiple
suspension points are located
controls and lighting relay panels
to maximize energy savings. In
addition, the WSL can include a
factory-installed integrated sensor
system for occupancy and daylight
dimming control and manual
control from an optional handheld
remote. Or, specify the Digital
Addressable Lighting Interface
(DALI) drivers, dimmable down to
1% with the HD option, for use with
Fifth Light controls. See ordering
information for details on all three
options.
Electrical
Long-life LED system coupled with
electrical driver to deliver optimal
performance. LED’s available
in 3500K, 4000K or 5000K with
a minimum CRI of 80. Consult
factory for 3000K CCT. Projected
life is 100,000 hours at 71% lumen
output. Electronic drivers are
available for 120-277V applications.
in the channel which allow for
aircraft cable, hanging chain and
stem points. Surface mounting
can be achieved through either
direct mount via channel or offset
by easy-mount tong hanging
accesories.
Emergency Battery Pack Option
Optional 120v-277v integral
emergency battery pack is
available in 7-watts or 14-watts
to meet critical life-safety lighting
requirements. The 90-minute
batteries provide constant power
Controls
The WSL - Wavestream Linear
is Powered by Fifth Light, with
a standard 0-10V continuous
dimming driver that works with any
0-10V control/ dimmer. Combine
with energy saving products like
occupancy sensors, daylighting
to the LED system, ensuring code-
compliance. A test switch/indicator
button can be tested safely from
the ground using a laser pointer,
while the patented EZ Key prevents
accidental discharge of the battery
during construction. See ordering
information for details.
Catalog #
Project
Comments
Prepared by
Driver Access
Driver can be accessed from below
via channel cover (removing
waveguide assembly).
Finish
Durable frame has high reflectance
baked matte white enamel finish
for luminous uniformity.
Mounting / Linear Run
WSL has the ability to be either
surface or suspended and offers
both single or continuous row
linear run installation flexibility.
Optic
Precision formed optical assembly
with positively retained high
optical grade acrylic lenses provide
a directed optical distribution using
WaveStream technology.
Compliance
Components are UL recognized.
Indoor luminaires are cULus
and CSA listed for 25° C
ambient environments, RoHS
compliant, and comply with
IESNA LM-79. LEDs comply with
LM-80 standards. DesignLights
Consortium® Qualified and
classified for DLC Standard, refer to
www.designlights.org for details.
Warranty
Five year warranty.
Metalux
Type
Date
4WSL / 8WSL
LED
4 FT. AND 8 FT. LINEAR
WAVESTREAM LED
Commercial Grade Linear
3-1/16"
8-1/4"
CERTIFICATION DATA
cULus - 1598
Damp Location Listed
CSA
LM79/LM80 Compliant
ROHS Compliant
DesignLights Consortium® Qualified
NOM Compliant
disconnecting power
PS519088EN
2-7-2018
Page 2
4WSL WITH SENSOR
4WSL
8WSL
8WSL WITH SENSOR
[209mm]
7/8" [22mm] K.O.

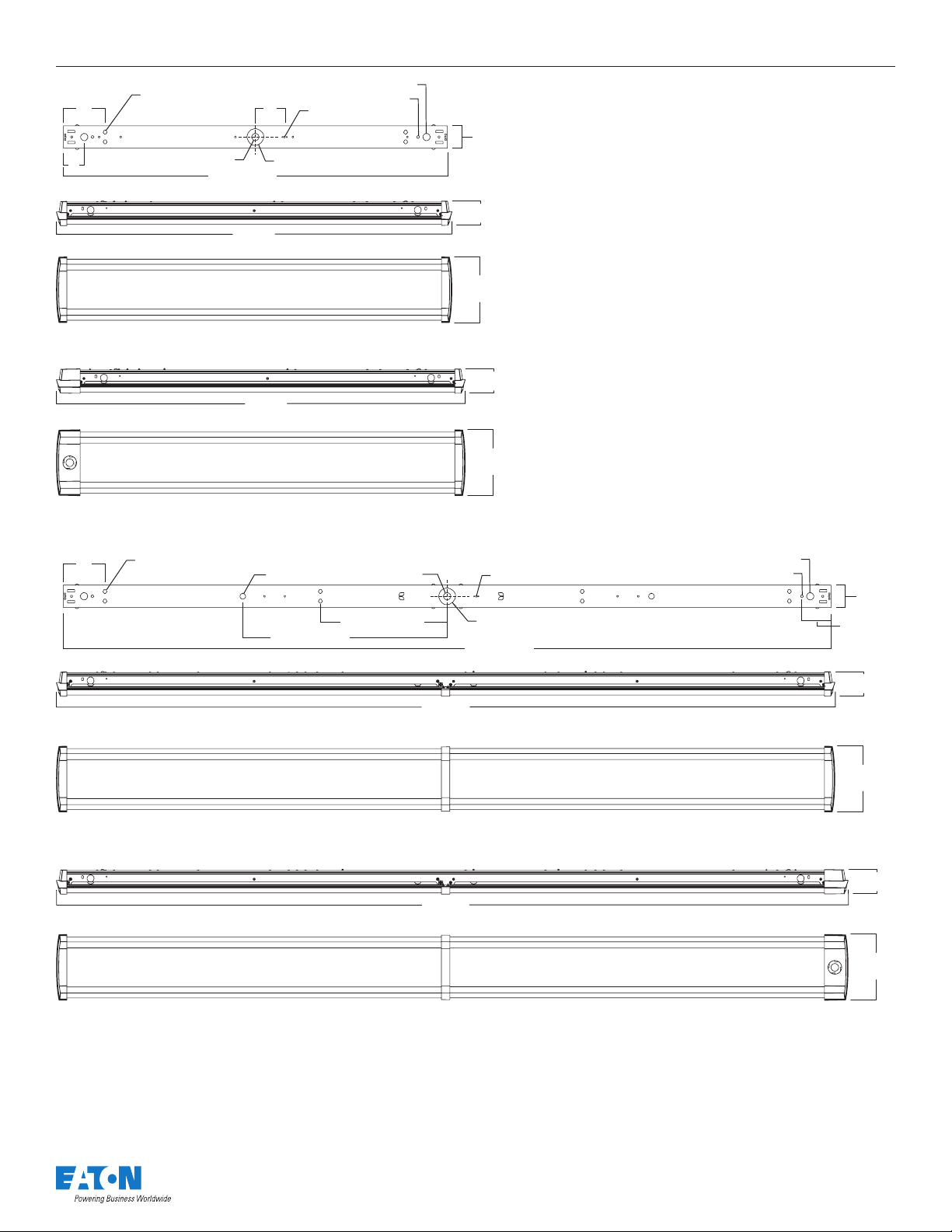

DIMENSIONS
WSL LINEAR
Ceiling Stand-Off
Y
X
Embossments
7/8" [22mm] K.O. (3)
48" [1219mm]
49-9/16"
[1259mm]
Z
2" [51mm] K.O.
Hole for Toggle
Ground Screw
Y=5"
[127mm]
X=2-1/2"
[64mm]
2-11/16"
[68mm]
3-1/16"
[78mm]
8-1/4"
[209mm]
Z=3-1/2"
[89mm]
3-1/16"
51-7/32"
[1301mm]
[78mm]
8-1/4"
[209mm]
5"
[127mm]
Ceiling Stand-Off
Embossments
11/16" [17mm]
K.O. (2)
24-1/2" [622mm]
7/8" [22mm]
K.O. (3)
15-3/16" [386mm]
97-17/32"
[2477mm]
99-3/16"
[2519mm]
Ground Screw
2" [51mm] K.O.
96" [2438mm]
7/8" [22mm] K.O.
Hole for Toggle
2-11/16"
[68mm]
3-1/2"
[89mm]
3-1/16"
[78mm]
8-1/4"
[209mm]
[78mm]
3-1/16"
8-1/4"
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
PS519088EN
2-7-2018
Page 3
4WSL-LD2-40-UNV-
Candlepower
Coef
%0
RC

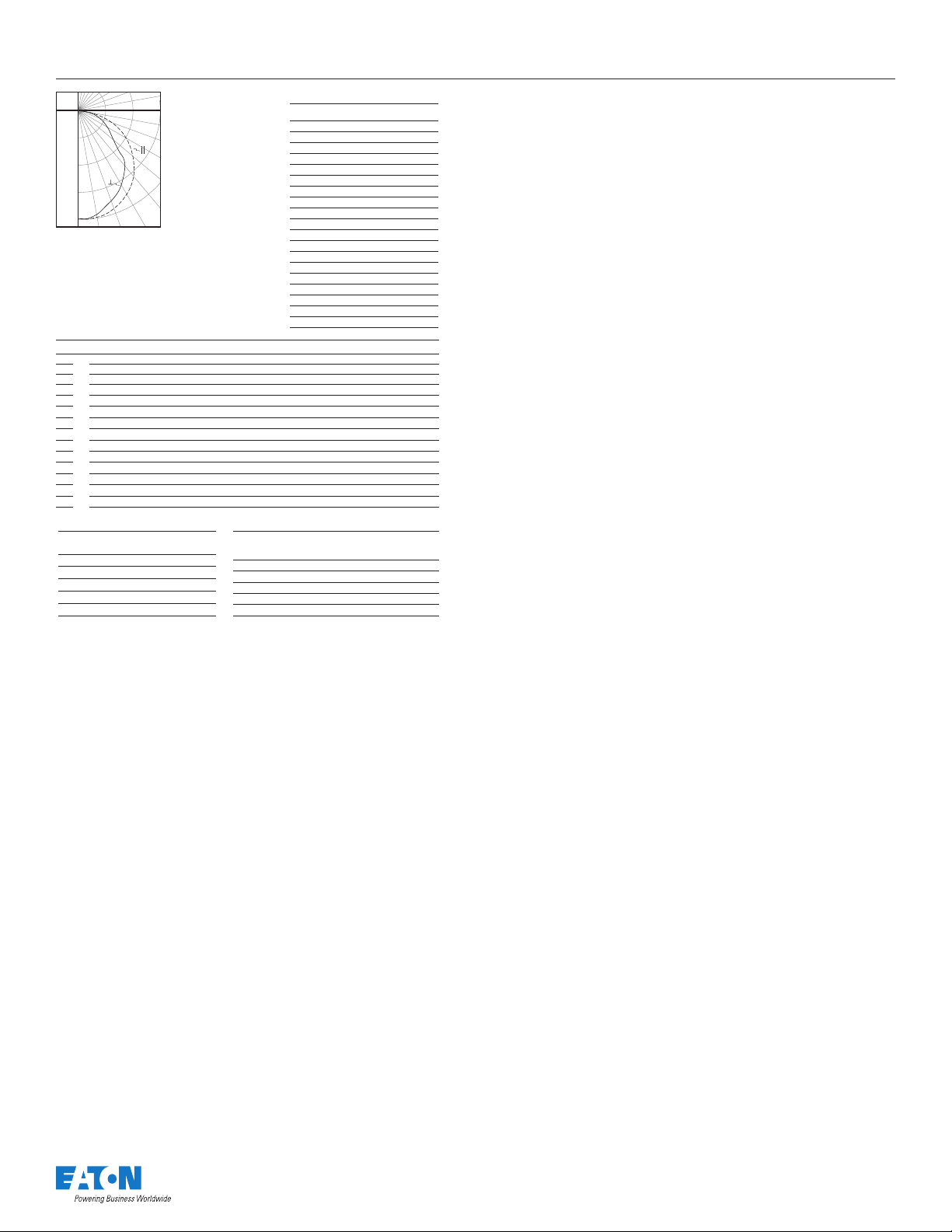

PHOTOMETRICS
90˚
L840-CD1-U
80˚
360
720
1080
1440
0˚ 30˚
10˚
20˚
Electronic Driver
70˚
Linear LED 4000K
Spacing criterion:
60˚
(II) 1.3 x mounting
50˚
height, (⊥) 1.2 x
mounting height
40˚
Lumens: 4010
Input Watts: 35.1W
Effi cacy: 11 4 lm/W
Test Report:
4WSL-LD2-40-UNVL840-CD1-U.IES
ficients of Utilization
Effective fl oor cavity refl ectance 20%
rc 80%70% 50%30% 10
rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
R
119 119 119 119 11 6 11 6 116 116 111 111 111 106 10 6 106 102 10 2 102 10 0
0
109 104 99 96 10 6 102 98 94 97 94 91 93 91 88 90 88 86 83
1
99 90 83 78 96 88 82 77 85 80 75 82 77 73 79 75 72 69
2
90 79 71 65 87 78 70 64 75 68 63 72 66 62 69 65 61 58
3
82 70 61 55 80 69 61 54 66 59 53 64 58 53 62 56 52 50
4
76 63 54 47 74 62 53 47 60 52 46 58 51 46 56 50 45 43
5
70 57 48 41 68 56 47 41 54 46 41 52 45 40 50 44 40 38
6
65 51 42 36 63 50 42 36 49 41 36 47 41 36 46 40 35 33
7
60 47 38 32 59 46 38 32 45 37 32 44 37 32 42 36 32 30
8
56 43 35 29 55 42 34 29 41 34 29 40 34 29 39 33 29 27
9
53 40 32 26 52 39 32 26 38 31 26 37 31 26 36 30 26 24
10
Zonal Lumen Summary
Zone Lumens% Fixture
0-30
1104 27.5
0-40
1804 45.0
0-60
3144 78.4
4010 10 0.0
0-90
4010 10 0.0
0-180
Luminance Data
Angle
in Deg
45
55
65
75
85
Angle Along II 45°Across ⊥
0
1431 1431 1431
5
1438 1437 1429
10
1428 1416 1397
15
1406 1376 1327
1374 1319 1271
20
1331 1256 1216
25
1273 11 92 11 35
30
1206 111 3 10 47
35
1128 1025 960
40
1039 931 769
45
941 833 605
50
835 728 517
55
727 618 447
60
606 505 380
65
476 393 313
70
339 279 236
75
204 168 138
80
94 65 57
85
0 0 0
90
Average
0-Deg
cd/sm
Average
45-Deg
cd/sm
3954 3543 2927
3917 3415 2426
3859 3216 2420
3525 2901 2454
2902 2007 1760
Average
90-Deg
cd/sm
WSL LINEAR
%
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
PS519088EN
2-7-2018
Page 4
LUMEN MAINTENANCE
WSL LINEAR
Ambient
Temperature
TM-21 Lumen
Maintenance
(100,0000 hours)
Theoretical
L70
(Hours)
25°C > 71.6% > 105,000
ENERGY AND PERFORMANCE DATA BY CATALOG NUMBER
MTO Length Catalog Number** Product Description
Delivered
Lumens
MTO 4 ft. 4WSL-LD2-30-SXX-UNV-L8XX-CD1-U 4 ft. Wavestream Linear, 3000 lm 3023 24.9 12 1
MTO 4 ft. 4WSL-LD2-35-SXX-UNV-L8XX-CD1-U 4 ft. Wavestream Linear, 3500 lm 3544 30.6 116
MTO 4 ft. 4WSL-LD2-40-SX X-UNV- L8XX- CD1-U 4 ft. Wavestream Linear, 4000 lm 4 010 35.1 114
MTO 4 ft. 4WSL-LD2-45-SX X-UNV-L8XX- CD1-U 4 ft. Wavestream Linear, 4500 lm 4502 39.9 113
MTO 4 ft. 4WSL-LD2-50 -SX X-UNV-L8XX- CD1-U 4 ft. Wavestream Linear, 5000 lm 4988 44.8 111
MTO 4 ft. 4WSL-LD2-55 -SX X-UNV-L8XX- CD1-U 4 ft. Wavestream Linear, 5500 lm 5541 49.9 111
MTO 4 ft. 4WSL-LD2-60-SXX-UNV-L8XX-CD1-U 4 ft. Wavestream Linear, 6000 lm 5988 56.2 10 7
MTO 4 ft. 4WSL-LD2-65-SXX-UNV-L8XX-CD1-U 4 ft. Wavestream Linear, 6500 lm 6591 61.9 106
MTO 4 ft. 4WSL-LD2-70 -SXX- UNV-L8XX-CD1-U 4 ft. Wavestream Linear, 7000 lm 7005 68.7 102
MTO 4 ft. 4WSL-LD2-75-SXX-UNV-L8X X-CD1-U 4 ft. Wavestream Linear, 7500 lm 7623 73.9 10 3
MTO 4 ft. 4WSL-LD2-80-SX X-UNV-L8XX- CD1-U 4 ft. Wavestream Linear, 8000 lm 7806 76 10 3
MTO 8 ft. 8WSL-LD2-60-SXX-UNV-L8XX-CD1-U 8 ft. Wavestream Linear, 6000 lm 6128 53.5 115
MTO 8 ft. 8WSL-LD2-65-SXX-UNV-L8XX-CD1-U 8 ft. Wavestream Linear, 6500 lm 6536 57.6 11 3
MTO 8 ft. 8WSL-LD2-70-SXX-UNV-L8X X-CD1-U 8 ft. Wavestream Linear, 7000 lm 6934 63.6 10 9
MTO 8 ft. 8WSL-LD2-75-SXX-UNV-L8X X-CD1-U 8 ft. Wavestream Linear, 7500 lm 7468 67.2 111
MTO 8 ft. 8WSL-LD2-80-SX X-UNV- L8XX-CD1-U 8 ft. Wavestream Linear, 8000 lm 8072 73.1 110
MTO 8 ft. 8WSL-LD2-90 -SXX- UNV-L8X X-CD2-U 8 ft. Wavestream Linear, 9000 lm 9004 80.6 112
MTO 8 ft. 8WSL-LD2-100-SXX-UNV-L8X X-CD2-U 8 ft. Wavestream Linear, 10000 lm 9976 90.6 110
MTO 8 ft. 8WSL-LD2-110-SXX-UNV-L8XX-CD2- U 8 ft. Wavestream Linear, 11000 lm 11082 98.9 112
MTO 8 ft. 8WSL-LD2-120-SXX-UNV-L8XX-CD2-U 8 ft. Wavestream Linear, 12000 lm 11 9 76 113.5 106
MTO 8 ft. 8WSL-LD2-130-SXX-UNV-L8X X-CD2-U 8 ft. Wavestream Linear, 13000 lm 13182 124.7 10 6
MTO 8 ft. 8WSL-LD2-140-SXX-UNV-L8X X-CD2-U 8 ft. Wavestream Linear, 14000 lm 14 010 136.6 10 3
MTO 8 ft. 8WSL-LD2-150-SXX-UNV-L8X X-CD2-U 8 ft. Wavestream Linear, 15000 lm 15246 148.7 10 3
MTO 8 ft. 8WSL-LD2-160-SXX-UNV-L8X X-CD2-U 8 ft. Wavestream Linear, 16000 lm 15612 152.9 10 2
* Available in 3500K, 4000K and 5000K
** Shown with solid top reflector. Available with uplight UPL8 (8%) and UPL15 (15%).
SXX denotes mounting option. See ordering information.
Input
Watts
Efficacy
(lm/W)
Stock Length Catalog Number** Product Description
Delivered
Lumens
Input
Watts
Stock 4 ft. 4WSL-LD2-40-SRS-UNV-L835-CD1-U 4 ft. Wavestream Linear, 4000 lm, 3500K 4010 35.1 11 4
Stock 4 ft. 4WSL-LD2-40-SRS-UNV-L840- CD1-U 4 ft. Wavestream Linear, 4000 lm, 4000K 4010 35.1 11 4
Stock 8 ft. 8WSL-LD2-80-SRS-UNV-L835-CD1-U 8 ft. Wavestream Linear, 8000 lm, 3500K 8072 73.1 110
Stock 8 ft. 8WSL-LD2-80-SRS-UNV-L840- CD1-U 8 ft. Wavestream Linear, 8000 lm, 4000K 8072 73.1 110
** Shown with solid top reflector. Available with uplight UPL8 (8%) and UPL15 (15%).
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
Efficacy
(lm/W)
PS519088EN
2-7-2018
Page 5
SAMPLE NUMBER: 4WSL-LD2-80-SRC-UNV-L840-CD1-U
ORDERING INFORMATION
WSL LINEAR
(15)
Series
4WSL=4 ft.
8WSL=8 ft.
Revision
LD2=LED 2. 0
Lumen Package
4 ft.
30=3000
35=3500
40=4000
45=4500
50=5000
55=5500
60=6000
65=6500
70=7000
75=7500
80=8000
Product Family
S=Integrated Sensor
L=LumaWatt
Control Type
V=Analog (0-10V) Output for Local Control
WI=Wireless Integral
NOTES:
delivered lumens multiply the lumens per watt of the desired fixture by the wattage of the emergency battery pack (100 lm/W x 7=700 lumens). IES-format photometry for luminaire under emergency operation
available.
and is factory prewired to the driver for stand-alone control.
(7)
In the HCD option two Drivers required for 6,500 to 10,000 lm.
control is disabled while operating under emergency power.
(10)
SR driver compatible with LWI option only, 1 driver only.
(13)
Y-Toggle would apply for stand alone and end of continuous row only.
classified for DLC Standard (all lumen packages), refer to www.designlights.org for details.
feet coverage pattern only available for LumaWatt configurations; not available for SVPD (Integrated Sensor).
available for LumaWatt configurations.
Restriction: 4 ft. EL14W not available with motion sensor option, 4 ft. EL7W and EL14W available up to 6000 lm only.
Continuous Row applications not available with EL and sensor options in the same fixture.
For continuous row installations including a motion sensor or battery pack option, a gap of 1-15/16” is required between fixtures where these options will be installed.
Range for Driver options :
SD: 4,000 to 6,000 lm and 7,500 to 8,000 lm in 4ft, 6,000 and 8,000 lm to 16,000 lm in 8ft
SR: 3,000 to 8,000 lm in 4ft and 6,000 to 9,000 lm in 8ft
347V CD: 3,000 to 6,000 lm in 4ft. 6,000 and 6,000 lm, 9,000 to 12,000 lm in 8ft (XFMR not required in cat logic)
347V or 480V XFMR: 6,500 to 8,000 lm in 4ft, 6,500 to 8,000 lm and 13,000 16,000 lm in 8ft (XFMR required in catalog logic)
Specifications & dimensions subject to change without notice. Consult your Eaton Representative for availability and ordering information.
8 ft.
60=6000
65=6500
70=7000
75=7500
80=8000
90=9000
100=10000
110=11000
120=12000
130=13000
140=14000
150=15000
160=16000
(9)
(1)
Must be used in conjunction with a DALI control system. For complete DALI solutions by Fifth Light, visit www.eaton.com/lightingsystems
(3)
347V emergency option not available in 4 ft.
Application
SRS=Surface - Standalone
SRC=Surface - Continuous Row
SPS=Suspended - Standalone
SPC=Suspended - Continuous Row
Uplight
[Blank]=Downlight Only
UPL8=8% Uplight
UPL15=15% Uplight
Voltage
347=347 Volt
480=480 Volt
UNV=Universal Voltage 120-277
(10)
(3)
Occupancy Technology
P=Passive Infrared
(5)
Options
XFMR=Step Down
Transformer
(6)
Flex
Multiple Configurations
Available
Wiring
PI=Plug-in Option
CPI=Crossover Plug-in
(16)
Option
(14)
(14)
Sensing Technology
D=Dimming Daylight
Harvesting (Closed Loop)
Options
Emergency
EL7W=7-watt,
120V-277V emergency
battery pack installed
EL14W=14-watt,
120V-277V emergency
battery pack installed
GTD2=Bodine Generator
Transfer Device
ETS2=IOTA Emergency
Transfer Switch
Color Temperature
L835=3500K
L840=4000K
L850=5000K
(8)
(8)
Coverage Pattern
1= ~144 Square Feet
2= ~900 Square Feet
Driver Type
CD=0-10V Dimming Driver
(10% - 100% Dimming)
HCD=0-10V Dimming Driver
(2)
(1% - 100% Dimming)
SD=Step-dim Driver
5LTD=Fifth Light DALI Driver
(10% - 100% Dimming)
(2)
5LTHD=Fifth Light DALI Driver
(1% - 100% Dimming)
SR=Sensor Ready
(1% - 100% Dimming)
LU=Lutron HiLume
1% EcoSystem/3-wire Driver
LH=Lutron HiLume
1% EcoSystem Driver
with Fade to Black
L5=Lutron 5 Series EcoSystem
(12)
Driver
Number of Drivers
1=1 Driver
2=2 Drivers
(17)
(18)
(7)
Packaging
U=Unit Pack
(7)
(4)
(1)
(1), (4)
(10)
(12)
(12)
ACCESSORIES
(Order Separately)
CLC-WSL-EXT-B=Channel Connector
EndFeed-WSL-U=End Feed Conduit Connector
GRP-SNF-U=Gripper Hanger
ISHH-01=Programming Remote for Integrated Sensor
ISHH-02=Personal Control Remote for Integrated Sensor
AYC-Chain/Set=36" Chain Hanger
SCF=Fixed Stem Set (Specify Length)
SCS=Swivel Stem Set (Specify Length)
CCA=Adjustable Cable Kit (Specify Length)
CCF=Fixed Length Cable Kit (Specify Length)
EYE CHAIN SET/3FT=Eye Bolt Chain
(Use 1 set per fixture)
A1B/Spacer-U=Spacer 1-1/2" to 2-1/2" from ceiling
(Use 2 per fixture)
TOGGLE=Single Toggle No. 2 (Specify Length)
Y-TOGGLE=Y Toggle No. 2 (Specify Length)
ATG-4-U=Tong Hanger Kit (one for 4 ft, two for 8 ft)
(2)
With integral test switch/indicator/laser test. For approximate
(4)
Two Drivers required for 5,500 to 10,000 lm and three drivers required for 11,000 to 16,000 lm.
(6)
Flex does not include dimming leads. Control leads provided by others. For Surface mount versions only, Flex must be ordered as a separate accessory.
(8)
Used to transfer fixture to secondary power source for life-safety operation. When used with a dimming fixture, two devices are required to ensure
(9)
Must be used in conjunction with a LumaWatt Pro control system. For complete LumaWatt Pro wireless solutions, visit www.eaton.com/lumawattpro.
(11)
ISHH-01 and -02 remotes compatible with SVPD2 option only.
(14)
Continuous row version comes with one end cap and one row trim finishing component.
(16)
For more information on PI and CPI options, please refer to WSL FAQ Guide at www.eaton.com/lighting.
(18)
(12)
Compatible with Lutron control systems only. See www.lutron.com for details.
~900 square feet coverage pattern only available for SVPD (Integrated Sensor) configurations; not
(5)
Integral sensor works only with “CD” and “HCD” drivers
(15)
DesignLights Consortium® Qualified and
(13)
(17)
(16)
~144 square
(11)
(11)
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
SHIPPING DATA
Catalog No. Wt.*
4WSL 12 lbs.
8WSL 24 lbs.
*Standard fixture
PS519088EN
2-7-2018
Page 6

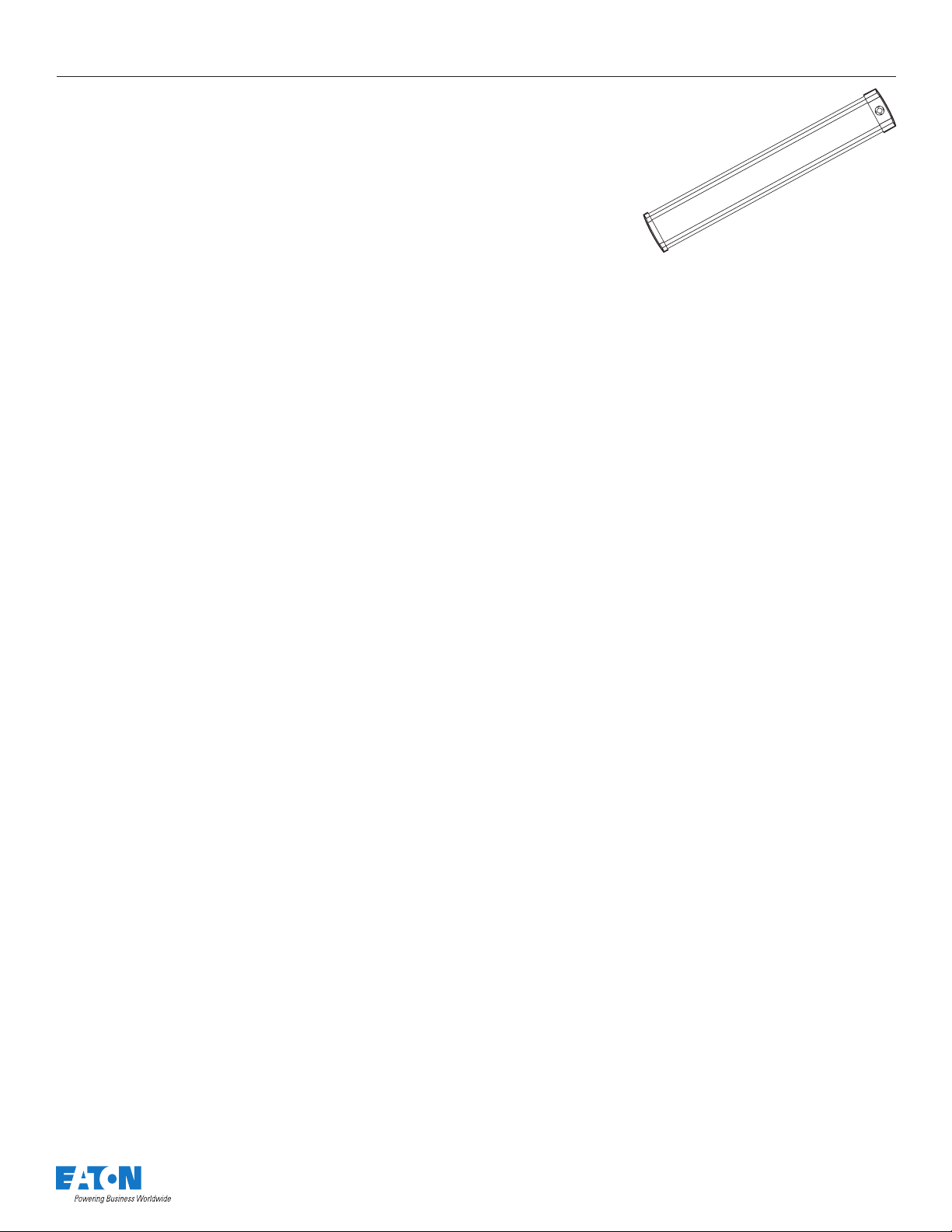

WSL LINEAR
INTEGRATED SENSOR
The WSL with Integrated Sensor technology provides automatic energy savings without sacrificing performance. Traditionally, these types
of energy savings required coordination between the luminaire and a lighting control system. The WSL delivers superior lighting with
integrated occupancy and daylighting controls.
Capture the benefits of traditional lighting controls, without complicated coverage planning or special wiring. Ideal for new
construction or retrofit, the WSL delivers automatic ON to an energy saving light level, while ensuring lighting is
turned OFF when the space is unoccupied.
The integral daylight sensor reduces the need for special daylight zone planning. Each luminaire will
automatically adjust the light level based on reflected light beneath the sensor in a closed loop method.
Occupied daylight light levels and unoccupied light levels can be adjusted using the integrated sensor
programming remote (Catalog Number: ISHH-01). The integrated sensor personal remote (Catalog
Number: ISHH-02) provides code compliant manual raise, lower, ON, OFF control.
The WSL with Integrated Sensor is easy to install with no special wiring and ensures energy savings out-of-the-box with default control settings.
How it works:
• As the user enters the space controlled by the integral sensor, the lighting turns ON to the default daylight level.
• Lighting will remain at that the daylight level until the space is unoccupied. This will start the occupancy timeout period (default 20 minutes).
• If the space remains unoccupied for half of the timeout period, the lighting will automatically reduce to the Energy Saver light level. This adjustable
light level is typically half of the occupied daylight level.
• At the end of the timeout period the lighting will go to the unoccupied light level. This adjustable light level uses the OFF default setting.
Coverage Patterns next page
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
PS519088EN
2-7-2018
Page 7
t.]
[1
[1

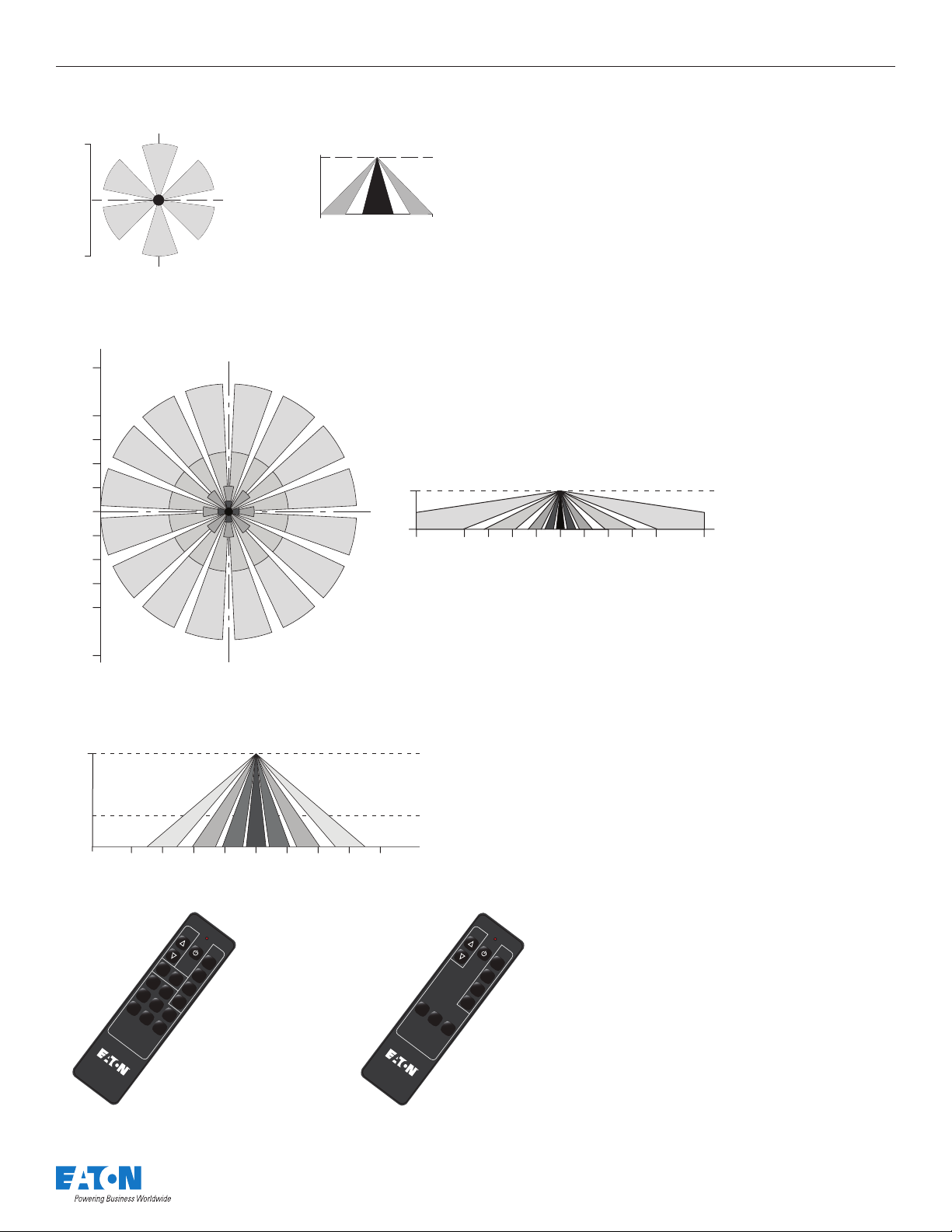

SVPD1 Coverage Pattern
SENSOR DETAILS
WSL LINEAR
Coverage
4m
2 ft.]
0m
[0 ft.]
4m
2 ft.]
Major Motion
SVPD2 Coverage Pattern
9.1m
[30 ft.]
6.1m
[20 ft.]
4.5m
[15 ft.]
3m
[10 ft.]
1.5m
[5 ft.]
0
1.5m
[5 ft.]
3m
[10 ft.]
4.5m
[15 ft.]
6.1m
[20 ft.]
Top View
C
L
Top View
C
L
Side View
3.3m
[10 ft.]
0m
[0 ft.]
4m
[12 ft.]
0m
[0 ft.]
4m
[12 ft.]
Reccomended Mounting Height 8–12 ft.
Side View
0
2.4m
[8 ft.]
6.1m
[20 ft.]
4.5m
[15 ft.]
3m
[10 ft.]
1.5m
[5 ft.]
0
3m
1.5m
[10 ft.]
[5 ft.]
4.5m
[15 ft.]
6.1m
[20 ft.]
9.1m
[30 f
9.1m
[30 ft.]
SVPD3 Coverage Pattern
Side View
0
6.1m
[20 ft.]
9.1m
[30 ft.]
12.2m
[40 ft.]
9.1m
[30 ft.]
Optional Remote
Controls
LO
HI
SET
ES
MIN
50
75
Occ
MAX
To
S
1. R
e
t
5 0, 75, M
aise, Low
Un
O
u
2. To s
t
Occ
p
u
3. S
t
er or P
av
ax.
elect O
e press S
ress M
cc or U
ET
in.
n O
cc
P
r
o
g
r
a
m
m
i
IS
n
g
H
R
e
H
m
o
-0
t
e
1
ISHH-01 Programming Remote
[20 ft.]
L
20
6.1m
R
a
i
s
o
e
w
/
e
r
15
0
3m
[10 ft.]
Tim
e
O
u
t
5
10
3m
[10 ft.]
6.1m
[20 ft.]
9.1m
[30 ft.]
12.2m
[40 ft.]
Per
s
onal
IS
H
H
Raise
Low
/
er
S
C
E
N
E
MAX
75
50
MIN
Occ
ES
To
S
Pre
elect
Un
ss th
The
Occ
e SCEN
S
store lht l
l
h
c
e
t
nes
n
E
btton
ll a
eels
st
to
Remote
-0
2
ISHH-02 Personal Control Remote
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
PS519088EN
2-7-2018
Loading...
