Encounter and SkyRidge
with Integrated Sensor Controls
Get the best of both worlds. Award winning
TM
Metalux Encounter
with WaveStream
and SkyRidgeTM luminaires
TM
LED technology are available
with an optional integrated sensor system,
optimized to meet energy codes for occupancy
sensing and daylight harvesting.
Page 2
The luminaire-integrated sensor control system from Eaton’s Cooper Lighting business
reduces the design time and complexity of meeting energy codes for both lighting
and controls. The sensor system was designed to guarantee occupancy and daylight
harvesting coverage from within the footprint of Metalux ambient luminaires, so the
lighting design is the control design. And, the system achieves the lowest installed
cost in small spaces compared to traditional control products.
No New Wires
An in-place fixture retrofit is
all that’s needed to meet most
energy codes in commercial
spaces. The sensor system is
factory wired to the luminaire,
switching on or off based on
occupancy, and dimming the
light when enough daylight
is available.

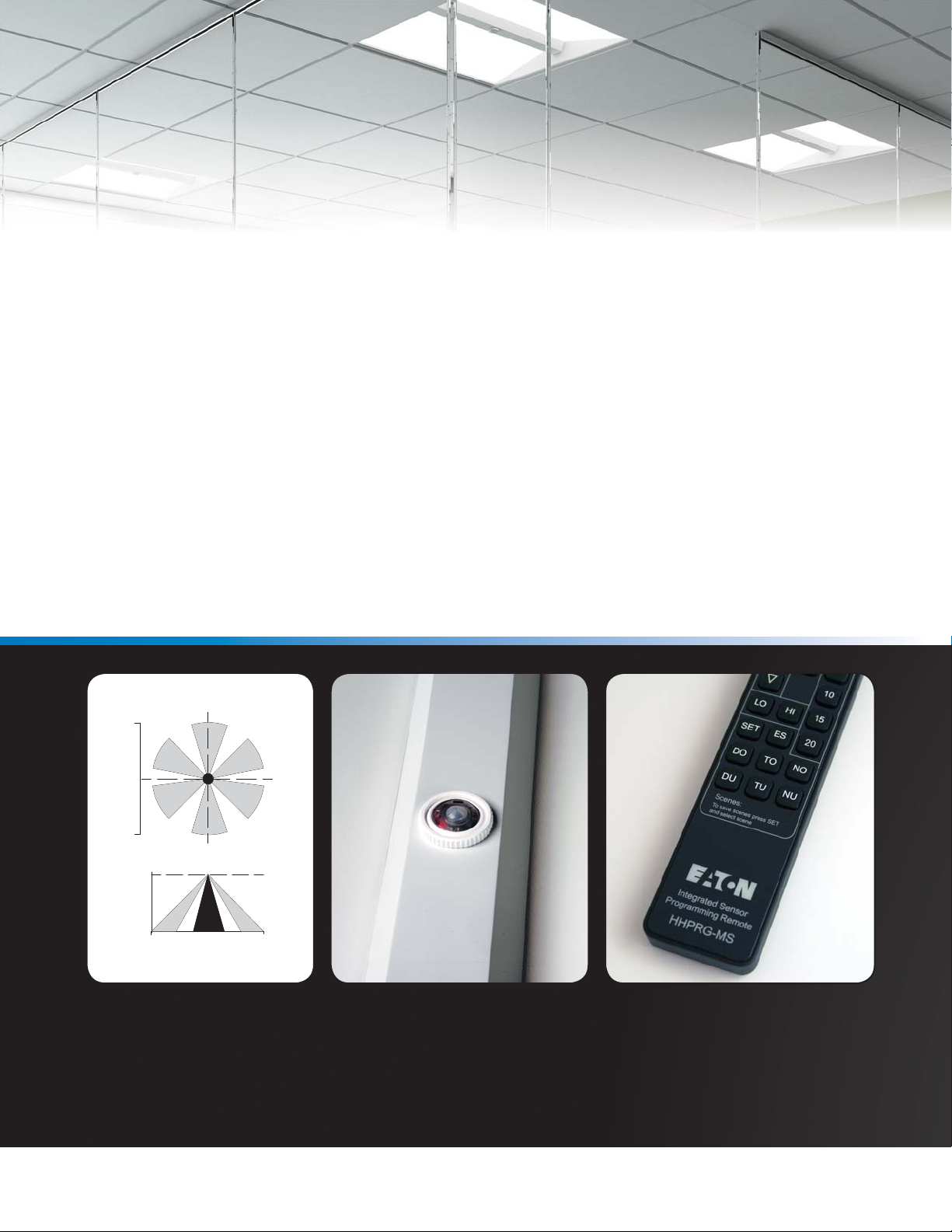

Top View
C
4m
[12 ft.]
0m
[0 ft.]
4m
[12 ft.]
Coverage
Major Motion
3.3m
[10 ft.]
L
Side View
Lighting Controls
Without Commissioning
The luminaire-integrated
sensor system offers outof-the-box operation using
thoughtful default settings.
Flexibility and Individual
Control
When the application
demands more, the sensor
system has the option to
make changes using a remote
control. The remote allows
changes from the default
settings for occupancy, target
light level, preset lighting
levels, and more.
Low Installed Cost
With a single product to
mount, and a single electrical
connection to make, a
Metalux Encounter or
SkyRidge with an integrated
sensor system saves money
on the total installed cost
when occupancy and
daylighting harvesting controls
are needed.
0m
[0 ft.]
4m
[12 ft.]
Recommended Mounting Height 8–12 ft.
Worry-free Controls Planning
Ensure seamless coverage and
performance with a sensor system
built into every luminaire. The multitechnology sensor’s occupancy and
light sensing coverage overlaps the
area each fixture illuminates.
1
EATON Encounter and SkyRidge with Integrated Sensor Controls
0m
[0 ft.]
4m
[12 ft.]
Integrated Design
The sensor system adds to the contemporary
aesthetic of both WaveStream luminaires.
The system is factory wired and ready to
meet code out of the box.
Sensor Remote Control
The optional remote can be used to change
settings and to provide local control for one
or more fixtures in the same area, allowing
users to adjust light levels, even temporarily
override automatic controls. Choose one per
project, or one per fixture.
Page 3

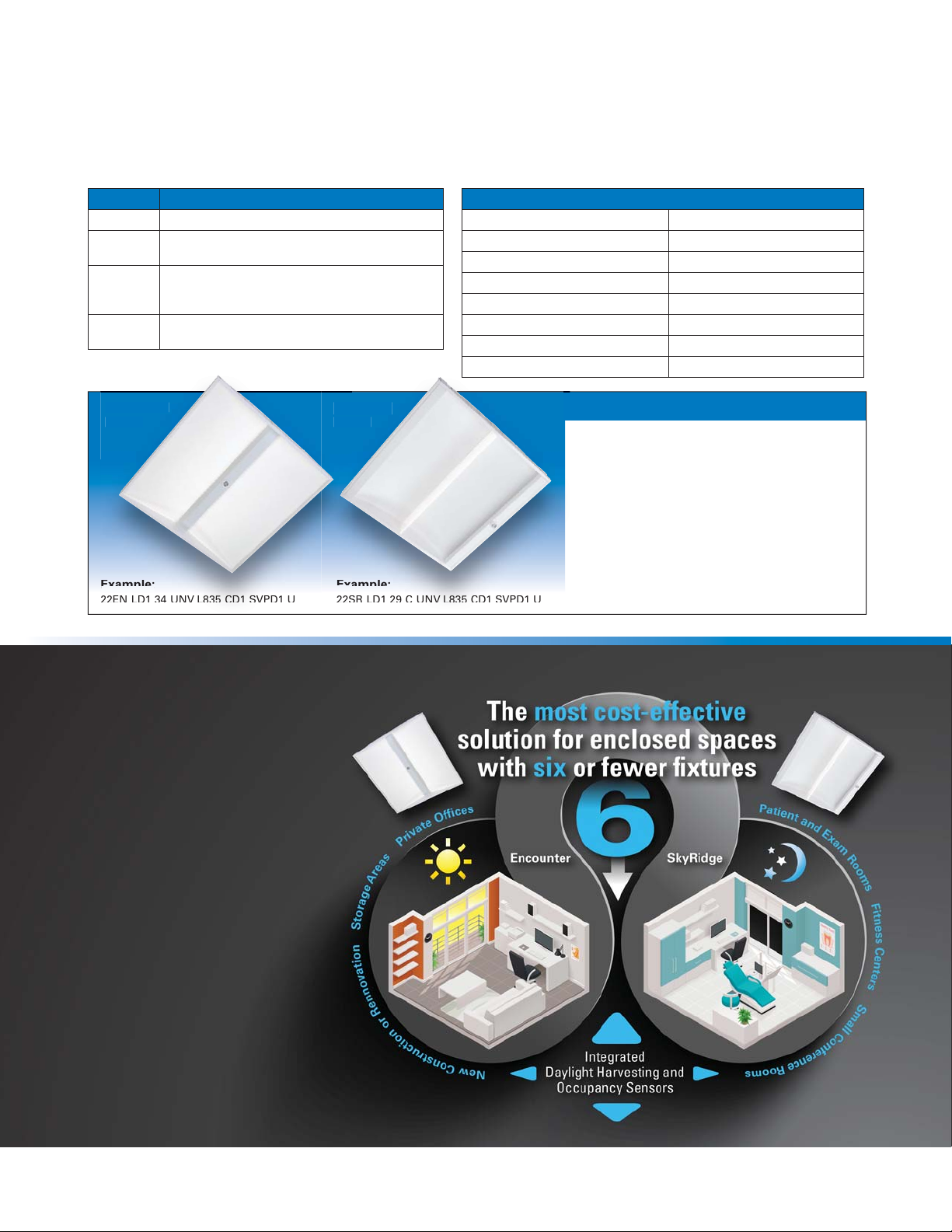

Technical Information:
mpl
mpl
e:
r
s
y
• Fully integrated in to the luminaire – no additional wiring or special
installation required
• Passive infrared occupancy detection
• Light sensor for closed-loop daylight harvesting with day, twilight
and night settings
Start Up Behavior
Item No. Action
1 Turn power ON to the fi xture.
The light will start at 50% light level and then
2
raise or lower to the daylight level.
The sensor RED LED should slow blink (ON for
3
2 seconds, OFF for 2 seconds) for a 1 minute
duration then blink only on occupancy.
Wait for next daylight adjustment/occupancy
4
action.
Factory Defaults
Occupancy Detection Auto-on, Active
Default Occupancy Time Out 20 minutes
Occupancy Sensitivity High
Energy Saver Scene 100% - Daytime Occupied Scene
Fade Up Time 32% per second using “Raise”
Fade Down Time 24% per second using “Lower”
Default Daylight Harvesting Level 500 Lux
Default Unoccupied Light Level Off
• Energy Saver setting – dim to a lower light level when
unoccupied
• Infrared receiver for programming and remote control
• Indicator light for occupancy status and programming
confirmation
EncounterTM
ncounte
Series
erie
Example:
22EN-LD1-34-UNV-L835-CD1-SVPD1-U
M
-
-
-
-
-
-
-
SkyRidgeTM
Ridge
k
Series
ies
Example:
22SR-LD1-29-C-UNV-L835-CD1-SVPD1-U
-
---
-
Today’s energy codes demand the use of controls. The cost to
add traditional occupancy sensors and daylight harvesting
controls can add up quickly, especially in smaller spaces
Metalux Encounter or SkyRidge luminaires with
the Integrated Sensor system are ideal for
new construction or retrofits in enclosed
rooms with one to six luminaires, where
both occupancy detection and daylight
harvesting control are required. When
compared to the cost of furnishing and
installing traditional occupancy and daylight
sensors in addition to the cost of the
luminaire, installing Metalux fixtures with
the Integrated Sensor saves money
and installation time.
Ordering Information
Combined with the high efficacy and low
lumen-power density of the award-winning
Metalux Encounter and SkyRidge luminaires,
the integrated sensor system is a fast, easy
way to meet or exceed strict energy codes for
both controls and lighting standards. All while
providing high user comfort and exceptional
functionality. Each unique Wavestream design
is complimented by an integrated sensor
system design by adding the option code
SVPD1 to the luminaire catalog logic. See the
-
-
-
luminaire specification sheets for more details.
Examples Uses:
• Private Offices
• Patient/Exam Rooms
• Fitness Centers
• Small Conference Rooms
• Small Classrooms
• New Construction or Rennovation
• Storage Areas
EATON Encounter and SkyRidge with Integrated Sensor Controls
2
