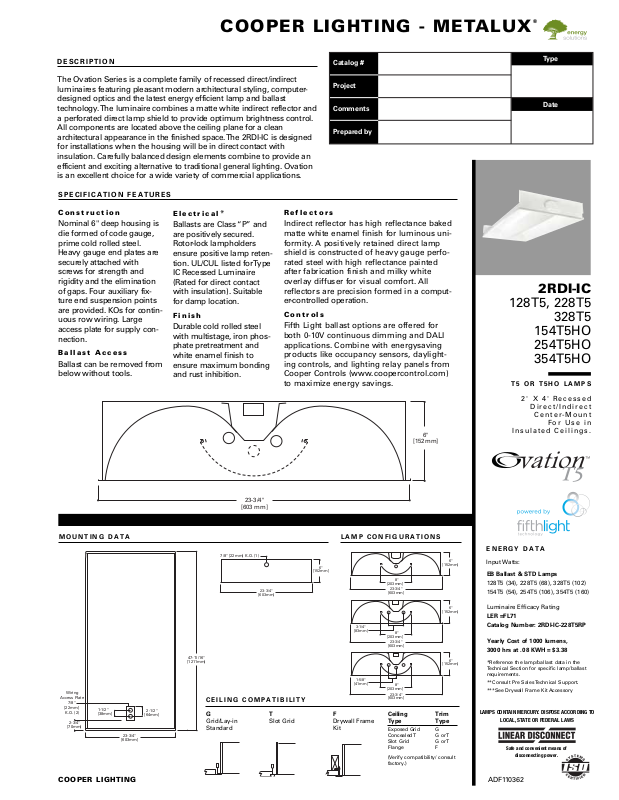

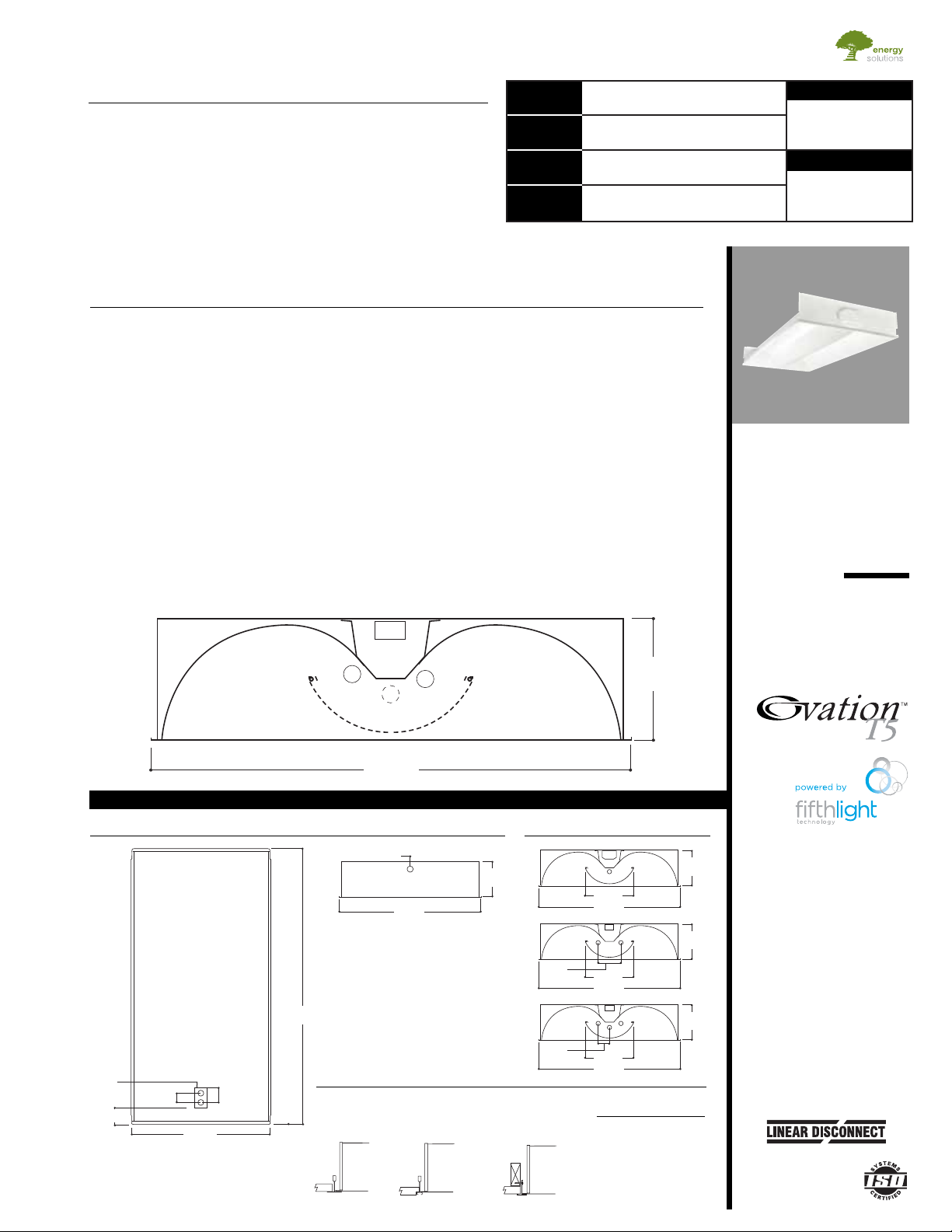

Page 1

LAMPS CONTAIN MERCURY. DISPOSE ACCORDING TO

LOCAL, STATE OR FEDERAL LAWS

Safe and convenient means of

disconnecting power.

MOUNTING DATA

COOPER LIGHTING

DESCRIPTION

The Ovation Series is a complete family of recessed direct/indirect luminaires featuring pleasant modern architectural styling, computerdesigned optics and the latest energy efficient lamp and ballast technology. The luminaire combines a matte white indirect reflector and a perforated direct lamp shield to provide optimum brightness control. All components are located above the ceiling plane for a clean architectural appearance in the finished space. The 2RDI-IC is designed for installations when the housing will be in direct contact with insulation. Carefully balanced design elements combine to provide an efficient and exciting alternative to traditional general lighting. Ovation is an excellent choice for a wide variety of commercial applications.

EB Ballast & STD Lamps

128T5 (34), 228T5 (68), 328T5 (102) 154T5 (54), 254T5 (106), 354T5 (160)

Luminaire Efficacy Rating

LER =FL71 Catalog Number: 2RDI-IC-228T5RP

Yearly Cost of 1000 lumens, 3000 hrs at .08 KWH = $3.38

*Reference the lamp/ballast data in the Technical Section for specific lamp/ballast requirements.

**Consult Pre Sales Technical Support.

***See Drywall Frame Kit Accessory

2RDI-IC

128T5, 228T5

328T5 154T5HO 254T5HO 354T5HO

T5 OR T5HO LAMPS

2' X 4' Recessed

Direct/Indirect

Center-Mount

For Use in

Insulated Ceilings.

ENERGY DATA

Input Watts:

SPECIFICATION FEATURES

Construction

Nominal 6" deep housing is die formed of code gauge, prime cold rolled steel. Heavy gauge end plates are securely attached with screws for strength and rigidity and the elimination of gaps. Four auxiliary fixture end suspension points are provided. KOs for continuous row wiring. Large access plate for supply connection.

Ballast Access

Ballast can be removed from below without tools.

Electrical*

Ballasts are Class “P” and are positively secured. Rotor-lock lampholders ensure positive lamp retention. UL/CUL listed for Type IC Recessed Luminaire (Rated for direct contact with insulation). Suitable for damp location.

Finish

Durable cold rolled steel with multistage, iron phosphate pretreatment and white enamel finish to ensure maximum bonding and rust inhibition.

LAMP CONFIGURATIONS

ADF110362

Reflectors

Indirect reflector has high reflectance baked matte white enamel finish for luminous uniformity. A positively retained direct lamp shield is constructed of heavy gauge perforated steel with high reflectance painted after fabrication finish and milky white overlay diffuser for visual comfort. All reflectors are precision formed in a computer-controlled operation.

Controls

Fifth Light ballast options are offered for both 0-10V continuous dimming and DALI applications. Combine with energysaving products like occupancy sensors, daylighting controls, and lighting relay panels from Cooper Controls (www.coopercontrol.com) to maximize energy savings.

COOPER LIGHTING - METALUX

CEILING COMPATIBILITY

Grid/Lay-in Standard

Slot Grid

Drywall Frame Kit

Ceiling Trim Type Type

Exposed Grid G Concealed T G or T Slot Grid G or T Flange F

(Verify compatibility/ consult factory.)

Catalog #

Project

Comments

Prepared by

[152mm]

Type

Date

Wiring

Access Plate

7/8"

[22mm]

K.O. (2)

[70mm]

2-3/4"

1-1/2" [38mm]

23-3/4"

[603mm]

2-1/2"

[64mm]

23-3/4"

[603 mm]

7/8" [22mm] K.O. (1)

23-3/4"

[603mm]

47-11/16"

[1211mm]

[152mm]

3-1/4"

[83mm]

1-5/8"

[41mm]

[152mm]

[203mm]

23-3/4"

[603mm]

[152mm]

[203mm]

23-3/4"

[603mm]

[152mm]

[203mm]

23-3/4"

[603mm]

Page 2

Visit our web site at www.cooperlighting.com

Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX 770.486.4801 4/13 ADF110362

Candela

Angle Along II 45° Across ⊥ 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90

1258 1258 1258 1251 1255 1258 1234 1243 1250 1205 1221 1236

1164 1190 1213

1113 11 5 1 11 8 6

1052 1103 1149

981 1048 1104 901 986 1054 814 915 1000 720 837 942 621 757 876 517 673 791

411 582 674 308 472 518 213 323 365 128 196 211

51 79 85

0 0 0

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 70% 50% 30% 10% 0%

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR

0 1 2 3 4 5 6 7 8 9

PHOTOMETRICS

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture 0-30 0-40 0-60 0-90 0-180

2RDI-IC-228T5RP

Electronic Ballast

F28T5/835 Lamps 2600 Lumens

Spacing criterion: (II) 1.2 x mounting height, (⊥) 1.3 x mounting height

Efficiency 76.9%

Test Report: 2RDI-IC-228T5RP.IES

LER = FL71

Yearly Cost of 1000 lumens, 3000 hrs at .08 KWH = $3.38

994 19.1 24.9 1648 31.7 41.2 3026 58.2 75.7 3997 76.9 100.0 3997 76.9 100.0

92 92 92 92 89 89 89 89 85 85 85 82 82 82 78 78 78 77 83 79 76 73 81 77 74 71 74 72 69 71 69 67 68 67 65 63 75 69 63 58 73 67 62 58 64 60 56 62 58 55 59 56 54 52 68 60 53 48 66 59 52 48 56 51 47 54 50 46 52 48 45 43 62 53 46 40 60 52 45 40 50 44 39 48 43 39 46 42 38 37 57 47 40 34 55 46 39 34 44 38 34 43 38 33 41 37 33 31 53 42 35 30 51 41 35 30 40 34 29 39 33 29 37 33 29 27 49 38 31 26 47 37 31 26 36 30 26 35 30 26 34 29 26 24 45 35 28 23 44 34 28 23 33 27 23 32 27 23 31 26 23 21 42 32 25 21 41 31 25 21 30 25 21 30 24 21 29 24 20 19 40 29 23 19 39 29 23 19 28 23 19 27 22 19 27 22 19 17

2RDI-IC

Luminance Data

Average Average Average Angle 0-Deg 45-Deg 90-Deg in Deg cd/sm cd/sm fcd/sm

45 55 65 75 85

1686 1895 2071 1585 1933 2236 1424 2017 2335 1205 1827 2065 857 1327 1428

Page 3

ORDERING INFORMATION

SAMPLE NUMBER: 2RDI-IC-228T5RP-120V-EBT1-U

Visit our web site at www.cooperlighting.com

Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX 770.486.4801 4/13 ADF110362

2RDI-IC-128T5RP 28 lbs. 2RDI-IC-228T5RP 28 lbs. 2RDI-IC-328T5RP 28 lbs. 2RDI-IC-154T5RP 28 lbs. 2RDI-IC-254T5RP 28 lbs. 2RDI-IC-354T5RP 28 lbs.

SHIPPING INFORMATION

Catalog No. Wt.

2RDI-IC

NOTES:

(1)

2' x 2' and 2' x 4' Center Lamp Shield models only.

(2)

Products also available in non-US voltages and

frequencies for international markets.

(3)

An EQ Grid Clip is recommended for all 9/16" ceiling systems. Four

required per fixture.

(4)

.90 ballast factor available for 2 or 3 14W T5 or 28W T5 lamps only.

(5)

1-Lamp step dimming

ballast in a Normal Ballast f actor not available. 2-Lamp ballast will not operate 1-Lamp.

(6)

1-Lamp ballast in a High

Ballast factor not available.

(7)

For a complete listing of Fifthlight Technology products and other solutions from Cooper

Controls, visit www.coopercontrol.com.

(8)

0-10V ballast do not include DALI feature. Please select DALI ballast for use

with Fifth Light system.

(9)

Specification grade 0-10V dimming ballast are NEMA premium and CEE listed. They are com-

patible with low mercury and energy saving lamps.

(10)

Specification Grade 0-10V ballast not offered in 3 or 4-lamp ver-

sions.

(11)

Standard 0-10V ballast not offered in 3 or 4-lamp versions.

For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting Representative for availability and ordering information.

Number of Lamps 1=1 Lamp 2=2 Lamps 3=3 Lamps

Wattage 28T5=28W T5

(48")

(1)

54T5=54W T5HO

(48")

(1)

Voltage

(2)

120V=120 Volt 277V=277 Volt 347V=347 Volt UNV=Universal Voltage

120-277

Lamp Shield RP=Round Perforated

White Steel

Trim Type Blank=Grid/Lay-in

(Standard)

Width 2= 2' Width

Series RDI=Ovation Series

(Recessed Direct/Indirect)

Lamp Position Blank=Center Mounted Lamps (Standard)

Options GL=Single Element Fuse GM=Double Element Fuse Lamps=Lamps installed Flex=Flex Installed EL=Emergency Installed

Options RIF1=Radio

Interference Suppressor LSC=Lamp Shield Cable ST=Semi-Specular Tannenbaum

Packaging U=Unit Pack PALC=Job Pack, in Carton

ACCESSORIES

EQ-CLIP-U=T-BAR Safety

Earthquake Clips

(3)

DF-24-W=Drywall Frame Kit

Rating Blank=

Standard NY=New York City Rated ATW-SW4= Chicago Rated

Type IC=IC Rated

Ballast Type EBT

=T5 or T5HO Electronic Program Rapid Start.

Total Harmonic Distortion < 10%. Standard Ballast Factor=1.0

Ballast/FactorType

EBT N=T5 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%. Normal Ballast Factor=.90

(4)

EBT H=T5 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%. High Ballast Factor=1.15

(6)

EBT NDIM=T5 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%. Step Dimming, Normal Ballast Factor=.95-1.0

(5)

EBT HDIM=T5 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%. Step Dimming, High Ballast Factor=1.15

0-10V Dimming Ballasts

(8)

5LTV5 =T5 0-10V Program Rapid Start.

Total Harmonic Distortion < 10%. Ballast Factor 1.0

(11)

5LTVS5 =T5 0-10V Spec Grade Program Rapid Start.

Total Harmonic Distortion < 10%. Ballast Factor 1.0

(9), (10)

5LTV5H =T5HO 0-10V Program Rapid Start.

Total Harmonic Distortion < 10%. Ballast Factor 1.0

(11)

5LTVS5H =T5HO 0-10V Spec Grade Program Rapid

Start. Total Harmonic Distortion < 10%. Ballast Factor 1.0

(9), (10)

Fifth Light DALI Ballasts

(7)

5LT5 =T5 DALI Program Rapid Start.

Total Harmonic Distortion < 10%. Ballast Factor 1.0

5LT5H

=T5HO DALI Program Rapid Start.

Total Harmonic Distortion < 10%. Ballast Factor 1.0

Number of Ballasts 1=1 Ballast 2=2 Ballasts 3=3 Ballasts
