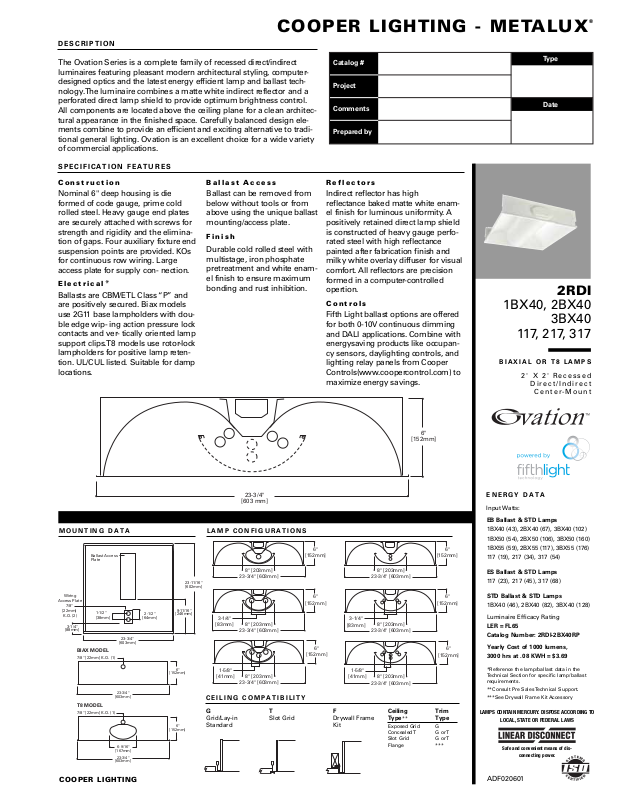

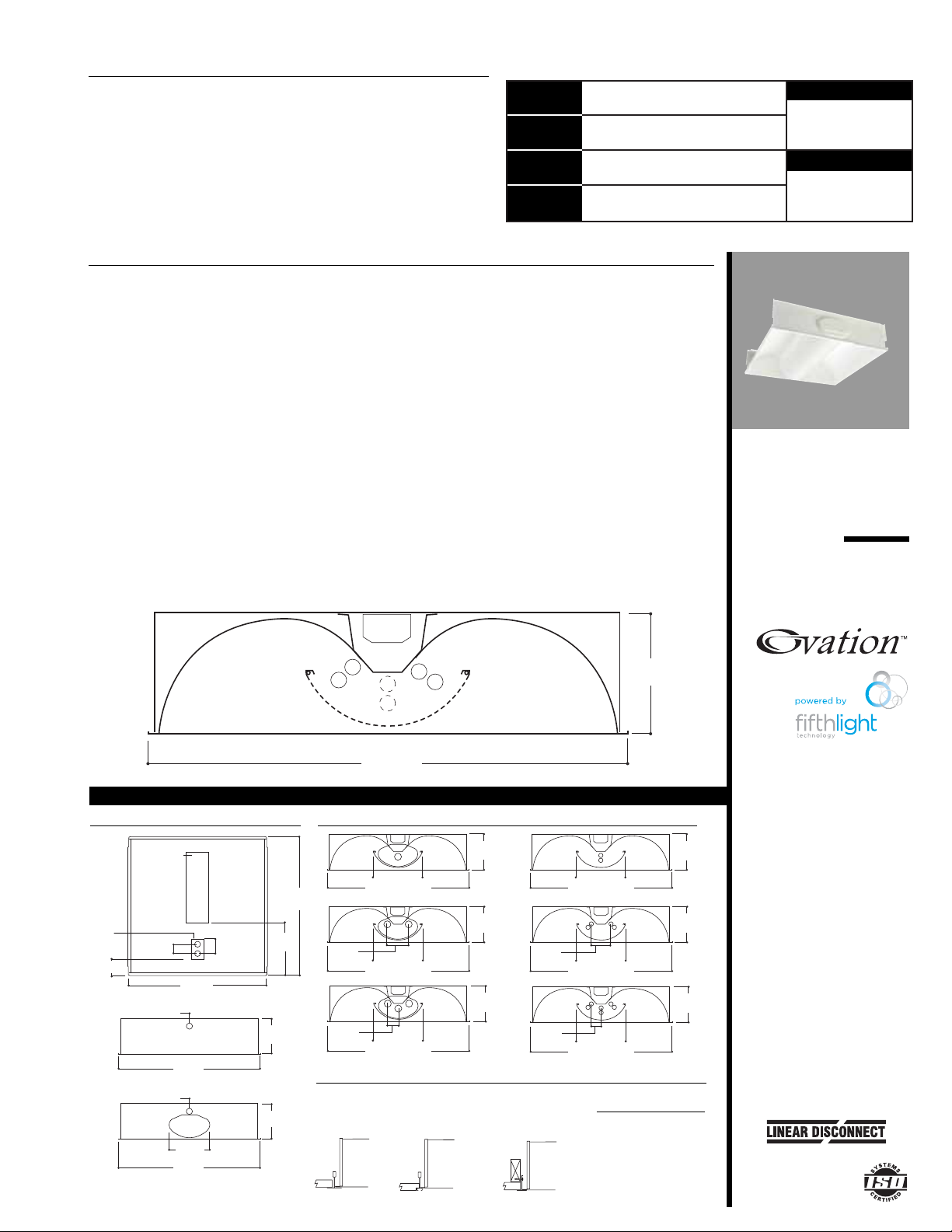

Cooper Lighting LLC CPK1826 Specifications

COOPER LIGHTING - METALUX

®

LAMPS CONTAIN MERCURY. DISPOSE ACCORDING TO

LOCAL, STATE OR FEDERAL LAWS

Safe and convenient means of dis-

connecting power.

DESCRIPTION

The Ovation Series is a complete family of recessed direct/indirect
luminaires featuring pleasant modern architectural styling, computer­designed optics and the latest energy efficient lamp and ballast tech­nology.The luminaire combines a matte white indirect reflector and a
perforated direct lamp shield to provide optimum brightness control.
All components are located above the ceiling plane for a clean architec­tural appearance in the finished space. Carefully balanced design ele­ments combine to provide an efficient and exciting alternative to tradi­tional general lighting. Ovation is an excellent choice for a wide variety
of commercial applications.

EB Ballast & STD Lamps

1BX40 (43), 2BX40 (67), 3BX40 (102)
1BX50 (54), 2BX50 (106), 3BX50 (160)
1BX55 (59), 2BX55 (117), 3BX55 (176)
117 (19), 217 (34), 317 (54)

ES Ballast & STD Lamps

117 (23), 217 (45), 317 (68)

STD Ballast & STD Lamps

1BX40 (46), 2BX40 (82), 3BX40 (128)

Luminaire Efficacy Rating

LER = FL65
Catalog Number: 2RDI-2BX40RP

Yearly Cost of 1000 lumens,
3000 hrs at .08 KWH = $3.69

*Reference the lamp/ballast data in the
Technical Section for specific lamp/ballast
requirements.

**Consult Pre Sales Technical Support.

***See Drywall Frame Kit Accessory

2RDI

1BX40, 2BX40

3BX40

11 7, 2 1 7, 3 1 7

BIAXIAL OR T8 LAMPS

2' X 2' Recessed

Direct/Indirect

Center-Mount

ENERGY DATA

Input Watts:

Construction

Nominal 6" deep housing is die
formed of code gauge, prime cold
rolled steel. Heavy gauge end plates
are securely attached with screws for
strength and rigidity and the elimina­tion of gaps. Four auxiliary fixture end
suspension points are provided. KOs
for continuous row wiring. Large
access plate for supply con- nection.

Electrical*

Ballasts are CBM/ETL Class “P” and
are positively secured. Biax models
use 2G11 base lampholders with dou­ble edge wip- ing action pressure lock
contacts and ver- tically oriented lamp
support clips.T8 models use rotor-lock
lampholders for positive lamp reten­tion. UL/CUL listed. Suitable for damp
locations.

Ballast Access

Ballast can be removed from
below without tools or from
above using the unique ballast
mounting/access plate.

Finish

Durable cold rolled steel with
multistage, iron phosphate
pretreatment and white enam­el finish to ensure maximum
bonding and rust inhibition.

COOPER LIGHTING

MOUNTING DATA

LAMP CONFIGURATIONS

SPECIFICATION FEATURES

ADF020601

Reflectors

Indirect reflector has high
reflectance baked matte white enam­el finish for luminous uniformity. A
positively retained direct lamp shield
is constructed of heavy gauge perfo­rated steel with high reflectance
painted after fabrication finish and
milky white overlay diffuser for visual
comfort. All reflectors are precision
formed in a computer-controlled
opertion.

Controls

Fifth Light ballast options are offered
for both 0-10V continuous dimming
and DALI applications. Combine with
energysaving products like occupan­cy sensors, daylighting controls, and
lighting relay panels from Cooper
Controls(www.coopercontrol.com) to
maximize energy savings.

1-5/8"

[41mm]

6"

[152mm]

23-3/4" [603mm]

8" [203mm]

CEILING COMPATIBILITY

G

Grid/Lay-in
Standard

T

Slot Grid

F

Drywall Frame
Kit

Ceiling Trim
Type** Type

Exposed Grid G
Concealed T G or T
Slot Grid G or T
Flange ***

Catalog #

Project

Comments

Prepared by

Type

Date

Access Plate

Ballast Access
Plate

Wiring

7/8"

[22mm]

K.O. (2)

[88mm]

3-1/4"

BIAX MODEL

7/8" [22mm] K.O. (1)

T8 MODEL

7/8" [22mm] K.O. (1)

1-1/2"
[38mm]

23-3/4"

[603mm]

23-3/4"

[603mm]

6-9/16"

[167mm]

23-3/4"

[603mm]

2-1/2"

[64mm]

9-11/16"

[246mm]

6"

[152mm]

6"

[152mm]

23-3/4"

[603 mm]

8" [203mm]

3-1/4"

[83mm]

23-3/4" [603mm]

8" [203mm]

23-3/4" [603mm]

23-11/16"
[602mm]

6"

[152mm]

6"

[152mm]

3-1/4"

[83mm]

1-5/8"

[41mm]

8" [203mm]

23-3/4" [603mm]

8" [203mm]

23-3/4" [603mm]

8" [203mm]

23-3/4" [603mm]

6"

[152mm]

6"

[152mm]

6"

[152mm]

6"

[152mm]

Visit our web site at www.cooperlighting.com

Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX [phone] ADF020601

Candela

Angle Along II 45° Across ⊥

0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90

1701 1701 1701
1701 1698 1700
1677 1682 1689
1634 1648 1665
1574 1599 1631
1497 1539 1587
1406 1468 1533
1301 1386 1465
1182 1292 1381
1052 1186 1282

912 1067 1167
762 933 1029
610 792 867
465 637 683
334 466 520
217 305 362

119 176 205

48 66 72

00 0

Typical VCP Percentages

Height Along Height Across

Room Size (Ft.) 8.5’ 10.0’ 8.5’ 10.0’

20 x 20
30 x 30
30 x 60
60 x 30
60 x 60

PHOTOMETRICS

2RDI-2BX40RP

Electronic Ballast

F40BX/35K/RS Lamps
3150 Lumens

Spacing criterion:
(II) 1.2 x mounting
height, (⊥) 1.3 x
mounting height

Efficiency 78.2%

Test Report:
2RDI2BX40RP.IES

LER = FL65

Yearly Cost of 1000
lumens, 3000 hrs at
.08 KWH = $3.69

1339 21.2 27.2
2205 35.0 44.8

3932 62.4 79.8
4926 78.2 100.0
4926 78.2 100.0

48 54 41 48
44 46 38 40
43 43 35 35
47 48 43 45
44 44 38 38

93 93 93 93 91 91 91 91 87 87 87 83 83 83 80 80 80 78
86 82 79 76 84 81 78 75 77 75 73 74 72 71 71 70 69 67
79 73 68 63 77 71 66 63 68 64 61 66 63 60 63 61 58 57
72 64 58 53 70 63 57 53 61 56 52 59 55 51 57 53 50 49
66 57 51 46 64 56 50 45 54 49 45 52 48 44 51 47 43 42
60 50 44 38 59 50 43 38 48 42 38 46 41 37 45 41 37 35
55 45 38 33 54 44 38 33 43 37 33 42 36 33 40 36 32 31
51 40 34 29 50 40 33 29 39 33 29 37 32 28 36 32 28 27
47 36 30 25 46 36 29 25 35 29 25 34 28 25 33 28 24 23
43 32 26 21 42 32 26 21 31 25 21 30 25 21 29 25 21 20
40 29 23 19 39 29 23 19 28 23 19 28 22 19 27 22 19 17

2RDI

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 70% 50% 30% 10% 0%

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR

0
1
2
3
4
5
6
7
8
9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30
0-40
0-60
0-90
0-180

ORDERING INFORMATION

Visit our web site at www.cooperlighting.com

Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX [phone] ADF020601

2RDI

NOTES:

(1)

2' x 2' and 2' x 4' Center Lamp Shield models only.

(2)

Products also available in

non-US voltages and frequencies for international markets.

(3)

Not available in UNV voltages.

Must specify voltage.

(4)

An EQ Grid Clip is recommended for all 9/16" ceiling systems. Four

required per fixture.

(5)

For a complete listing of Fifthlight Technology products and other solutions

from Cooper Controls, visit www.coopercontrol.com.

(6)

0-10V ballast do not include DALI feature.

Please select DALI ballast for use with Fifth Light system.

(7)

Specification grade 0-10V dimming bal­last are NEMA premium and CEE listed. They are compatible with low mercury and energy saving
lamps.

(8)

Specification Grade 0-10V ballast not available for Biax lamps.

(9)

Specification Grade 0-

10V ballast not offered in 3 or 4-lamp versions.

(10)

Standard 0-10V ballast not available for Biax

lamps.

(11)

Standard 0-10V ballast not offered in 3 or 4-lamp versions.

For complete product data, reference the Fluorescent Specification binder. Specifications &
dimensions subject to change without notice. Consult your Cooper Lighting Representative for
availability and ordering information.

SAMPLE NUMBER: 2RDI-2BX40RP-120V-EB51-U

Number
of Lamps
1=1 Lamp
2= 2 Lamp
3= 3 Lamp

Wattage
17=17W T8 (24")
BX40=40W Biax (24")
BX50=50W Biax (24")

(1)

BX55=55W Biax (24")

(1)

Voltage

(2)

120V=120 Volt
277V=277 Volt
347V=347 Volt
UNV=Universal

Voltage 120-277

Lamp Shield
X=Solid Matte White
RP=Round Perforated

White Steel

Options
Lamps=Lamps Installed
GL=Single Element Fuse
GM=Double Element Fuse
Flex=Flex Installed
EL=Emergency Installed

Options
RIF1=Radio

Interference
Suppressor
REP=Riveted
Endplates, for
use in New York City.
ST=Semi-Specular
Tannenbaum Main
Reflector
LSC=Lamp Shield
Cable
RLS=Rotor-Lock
Socket

(T8 Lamps Only)

Packaging
U=Unit Pack
PALC=Job Pack,

in carton

2RDI-1BX40RP 19 lbs.
2RDI-2BX40RP 19 lbs.
2RDI-3BX40RP 19 lbs.
2RDI-117RP 19.5 lbs.
2RDI-217RP 19.5 lbs.
2RDI-317RP 19.5 lbs.

SHIPPING INFORMATION

Catalog No. Wt.

Rating
Blank=

Standard
NY=New York
City Rated
ATW-SW4=
Chicago
Rated

Trim Type
Blank=Grid/Lay-in

(Standard)

Width
2=2' Width

Series
RDI=Ovation

Series
(Recessed
Direct/Indirect)

Lamp Position
Blank=Center

Mounted Lamps
(standard)

ACCESSORIES

EQ-CLIP-U=T-BAR Safety Earthquake Clips

(4)

DF-22-W=Drywall Frame Kit

Ballast Type
Blank=Standard Magnetic Ballast (40W Biax only)
EB8

=T8 Electronic Start.

Total Harmonic Distortion < 10%

EB8

/PLUS= T8 Electronic Start.

Total Harmonic Distortion < 10%.
High Ballast Factor > 1.15.

ER8

=T8 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%

EB5

=T5 Biax Electronic Instant Start

Total Harmonic Distortion < 20%

(3)

TEB5 =T5 Biax Electronic Instant Start

Total Harmonic Distortion < 10%

(3)

ER5 =T5 Biax Electronic Program Rapid Start.

Total Harmonic Distortion < 10%

High Performance T8 Ballasts
HB8

=T8 Electronic Instant Start.

Total Harmonic Distortion < 10%.
Standard Ballast Factor .86 – .88

HB8

L=T8 Electronic Instant Start.

Total Harmonic Distortion < 10%.
Low Ballast Factor .77 – .82

HB8

N=T8 Electronic Instant Start.

Total Harmonic Distortion < 10%.
Normal Ballast Factor 1.0

HB8

H=T8 Electronic Instant Start.

Total Harmonic Distortion < 10%.
High Ballast Factor 1.15 – 1.20

HR8

T8 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%.
Standard Ballast Factor .86 – .88

HR8

DIM=T8 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%.
Step Dimming. Ballast Factor .88

HR8

L=T8 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%.
Low Ballast Factor .71 – .79

HR8

H=T8 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%.
High Ballast Factor 1.15 – 1.20

0-10V Dimming Ballasts

(6)

5LTV8=T8 0-10V Program Rapid Start.

Total Harmonic Distortion < 10%.

Ballast Factor 0.87

(10), (11)

5LTVS8 =T8 0-10V Spec Grade Program Rapid Start.

Total Harmonic Distortion < 10%.

Ballast Factor 0.87

(7), (8), (9)

Fifth Light DALI Ballasts

(5)

5LT8 =T8 DALI Program Rapid Start.

Total Harmonic Distortion < 10%.
Ballast Factor 1.0

5LT5B

=T5 Biax DALI Program Rapid Start.

Total Harmonic Distortion < 10%.
Ballast Factor 1.0

Number of Ballasts
1=1 Ballast
2=2 Ballasts
3=3 Ballasts
